If you take a look at our price list, we have lots of standard sizes. Some of those sizes are perfect for replacing the two most common sizes of an old up and over door fitted on a 70mm frame. We call them the renovating sizes.
The four standard heights and two standard widths below allow for renovating with a sectional door fitted behind or within the reveal.
That means no blenders needed to cover gaps left by EU sizes from other manufacturers, just the ideal size every time.
Here’s how it works, just use the standard widths and heights from the price list of:

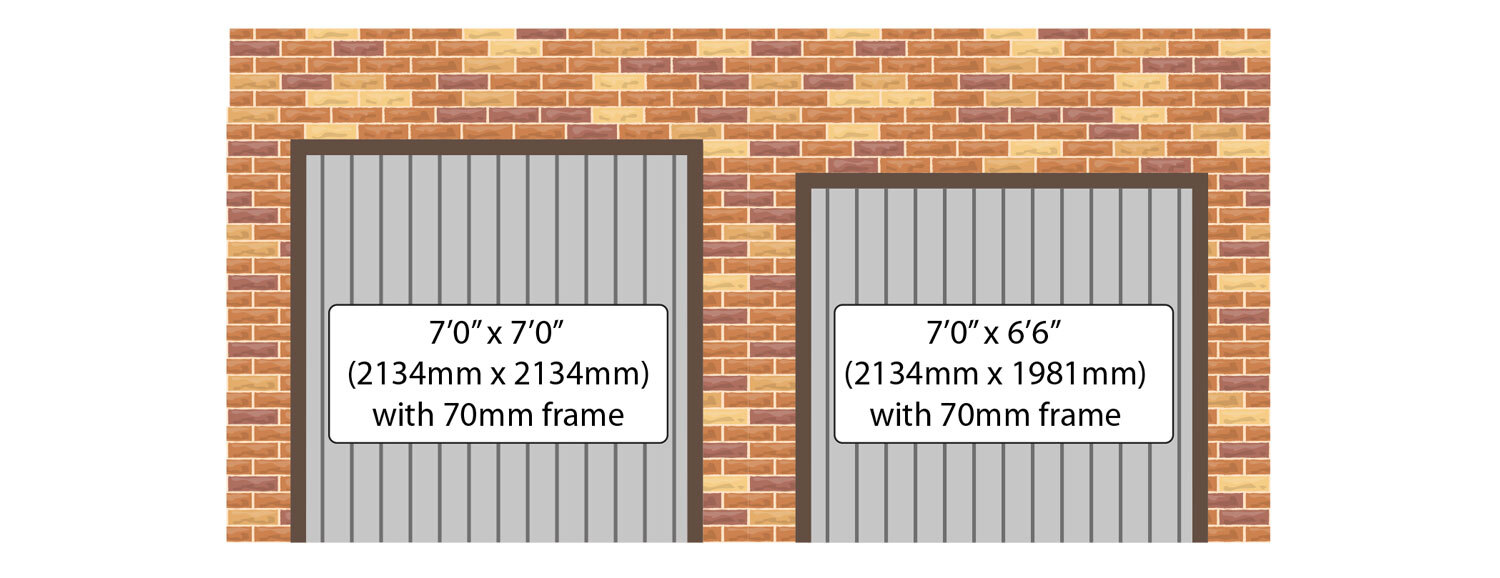

7’0” x 7’0” (2134mm x 2134mm) Up & Over replacement:

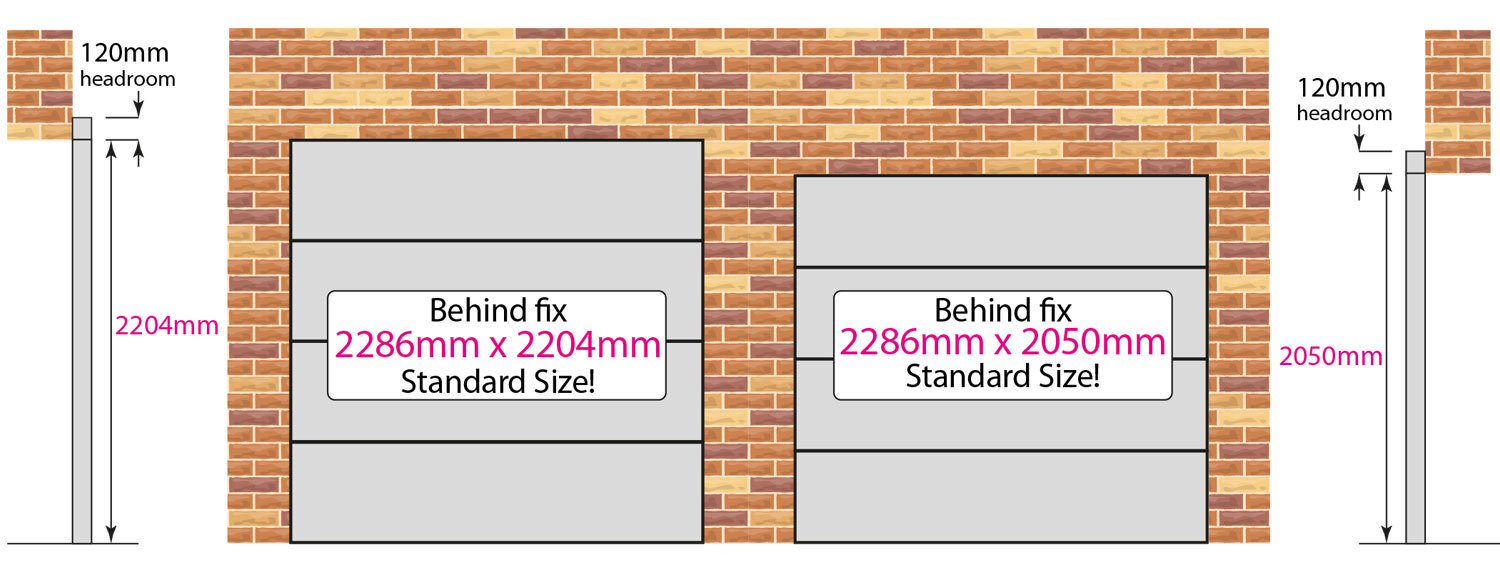

Behind reveal fix - 2286mm x 2204mm (90mm frame legs & 120mm head)

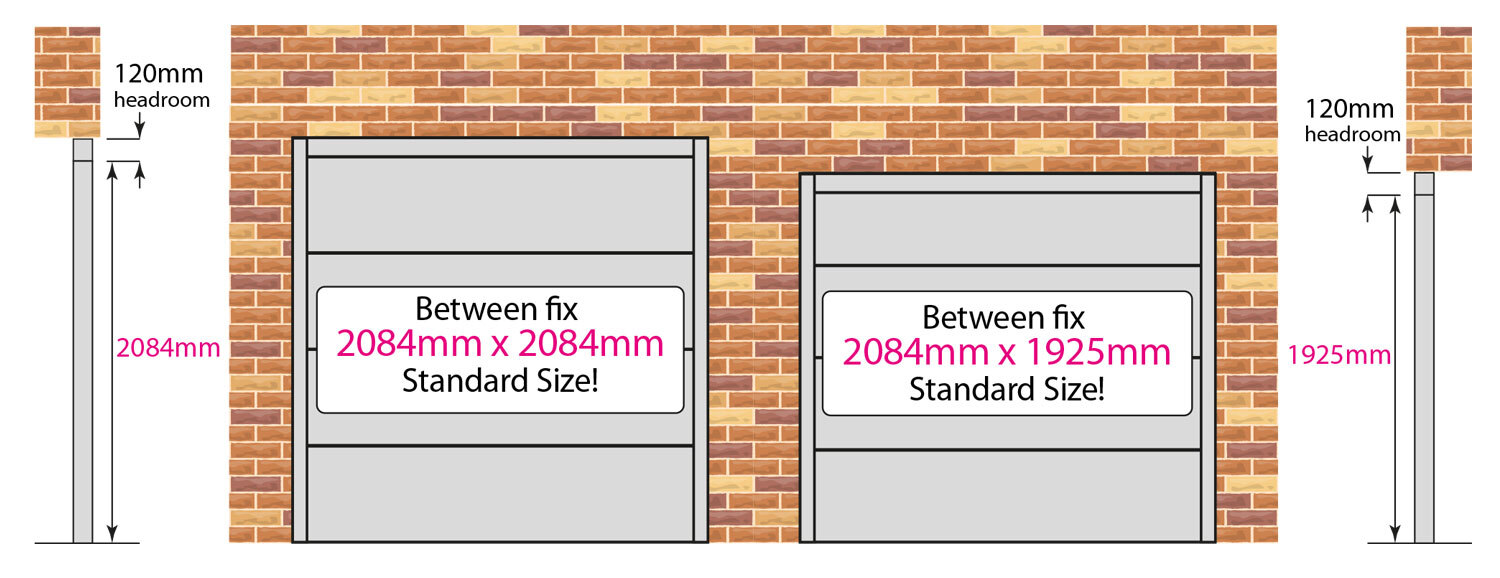

Between reveal fix - 2084mm x 2084mm (90mm frame legs & 120mm head)
7’0” x 6’6” (2134mm x 1981mm) Up & Over replacement:
Behind reveal fix - 2286mm x 2050mm (90mm frame legs & 120mm head)
Between reveal fix - 2084mm x 1925mm (90mm frame legs & 120mm head)

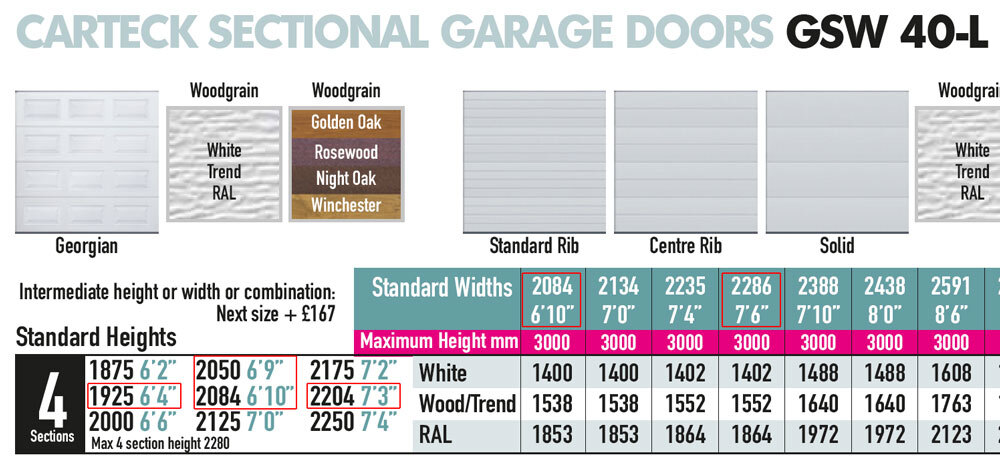

Here they are highlighted in the price list:
