Core Performance Characteristics

Stainless steel provides remarkably versatile solutions - popular in architectural settings for its contemporary, pure aesthetic yet hardworking in industry for its durability. Teckentrup offers a large part of its product range in high quality stainless steel.

  • Hygiene: food technology, medicine, laboratories, pharmacy, sanitary rooms, etc
  • Wet rooms: indoor pools, saunas
  • Environment with aggressive agents: chemical industry, paint shops, etc
  • At high stress: subway stations, schools, service areas, etc

The Teckentrup 62 modular system allows for 1000s of possible combinations, making the complex simple. Find out more



High performance

Aesthetics

Products with Fire, Smoke, Acoustic, Pressure, Security and Thermal performance capability are all certified in both steel and stainless steel for full compliance.

This refined and almost indestructible material with high-grade design aesthetics ensures attractive, unmistakable solutions.

In the areas where hygiene and cleanliness are the top priority, the use of doors and frames made of stainless steel is indispensable.

Stainless steel requires expert processing of the metal to ensure finish and construction are of a high quality:
  • Special welding procedures
  • Welds are carefully ground
  • All doors supplied according to the required specification and with certified approvals
Teckentrup stainless steel doors and doorsets are tested to:
  • EN1634-1 achieving 120 minutes fire integrity and 60 minutes fire insulation
  • DIN EN 20140 and evaluated in accordance with DIN EN ISO717 Part 1 achieving from Rw 37dB to RW41dB
  • European Security Standard EN1627 achieving RC2, RC3 & RC4 ratings
  • LPS 1175 ISSUE 8 Security Standard achieving A1 (SR1), B3 (SR2) C5 (SR3) & D10 (SR4) ratings
  • LPS 2081 A & B ratings
  • European Standards EN1628 & 1629 for static and dynamic loading
  • ISO12567-1 achieving a UD value of 1.1 W/m2/K°
  • EN12207 for air permeability achieving Class 2/4* for a single and Class 1/3* for a double leaf door * Single point/Multi-point locking
  • EN12208 for water tightness achieving Class 7A for a single and Class 6A for a double leaf door
  • EN12210 for wind resistance achieving Class 3/5 for a single and Class 1/3 for a double leaf door
  • A 62mm insulated door set, fitted with heavy duty ‘KO’ hinges has been tested to EN1191 for repeated opening and closing to C5 level – 200,000 cycles

Hardware & Finishes

Attractive and aesthetic

Design-led fittings such as handles, hinges and overhead door closers add visual accents and meet requirements for functionality and ergonomics.

Stainless steel creates striking combinations of form and light. Its surface structure shapes the look of interiors with shiny and matt surfaces to create interesting visual effects.

The choice of surfaces are:

Stainless steel surfaces

Circularly ground (marbled) or 240 grit honed. (Linen surface texture on request).

The use of different stainless steel qualities depends on the environmental conditions at the place of use, e.g. contact with alkalis, acids etc., and must be specified when ordering.

Materials available:

- Standard V2A steel (material No. 1.4301)

- V4A steel (material number 1.4571) at higher requirements for chemical resistance or resistance to aggressive environmental influences.

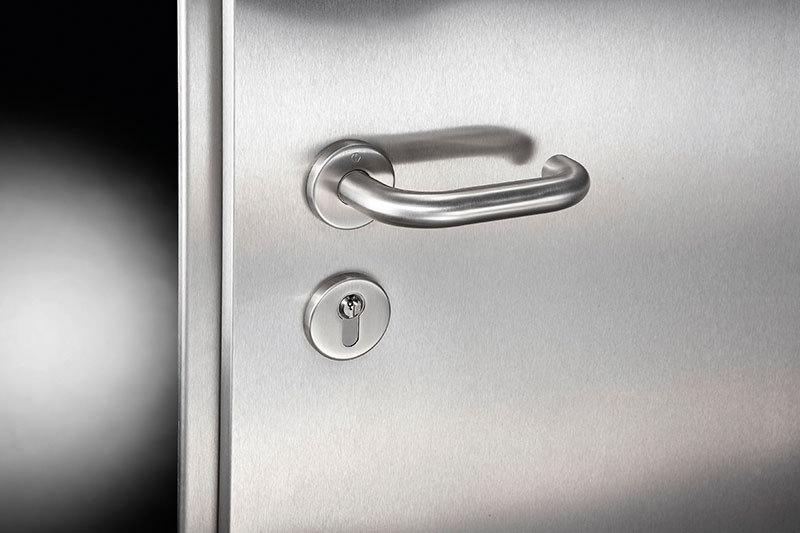

Door leaf, 240 grit honed, with Rosette handle set

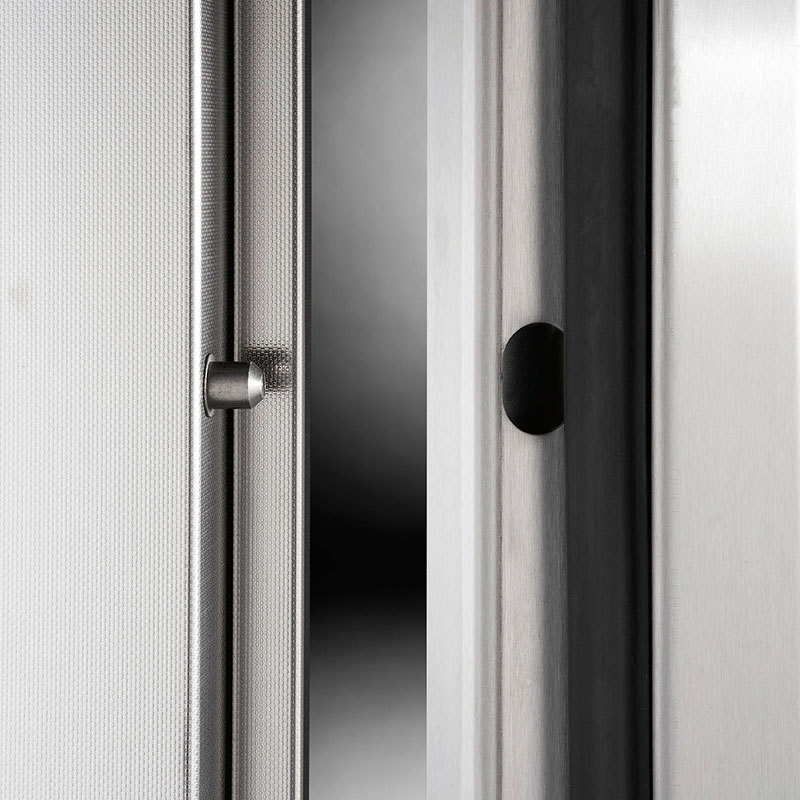

Stainless steel security pins

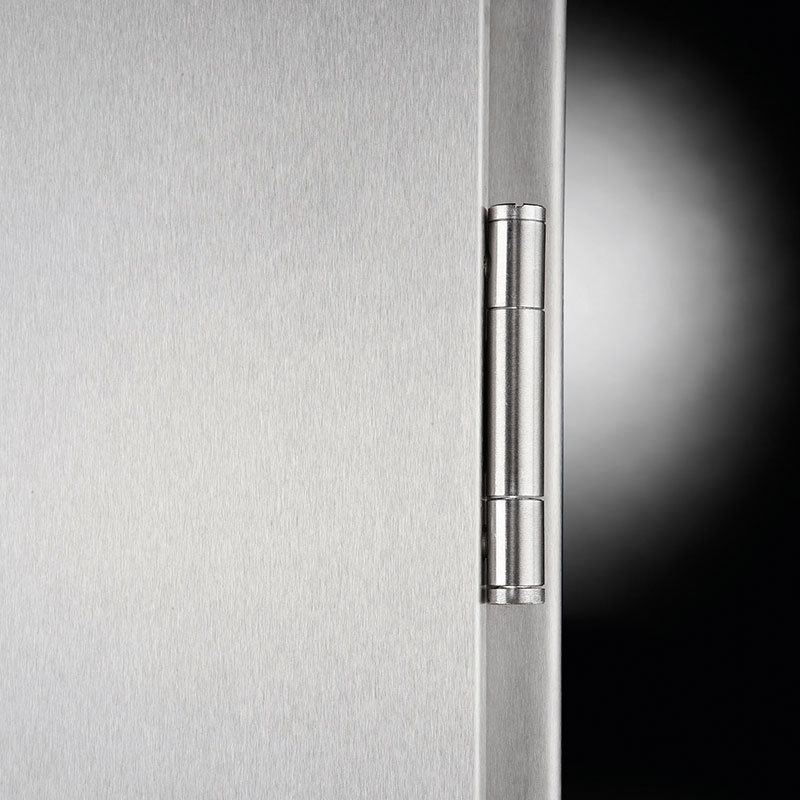

Stainless steel hinges

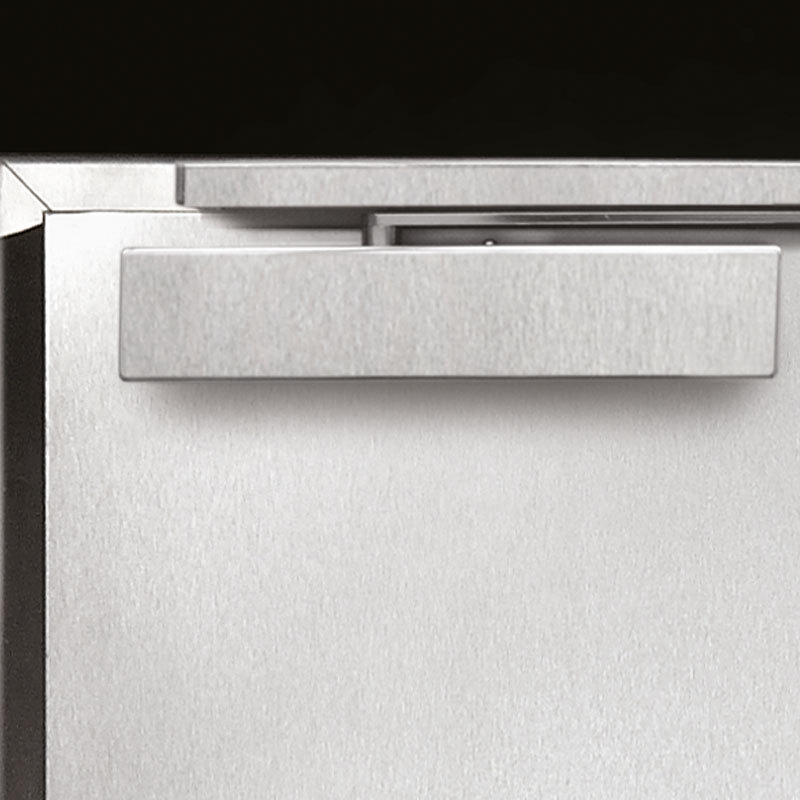

Stainless steel door closers





We live in your world...

Delivering a project from conception to handover is an undertaking that requires many elements to work together...

Teckentrup understands the language of complex projects; how to design a solution for the building not just a door, but how to provide drawings in the right way, how to deliver the door, how to manage project timeframe shifts, how to work seamlessly within the contract process and provide product of certified and documented capability.

Design Manager

“Non-compliance is everywhere!”
– Design Manager

“We don’t do non-compliance and see the specification and the contract as the simplest route to make things work smoothly for everyone.”

Teckentrup Logo
Procurement QS

“Only bring me compliant product!”
– Procurement Quantity Surveyor

“Teckentrup ensures products are tested to the performance standards claimed and are suited to the performance specified.”

Teckentrup Logo
Project Engineer

“We have to get the job complete and I need you to play your part”
– Project Engineer

“We become "your door department", ensuring potential issues are headed off and installation runs to plan.”

Teckentrup Logo

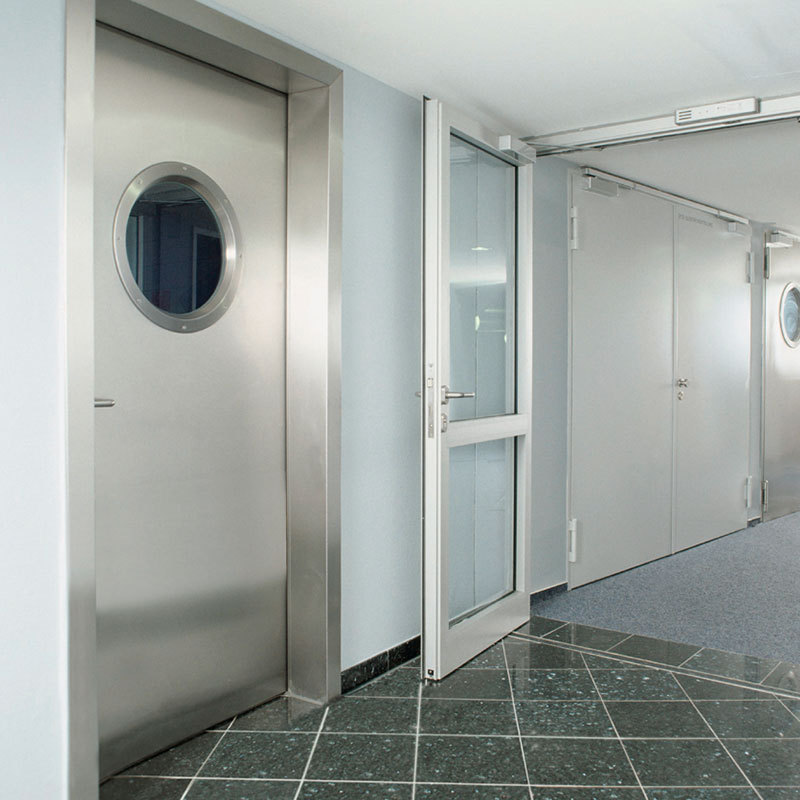

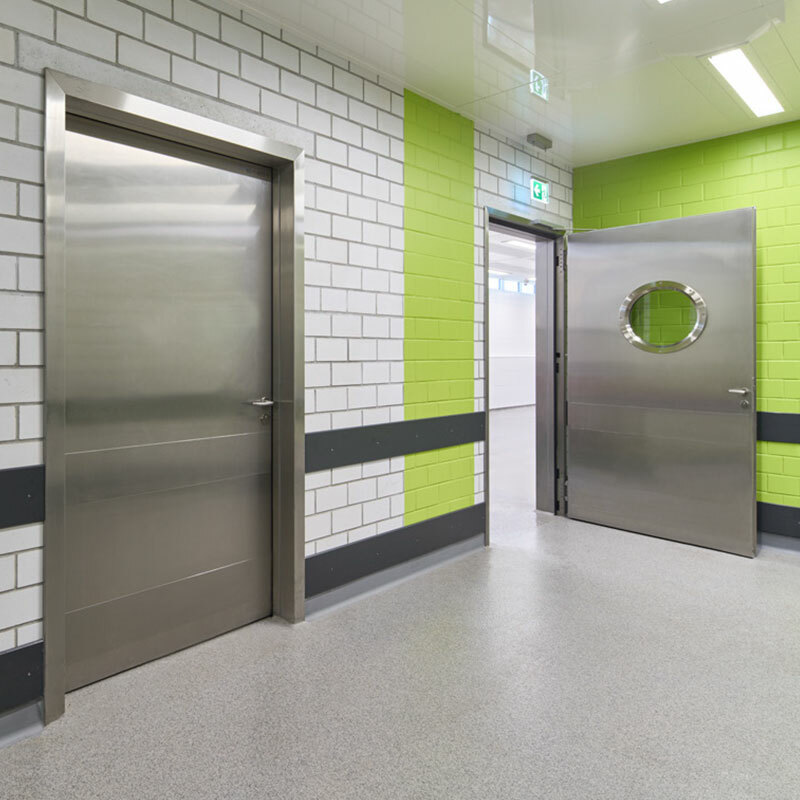

Teckentrup Steel Door Stainless Steel Location Corridor

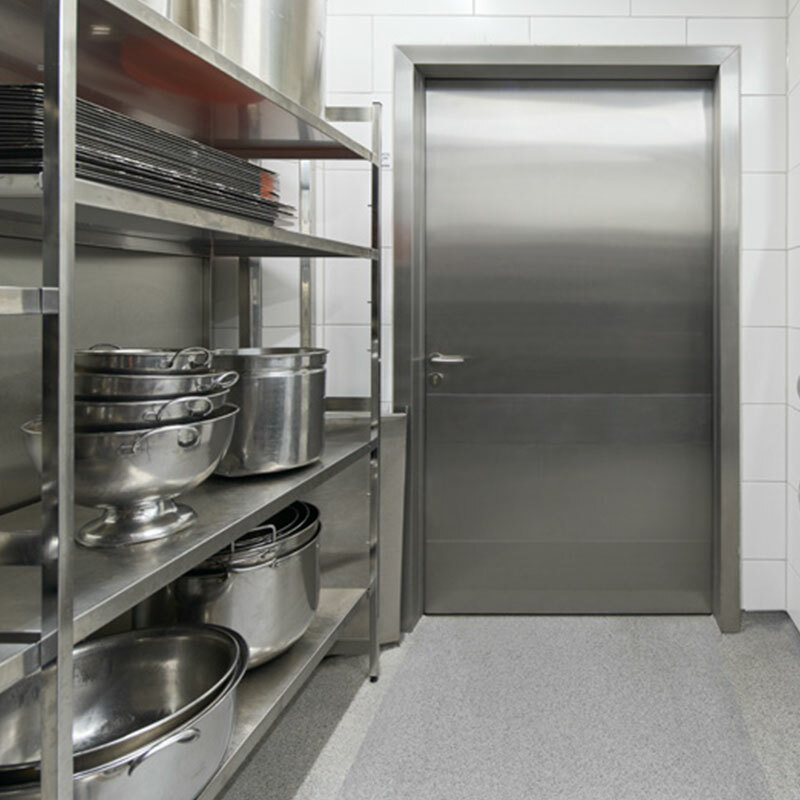

Teckentrup Steel Door Stainless Steel Location Kitchen

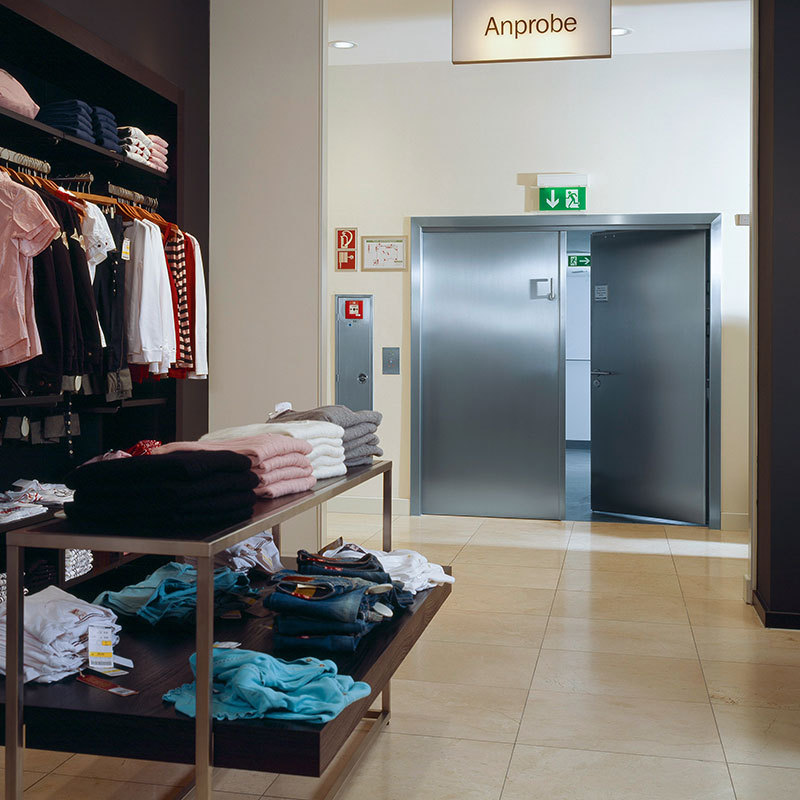

Stainless steel fire door in the retail sector

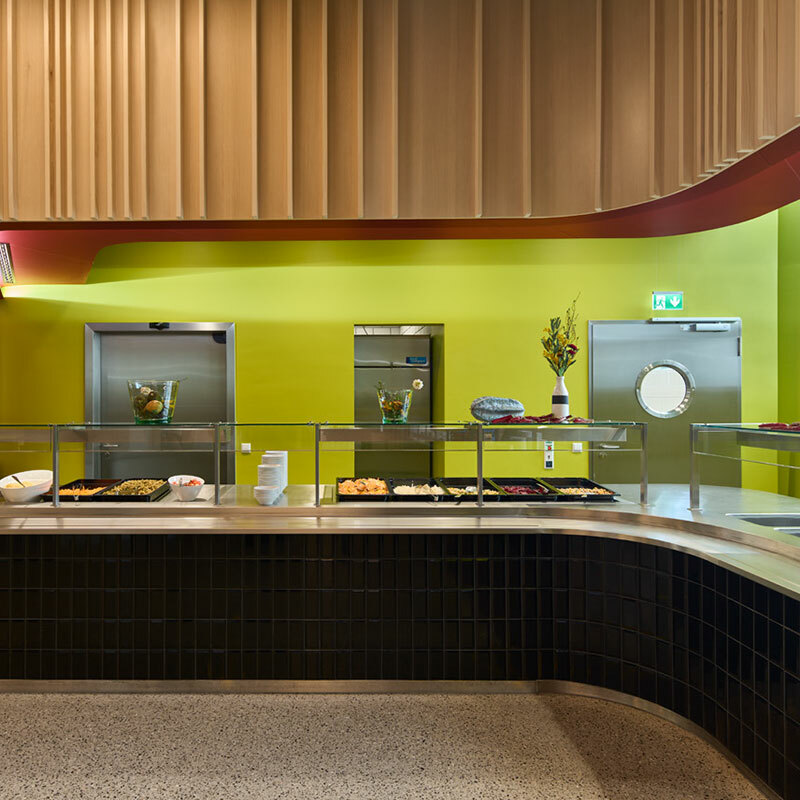

Teckentrup Steel Door Stainless Steel Location Servery

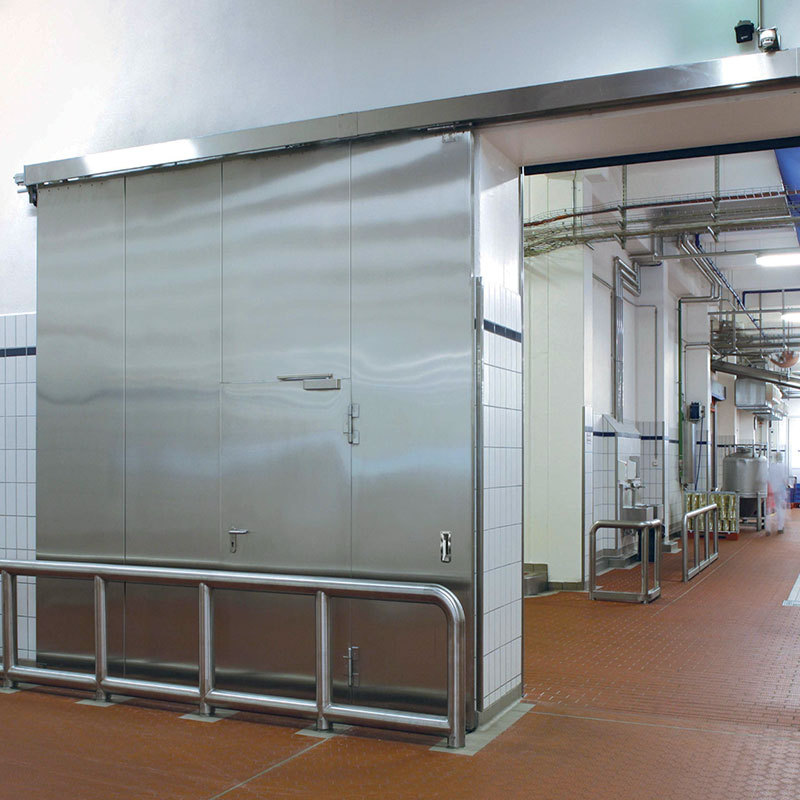

T30 fire protection sliding door, with wicket door, in the food production sector

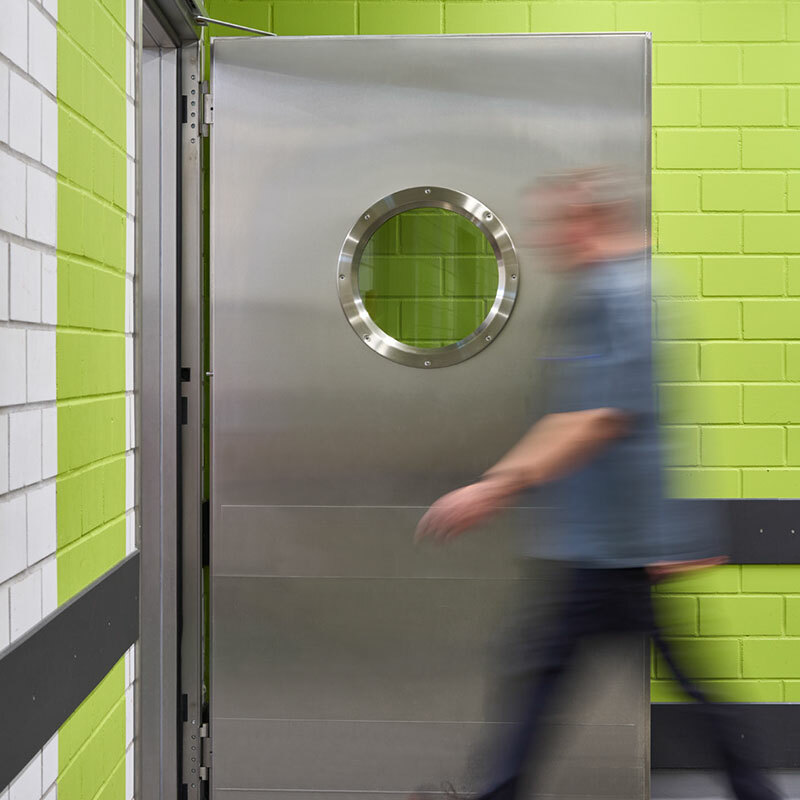

Teckentrup Steel Door Stainless Steel Location Motion

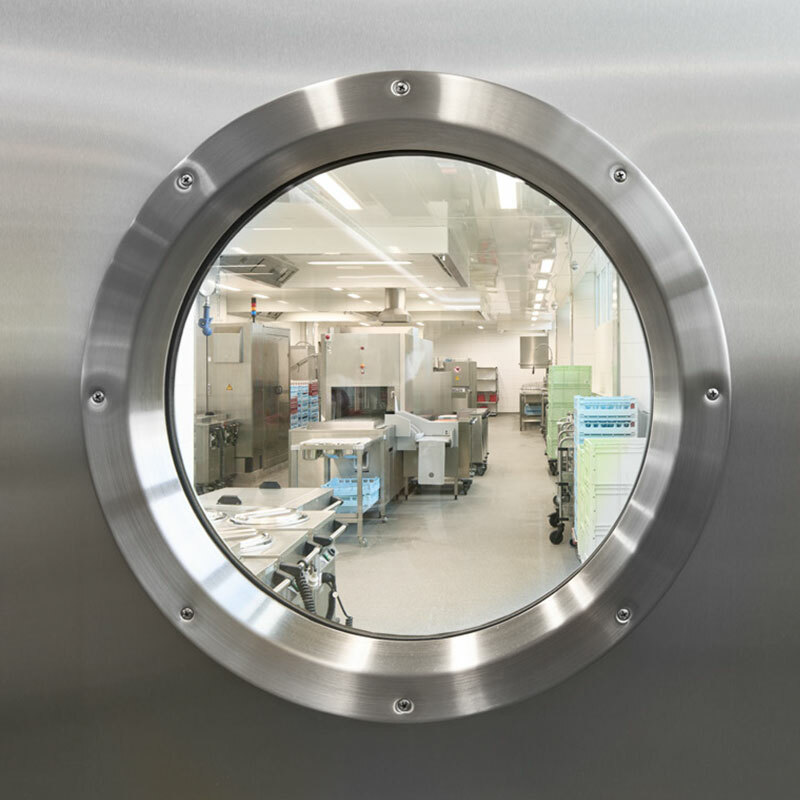

Teckentrup Steel Door Stainless Steel Location Porthole
Fire and smoke door in a hospital

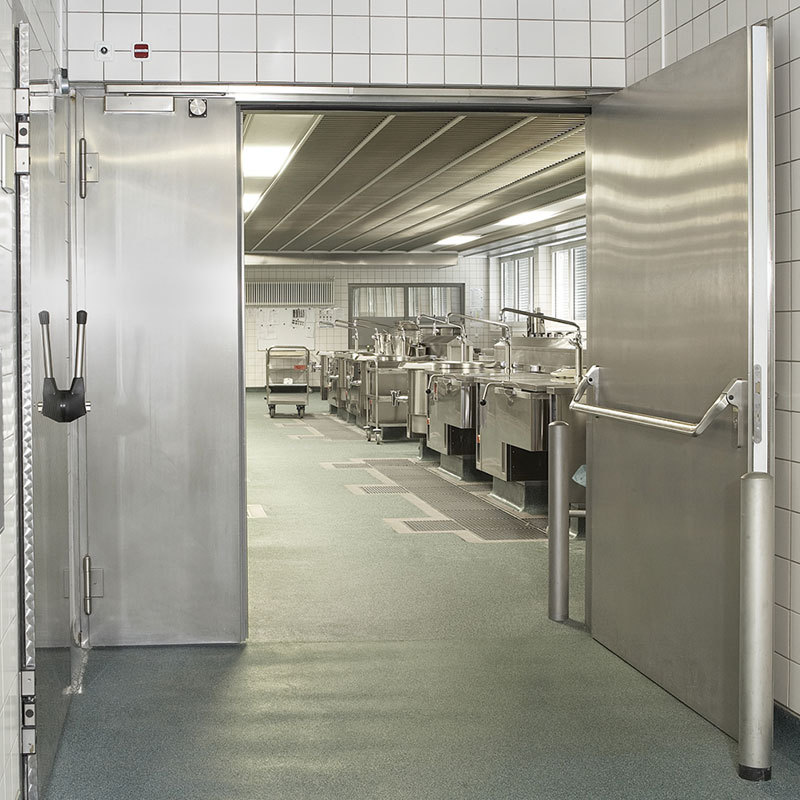

Stainless Steel in areas that are hygienically demanding

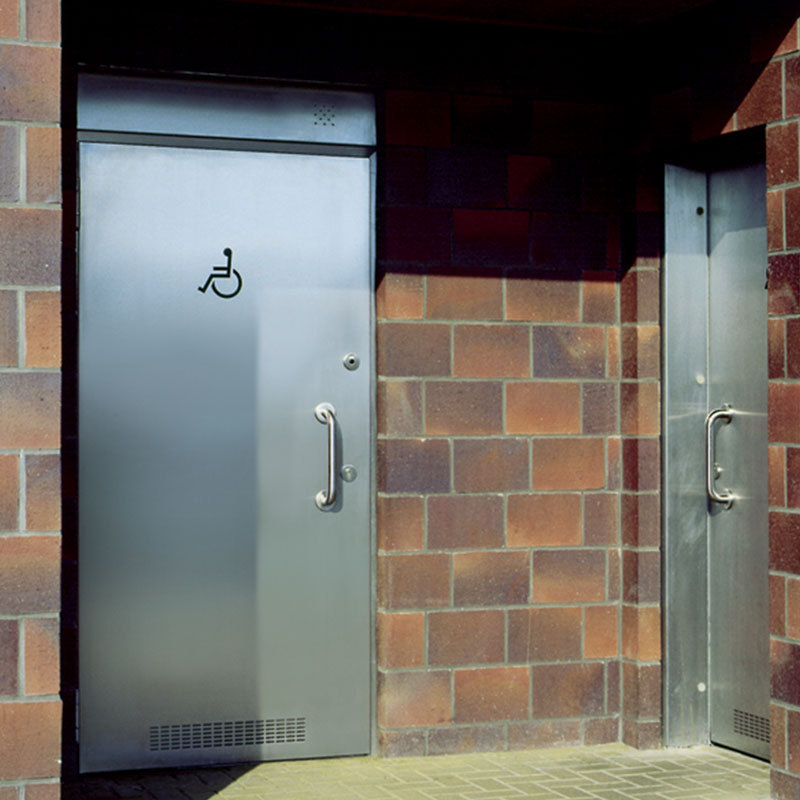

Public toilet facility at a service station

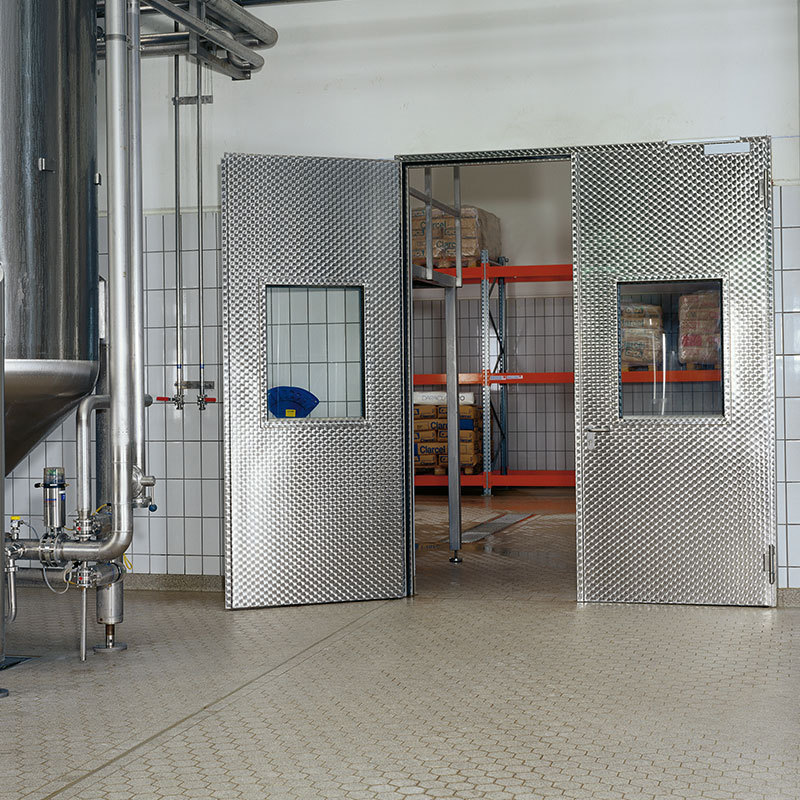

Fire door, marbled surface, in a brewery

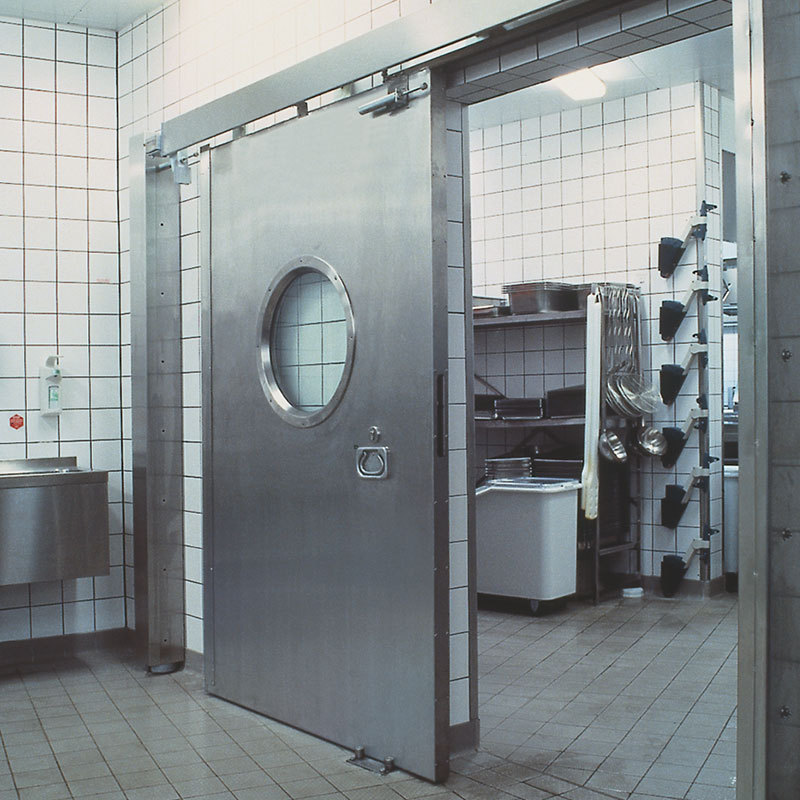

Fire sliding door in a commercial kitchen
Teckentrup Steel Door Stainless Steel Location Corridor
Teckentrup Steel Door Stainless Steel Location Kitchen
Stainless steel fire door in the retail sector
Teckentrup Steel Door Stainless Steel Location Servery
T30 fire protection sliding door, with wicket door, in the food production sector
Teckentrup Steel Door Stainless Steel Location Motion
Teckentrup Steel Door Stainless Steel Location Porthole
Fire and smoke door in a hospital
Stainless Steel in areas that are hygienically demanding
Public toilet facility at a service station
Fire door, marbled surface, in a brewery
Fire sliding door in a commercial kitchen

Frames

Clever framing solutions and finishing touches

As a project manager, the success of a major initiative often depends on a small detail.

Teckentrup's frame solutions allow for installation in all site scenarios including variable reveal depths and flush finish with wall renders. The four main types are:

  • Block frames with captive seals.
  • Corner frames with captive seals, concealed fixings with adjustable screws and only one fastening point.
  • Corner Counter frames with captive seals and concealed fixing of the counter frame with special fold anchors.
  • Closed frames with captive seals.

Teckentrup can advise on the right solution and their suitability for applications such as fire, acoustics, etc.

The Hardware, accessories, vision panels, louvres, etc., are all selected to suit application, life cycle value requirements and other criteria, against which Teckentrup can provide certification. Advice on selection and integration with access and building systems such as fire and security is also part of our solution based approach.

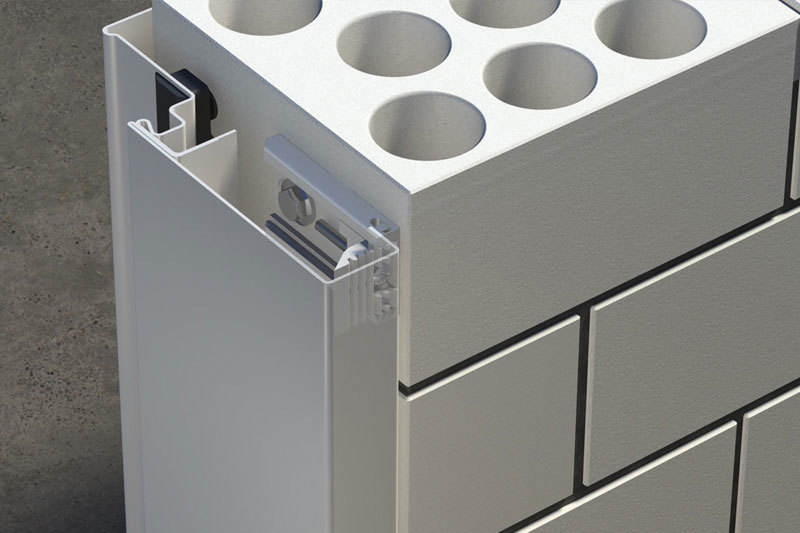

Corner Counter Frame Rectangle

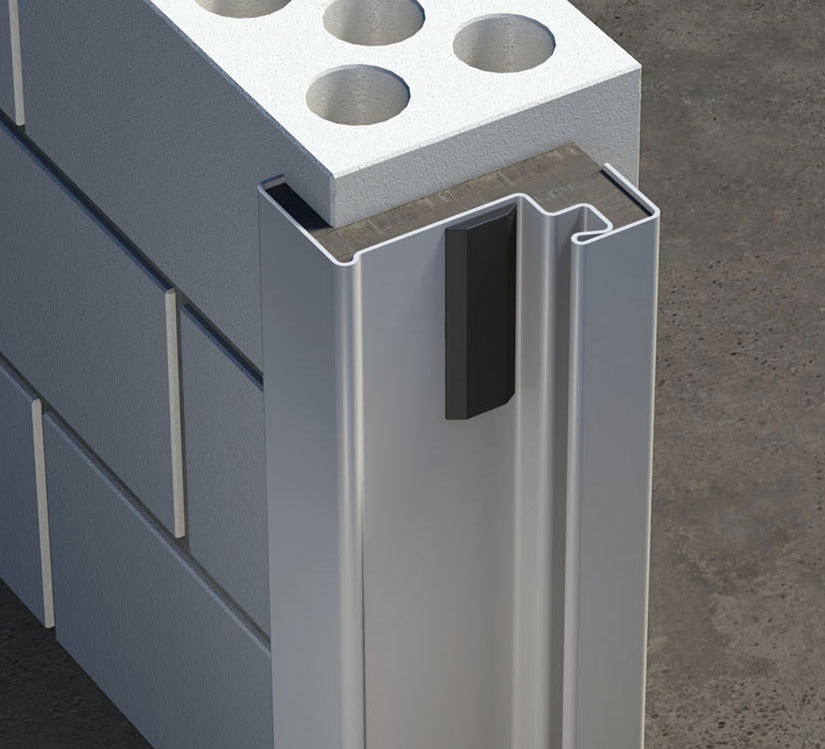

Corner Frame

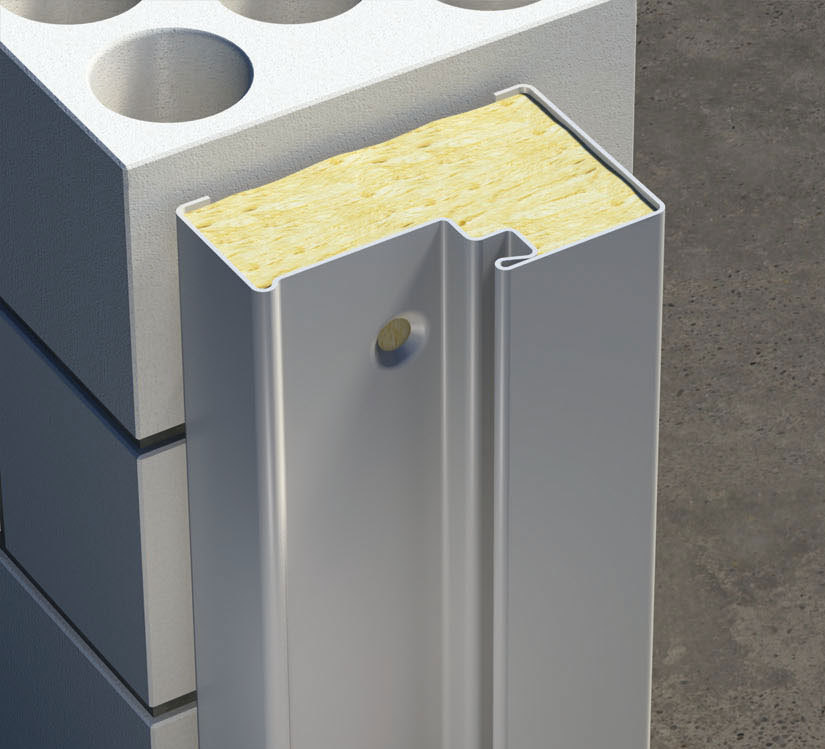

Block Frame

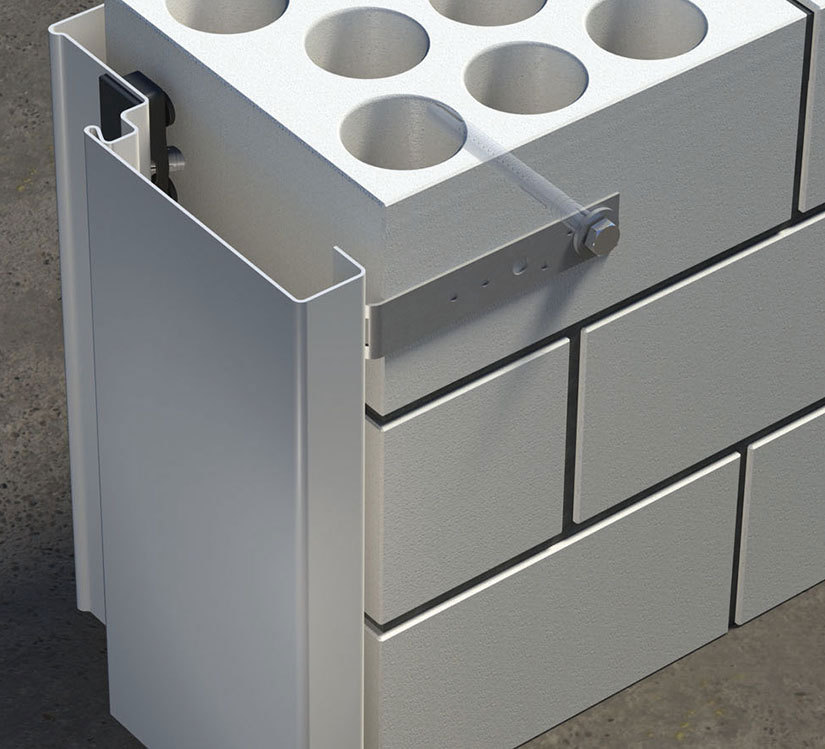

Wrap Around Frame

Download the Teckentrup 62 modular steel doors brochure...

Click here!

The modular steel doorset

We have a range of steel doorsets that cover multiple requirements making it easier to find a solution that covers all of your requirements in a single product.

Talk to us about your requirements
