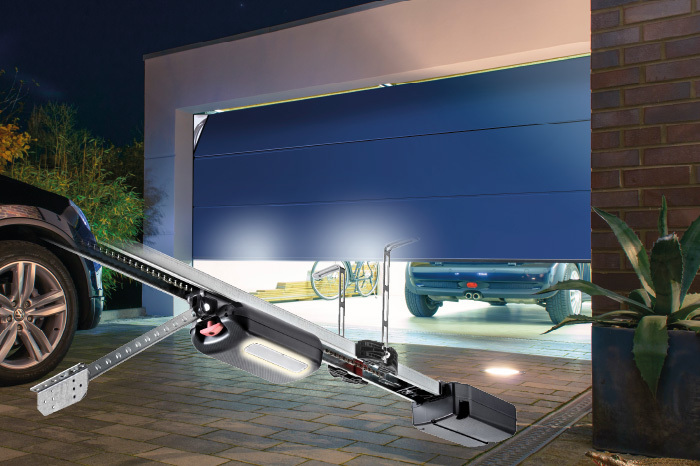

The integrated drive and control unit of the CarTeck DRIVE 500 and 600 fits discreetly above the door.
CarTeck Automatic makes so much sense. The fixed chain drive of the CarTeck Drive range is quieter and renowned for long-term reliability compared to revolving chain or belt designs.
Both the DRIVE 500 and the 600 can lift any size door. The 600 is available with all the option packs and the 500 is available with selected options (see below).
| Power | Transmitters | Speed | Lighting | Options | |
|---|---|---|---|---|---|
| Drive 500 | 500Nm | 2 X Pearl Twin | 180mm/sec | 1 x 3 LED Motor Light | Selected |
| Drive 600 | 600Nm | 2 X Pearl | 240mm/sec | 1 x 6 LED Motor Light | All |
The separate control unit of the CarTeck DRIVE PRO 500 and 600 allows for flexible installation at a location close to available power sockets.
Both the DRIVE PRO 500 and the 600 can lift any size door. The 600 is available with all the option packs and the 500 is available with selected options.
| Power | Transmitters | Speed | Lighting | Options | |
|---|---|---|---|---|---|
| Drive Pro 500 | 500Nm | 2 X Pearl Twin | 180mm/sec | 1 x 3 LED Motor Light | Selected |
| Drive Pro 600 | 600Nm | 2 X Pearl | 240mm/sec | 1 x 6 LED Motor Light | All |
The CarTeck Drive Pro 500 and 600 can be mounted in 3 different locations; ensuring the perfect installation can be made.
The Pearl Twin transmitter has twin buttons that can be configured for two functions such as open and close and turn on the light.
The Pearl transmitter has four buttons that can be configured to suit your requirements – open and close, turn on the light, operate a second door and so on.
Our function packs place you in control. Clever technology takes the guess work out of parking, keeps your garage dry, lights your way and keeps you moving even if power fails.
A laser sensor to guide you to the perfect parking point combines with a humidity sensor. If you drive your car in wet and the humidity in the garage rises, the sensor automatically opens the door a short distance to allow fresh air in, helping prevent mould forming. When humidity levels drop, the sensor automatically closes the door.
Need more light? Extra lighting strips for the control units can be combined with the motion sensor to switch on automatically as you enter. No more crashing about in the dark!
Add a relay to allow control of other garage or garden lighting for even more flexibility.
These clever LED strips are easily positioned on the underside of the door tracks with magnetic tape. They flood the garage with 6000 lumens of light (equivalent to around 400 watts of incandescent light!) Four linked LED strips are activated by the kits’ motion sensor or infra red remote control.
Add light bars to the outside of your garage to make a real design statement whilst increasing accessibility and safety at night. The light bar has a stand-alone power supply and motion detector. The light is 1500 lumen per metre and has neutral white 4000K light.
A magnetic motor lock that mechanically locks the motor in any position (even with ventilation function) up to an attack force of 300 kg, increasing the existing security.
The alarm buzzer recognises a break-in attempt and outputs a loud signal tone. It can also be set to output a warning buzzer as the door closes (this must be programmed by the installer).
A relay that allows control of other garage or garden / security lighting.
The alarm buzzer recognises a break-in attempt and outputs a loud signal tone. It can also be set to output a warning buzzer as the door closes (this must be programmed by the installer).
Add non-contact obstruction detection with Photoeye that uses an infra-red light beam across the opening to stop the door when the beam is broken.
For extra convenience you can control your door and check its position from within your home with a two function wall switch available in grey or white finish. Similar in size to a standard single light switch.
Add a wireless keypad with sleek stainless steel trim and back lighting for easy transmitter-free access to your garage. The surface-mounted keypad is battery operated making it the perfect solution for retrofitting. The keypad also has flexible usage options - multiple codes and the ability to control up to five different functions, such as garage door and lighting, etc.
All the benefits of the standard keypad but with an added courier function. The courier function offers a simple and safe solution for receiving parcels into your garage. Choose to program your door to open a short distance for parcels to be posted underneath by an access code or by pressing the red button at the bottom of the keypad.
A simple battery backup for power failure operation. The battery module assumes the power supply of the operator for up to 5 door cycles.
The Pearl Vibe transmitter option vibrates in your hand confirming that the control unit has received your command. It can also confirm if your door is open or closed using bidirectional communication between the opener and transmitter.
The secure SOMweb Smart Home solution where your data stays safely inside your garage! Our system enables you to control your garage door via a smartphone app or web browser. Meanwhile, your data is kept safe, as it is not stored on external servers.
The Output module transfers the door status (open/closed) allowing you to integrate your garage door into Smart Home systems.
