Made to measure

Superb Manufacturing

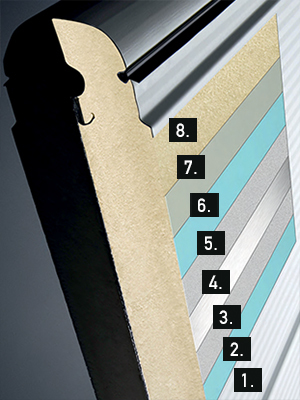

Our door leaves compromise eight different layers, which gives them extraordinary wear resistance and durability.

1. Sealed top coating
2. Highly effective adhesion primer
3. Corrosion-resistant galvanized
4. Steel core
5. Corrosion-resistant galvanized
6. Highly effective adhesion primer
7. Protective coat on rear side
8. Highly-stable core made of special foam with integrated thermal insulation

Exact Fit Dimensions

Whether you’re renovating or building anew - Teckentrup insulated sectional garage doors fit perfectly into every installation situation. Door widths of up to 5.5m and door heights of up to 3m are made to measure for the right fit. Every door is superbly manufactured to exacting standards.

To achieve a door height, Teckentrup uses a mix of different panel heights and different depth bottom profiles of 0mm, 7mm, 17mm & 32mm.

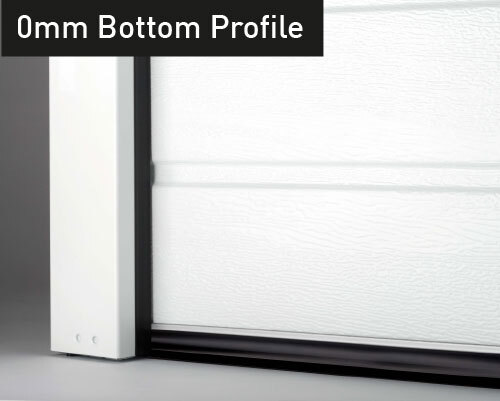

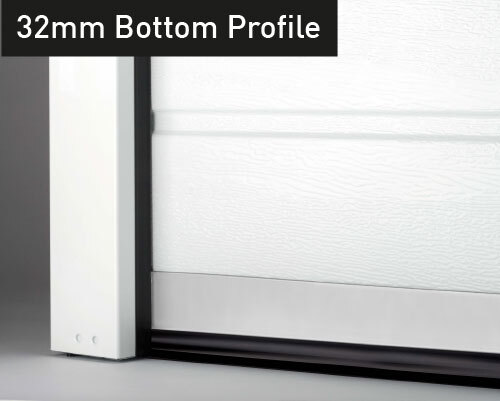

The images here show the 32mm bottom profile compared to the 0mm bottom profile.

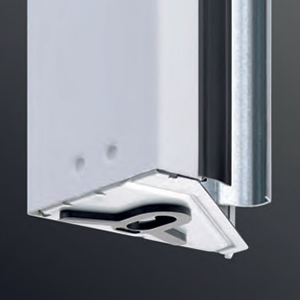

Corrosion Protection

A special plastic element separates the vertical frame sections from the floor. Whether after a rain shower or in the case of creeping dampness - the design ensures that the base area is always aerated, dries quickly, and is hence better protected against corrosion.

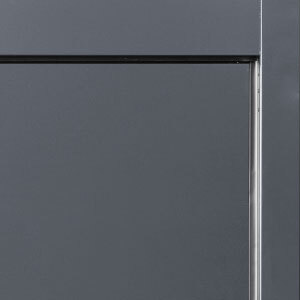

Durable Surface Protection

The galvanized garage door frames have a high-quality top coating. This protects the doors from external influences and they remain just as decorative after several years as they were on the first day, with just a little regular care and maintenance.
