Superior Quality

Excellent security

Teckentrup insulated side hinged garage doors and personnel doors are quite simply the very best. The solid panels, engineered hollow section aluminium frames and high grade fittings result in a door that closes with a reassuringly deep “clunk”.

Security is excellent and the range of styles, finishes and windows allows personalisation to suit your tastes. 1/2 and 1/2 opening and asymmetric configurations further increase versatility.

40mm thick - very robust, super strong white, Trend and RAL coloured rigid foam filled panel

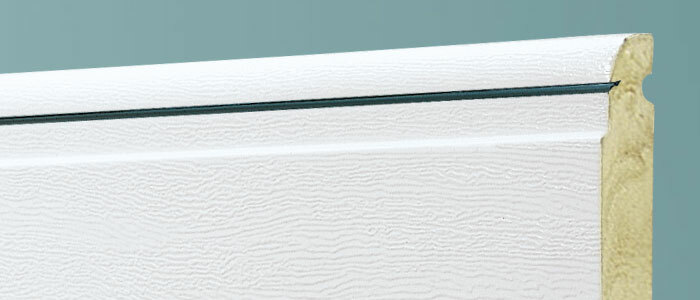

Solid 40mm thick panels
Doors are built with 40mm thick insulated interlocking panels and an aluminium hollow section frame that provides excellent strength, rigidity and resistance to corrosion.

The mitred door leaf frame and door frame are finished in a matching smooth finish for white, Trend (including Anthracite Textured) and RAL coloured doors. For these Trend colours, a complimentary flat colour is used: Ice Crystal Grey Aluminium (RAL9007), TT9016 Bling White (RAL 9016), Golden Oak (RAL8003), Rosewood (RAL8016) and Night Oak (RAL8014), Winchester (RAL8001) wood design finishes.

(The door frame colour shade and surface lustre will show a variance from the panel finish as the base material and coating methods are different.)

What thermal performance does my side hinged garage door have?
See the ‘Thermal Performance’ section of our Honesty Page!

CarTeck Insulated Centre Ribbed Horizontal Side Hinged Garage Door -  Woodgrain Anthracite Grey with D Handles
CarTeck Insulated Solid Side Hinged Garage Door - Smooth Custom Yellow with Type 1 Square Windows and Stainless Steel Pull Handles
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal in Grey

Styles & Finishes

Making the garage part of your home

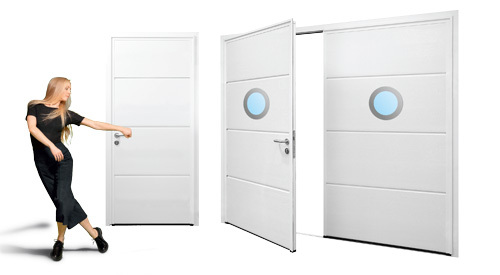

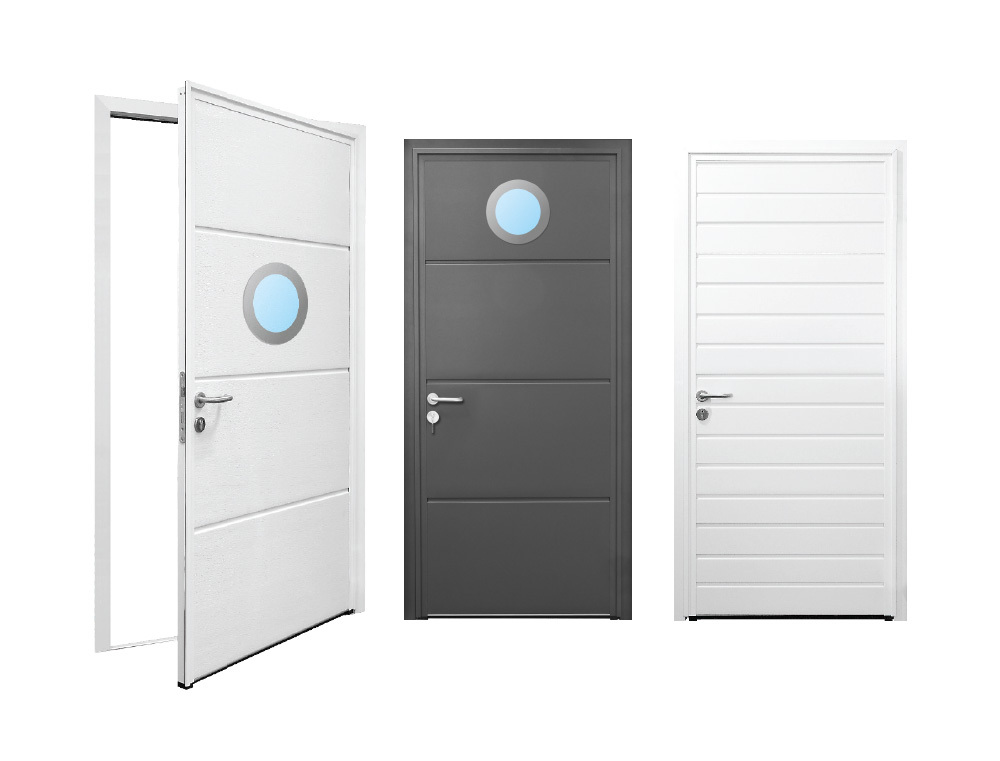

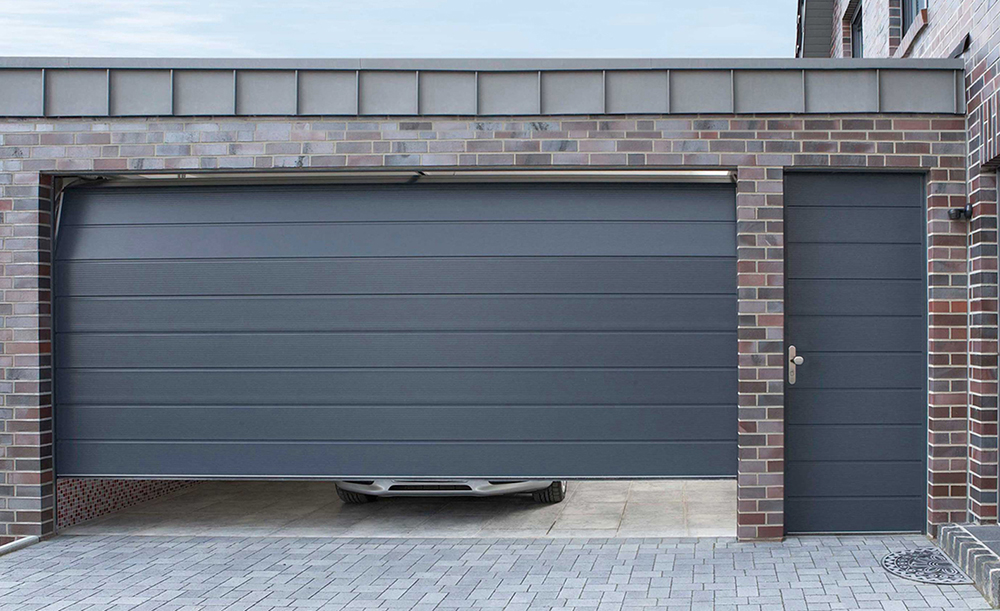

The CarTeck range of insulated side-hinged garage and personnel doors come in a range of 5 styles, available either horizontal or vertical. All of the designs shown are available with any combination of finish (excluding Georgian panel) and colour.

Teckentrup insulated side hinged garage doors and personnel doors are quite simply the very best. The solid panels, engineered hollow section aluminium frames and high grade fittings result in a door that closes with a reassuringly deep “clunk”.

A finish for every application...
The CarTeck range comes in a range of 4 textures (Georgian is only available in woodgrain), most of which can be combined with any style or colour combination:

  • Plain
  • Stucco
  • Micro-profile
  • Woodgrain

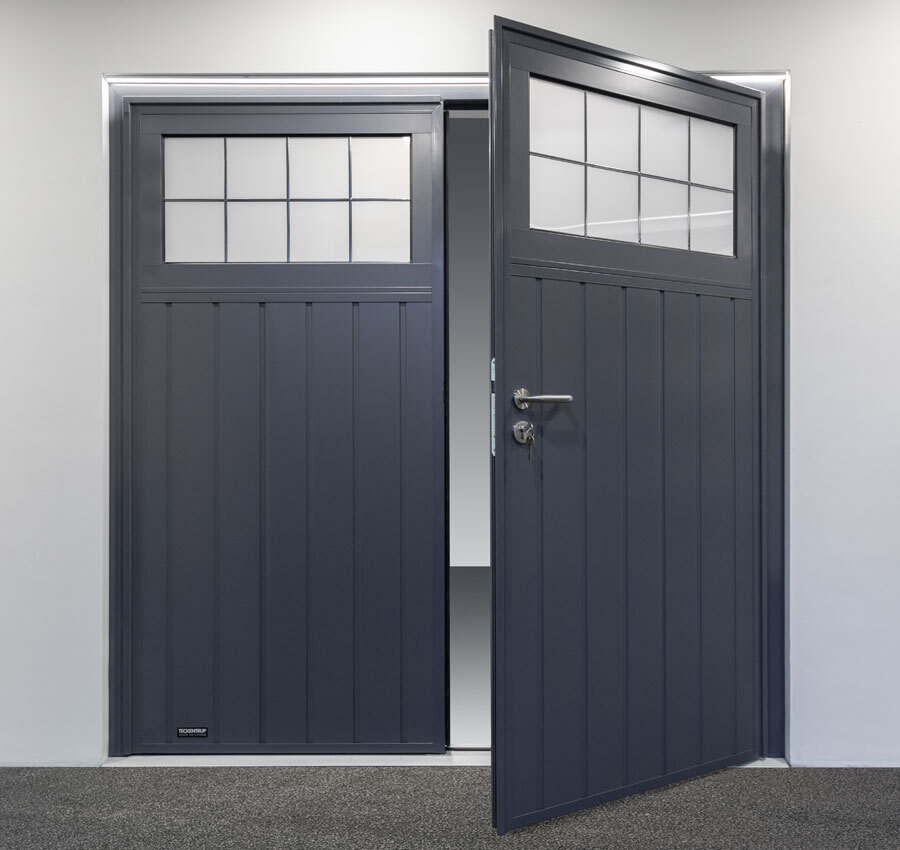

Traditional Leading Options
All Traditional design doors have mock leaded-effect decoration as standard but are also available in a plain design. Mock leading is available in natural lead grey (as standard) or white (on request).

View finishes and colours

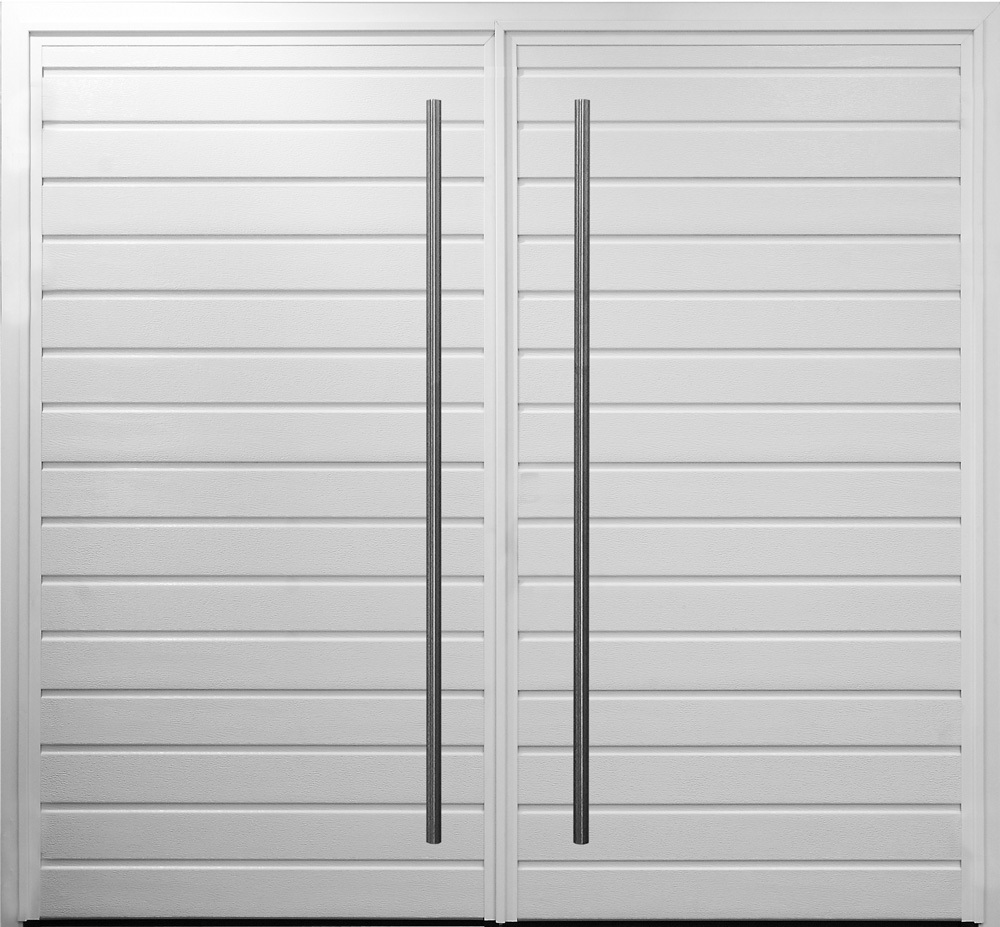

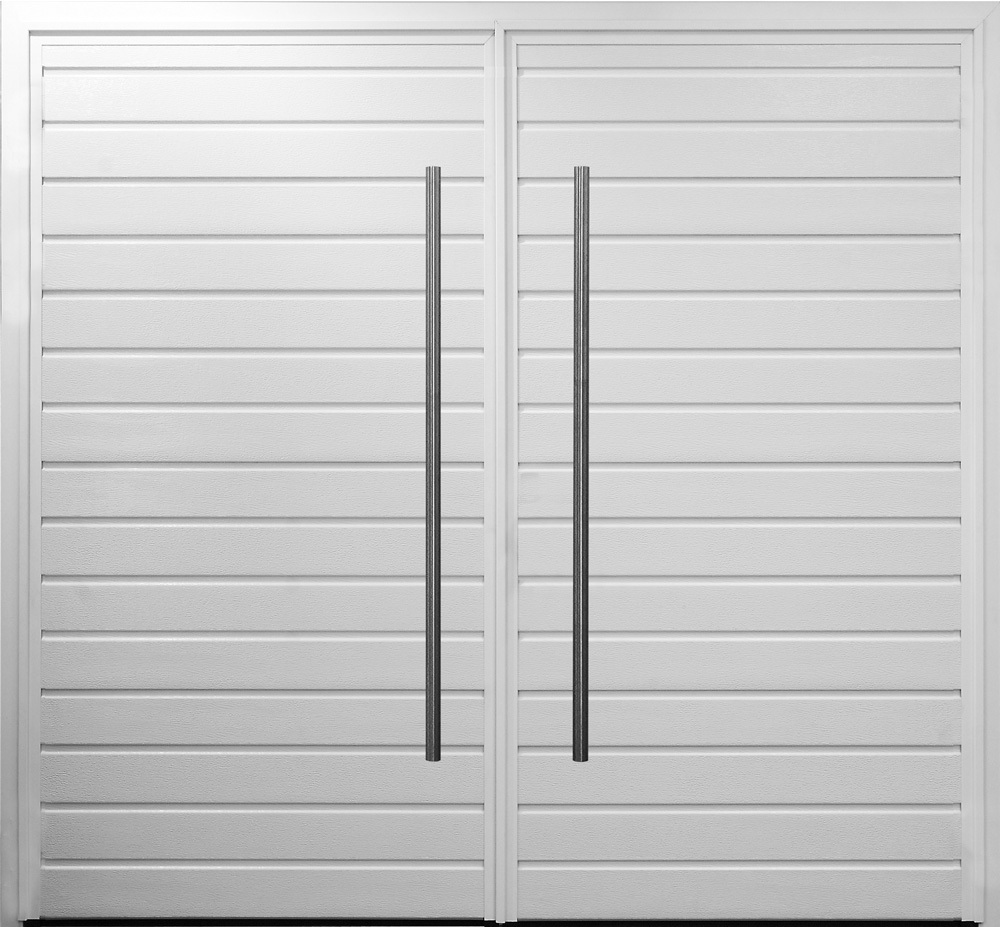

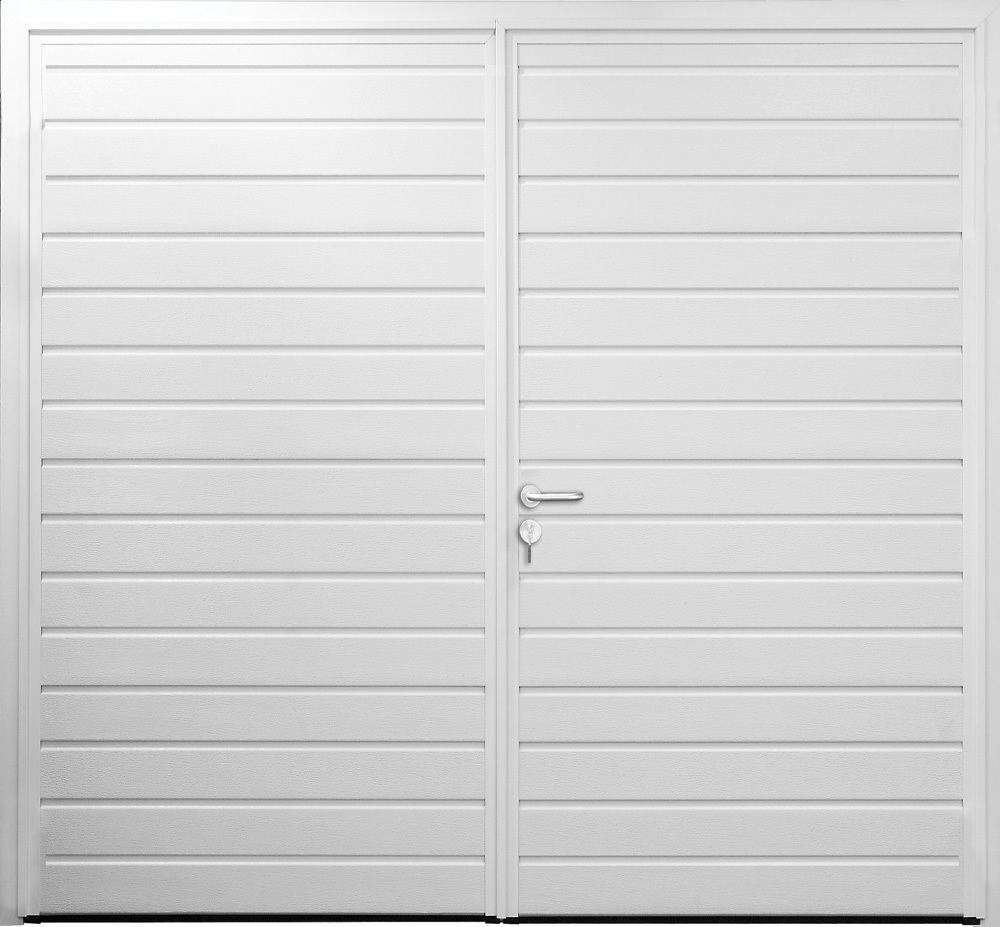

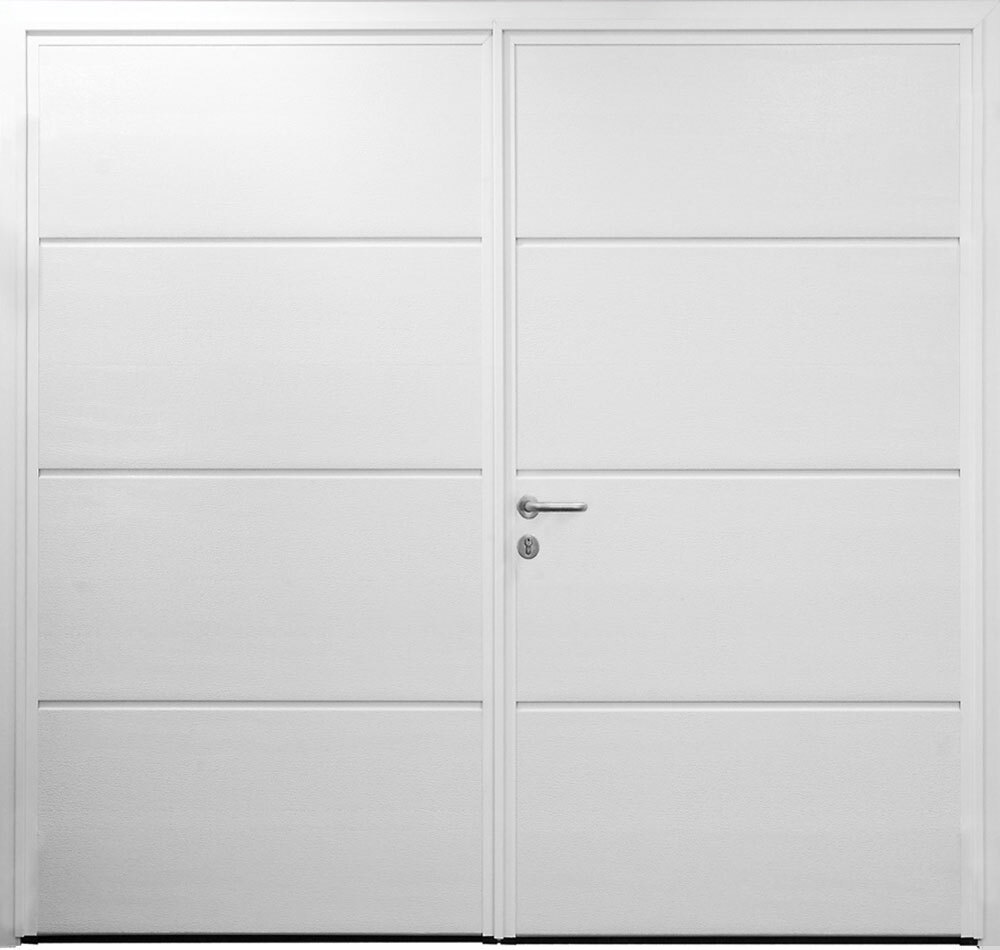

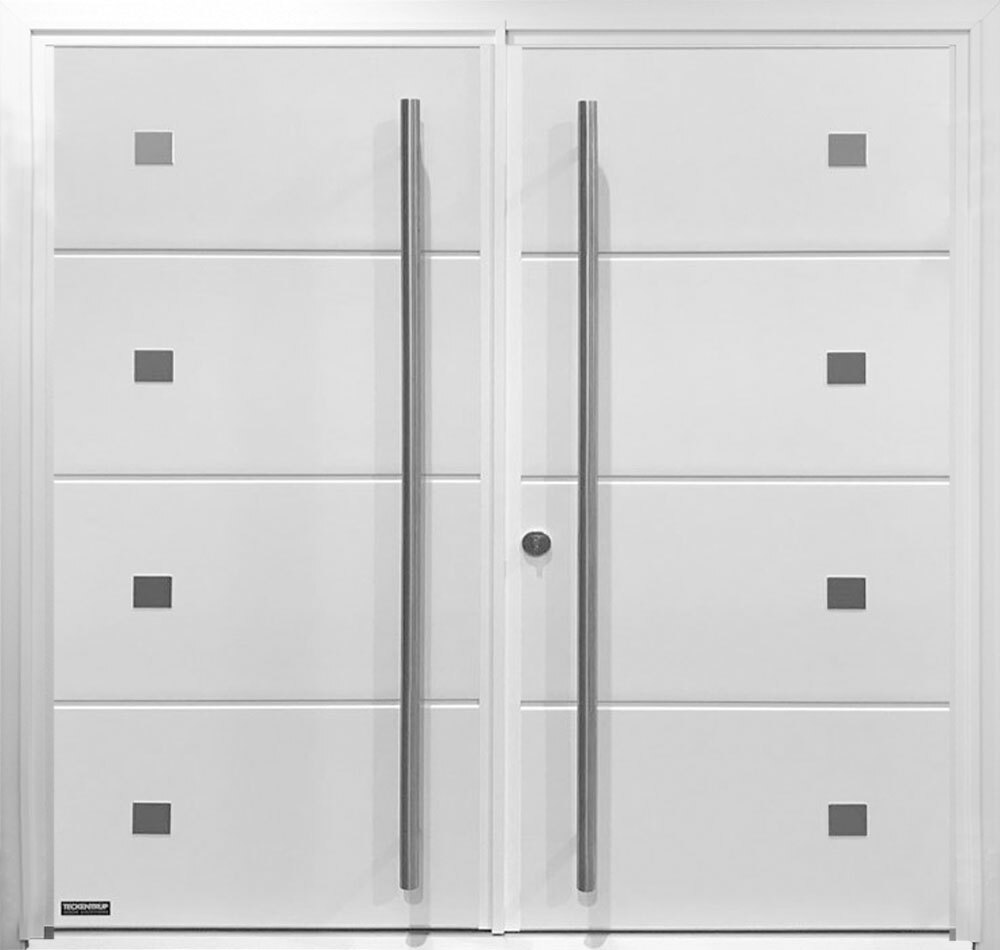

Teckentrup Insulated CarTeck Side Hinged Solid Horizontal White

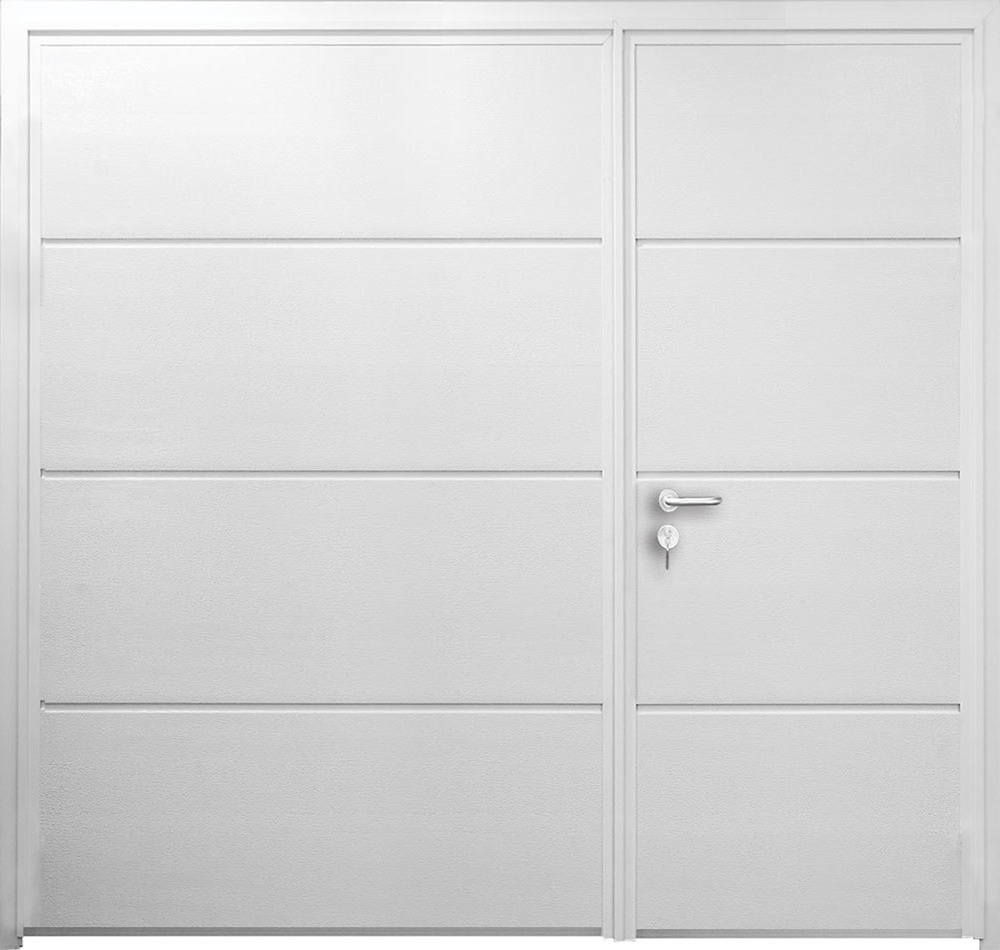

CarTeck Insulated Solid Side Hinged Garage Door - Horizontal Asymmetric

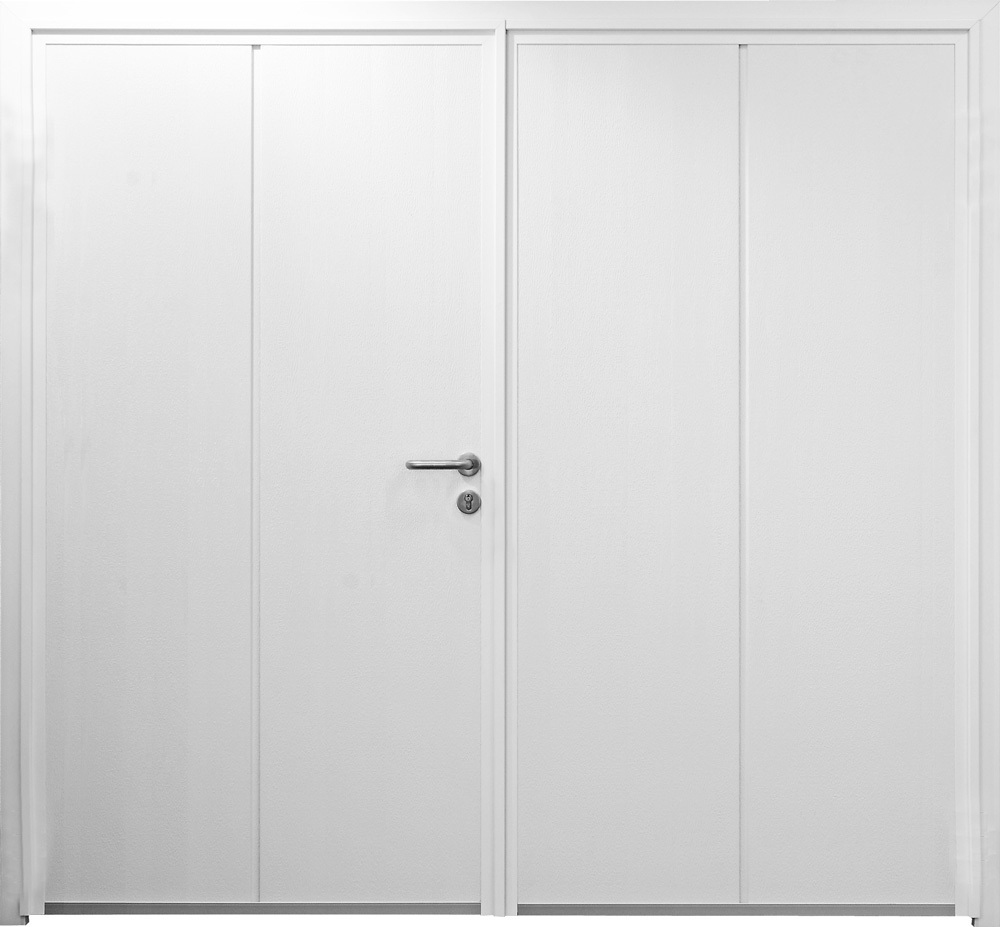

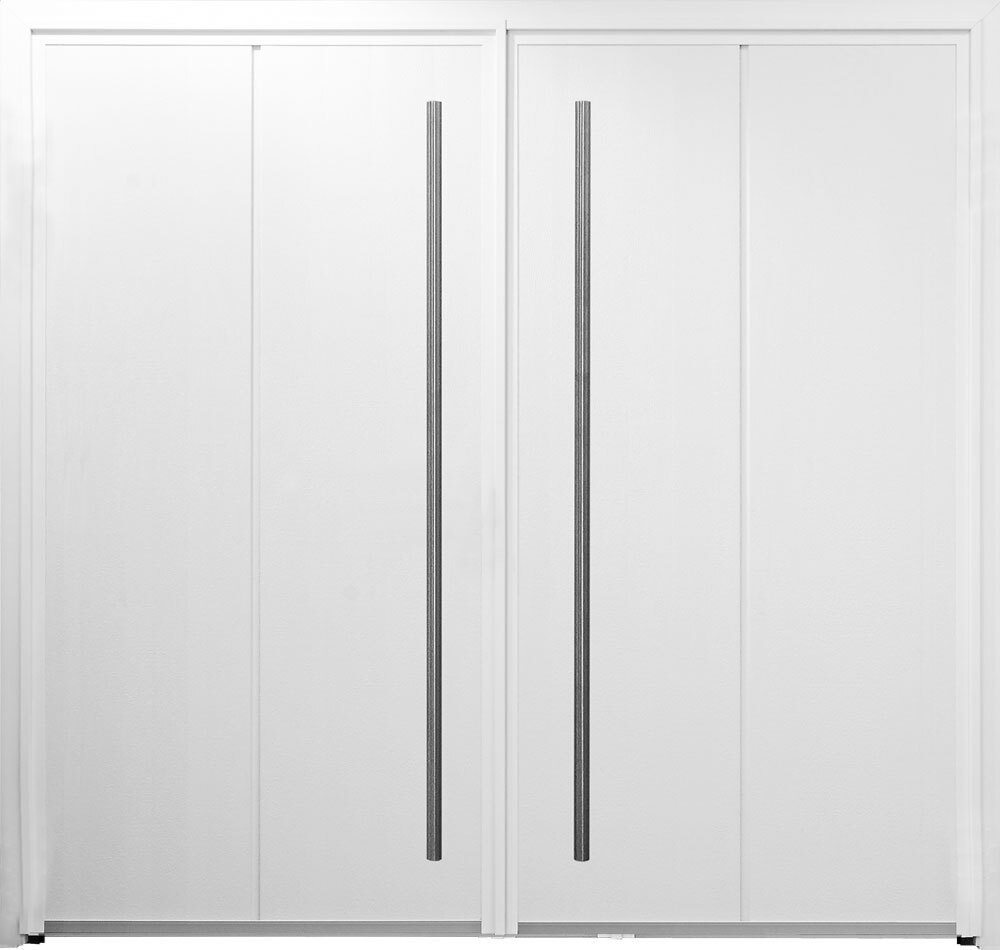

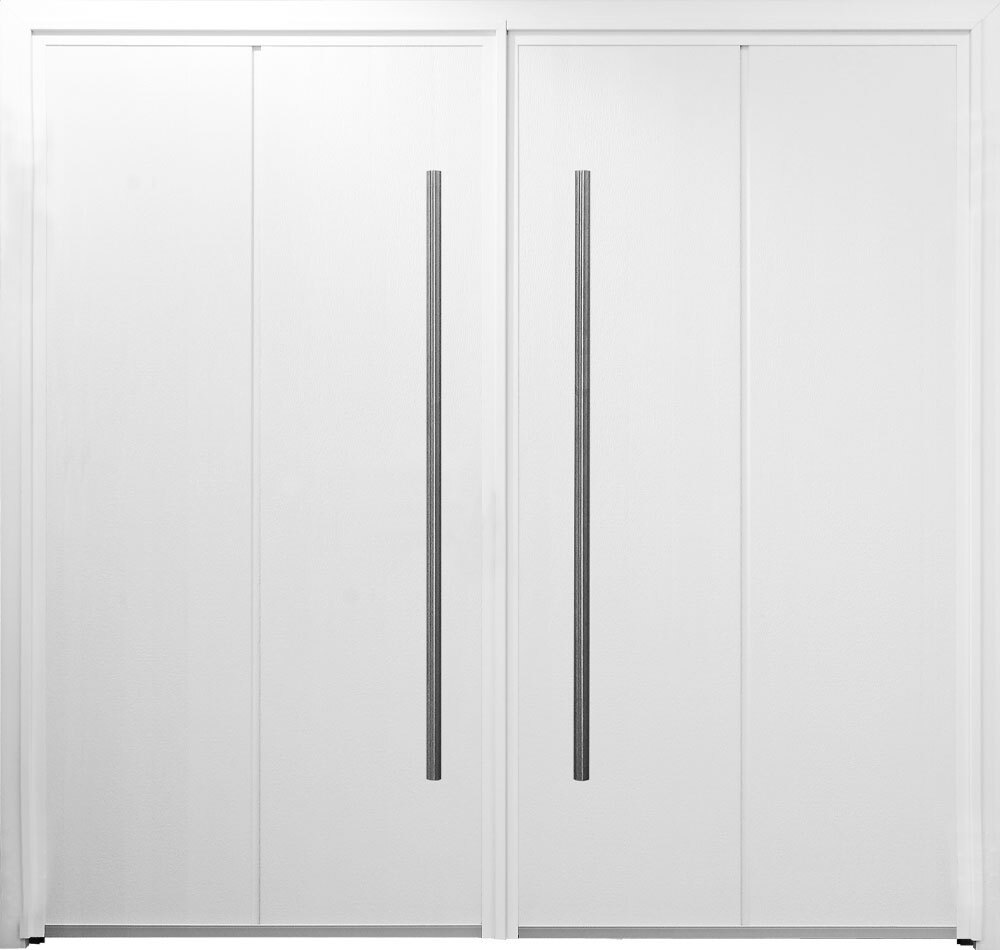

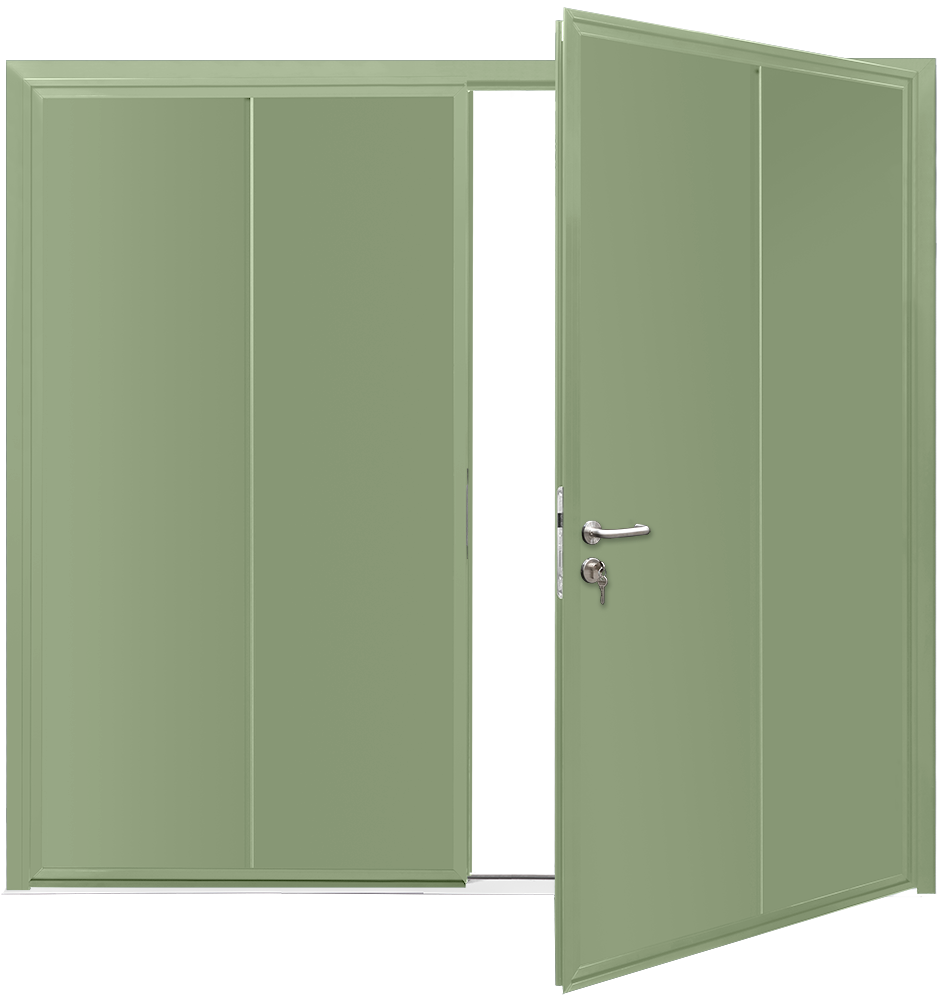

CarTeck Insulated Solid Side Hinged Garage Door - Vertical

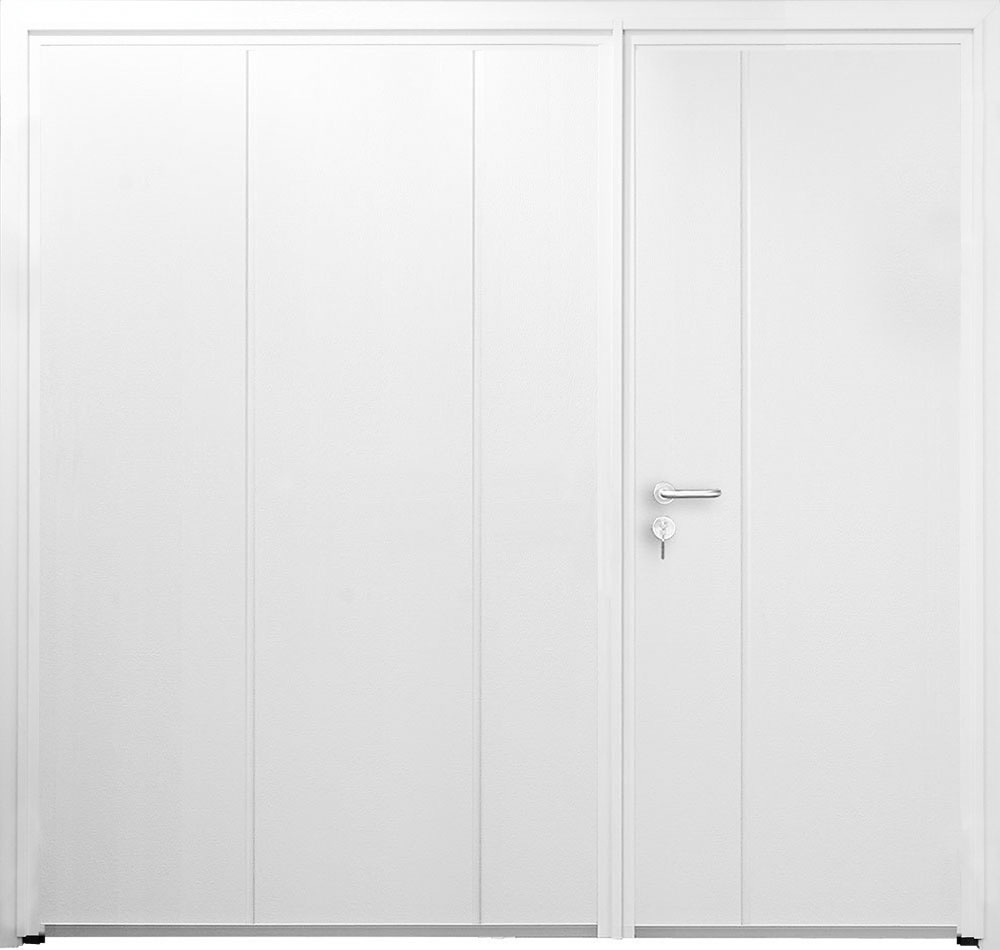

CarTeck Insulated Solid Side Hinged Garage Door - Vertical Asymmetric

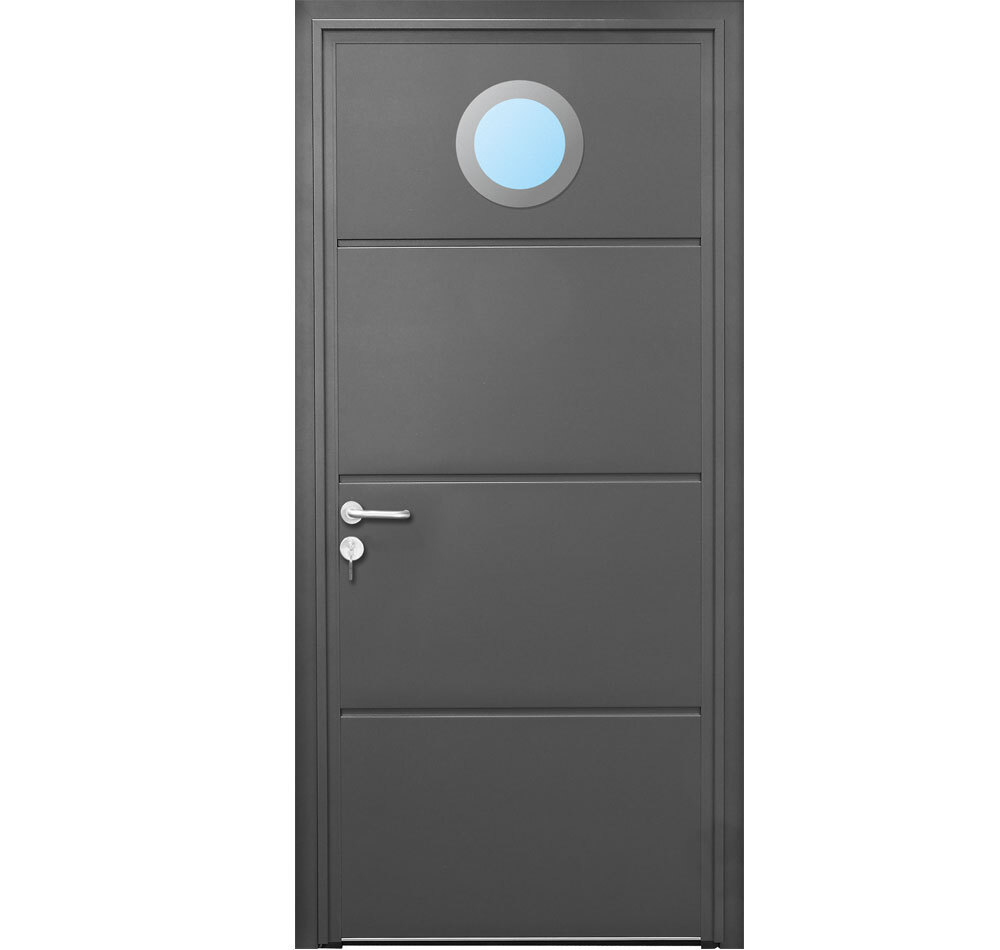

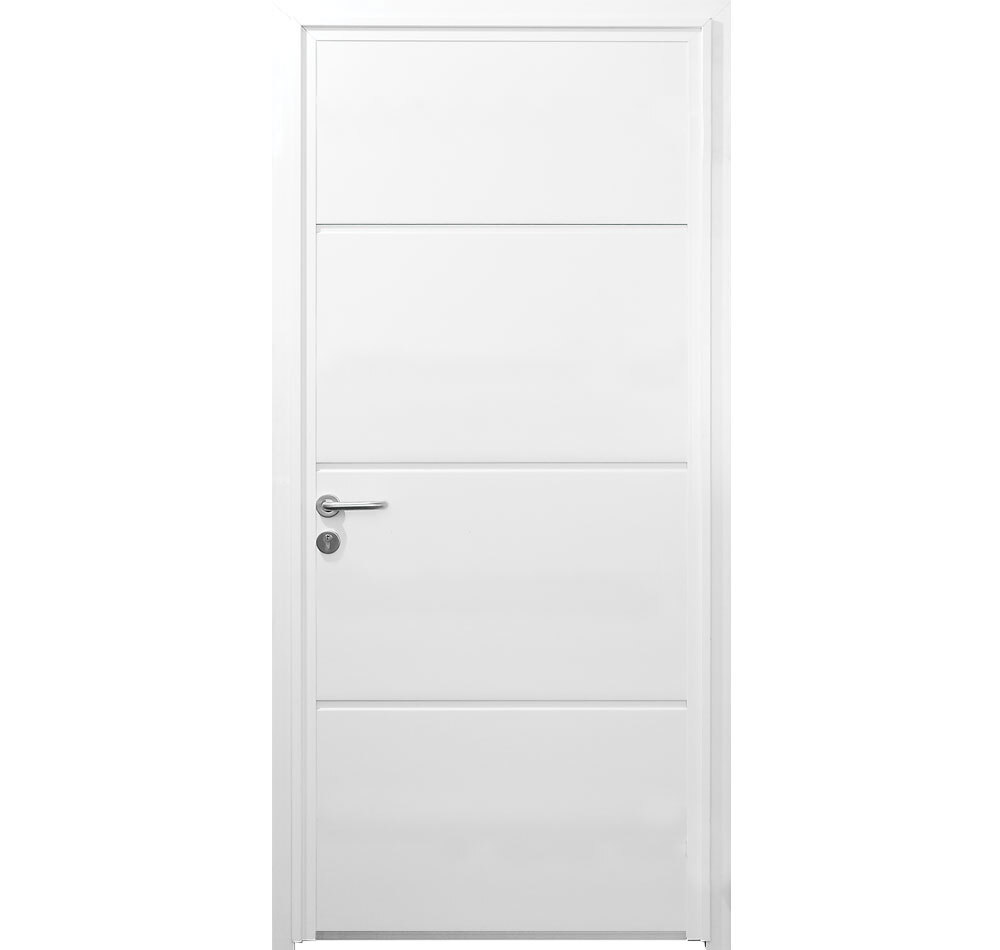

CarTeck Solid Personnel Door - Horizontal

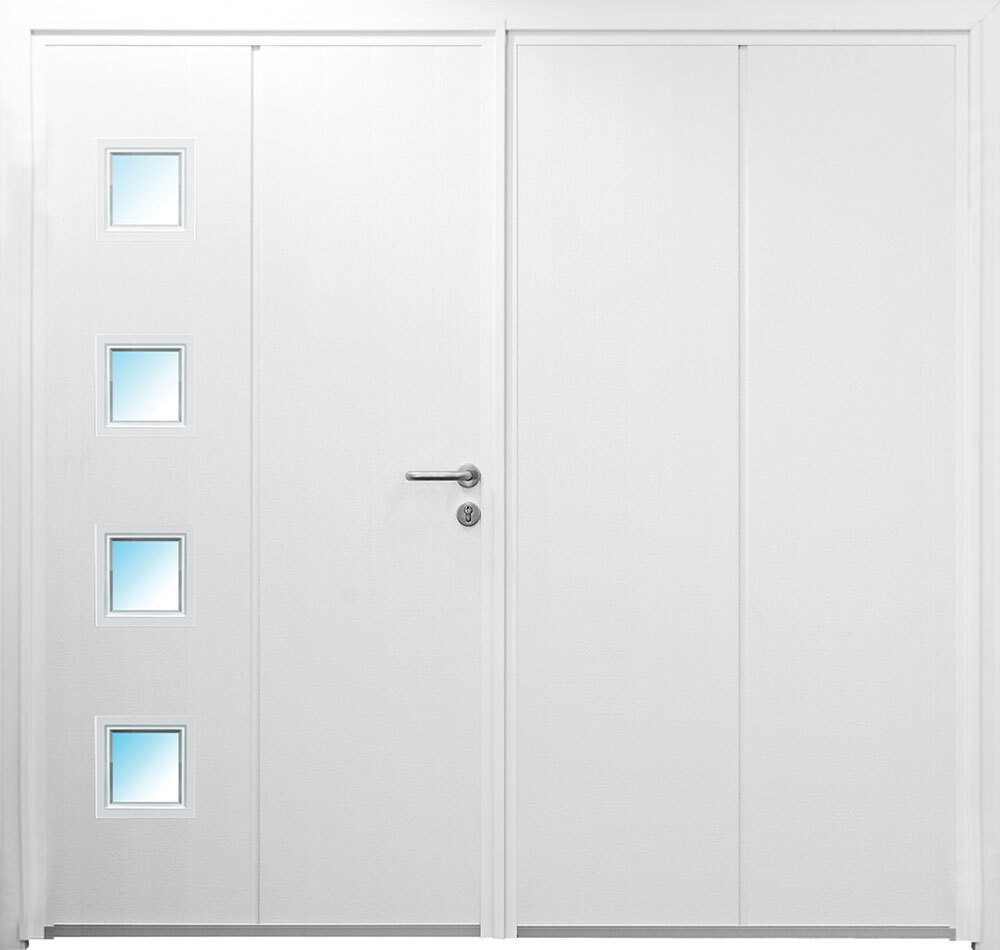

CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Solid Side Hinged Garage Door - Horizontal Smooth White with Twin 1500mm D-Handles and Decorative Decals
CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Type 1 Square Windows
CarTeck Solid Personnel Door - Anthracite Grey with Bling Zeta Window ø280mm
Teckentrup Insulated CarTeck Side Hinged Solid Horizontal White
CarTeck Insulated Solid Side Hinged Garage Door - Horizontal Asymmetric
CarTeck Insulated Solid Side Hinged Garage Door - Vertical
CarTeck Insulated Solid Side Hinged Garage Door - Vertical Asymmetric
CarTeck Solid Personnel Door - Horizontal
CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Solid Side Hinged Garage Door - Horizontal Smooth White with Twin 1500mm D-Handles and Decorative Decals
CarTeck Insulated Solid Side Hinged Garage Door - Vertical with Type 1 Square Windows
CarTeck Solid Personnel Door - Anthracite Grey with Bling Zeta Window ø280mm

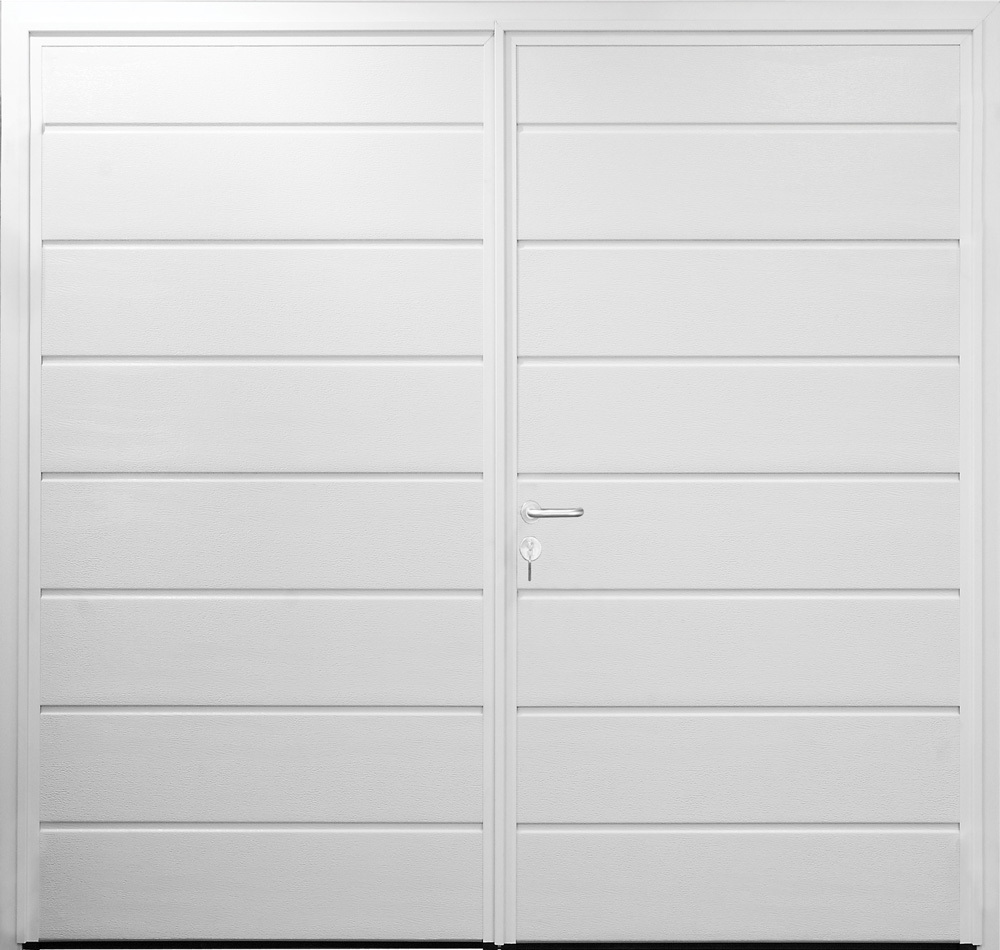

CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Horizontal

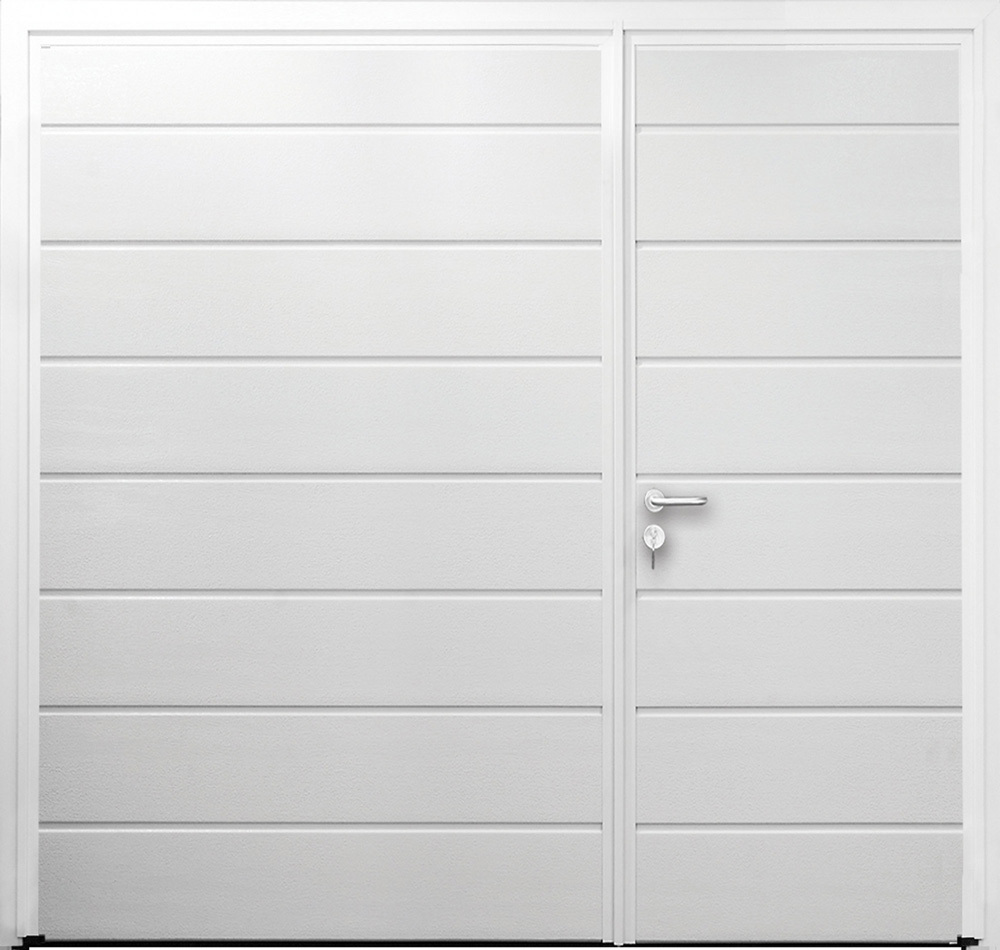

CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Asymmetric Horizontal

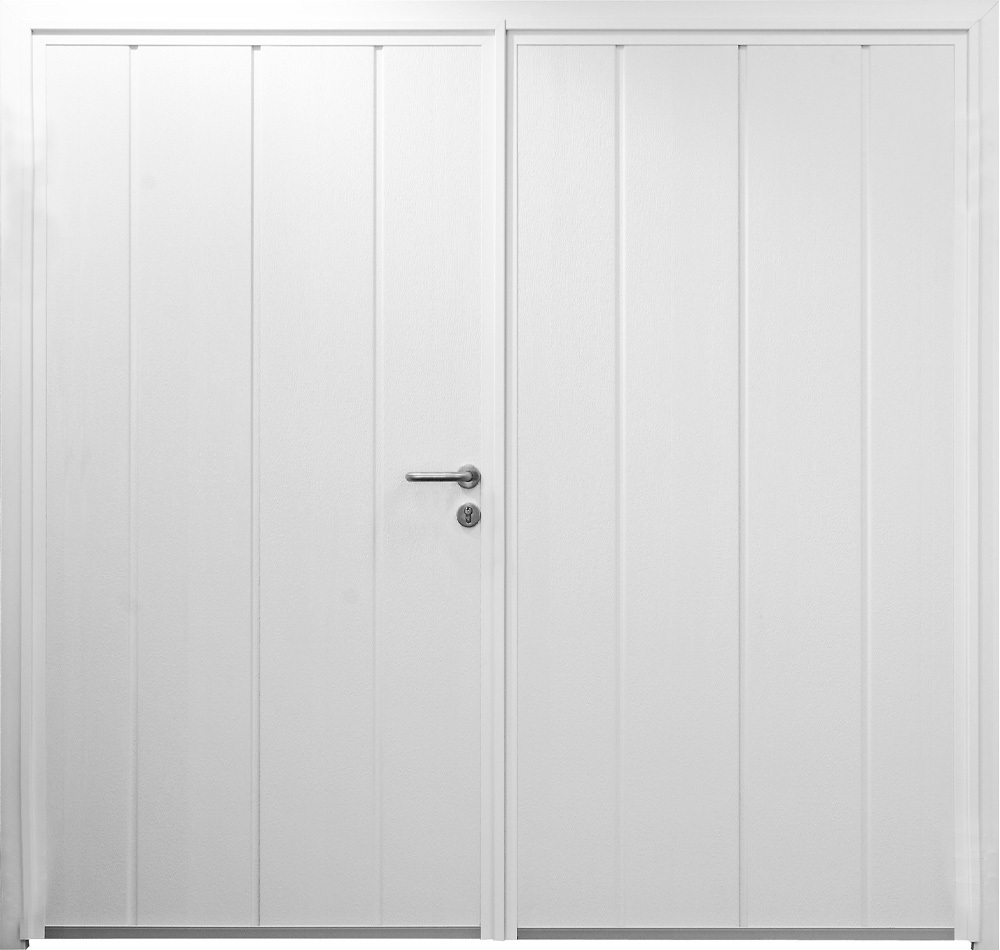

CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical

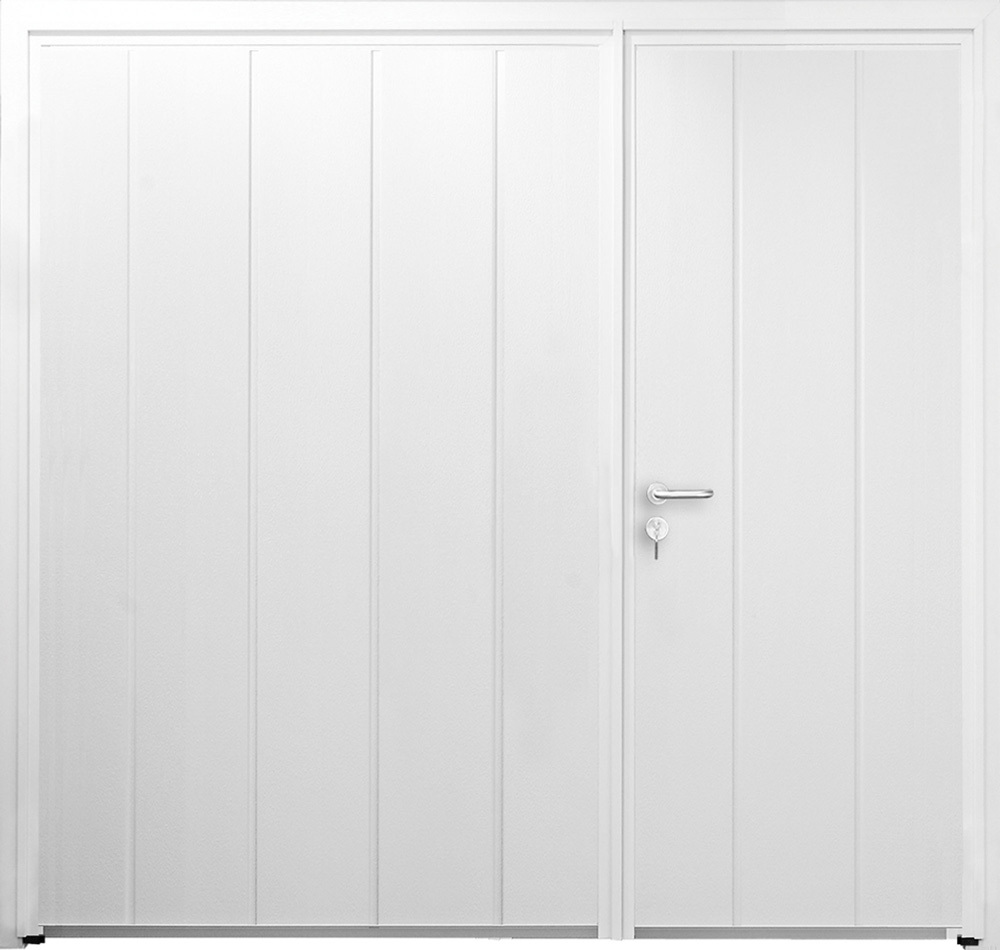

CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Asymmetric Vertical

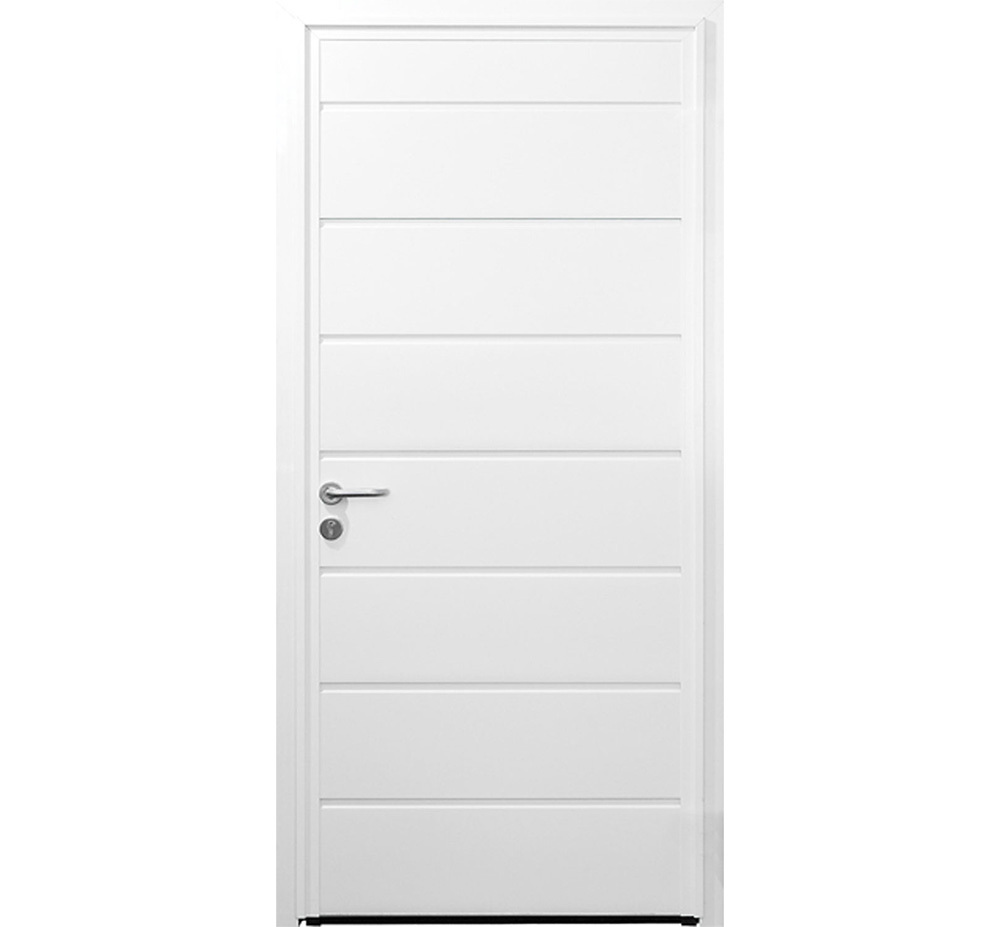

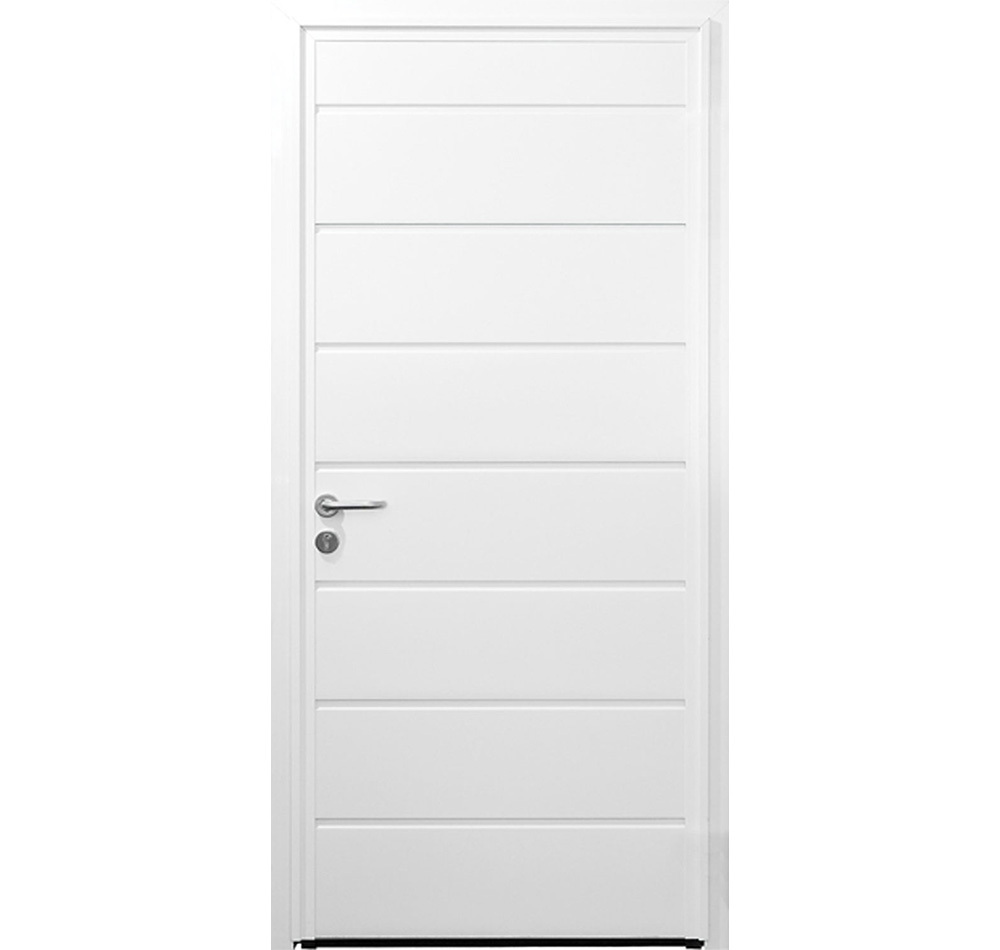

CarTeck Centre Ribbed Side Hinged Personnel - Horizontal

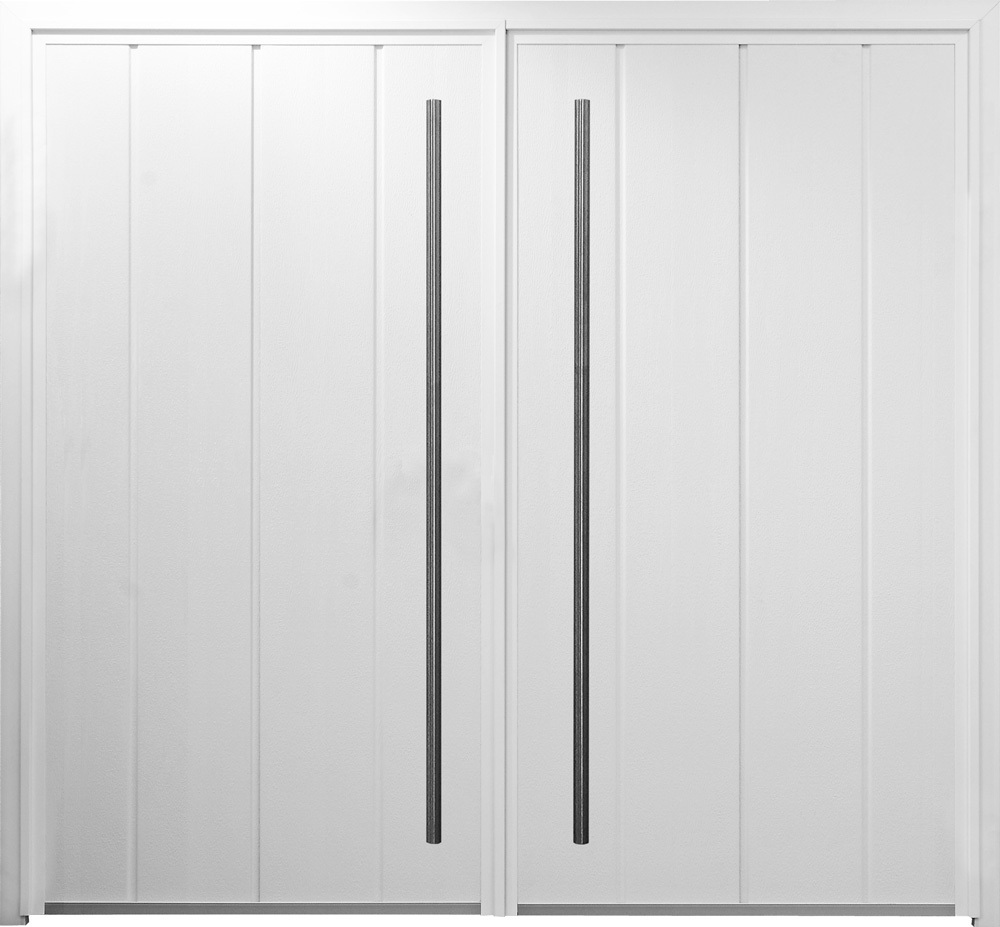

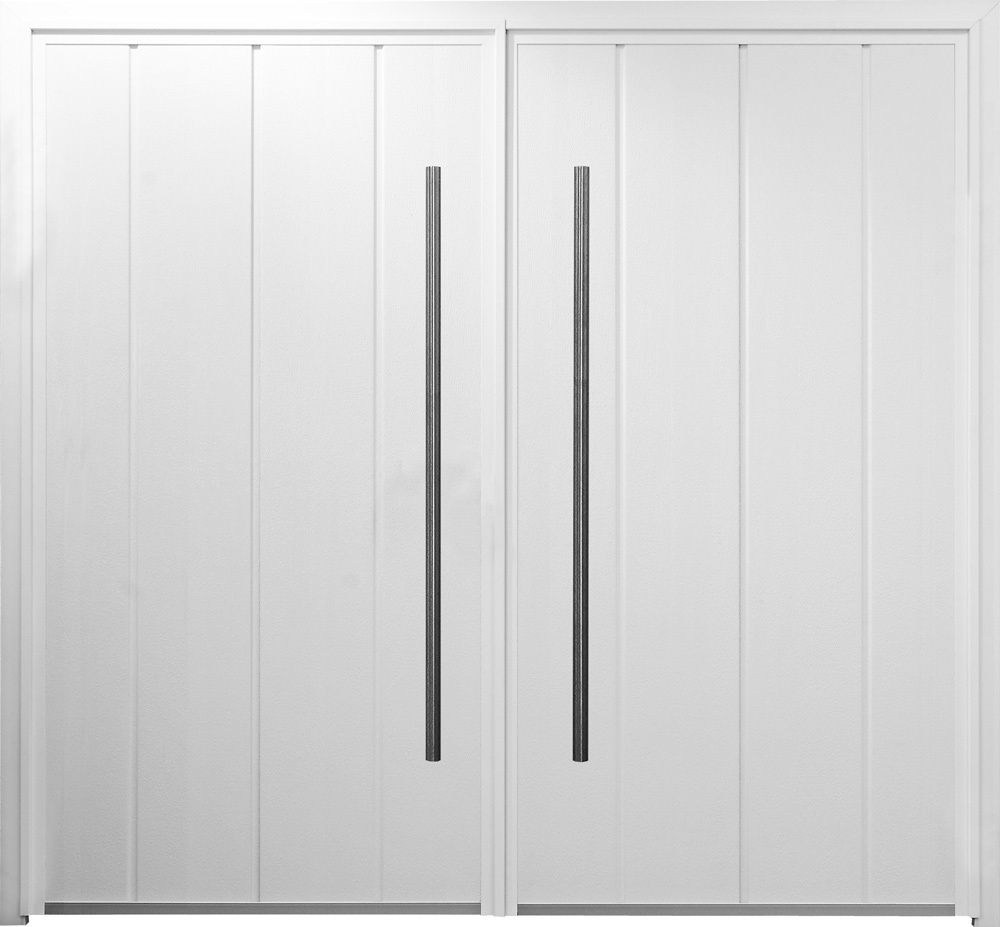

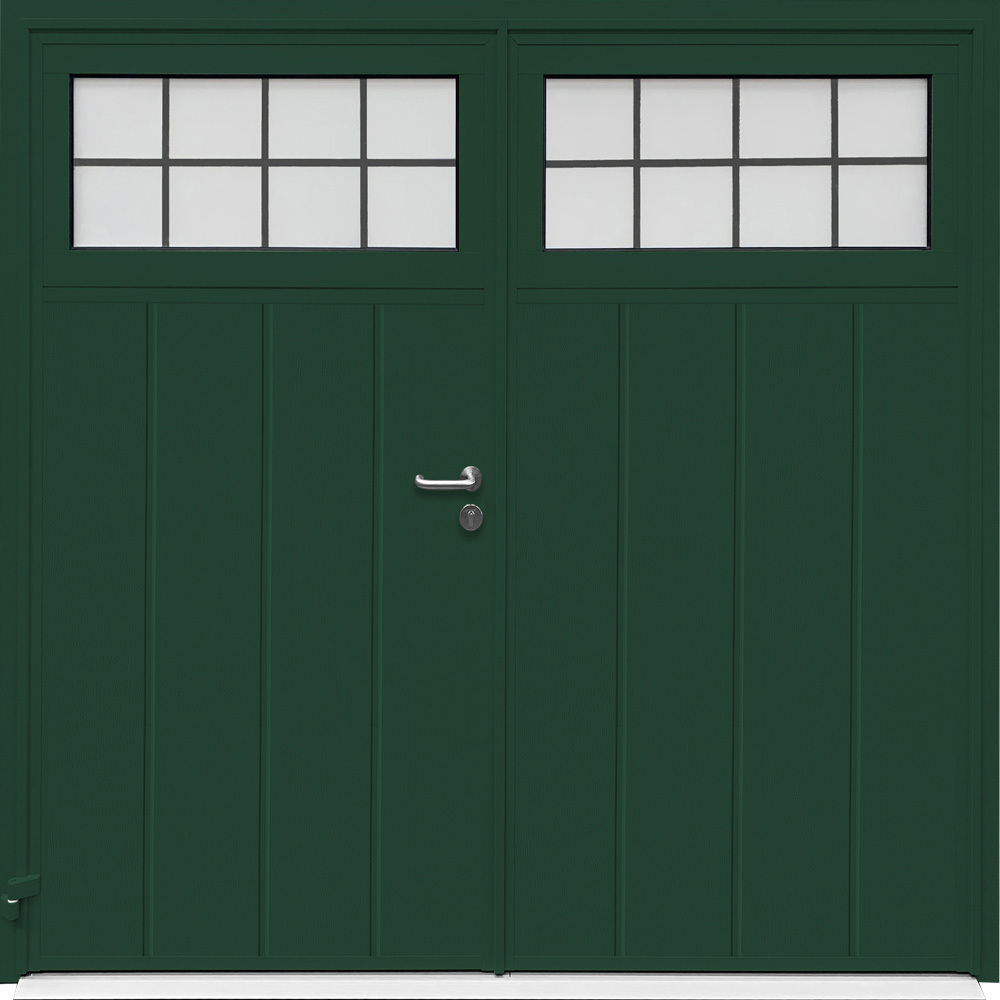

CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Horizontal White with Type 2 Rectangular Windows
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Horizontal
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Asymmetric Horizontal
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Asymmetric Vertical
CarTeck Centre Ribbed Side Hinged Personnel - Horizontal
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Horizontal White with Type 2 Rectangular Windows
CarTeck Insulated Standard Rib Side Hinged Garage Door - Horizontal

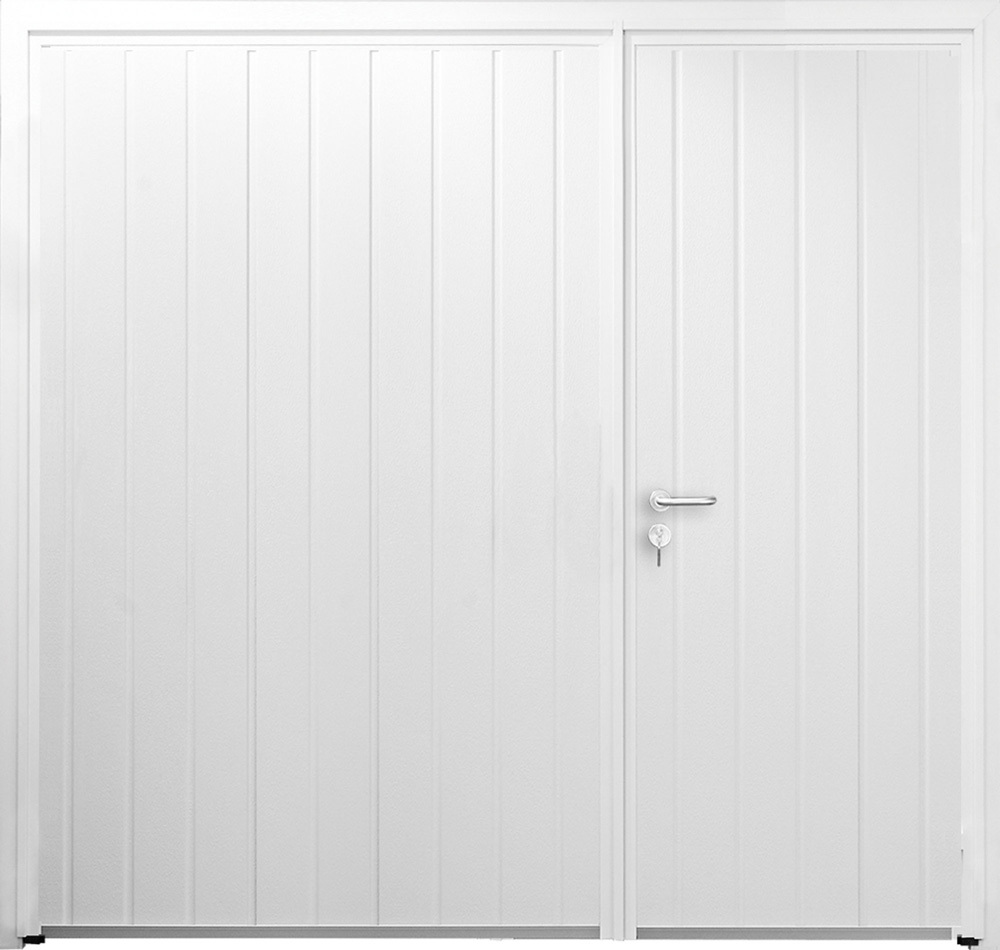

CarTeck Insulated Standard Rib Side Hinged Garage Door - Asymmetric Vertical
CarTeck Insulated Standard Rib Side Hinged Garage Door - Vertical
CarTeck Insulated Standard Rib Side Hinged Garage Door - Asymmetric Horizontal
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Standard Ribbed Personnel - Horizontal
CarTeck Insulated Standard Rib Side Hinged Garage Door - Woodgrain Fir Green Vertical
CarTeck Insulated Standard Rib Side Hinged Garage Door - Horizontal
CarTeck Insulated Standard Rib Side Hinged Garage Door - Asymmetric Vertical

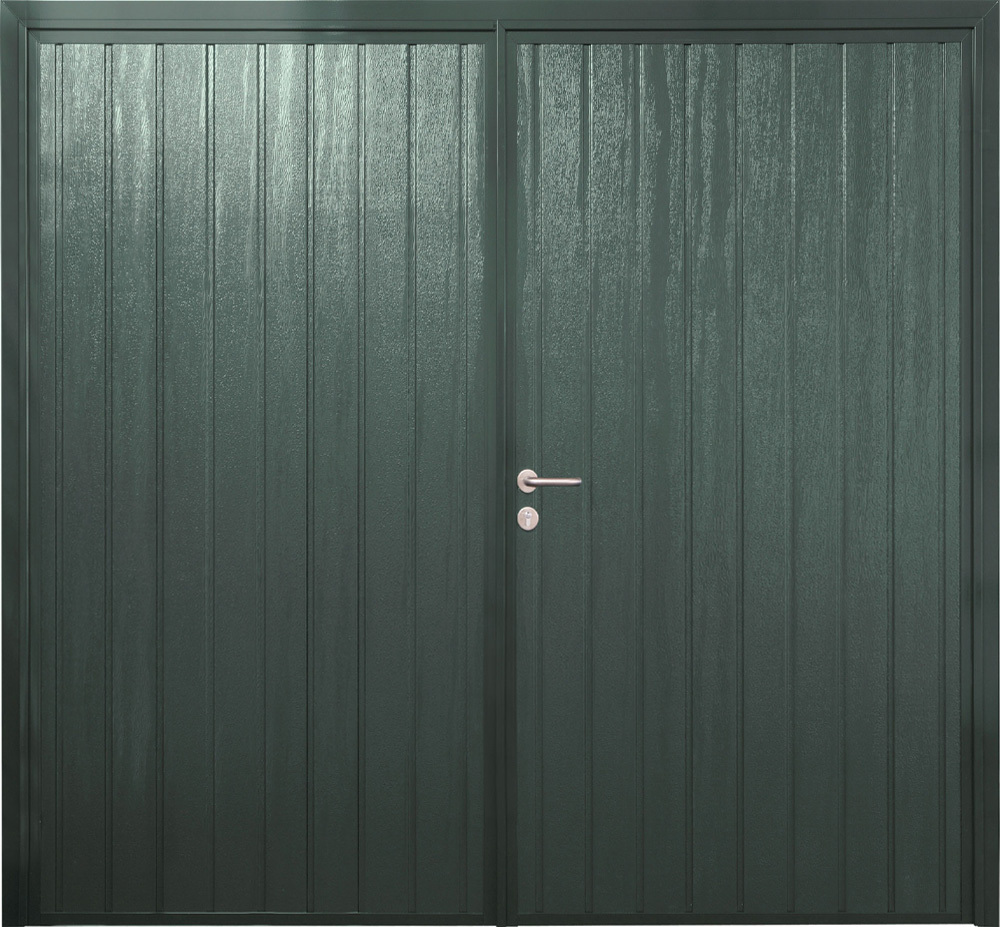

CarTeck Insulated Standard Rib Side Hinged Garage Door - Vertical

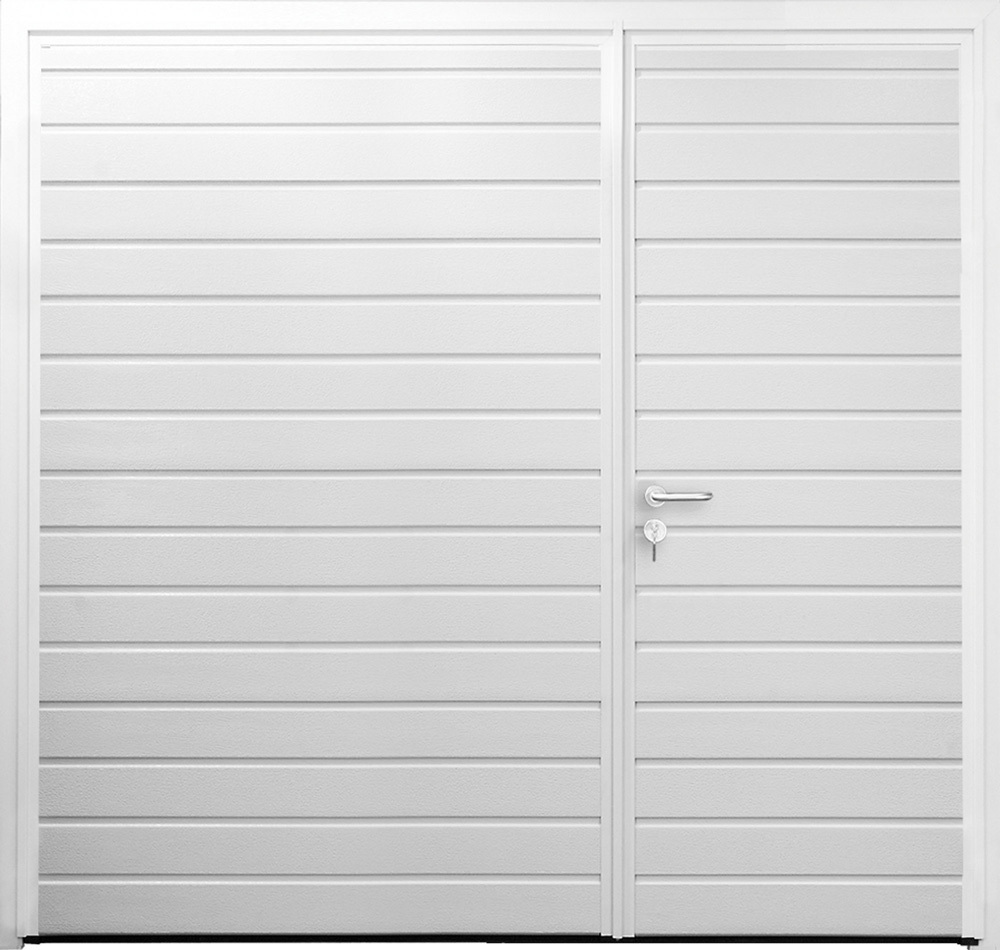

CarTeck Insulated Standard Rib Side Hinged Garage Door - Asymmetric Horizontal
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1500mm D-Handles
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Vertical with Twin 1200mm D-Handles
CarTeck Standard Ribbed Personnel - Horizontal
CarTeck Insulated Standard Rib Side Hinged Garage Door - Woodgrain Fir Green Vertical

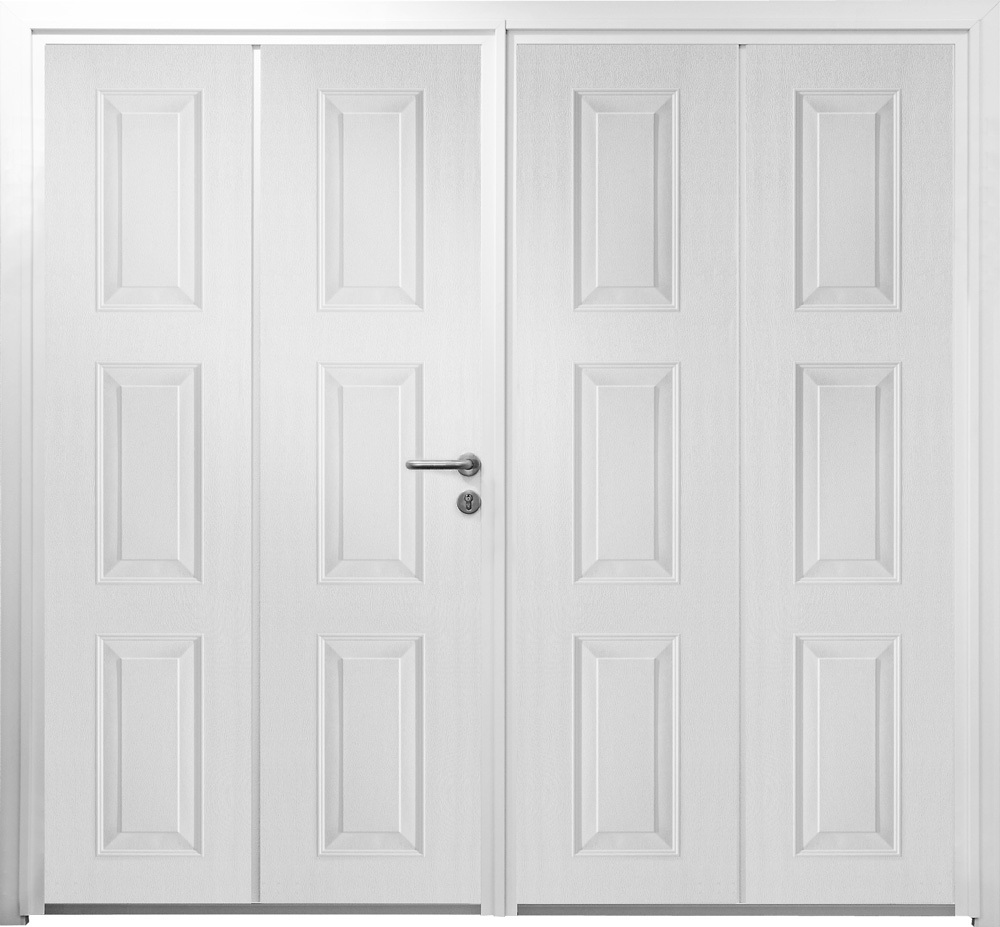

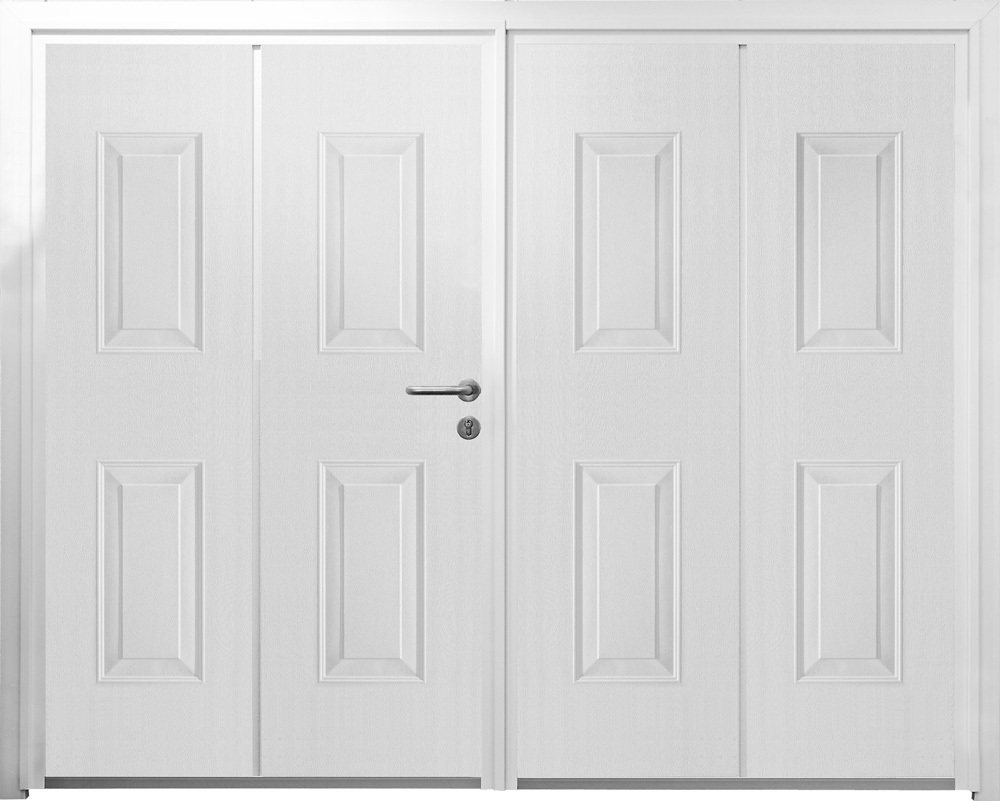

CarTeck Insulated Georgian Side Hinged Garage Door - Vertical Height Above 2200mm
CarTeck Insulated Georgian Side Hinged Garage Door - Vertical Height Below 2200mm

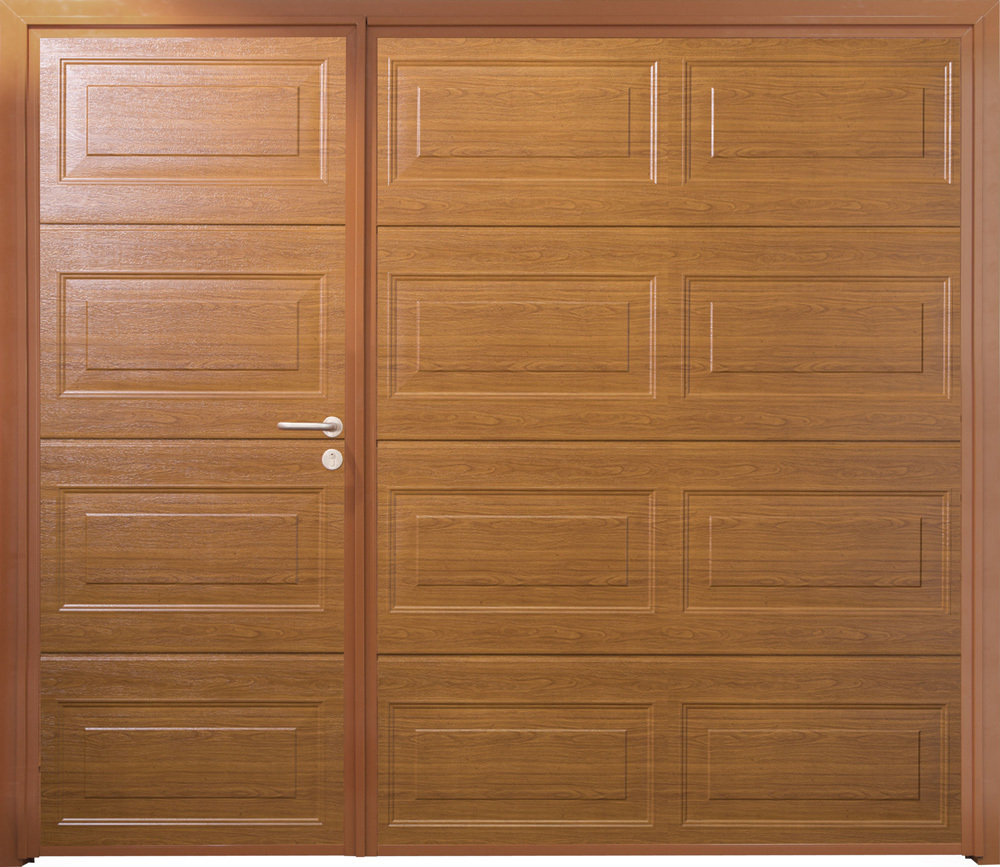

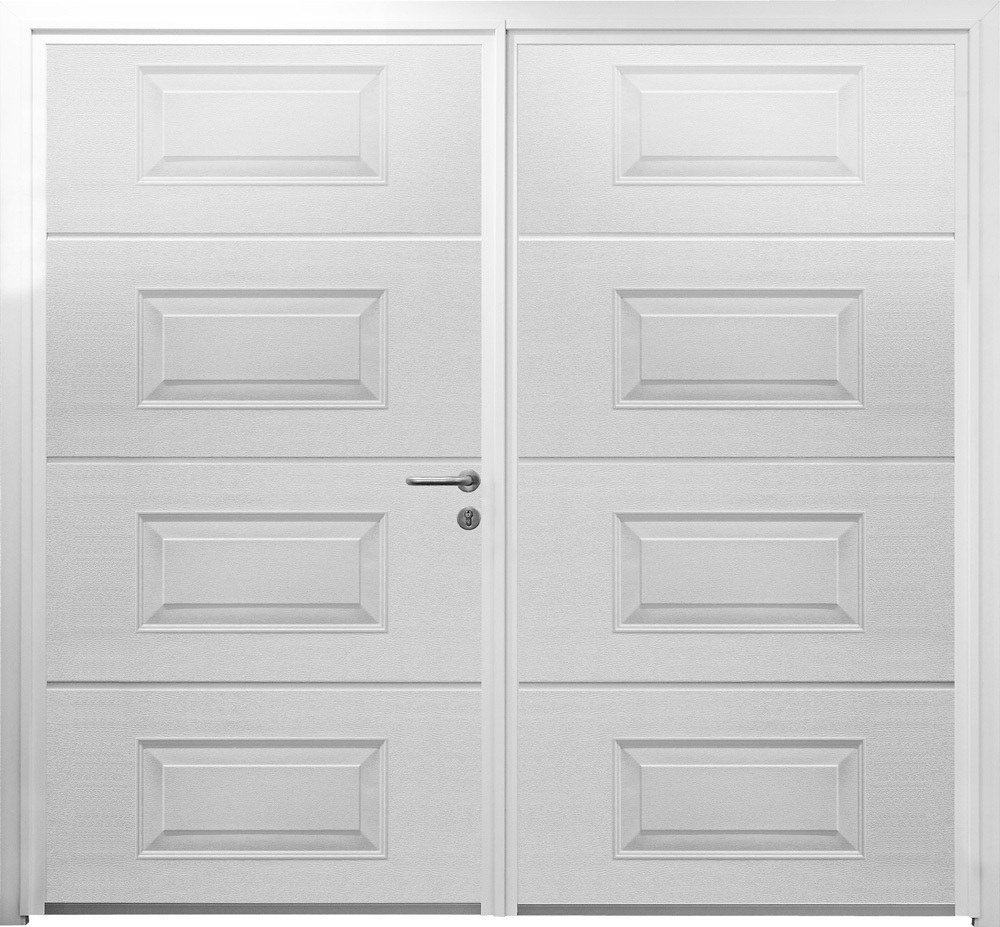

CarTeck Insulated Georgian Side Hinged Garage Door - Horizontal Width Up To 2350mm

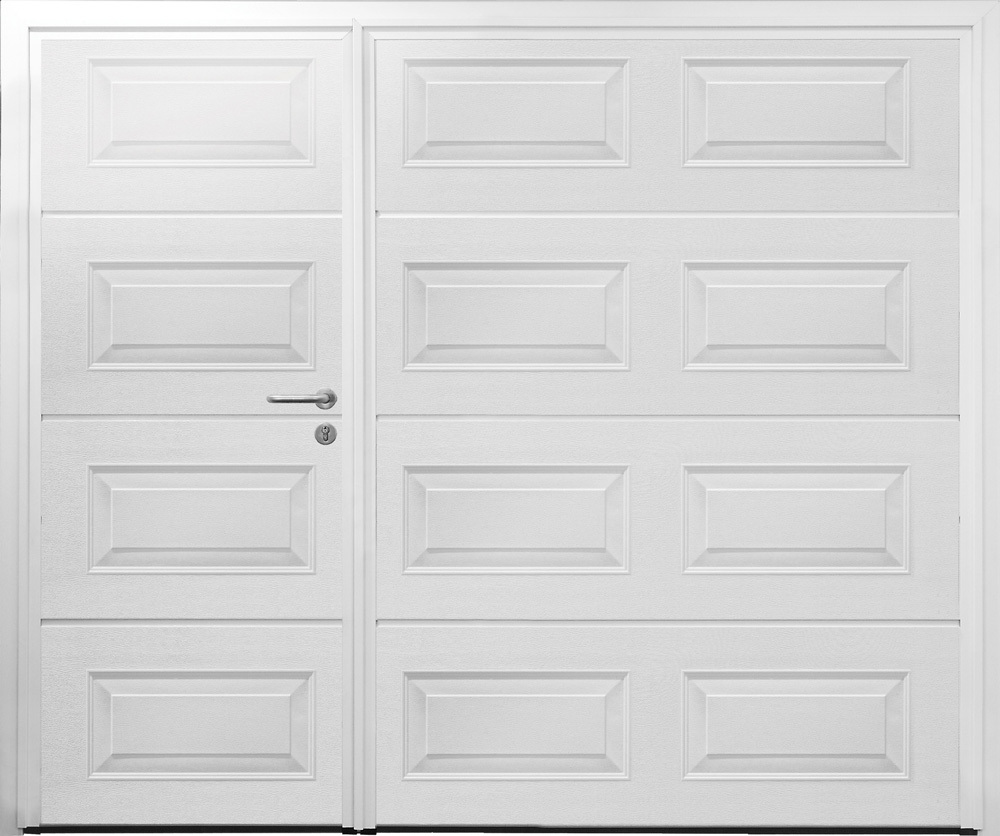

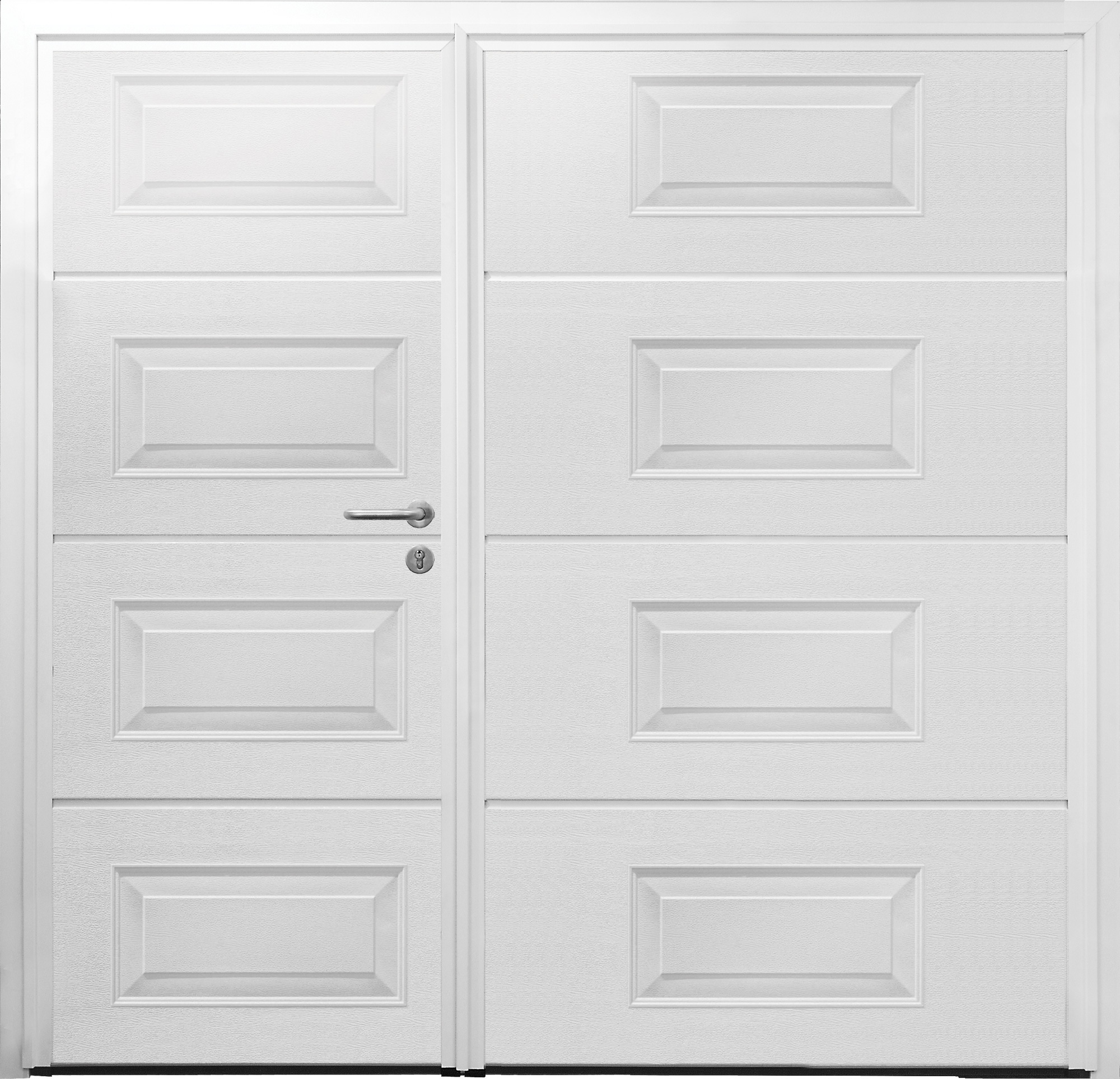

CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Width Up To 2350mm
CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Width Above 2350mm

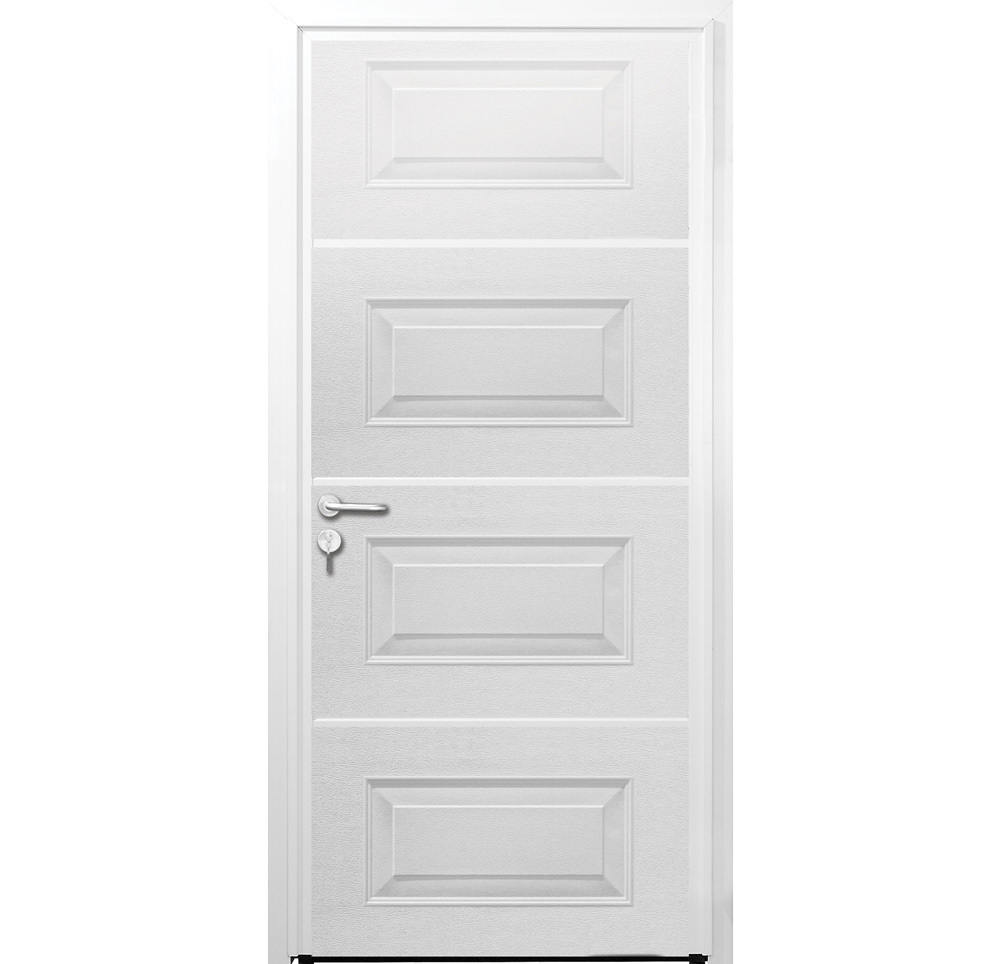

CarTeck Georgian Personnel - Horizontal
CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Woodgrain Wood Effect Golden Oak

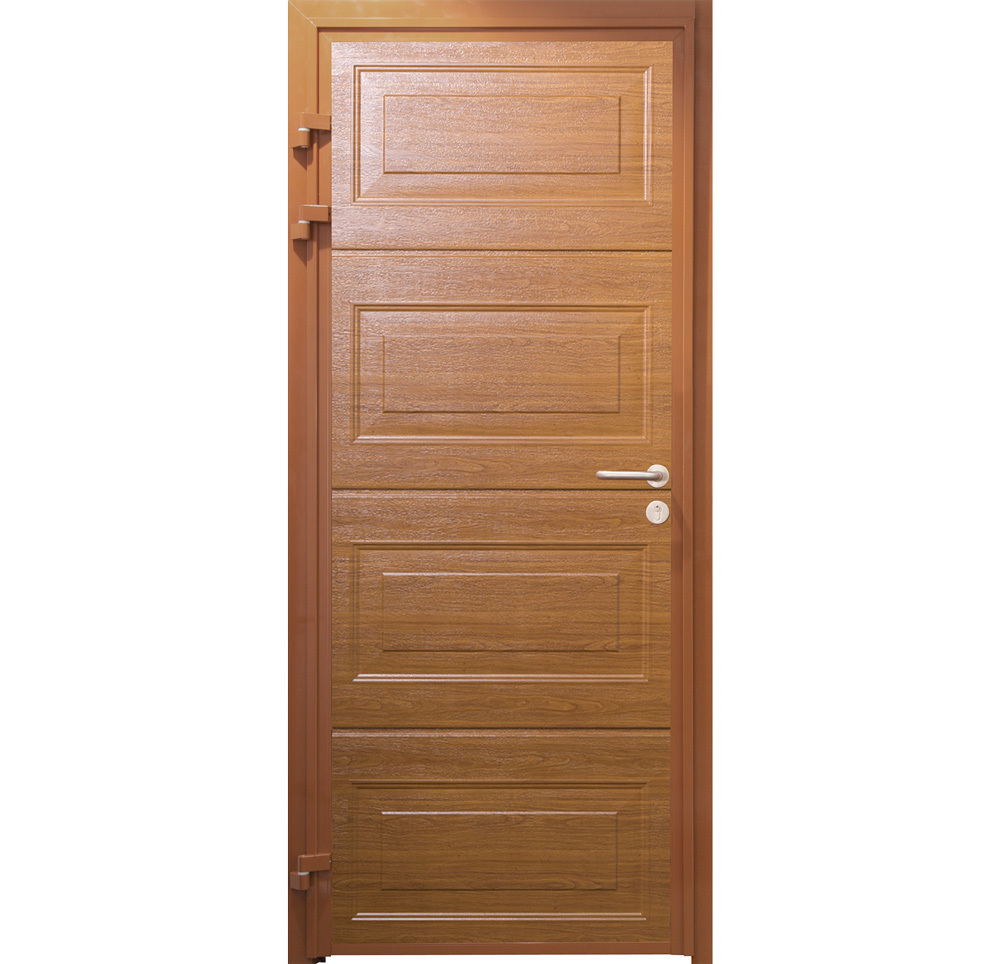

CarTeck Georgian Personnel Door - Woodgrain Wood Effect Golden Oak
CarTeck Insulated Georgian Side Hinged Garage Door - Woodgrain Vertical Wood Effect Rosewood
CarTeck Insulated Georgian Side Hinged Garage Door - Vertical Height Above 2200mm
CarTeck Insulated Georgian Side Hinged Garage Door - Vertical Height Below 2200mm
CarTeck Insulated Georgian Side Hinged Garage Door - Horizontal Width Up To 2350mm
CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Width Up To 2350mm
CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Width Above 2350mm
CarTeck Georgian Personnel - Horizontal
CarTeck Insulated Georgian Side Hinged Garage Door - Asymmetric Horizontal Woodgrain Wood Effect Golden Oak
CarTeck Georgian Personnel Door - Woodgrain Wood Effect Golden Oak
CarTeck Insulated Georgian Side Hinged Garage Door - Woodgrain Vertical Wood Effect Rosewood

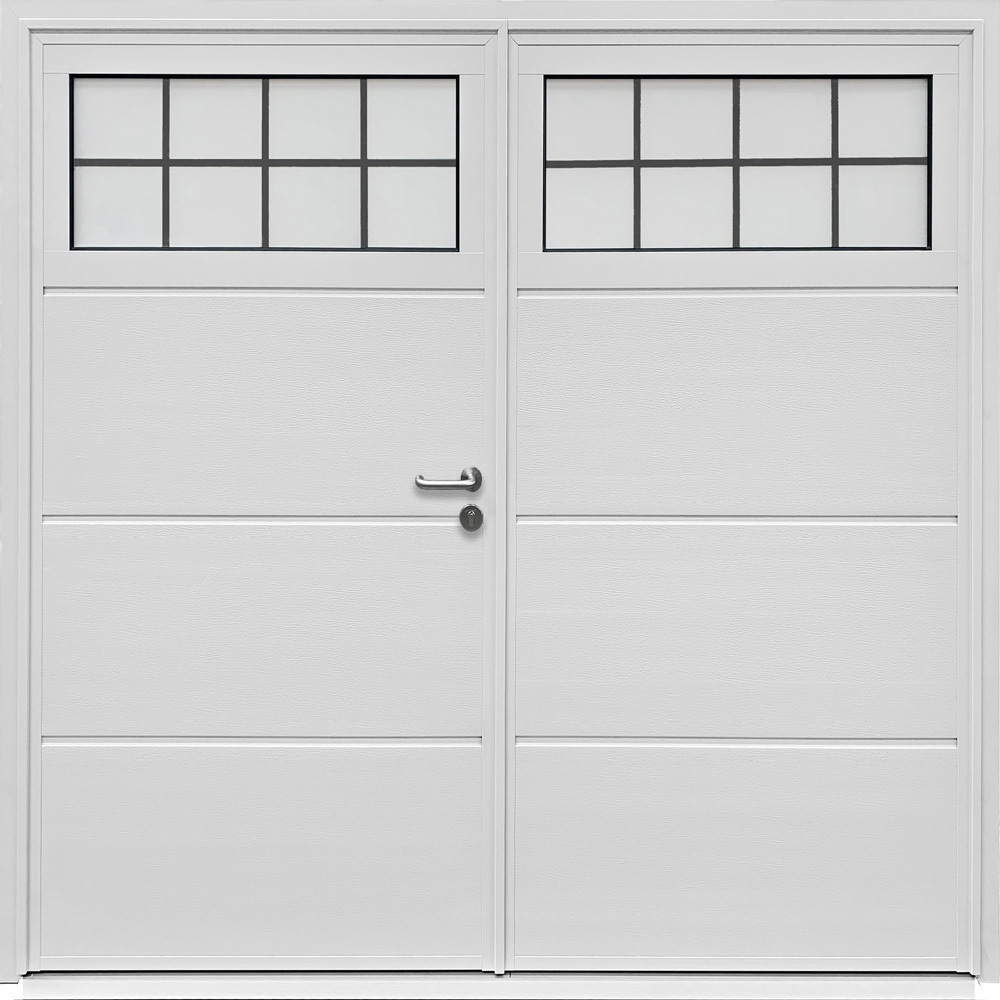

Carteck Insulated Traditional Side Hinged Garage Door - Solid Ribbed Horizontal

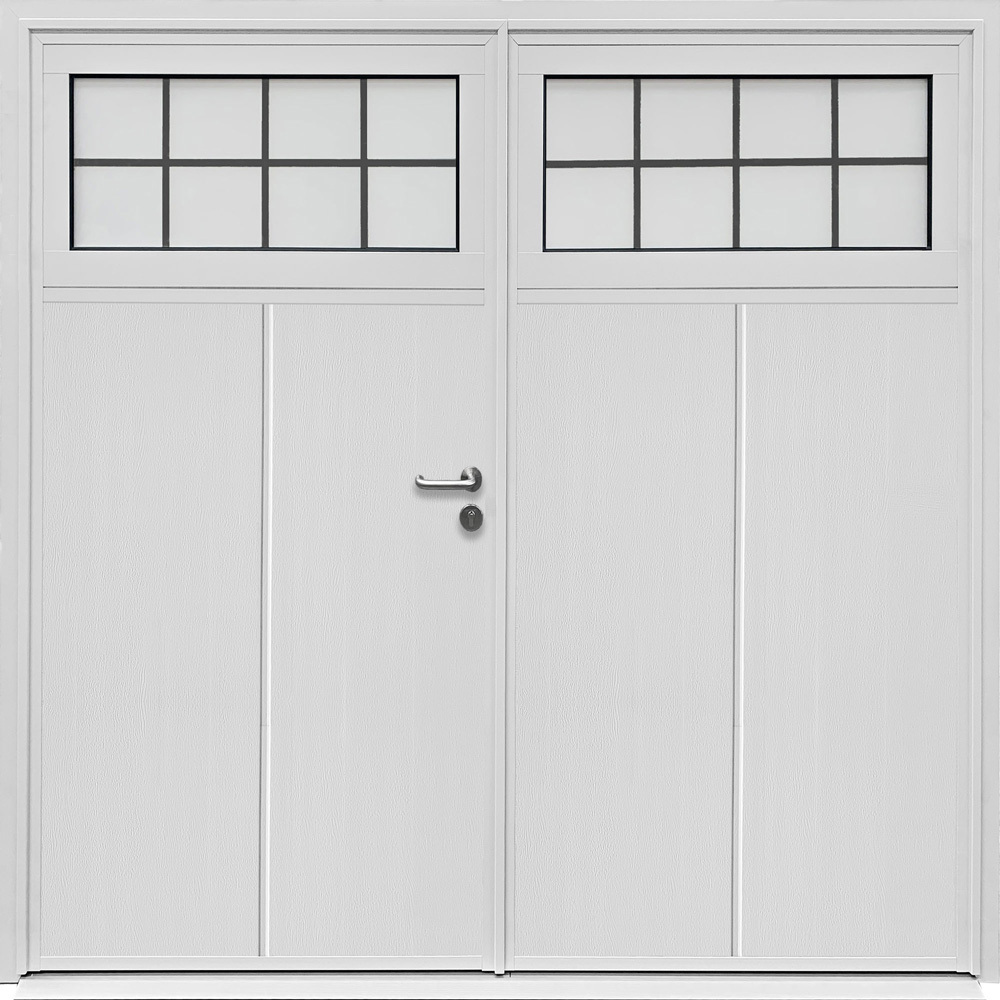

Carteck Insulated Traditional Side Hinged Garage Door - Solid Ribbed Vertical

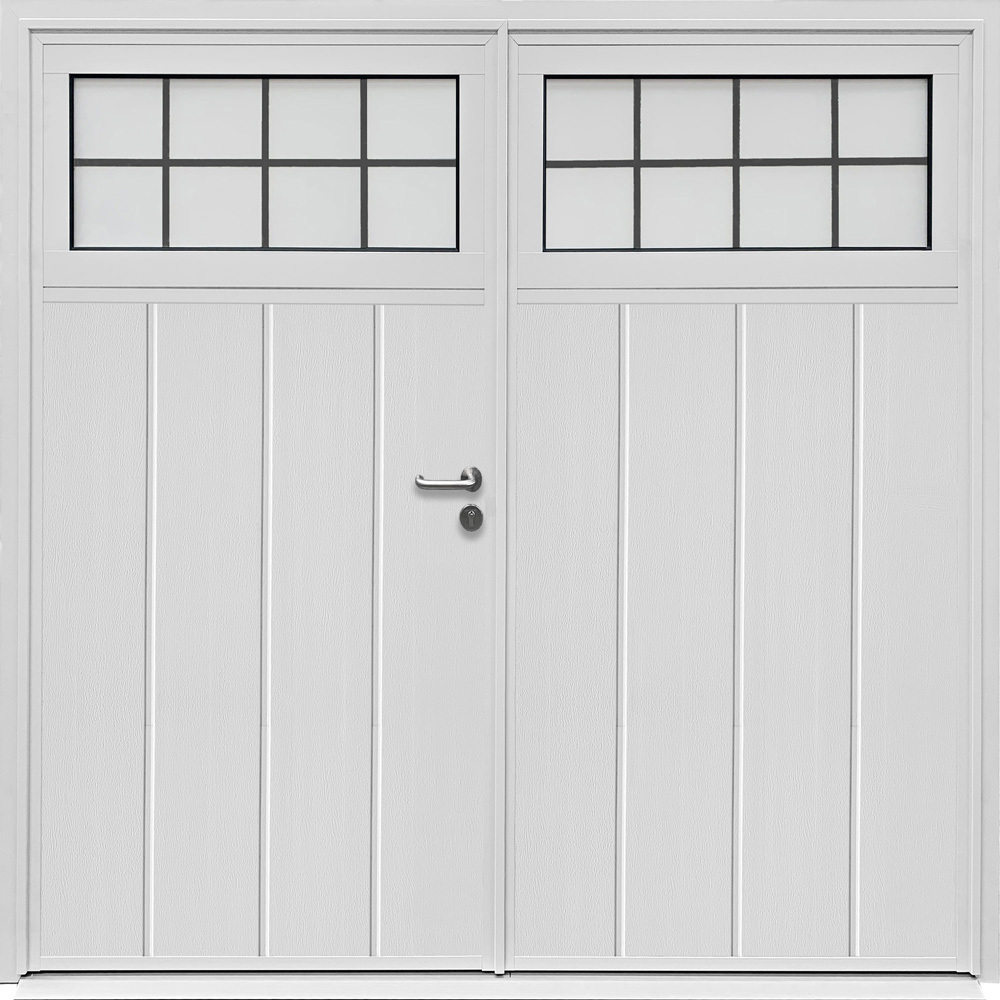

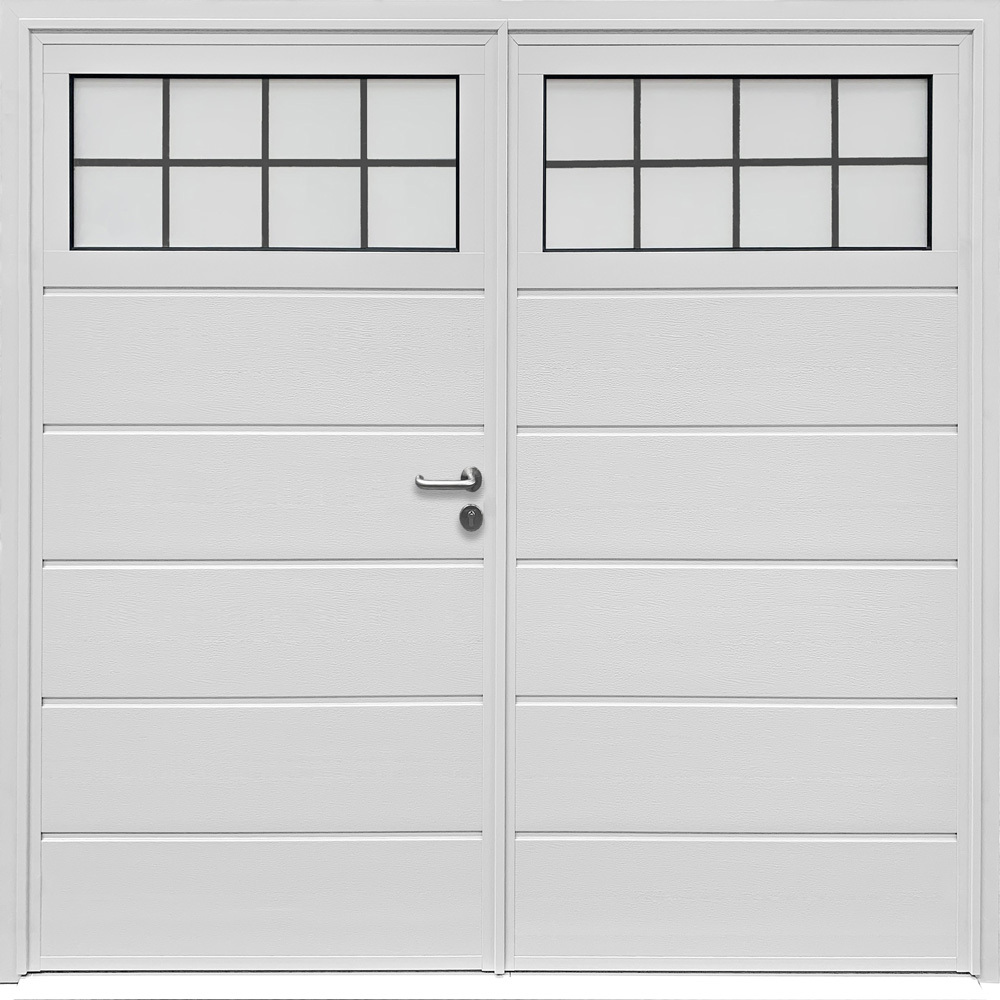

Carteck Insulated Traditional Side Hinged Garage Door - Centre Ribbed Vertical
Carteck Insulated Traditional Side Hinged Garage Door - Centre Ribbed Horizontal

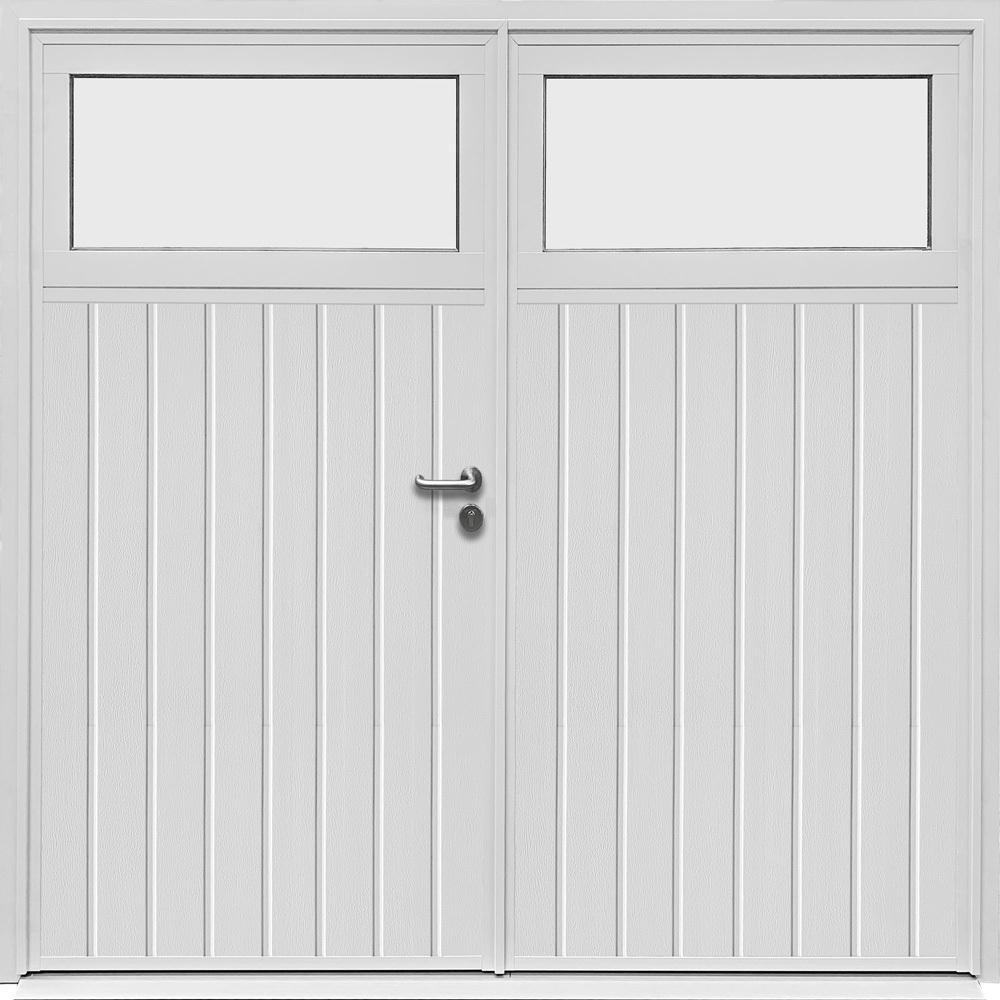

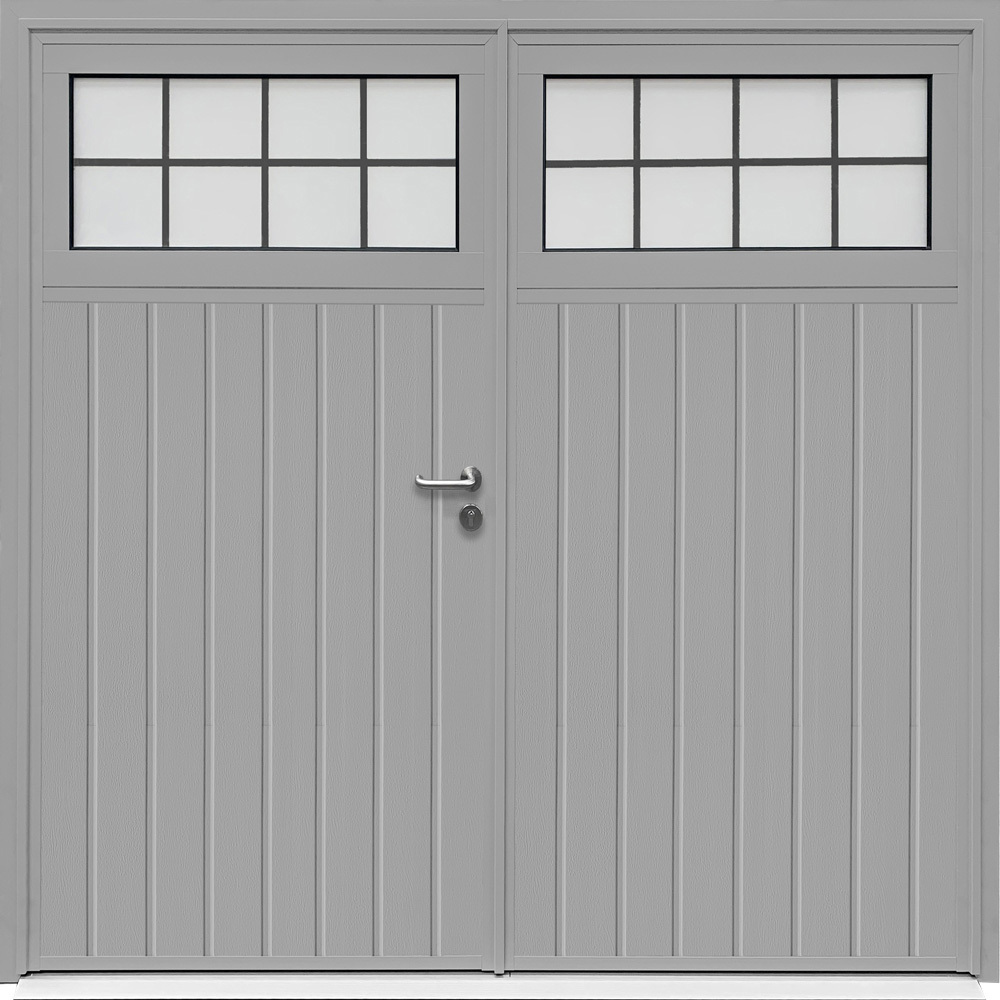

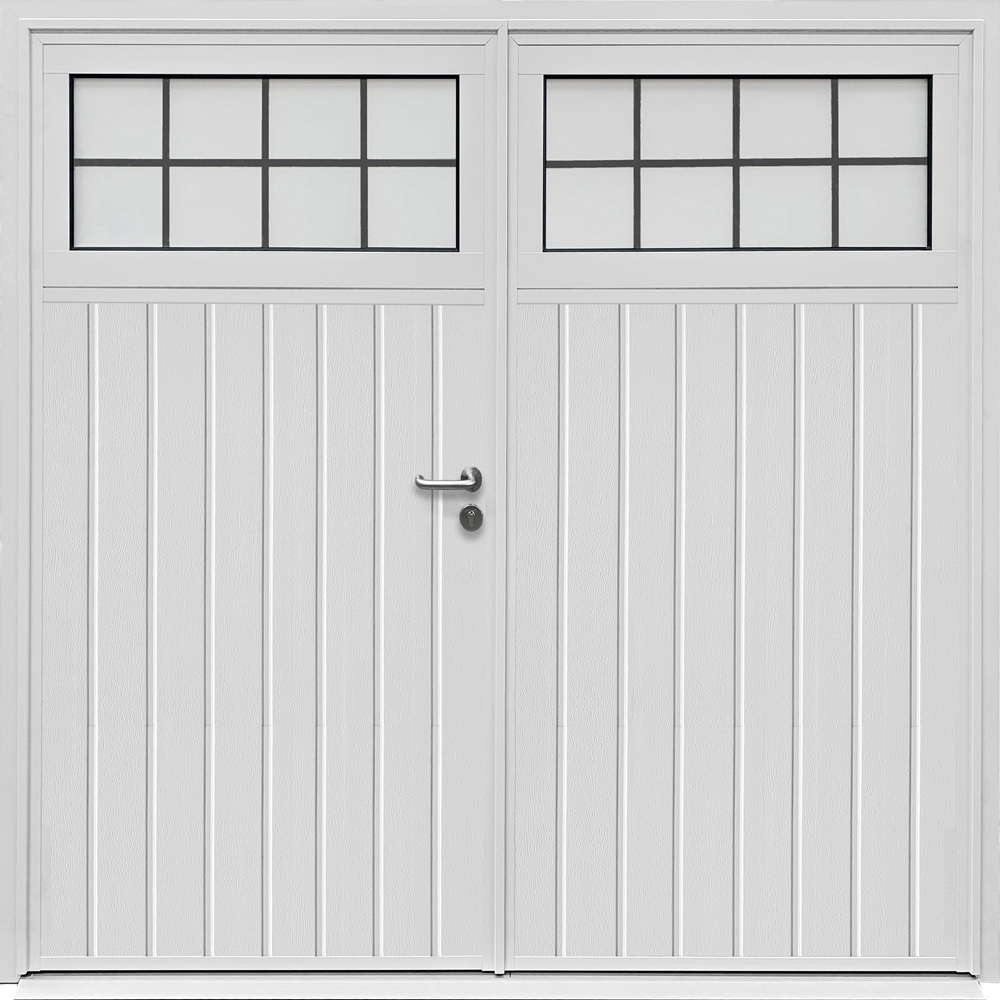

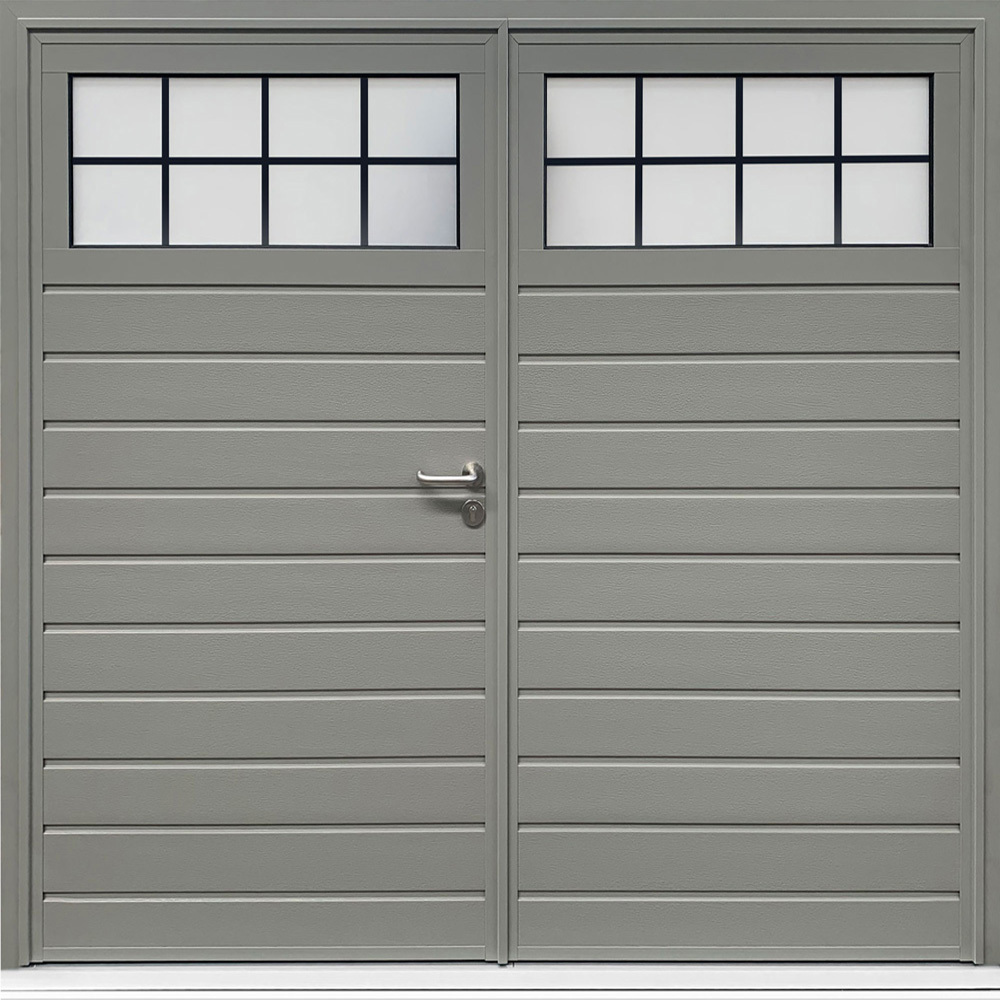

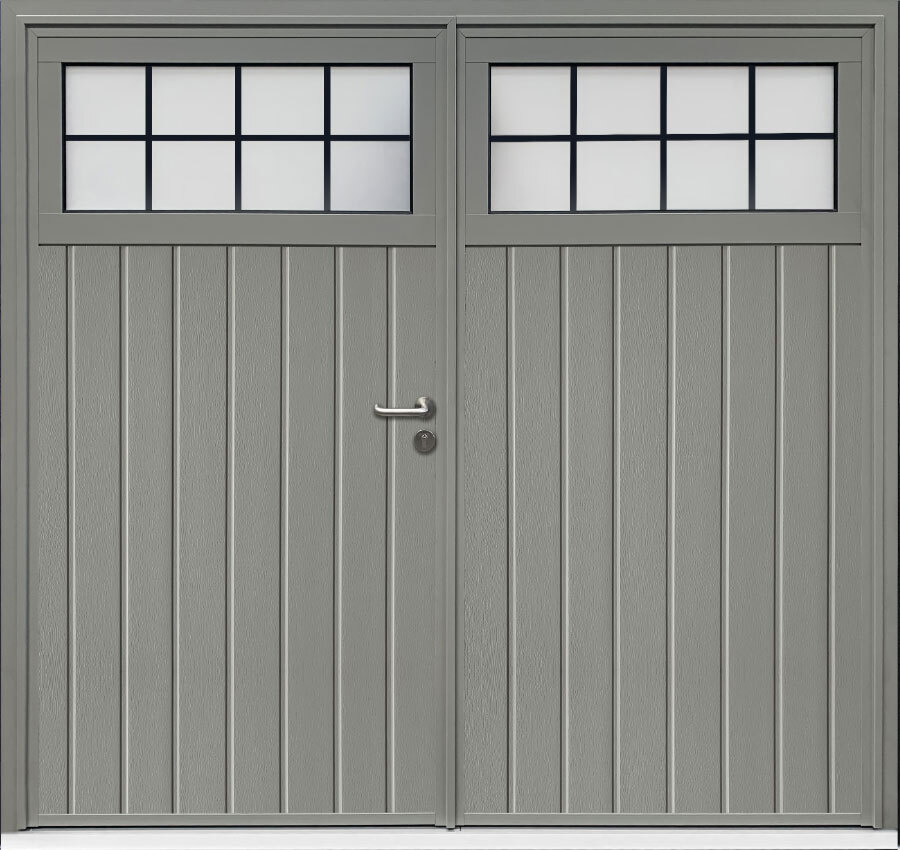

CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical with Plain Window Option
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Steel Blue RAL 5011
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical White Aluminium RAL 9006
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Anthracite Grey RAL 7016
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Fir Green RAL 6009
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal Agate Grey RAL 7038
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal Quartz Grey RAL 7039
CarTeck Traditional Insulated Side Hinged Garage Door - Centre Ribbed Vertical Moss Green RAL 6005

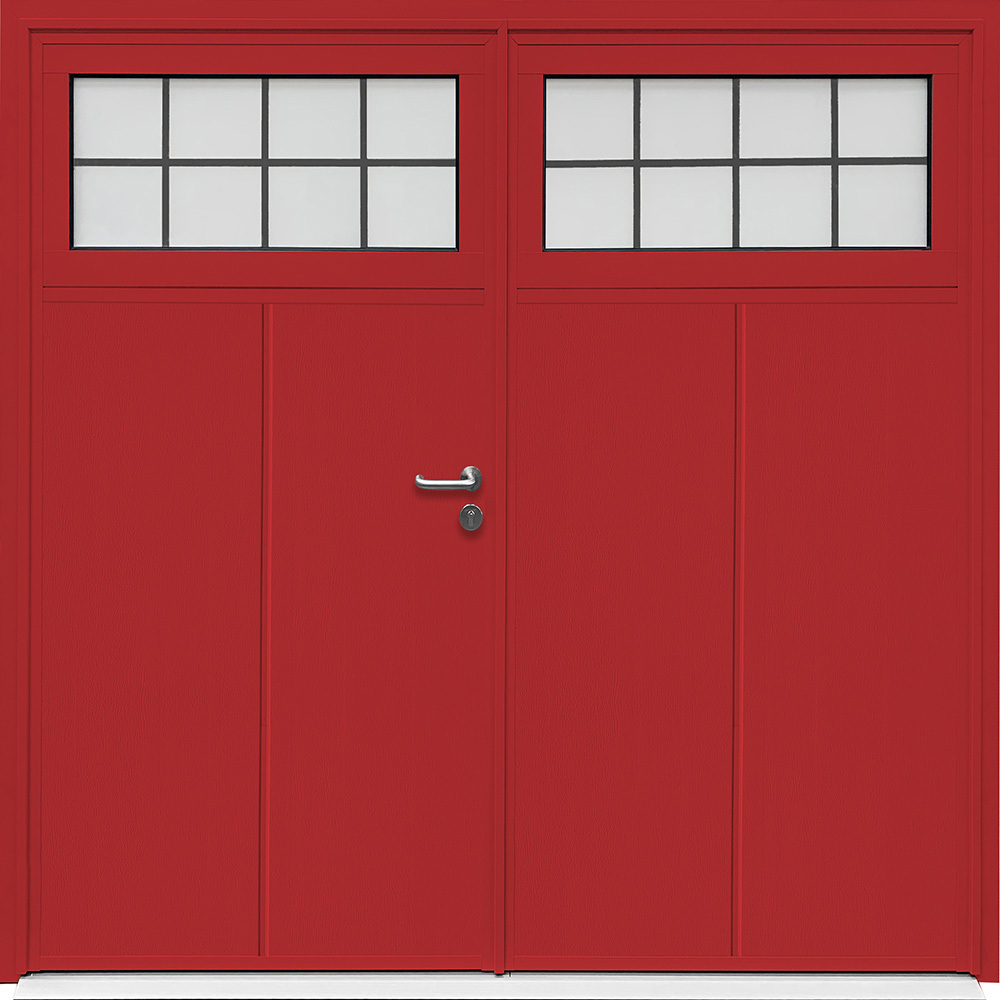

CarTeck Insulated Traditional Side Hinged Garage Door - Solid Vertical Flame Red RAL 3000

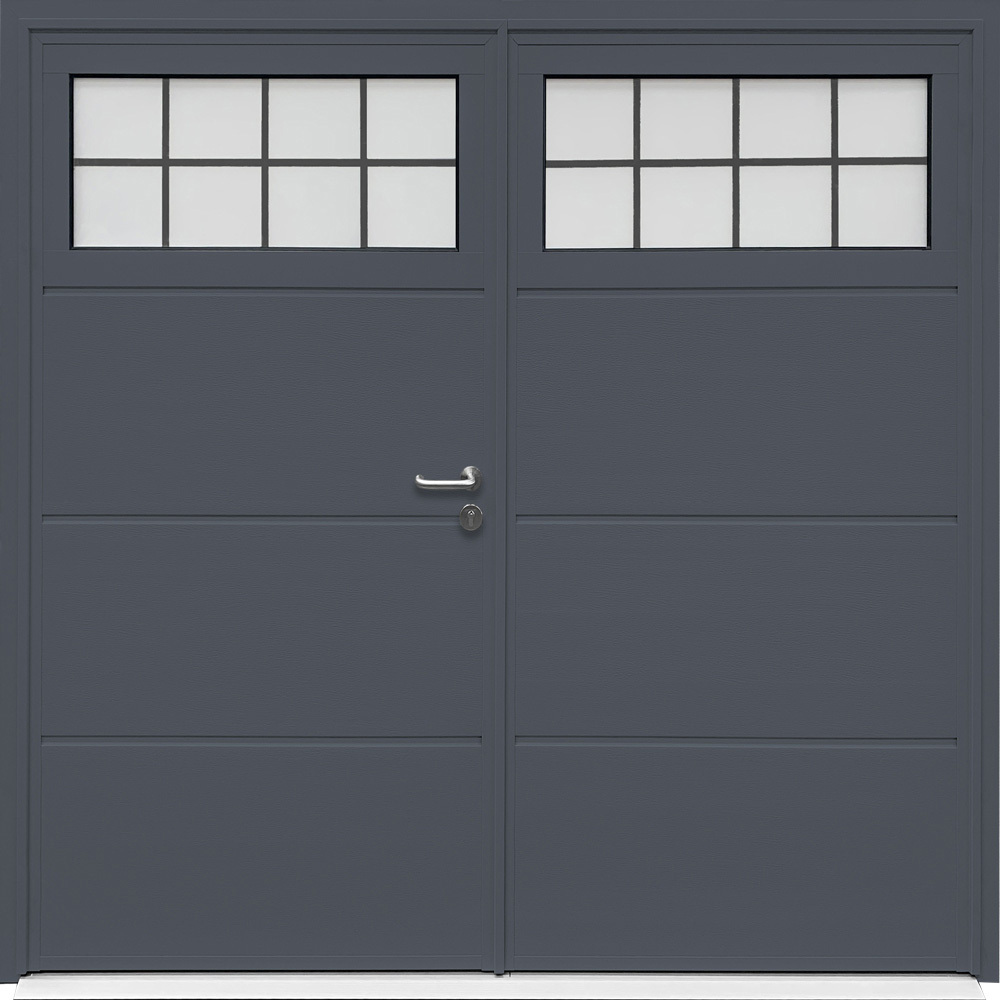

CarTeck Insulated Traditional Side Hinged Garage Door - Solid Horizontal Slate Grey RAL 7015
Carteck Insulated Traditional Side Hinged Garage Door - Solid Ribbed Horizontal
Carteck Insulated Traditional Side Hinged Garage Door - Solid Ribbed Vertical
Carteck Insulated Traditional Side Hinged Garage Door - Centre Ribbed Vertical
Carteck Insulated Traditional Side Hinged Garage Door - Centre Ribbed Horizontal
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical with Plain Window Option
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Steel Blue RAL 5011
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical White Aluminium RAL 9006
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Anthracite Grey RAL 7016
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Vertical Fir Green RAL 6009
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal Agate Grey RAL 7038
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal Quartz Grey RAL 7039
CarTeck Traditional Insulated Side Hinged Garage Door - Centre Ribbed Vertical Moss Green RAL 6005
CarTeck Insulated Traditional Side Hinged Garage Door - Solid Vertical Flame Red RAL 3000
CarTeck Insulated Traditional Side Hinged Garage Door - Solid Horizontal Slate Grey RAL 7015

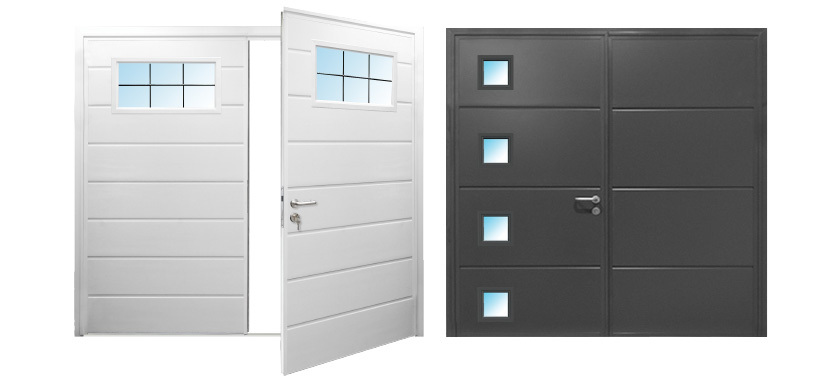

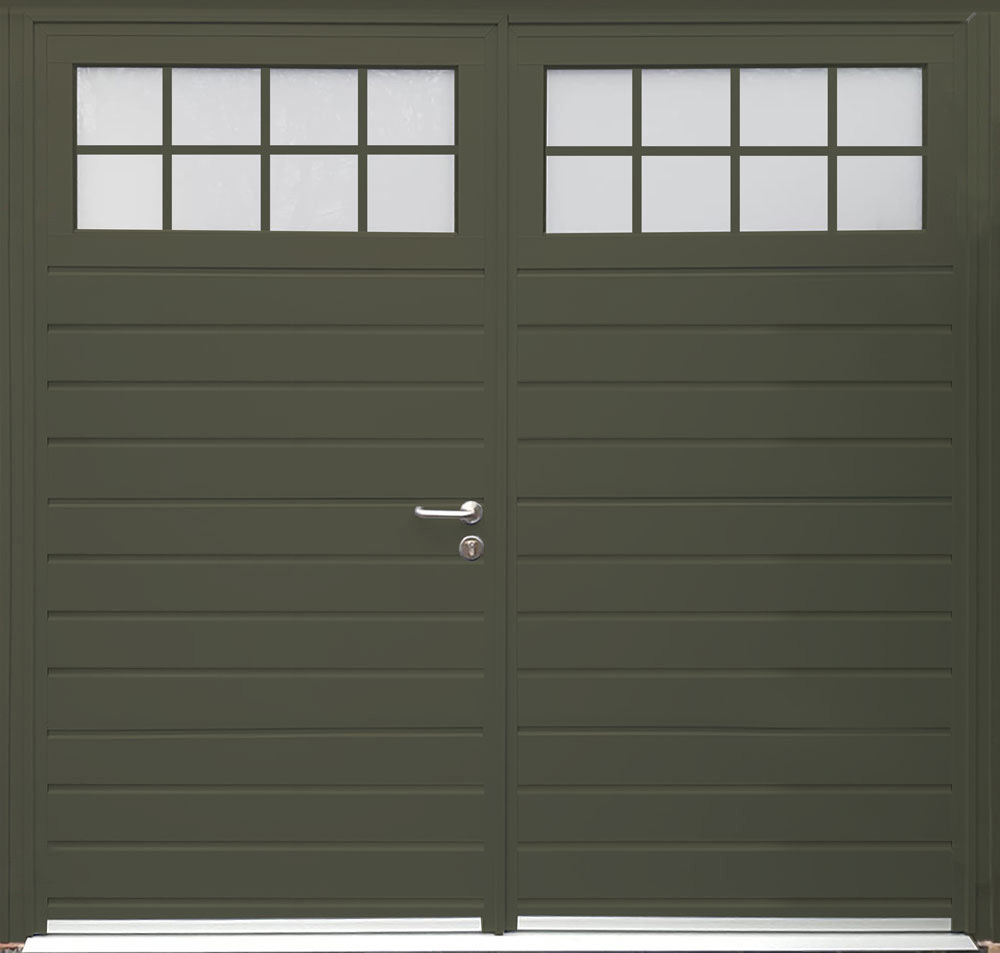

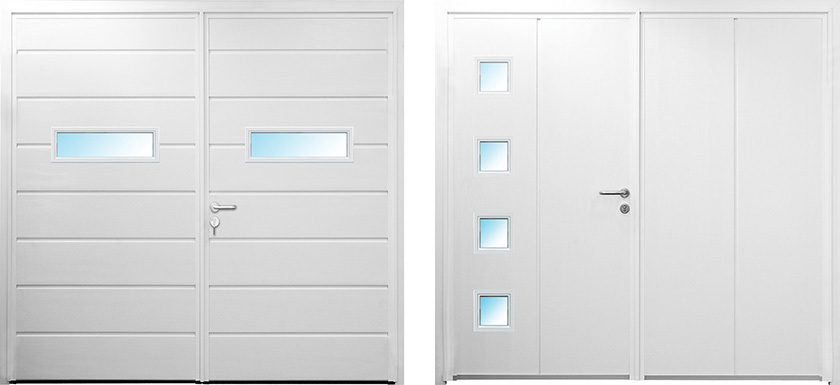

Scratch-Resistant Polymer Windows

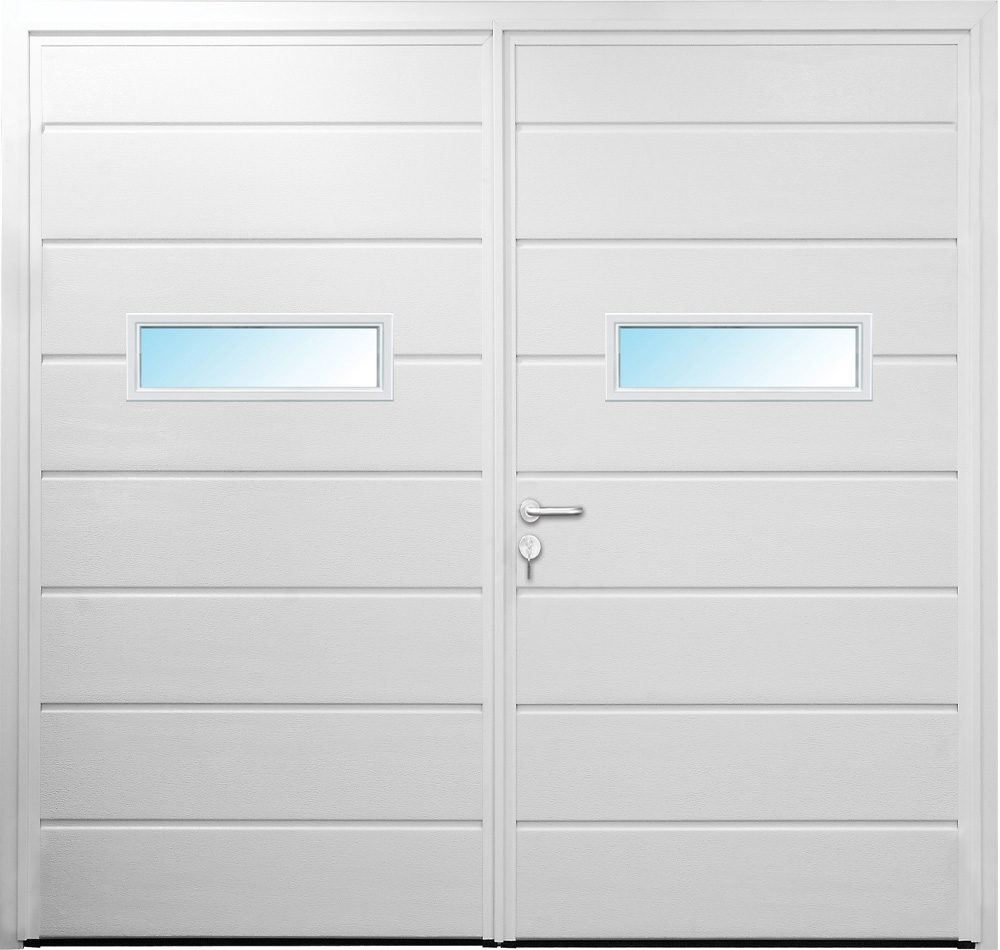

Make the most of the light, with our comprehensive range of window options

Scratch-resistant Polymer double glazed windows in attractive designs allow natural light into your garage.

Each style is available with clear, frosted or satin glazing. The window units are fitted with a polyurethane frame that is coloured to match or compliment the panel colour of the door.

View Scratch-resistant Polymer window options
CarTeck Insulated Georgian Side Hinged Garage Door - Woodgrain Anthracite Grey with Cross Mullion Windows
CarTeck Insulated Centre Ribbed Side Hinged Garage Door - Woodgrain Steel Blue with Bling Sigma Windows, Writing Decal & Stainless Steel Pull Handle
CarTeck Insulated Traditional Side Hinged Garage Door - Standard Ribbed Horizontal Agate Grey RAL 7038
CarTeck Insulated Traditional Side Hinged Garage Door - Smooth Standard Ribbed Anthracite Grey

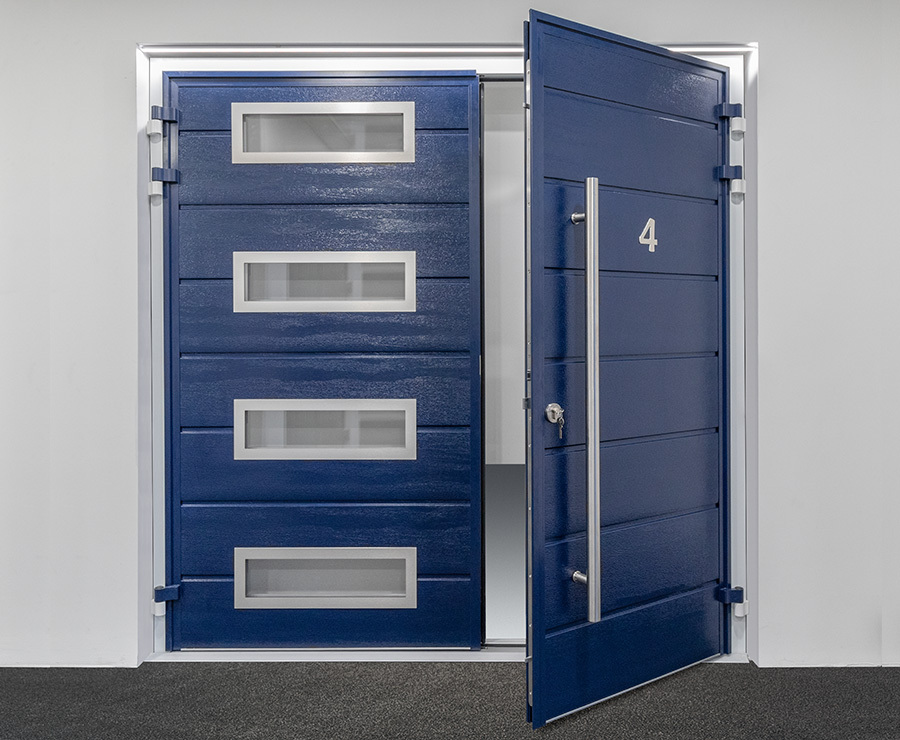

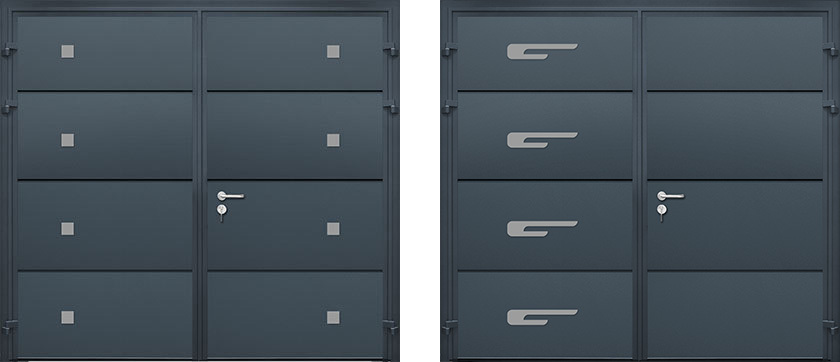

Aluminium Windows

High-grade window units add natural daylight with a contemporary twist

Looking for something a bit more unusual?

Insulated side hinged garage doors have the option of adding high-grade Aluminium windows designs from the Teckentrup Bling range.


View Aluminium window options
Teckentrup Bling Garage Door - Versus Window

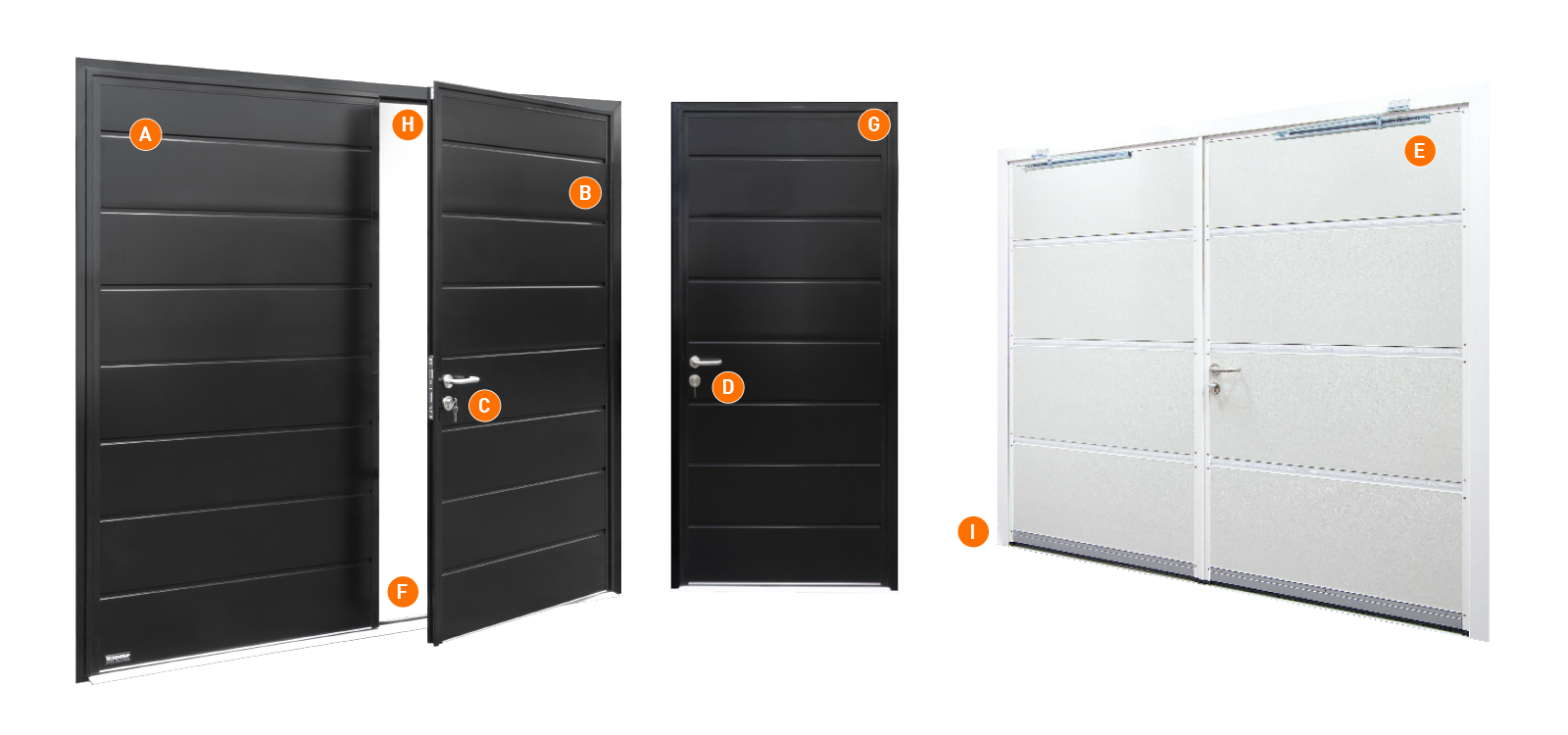

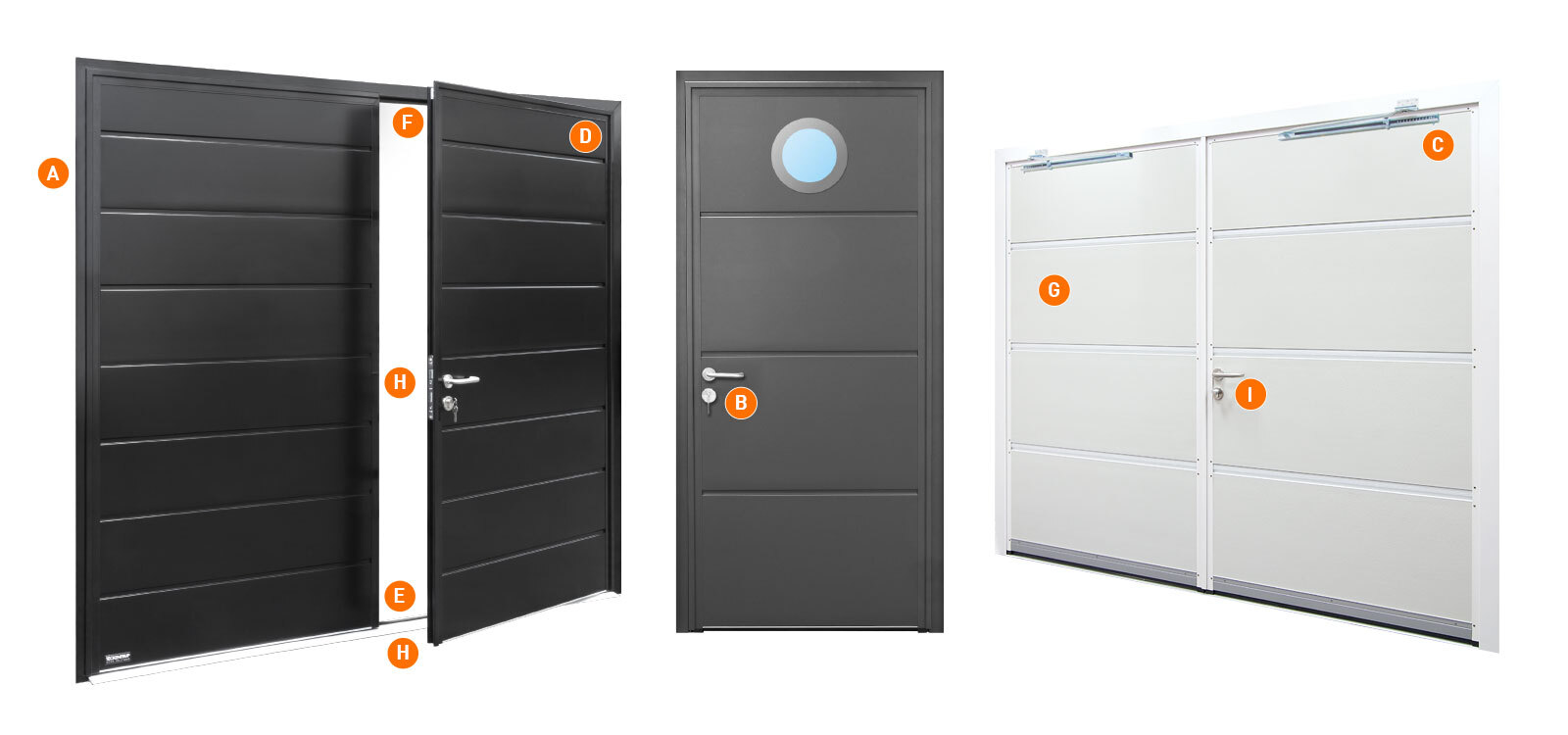

Every detail, perfect

Explore the features & benefits of an insulated side hinged
garage door from Teckentrup Door Solutions

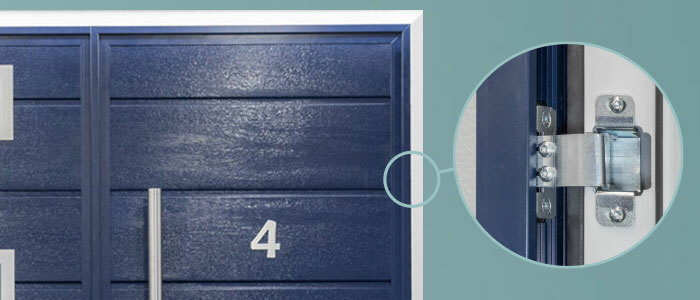

Teckentrup Side Hinged Hinges New A

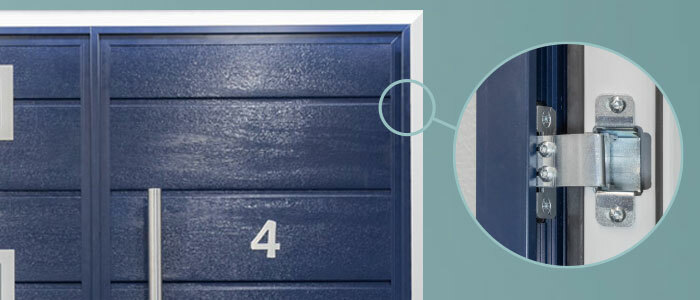

High quality concealed hinges

All side hinged doors have concealed hinges for a super sleek overall look. No hinges to the outside of the door removes an obvious point of attack and also makes it difficult to lever open the door should an attempt be made.

Concealed hinges offer an improved drive through width of up to 80mm between the frame compared to surface mounted hinges.

Each door leaf has two or three (dependent on size) heavy-duty concealed hinges that are easily adjusted to help align the door leaves perfectly.

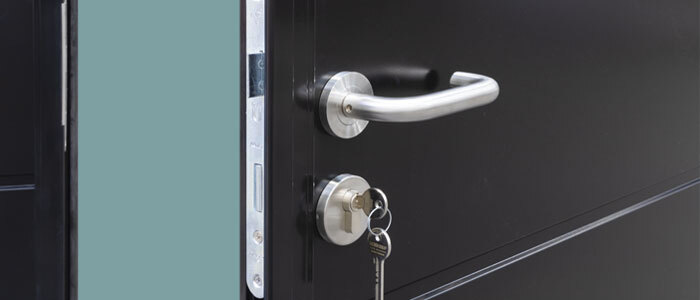

Teckentrup Side Hinged Handle B

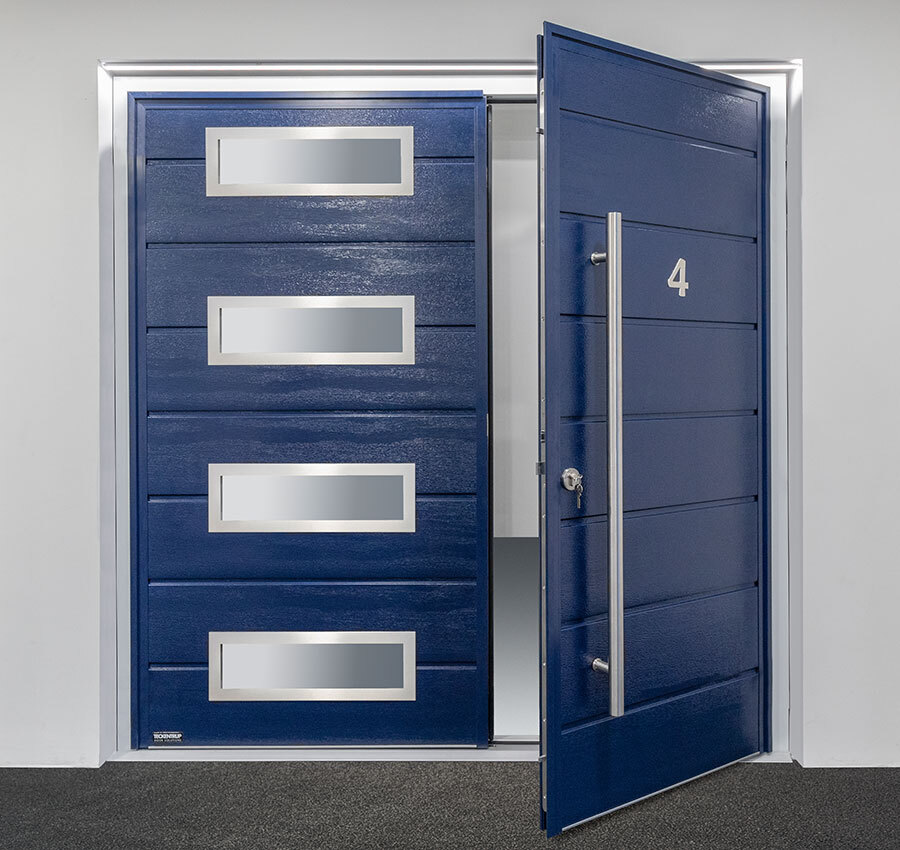

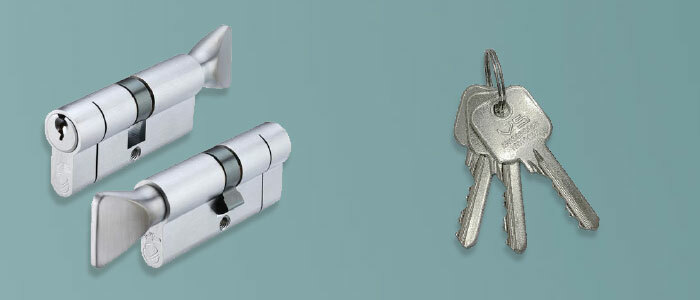

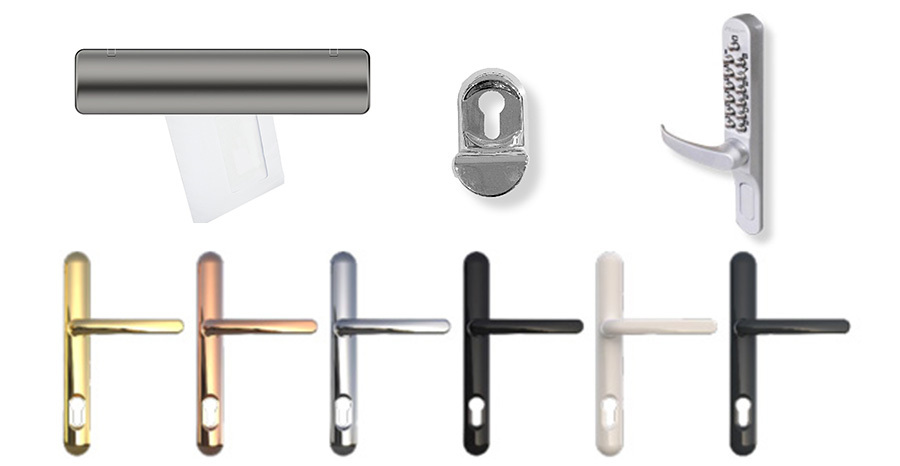

Stainless steel handles* and security locking

High grade stainless steel handles and lock covers are tough and attractive, whilst the latch and dead bolt combination provides dependable security. A convenient thumb turn operates the lock from the inside. Certified to BS EN1303 Cylinder Security Grade 2, our lock cylinder provides enhanced security and is anti-drill and anti-pick. 3 keys as standard.

The inactive leaf incorporates a stainless steel strike plate with an adjustable latch plate for precise latching and a steel lock keep box for added attack resistance. Specific hardware requirement? Talk to us as alternative designs can often be accommodated.

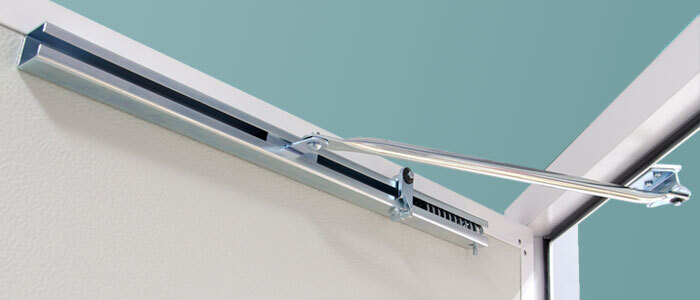

Door Stays C
Door stays

These top grade, spring dampened stays hold the door securely in the open position. A simple de-latch motion releases the held door leaf. Any leaf below 780mm wide (including asymmetric side hinged doors) will not have a stay. Foot operated floor stays can be selected as an alternative option. Note - not designed for high wind applications.

Add foot activated floor stops to hold the door in the open position. Floor stops can be selected as an alternative option to door stays.
Note - not designed for high wind applications.

Double Weather Strips And Mitred Corners D

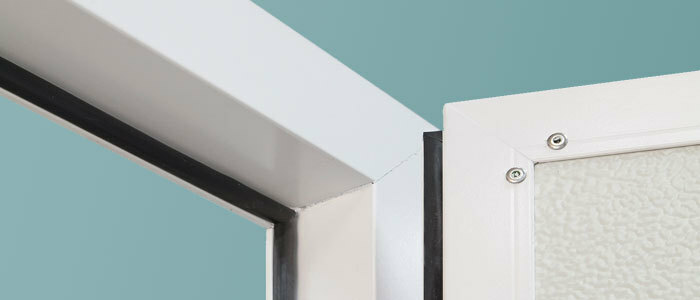

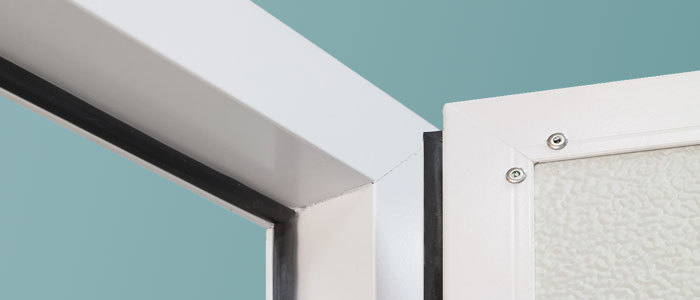

Double weather strips and mitred corners

In addition to the circumferential weather strip around the door leaf, the door frame has a three-sided weather strip for excellent draught reduction. Profiles are mitre jointed for a neat finish.

Teckentrup Side Hinged Threshold E

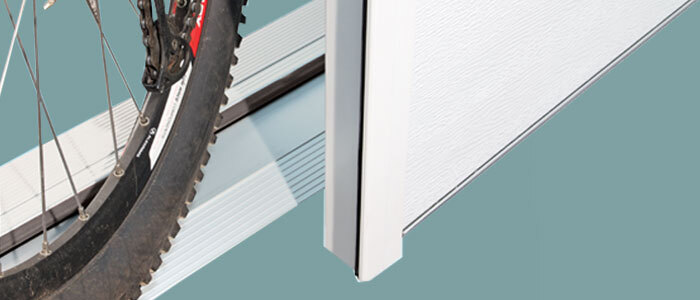

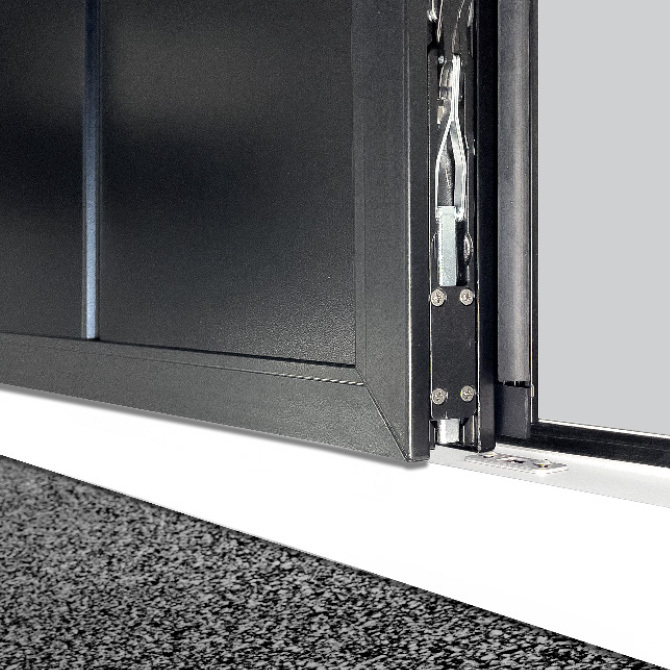

Standard lipped threshold

A stepped 3-part aluminium threshold with a bulb weather strip is supplied as standard. The door leaves close against the raised weather strip creating an improved barrier to dust and debris. The threshold includes a thermal break reducing heat transfer.

Teckentrup Side Hinged Features Flush Bolt F

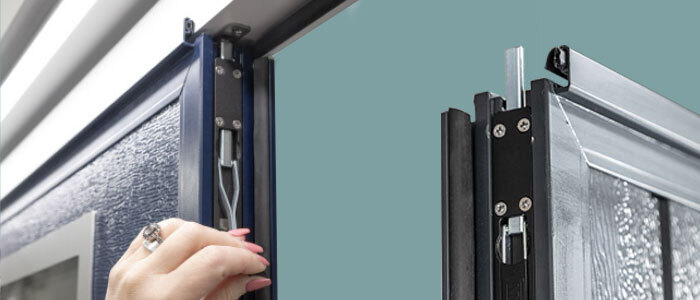

Flush bolt security

The inactive leaf is secured with flush bolts to the top and bottom of the leaf. Each bolt has an adjustable flush bolt plate for greater versatility on the position of the leading edge on the inactive leaf as seals compress over time.

Teckentrup Side Hinged Neat Inside G

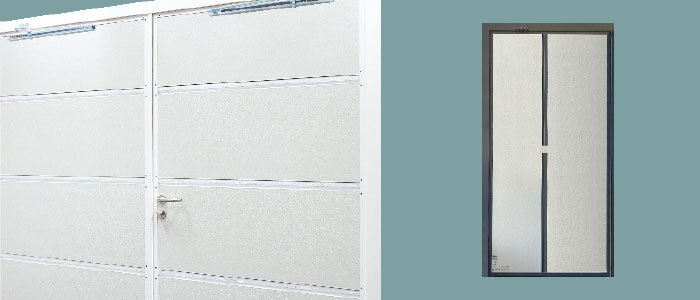

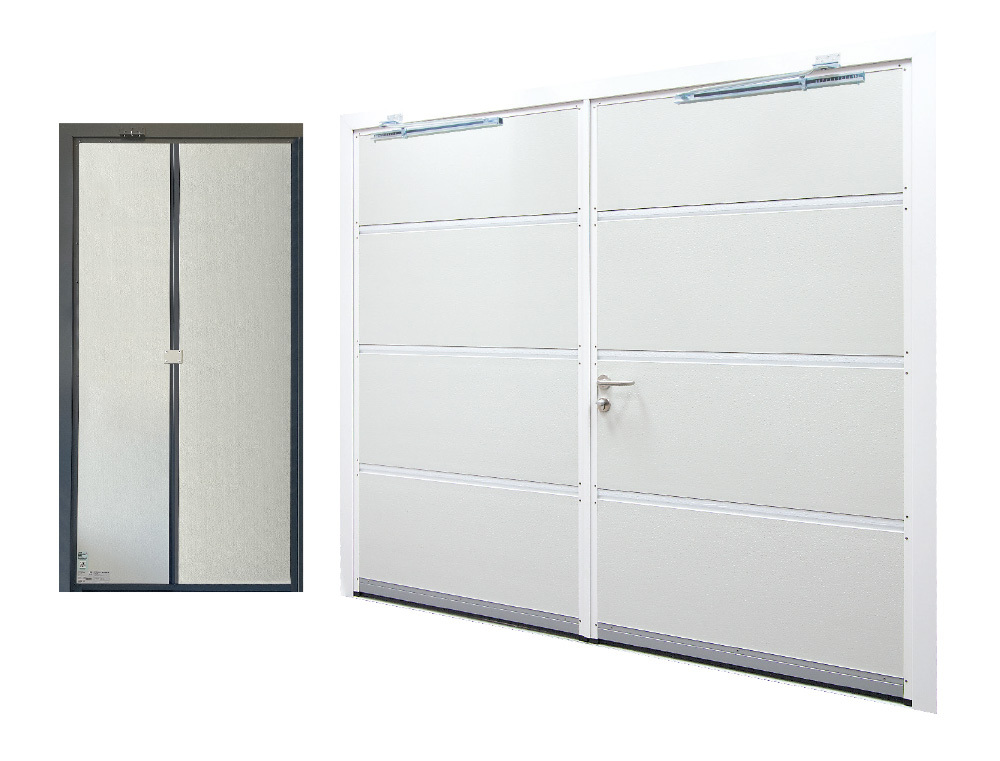

Neat inside too

The inside of the door is very presentable. There are no unsightly bracings just a wipe clean surface finished in a practical grey white stucco texture (RAL 9002).

Horizontal doors are as shown left. Vertical doors have small jointing plates at the panel interfaces, shown on a single leaf right.

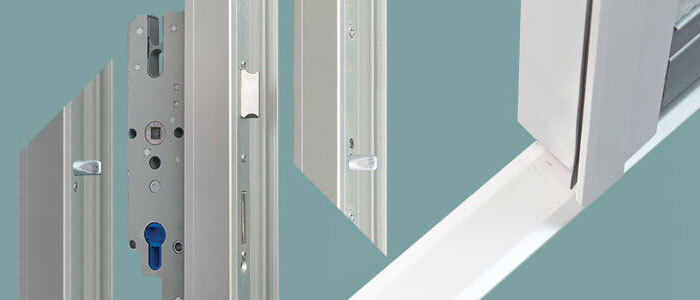

Teckentrup Side Hinged Aluminium Strip 3 Point Locking H

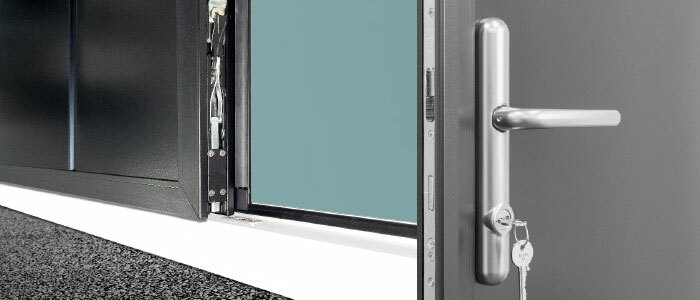

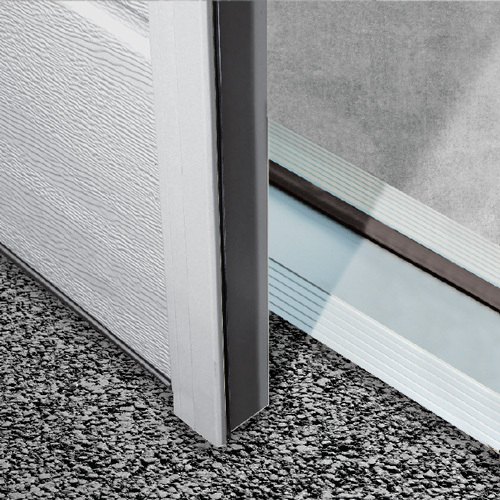

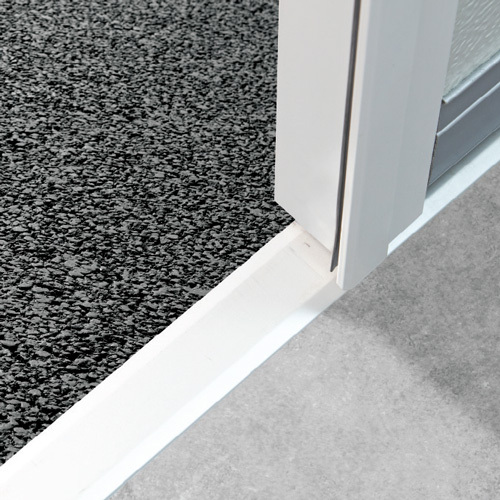

Aluminium strip threshold & triple point locking options

The aluminium profile available as an option, provides a simple low profile threshold (without a weather strip).

The active leaf is available with three point locking for greatly enhanced security. The locks provide enhanced strength to combat attempts to force them apart.

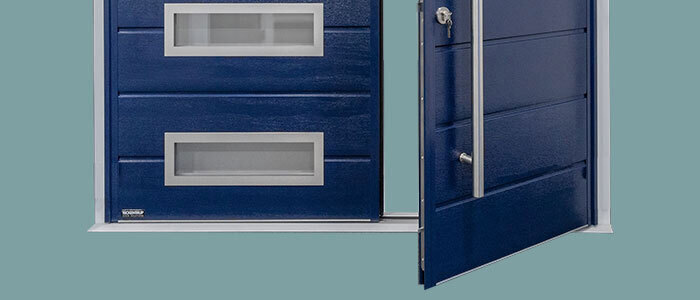

Teckentrup Side Hinged Open In Out Options I
Open-In & Open-Out Options

All side hinged garage doors are typically open-out. Open-in is available as an option.

Note - open-in increases the likelihood of water ingress. We recommend the drip guard option is selected with open-in doors. Talk to your garage door specialist about the best option for you.


*Doors installed in coastal/high salinity environments must be fitted with a 316 Stainless Steel lever handle upgrade. Doors with standard stainless steel or black handles may experience corrosion of the handle and discolouration of the surrounding door finish. This will be excluded from warranty claims.

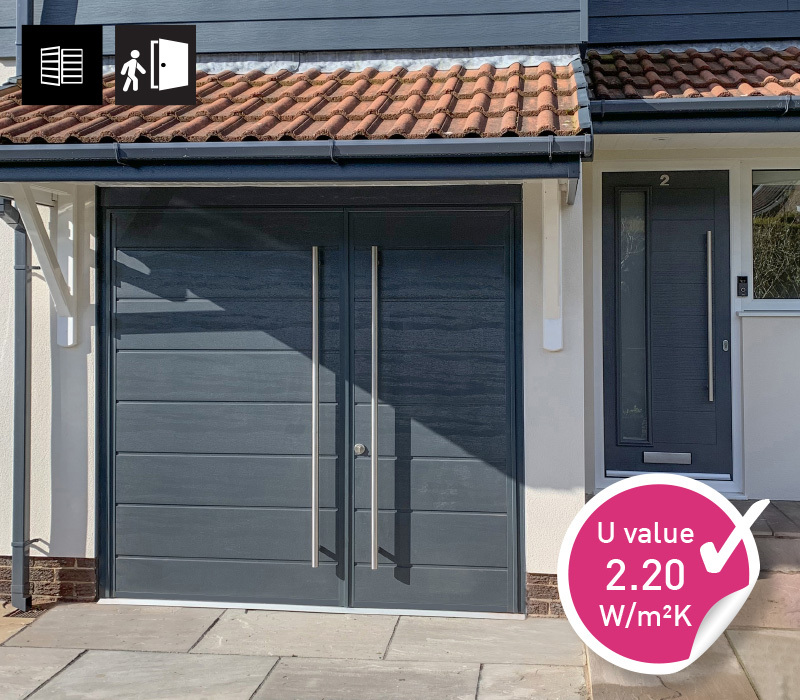

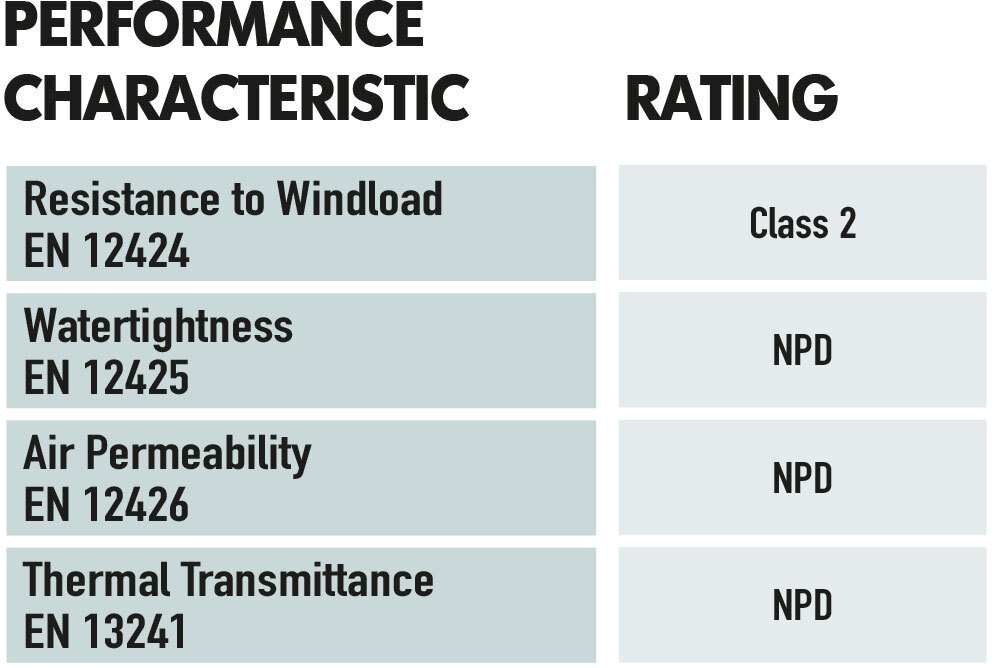

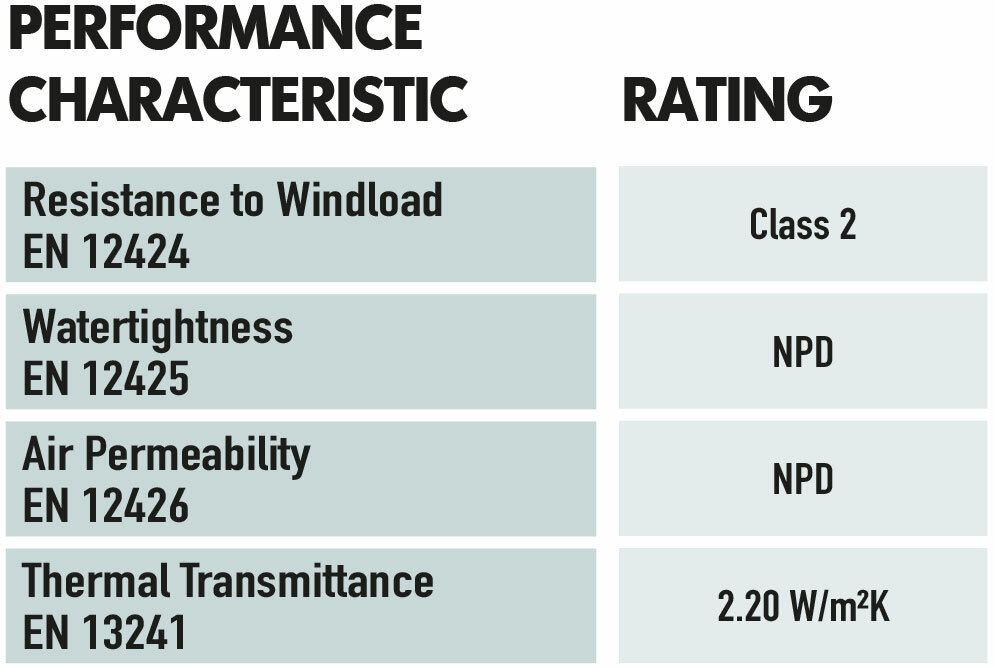

Insulation ‘U Value”

What’s in a number? Our 40mm thick panels have an insulating value that has been independently tested to 0.56 W/m²K. The lower the value the better the insulating properties.

It’s not a figure we tend to quote because we know a door is more than just a panel. We quote the insulation value for a complete door (over frame size 10’4” wide x 7’6” high) including the panel joints and weather strips. CarTeck side hinged doors have an insulation ‘U value’ of 2.20 W/m²K - you won’t find better performance on any comparable garage door.

Can I expect the same level of performance from my side hinged garage door compared to my front door?
See the ‘What can I expect from my door’ section of our Honesty Page!


What performance can I expect?

As part of the CE marking process, each product must have its performance provided for a defined set of characteristics to allow fair comparison between products from different manufacturers. Other characteristics can also be included, if relevant to a door’s performance. The following table shows the performance characteristics of CarTeck side hinged garage doors.

What level of security can I expect from my side hinged garage door?
See the ‘Security’ section of our Honesty Page!

What level of light, drafts & water ingress can I expect from my side hinged garage door?
See the ‘Light, drafts & water ingress’ section of our Honesty Page!

NPD signifies the product has not been measured for this characteristic (NPD - No Performance Determined).


5 Point Guarantee

The warranty periods below only apply to products that have been correctly installed as per the instructions, maintained by a Garage Door Specialist and operated and cleaned in accordance with the requirements set out in the operating and maintenance sections of instructions and labels.

2-year manufacturer’s guarantee

  • on window units, hinges, locks, handles and stays (opening/closing max. 5 times a day)

10-year manufacturer’s guarantee

  • on panels against rust penetration from inside to outside
  • against door panel separation of steel from foam
  • on material and manufacturing flaws of all non-moving parts of the frame that are verifiably unusable or whose usability is substantially compromised
  • on floor seal, intermediate seals and frame seals against rotting

The guarantee does not apply to doors which are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.



The Complete Solution

Alternative or complimentary

Insulated Side Hinged & Insulated Sectional Garage Doors

Insulated side hinged doors are an alternative to insulated sectional doors but can also compliment them with matching side access. Getting your lawn mower out of the garage? An insulated side hinged door is perfect and, for ride on mowers, a pair of doors allows drive in access.

Learn more
CarTeck Insulated Centre Ribbed Sectional Garage Door - Smooth Anthracite with a Matching Side Hinged Personnel Door

Downloads

If you'd like to learn more about our range of Side Hinged Garage Doors, download a copy of our latest brochure. Use our Installer Search below to find your nearest approved installer.

Download Brochure
