Steel protection in highly flammable situations

Teckentrup has been offering tried and tested steel protection for many years now. Tailor-made for the surrounding environment and special functions.

Teckentrup smoke-proof doors can be used for all domestic, public and industrial areas. Family homes and large residential complexes as well as hospitals, cinemas, industrial premises, offices, car parks and schools all enjoy high-quality protection.

Also suitable for all common drywalls

Drywall construction is gaining in popularity. Teckentrup recognized this trend and offers a wide range of qualified fire protection doors, which satisfy the specific requirements of the various materials. The doors are available as single and double-leaf versions and tested in accordance with DIN 4102. The majority of the doors are additionally smoke-proof in accordance with DIN 18095. This means they offer the utmost protection even in the worst-case scenario. Mandatory in each case is a top door closer and a counter frame/ closed frame.


Steel Smoke-proof Doors

Types "RS-1" and "RS-2"

  • Optionally with glazing
  • Also available in stainless steel
Building authority test certificate
  • Tested in accordance with DIN 18095
Approved dimensions
  • "RS-1" Width: 625-1350 mm
  • "RS-2" Width: 1375-2500 mm
  • Height: 1750-2500 mm
Door leaf
  • Double-skinned, rebated on 3 sides, thin rebate
  • Door leaf thickness: 62 mm
  • "RS-2": Upper casing: 62 mm
  • Sheet thickness: 1 mm
  • "RS-1": 1 security bolt
  • "RS-2": 1 security bolt per leaf
  • Reinforcement: U-shaped and flat steel
  • "RS-1": Insulation: mineral fibre and fibre silicate boards
  • "RS-2": Insulation: Mineral fibre and gypsum boards
  • Special equipment: upper casing sheet thickness: 1 mm
Frame

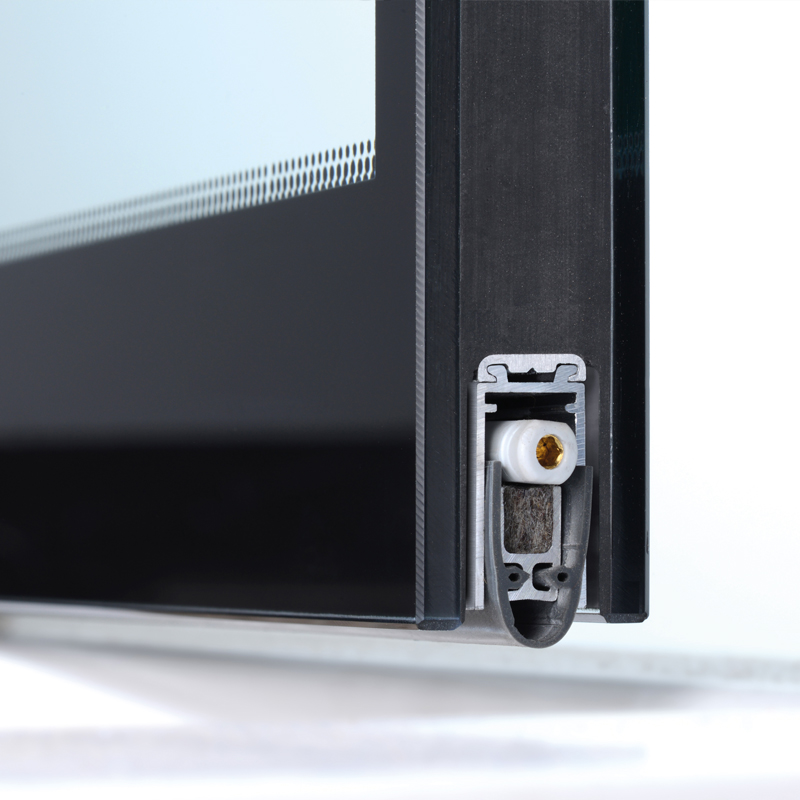

  • Corner frame 1.5 mm thick with 3-sided seal and lower bottom threshold for sliding threshold seal in the door leaf
  • 3 wall anchor plugs on each side
  • "RS-1": Special equipment: block frame and counter or closed frame (always counter frame for autoclaved aerated concrete walls)
  • "RS-2": Special equipment: counter or closed frame
Surface
  • "RS-1": Door leaf/Frame galvanized and prime coated, similar to RAL 9002 (grey-white)
  • "RS-2": Galvanized and primed coated door leaf and frame, similar to RAL 9002 (grey-white)
Qualification
  • "RS-1": Smoke proof – in accordance with DIN 180
  • "RS-2": Smoke proof – in accordance with DIN 18095
Downloads

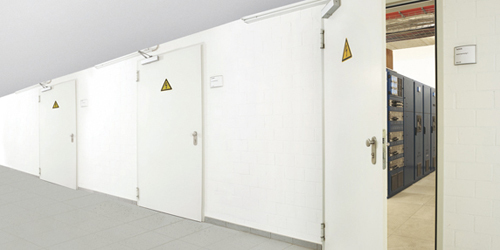

Stahl Rauchschutztuer Teckentrup Rs 1 11
Stahl Rauchschutztuer Teckentrup Rs 2 10

We live in your world...

Delivering a project from conception to handover is an undertaking that requires many elements to work together...

Teckentrup understands the language of complex projects; how to design a solution for the building not just a door, but how to provide drawings in the right way, how to deliver the door, how to manage project timeframe shifts, how to work seamlessly within the contract process and provide product of certified and documented capability.

Project Engineer

“We have to get the job complete and I need you to play your part”
– Project Engineer

“We become "your door department", ensuring potential issues are headed off and installation runs to plan.”

Teckentrup Logo
Package Manager

“If we work together and tick the boxes the package should be straightforward.”
– Package Manager

“Working to specification and contract is key; communication with you is central to keeping things moving.”

Teckentrup Logo
Project Director

“Bring ideas and solutions!”
– Project Director

“We are your door experts, but won't complicate things. We'll make sure your team delivers a trouble free door package.”

Teckentrup Logo

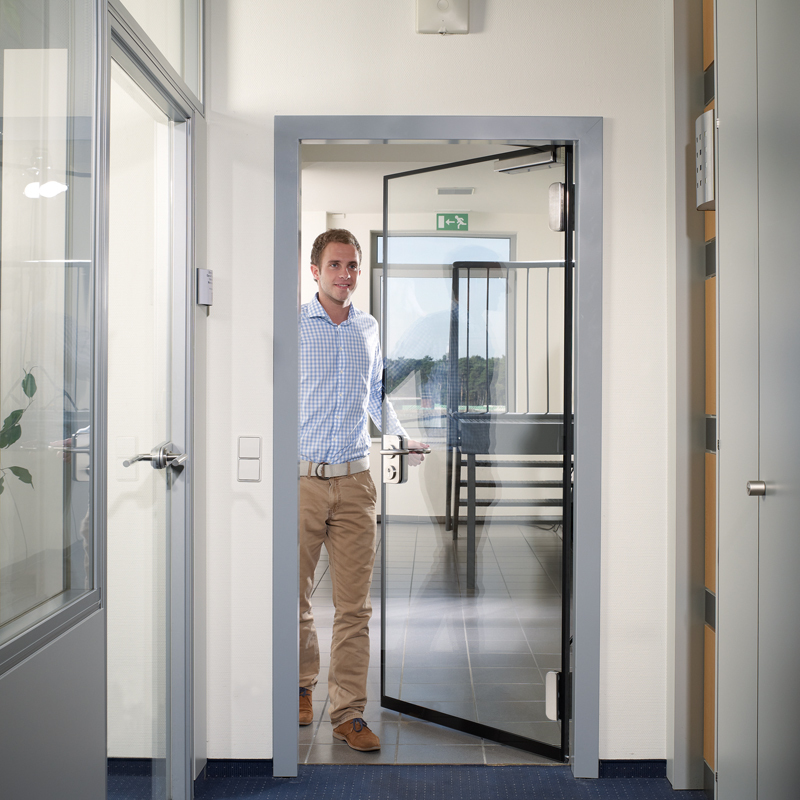

T30 All-Glass Single Fire Door With 30 Minute Fire Rating For Insulation And Integrity

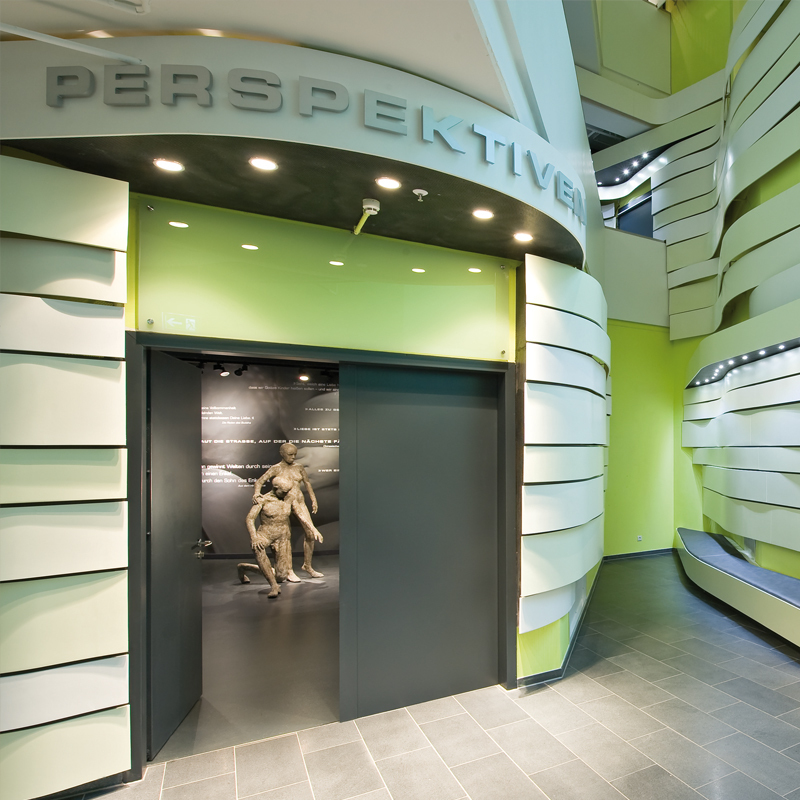

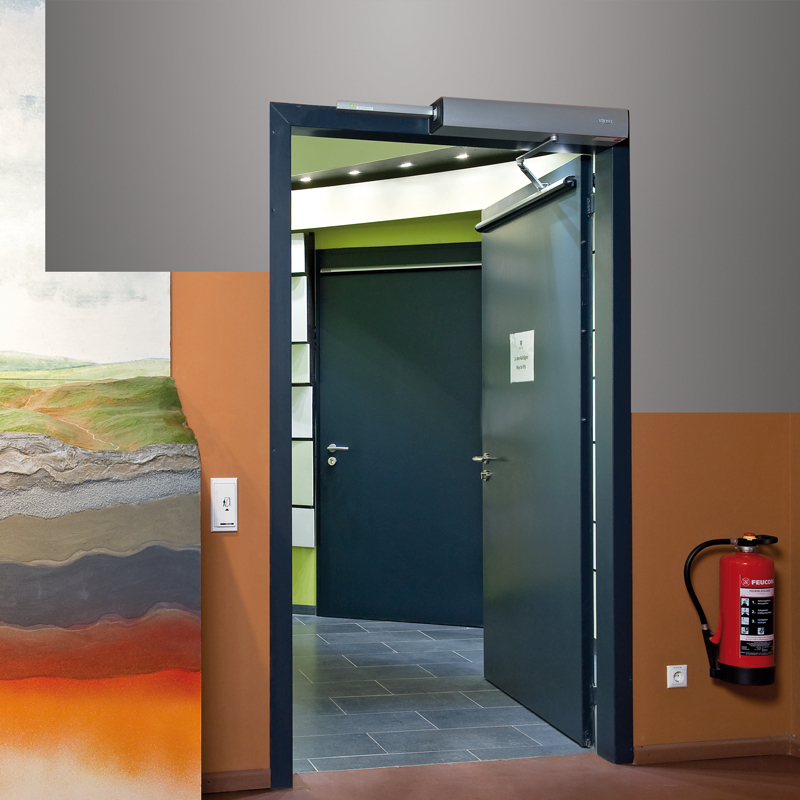

Double Steel Fire Doorset At The Brehmhaus Climate Museum
Insulation and Integrity Certified Steel Fire Door Protecting A Stairwell And An All-Glass Fire Door Protecting The Corridor l

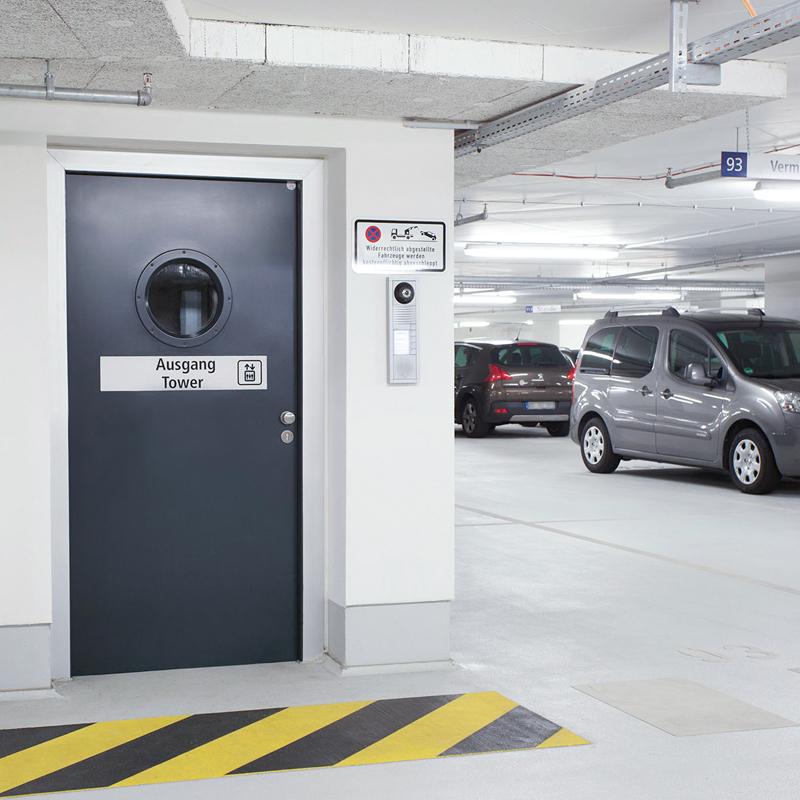

Single Steel Fire Door With Porthole Vision Panel Protecting A Carpark Access Point

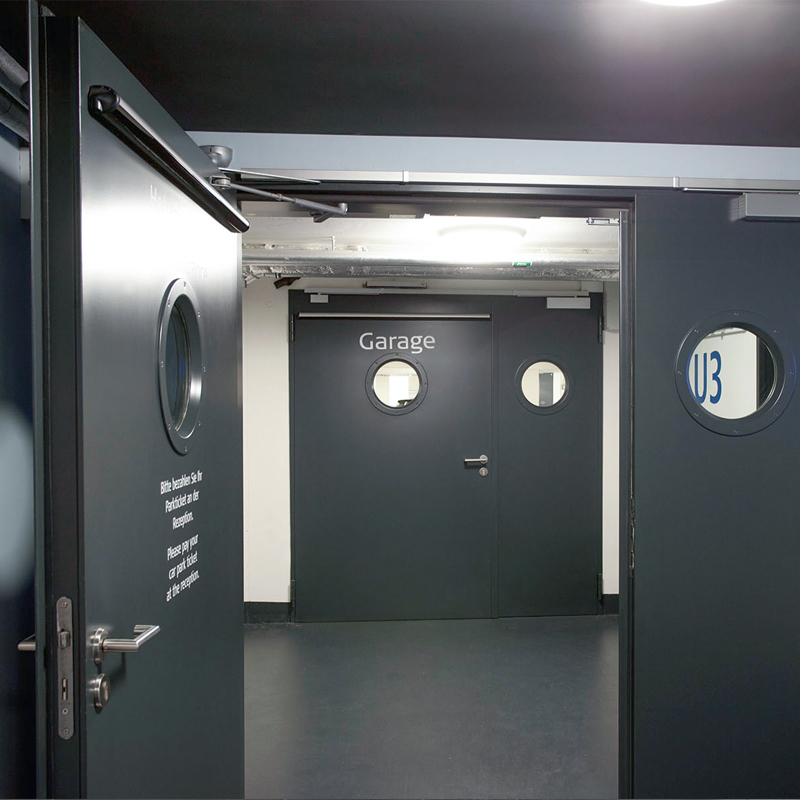

A Pair Of Double Steel Fire Doors Protecting A Car Park Access Corridor

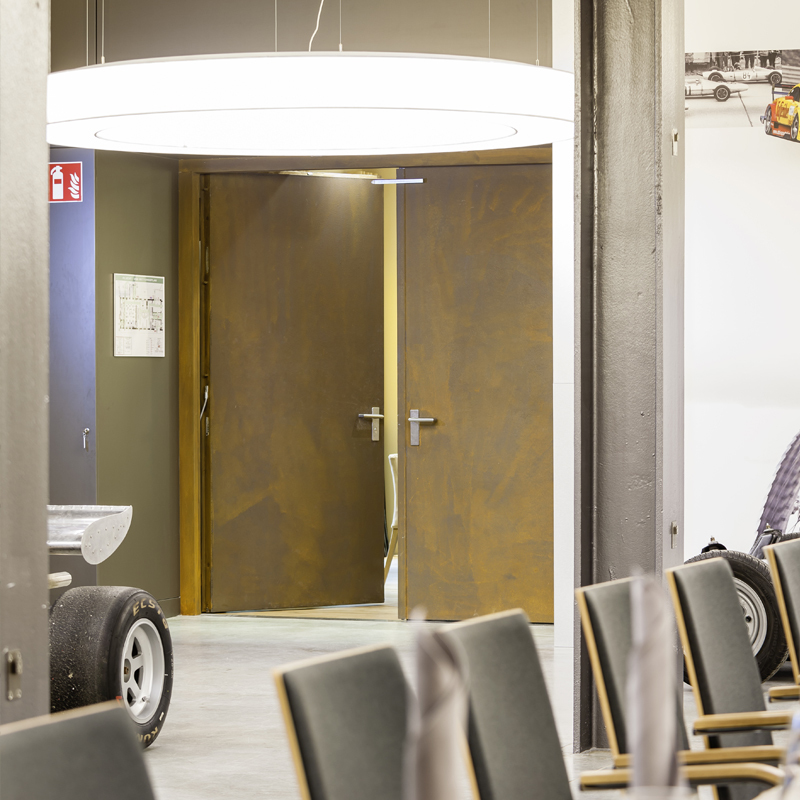

Custom Finished Double Steel Fire Door

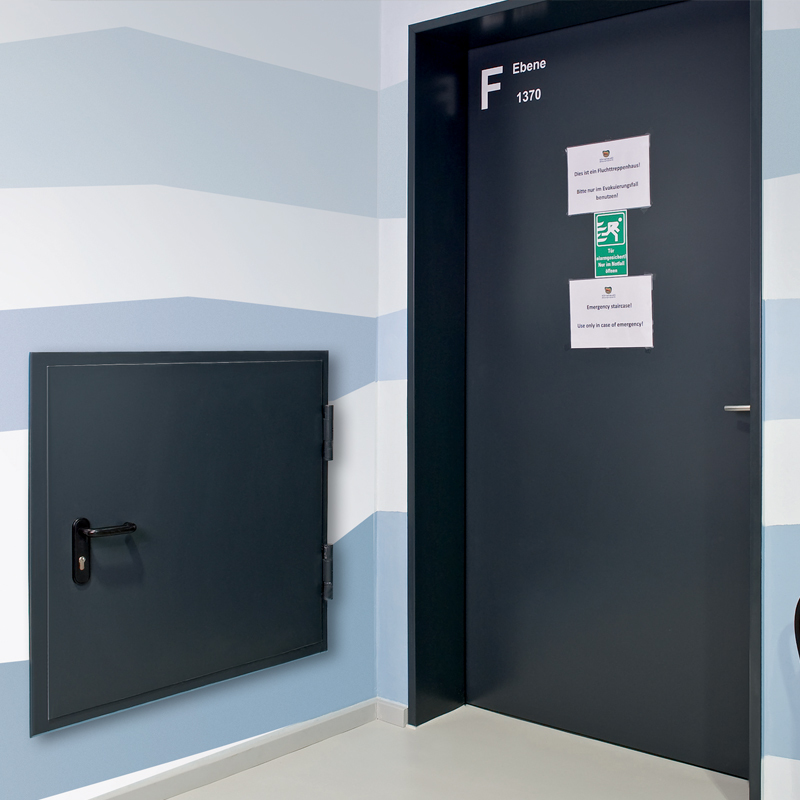

Steel Fire Door And A Steel Fire Hatch Protecting A Hotel Corridor And Utilities Shaft

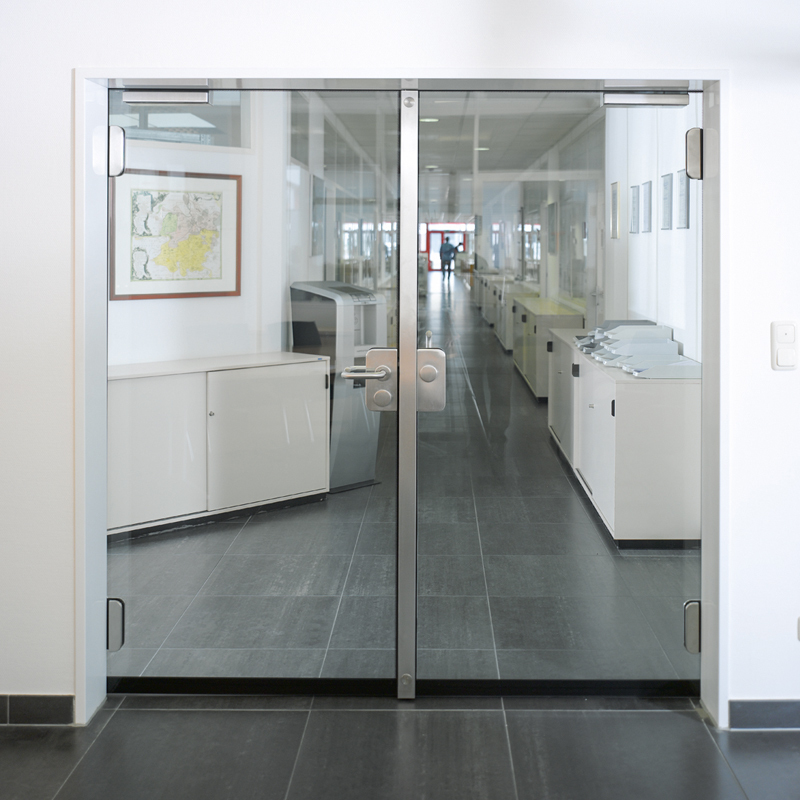

T30 All-Glass Double Fire Door With 30 Minute Fire Rating For Insulation And Integrity

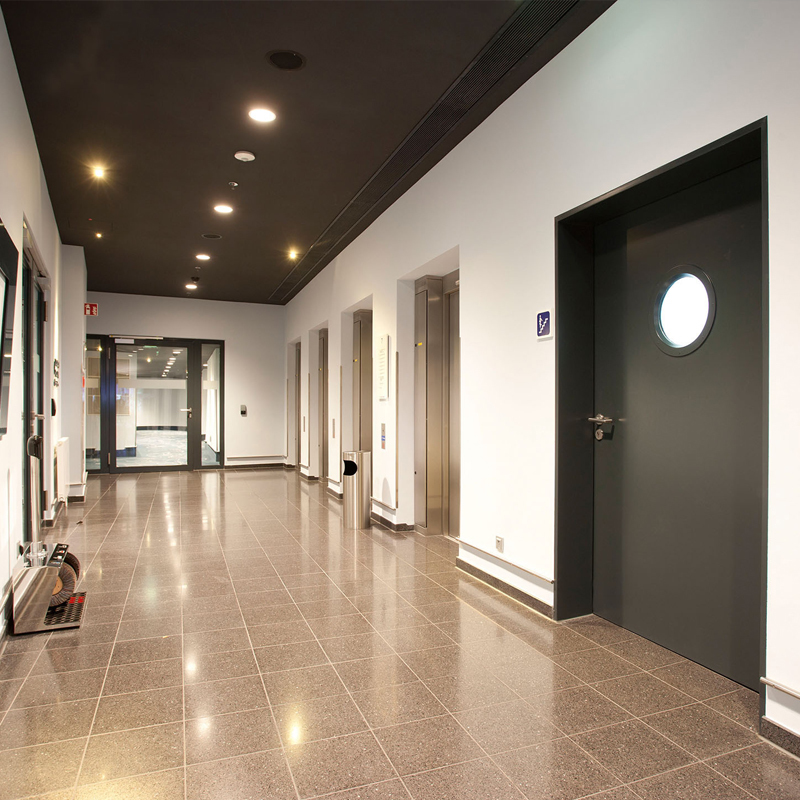

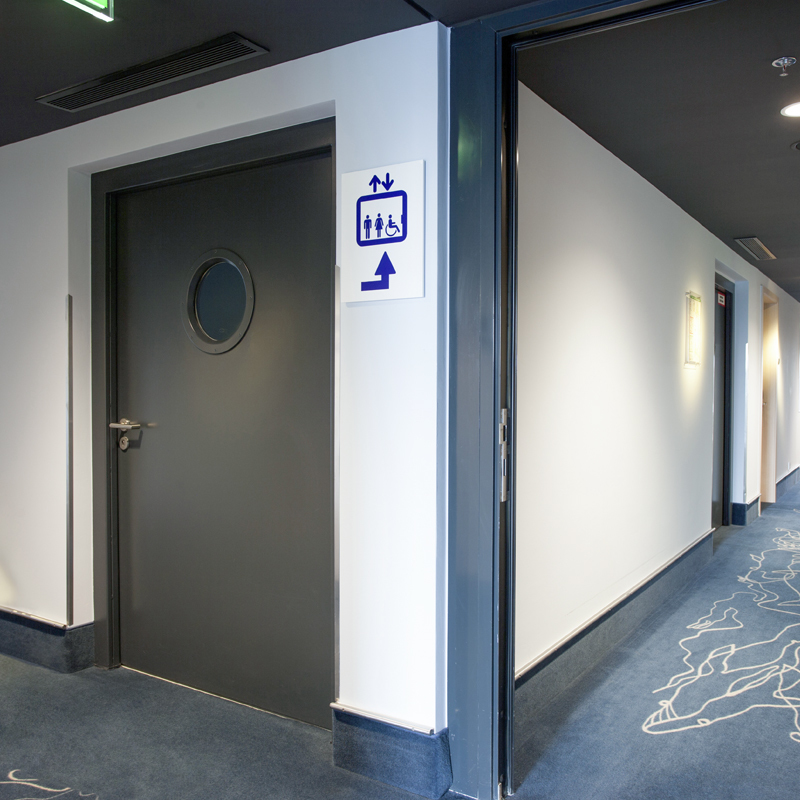

Steel Fire Door with Porthole Window Protecting A Hotel Corridor

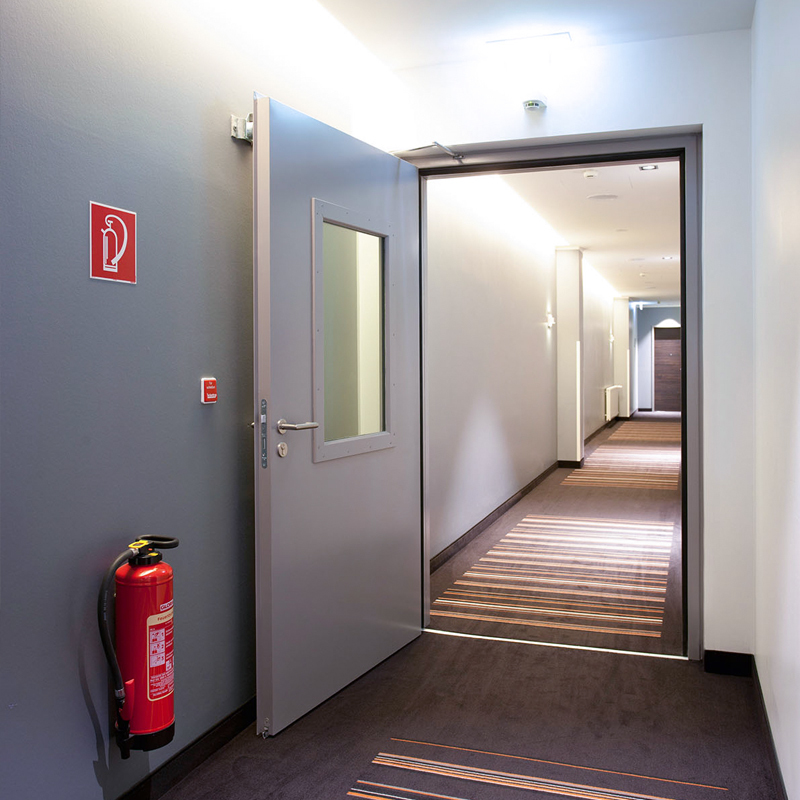

Steel Fire Door With Vision Panel Integrated Into A Hotel Fire System

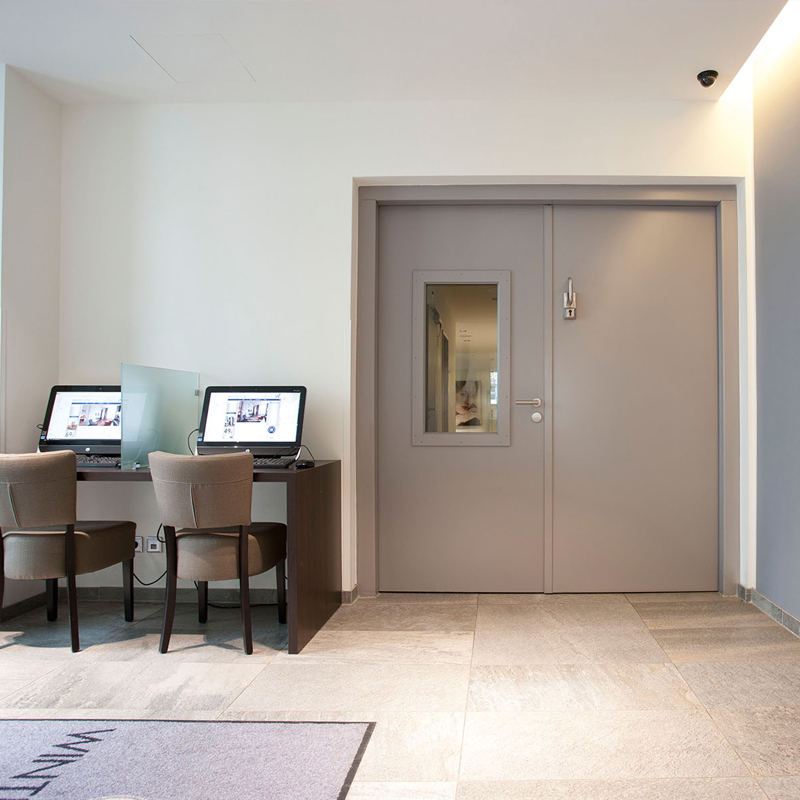

Dobele Steel Fire Door With Vision Panel Integrated Protecting A Hotel Lobby

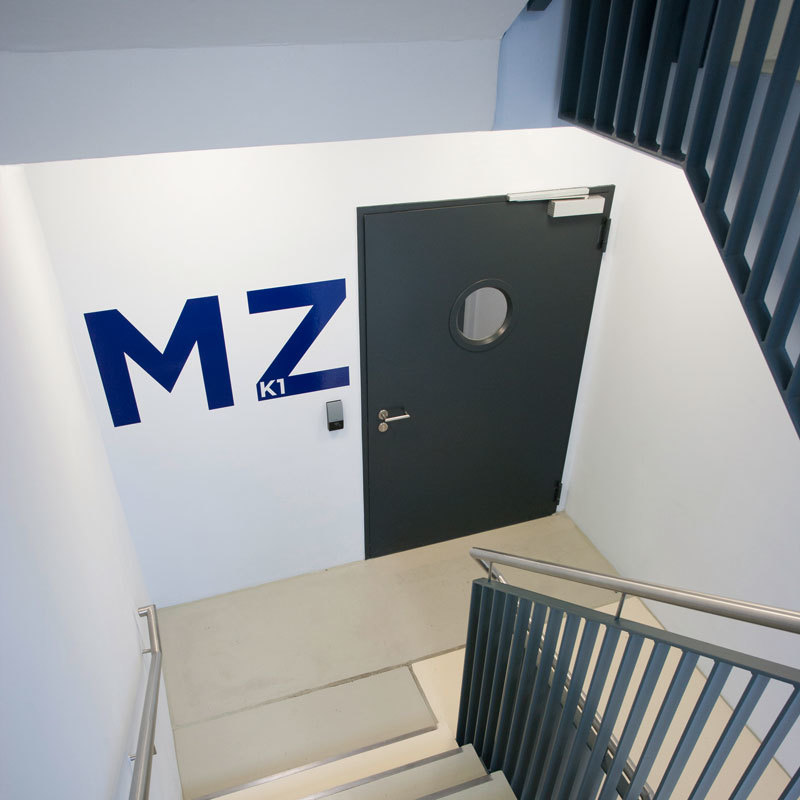

Insulation and Integrity Certified Fire Door Protecting A Stairwell

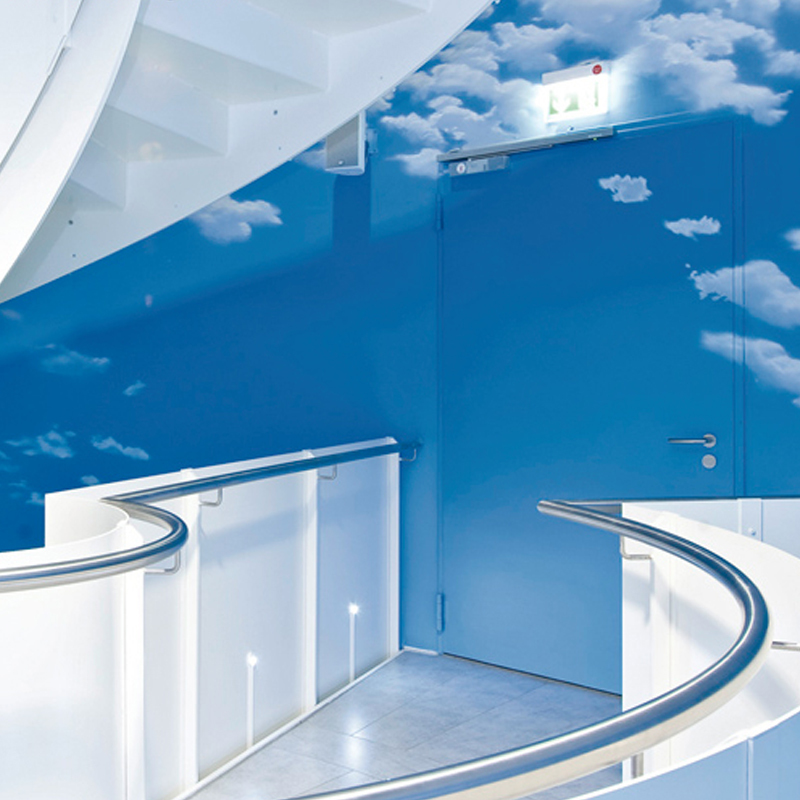

Single Steel Fire Doorset In a Stairwell The Brehmhaus Climate Museum
Steel Fire Doorsets At The Brehmhaus Climate Museum

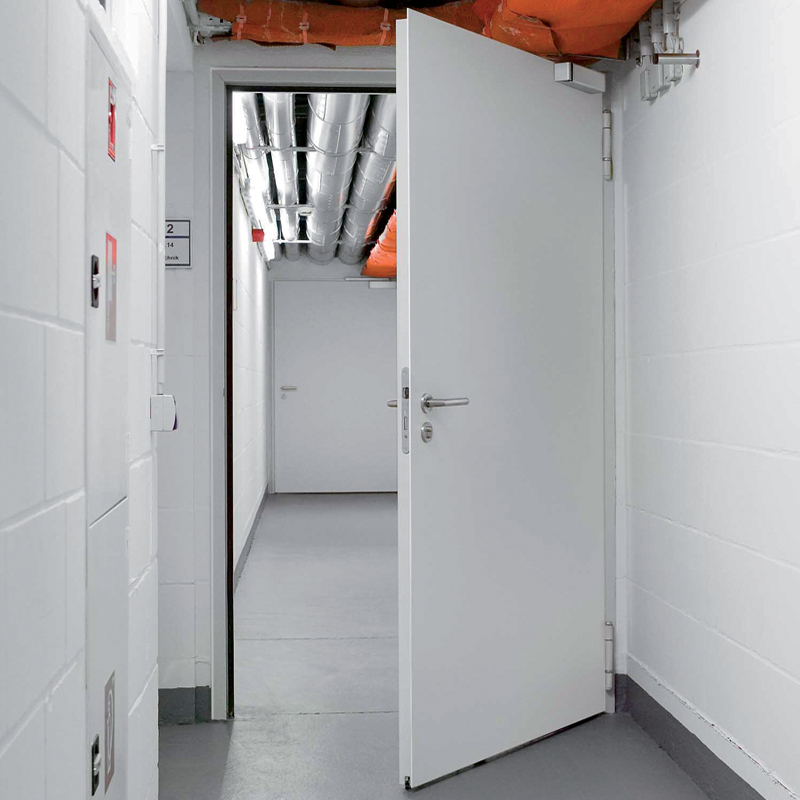

A Steel Fire And Smoke Door Protecting A Utilities Corridor

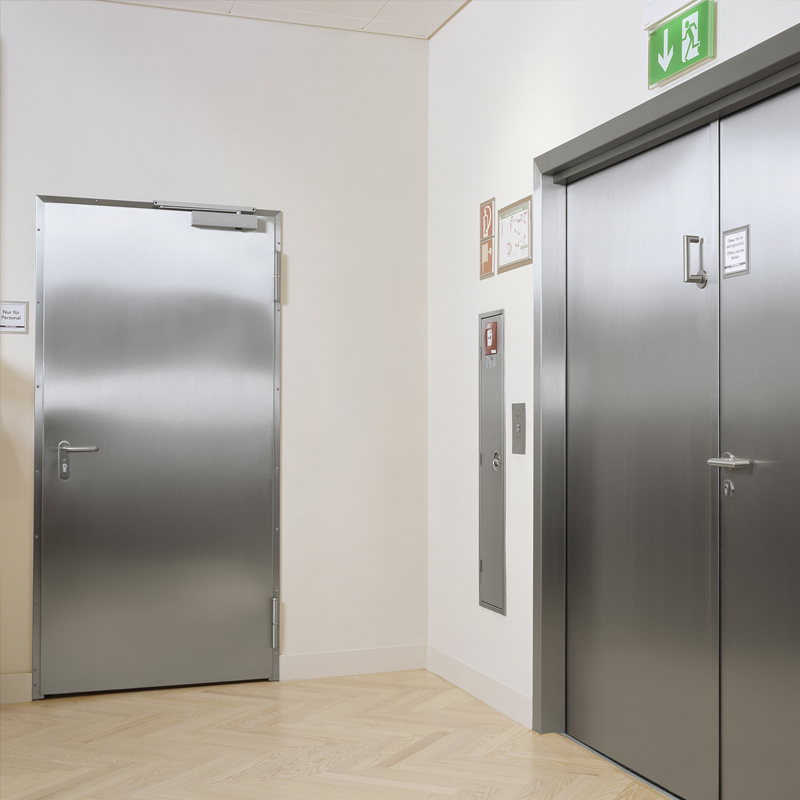

Single & Double Stainless Steel Fire Doors
T30 All-Glass Single Fire Door With 30 Minute Fire Rating For Insulation And Integrity
Double Steel Fire Doorset At The Brehmhaus Climate Museum
Insulation and Integrity Certified Steel Fire Door Protecting A Stairwell And An All-Glass Fire Door Protecting The Corridor l
Single Steel Fire Door With Porthole Vision Panel Protecting A Carpark Access Point
A Pair Of Double Steel Fire Doors Protecting A Car Park Access Corridor
Custom Finished Double Steel Fire Door
Steel Fire Door And A Steel Fire Hatch Protecting A Hotel Corridor And Utilities Shaft
T30 All-Glass Double Fire Door With 30 Minute Fire Rating For Insulation And Integrity
Steel Fire Door with Porthole Window Protecting A Hotel Corridor
Steel Fire Door With Vision Panel Integrated Into A Hotel Fire System
Dobele Steel Fire Door With Vision Panel Integrated Protecting A Hotel Lobby
Insulation and Integrity Certified Fire Door Protecting A Stairwell
Single Steel Fire Doorset In a Stairwell The Brehmhaus Climate Museum
Steel Fire Doorsets At The Brehmhaus Climate Museum
A Steel Fire And Smoke Door Protecting A Utilities Corridor
Single & Double Stainless Steel Fire Doors

Frames & Hardware

Clever framing solutions and finishing touches

As a project manager, the success of a major initiative often depends on a small detail.

Teckentrup's frame solutions allow for installation in all site scenarios including variable reveal depths and flush finish with wall renders. The four main types are:

  • Block frames with captive seals.
  • Corner frames with captive seals, concealed fixings with adjustable screws and only one fastening point.
  • Corner Counter frames with captive seals and concealed fixing of the counter frame with special fold anchors.
  • Closed frames with captive seals.

Teckentrup can advise on the right solution and their suitability for applications such as fire, acoustics, etc.

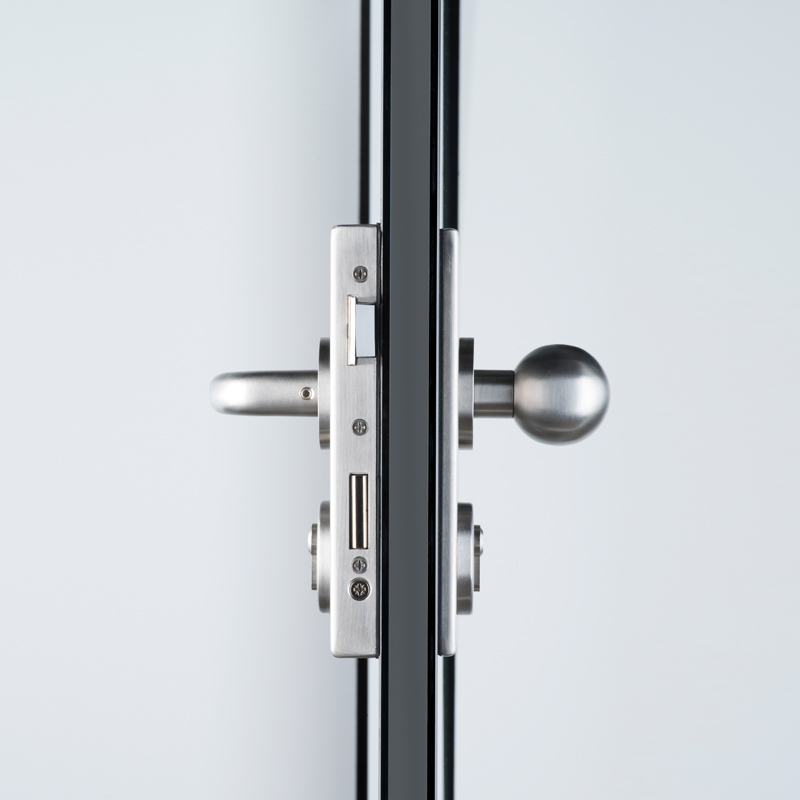

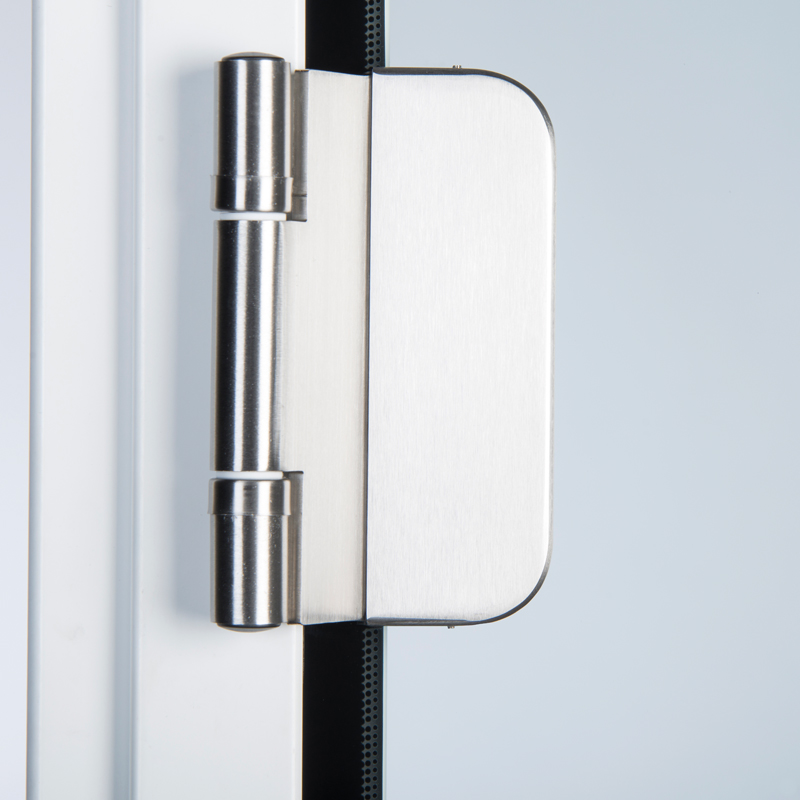

The Hardware, accessories, vision panels, louvres, etc., are all selected to suit application, life cycle value requirements and other criteria, against which Teckentrup can provide certification. Advice on selection and integration with access and building systems such as fire and security is also part of our solution based approach.

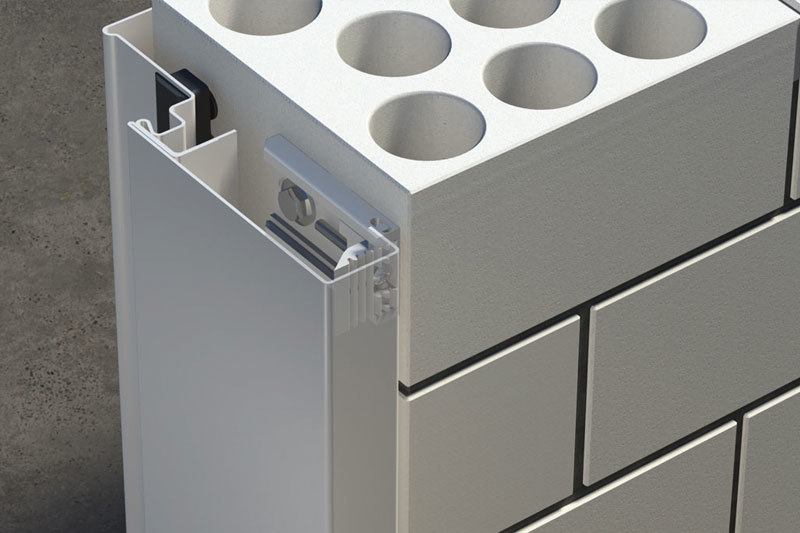

Corner Counter Frame Rectangle

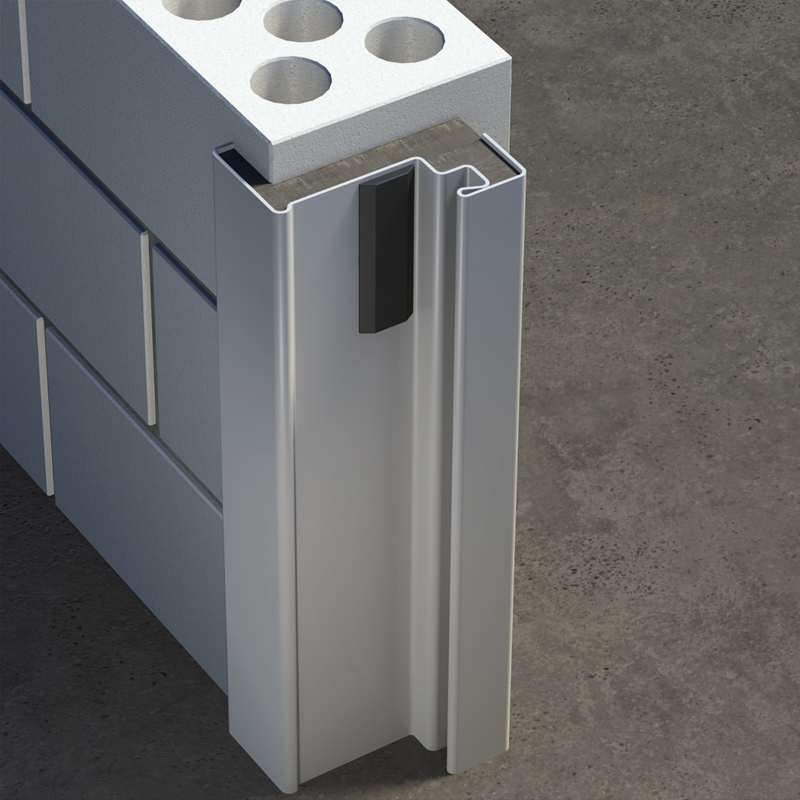

Corner Frame

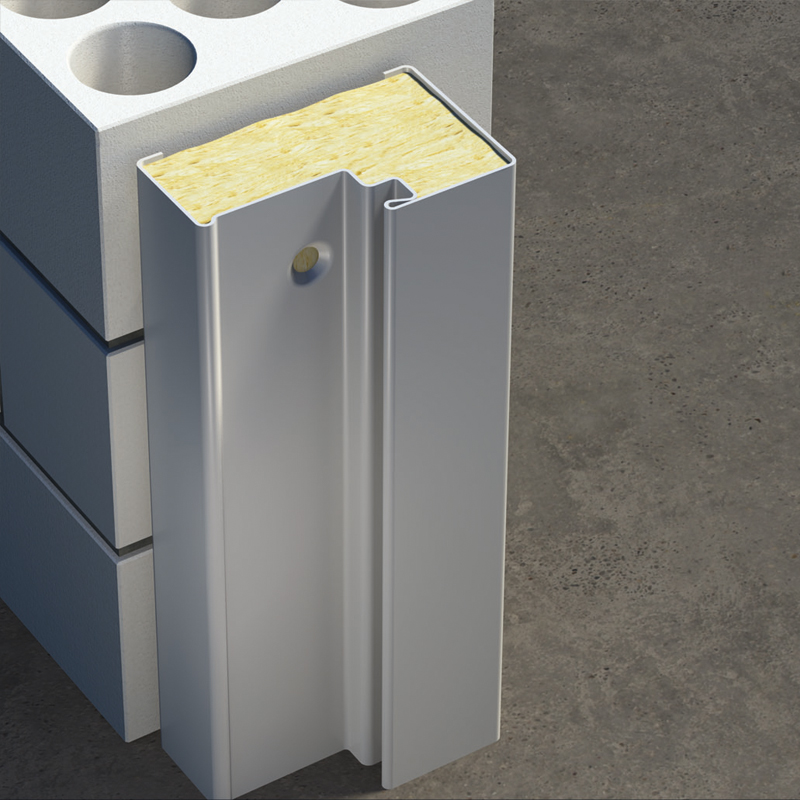

Block Frame

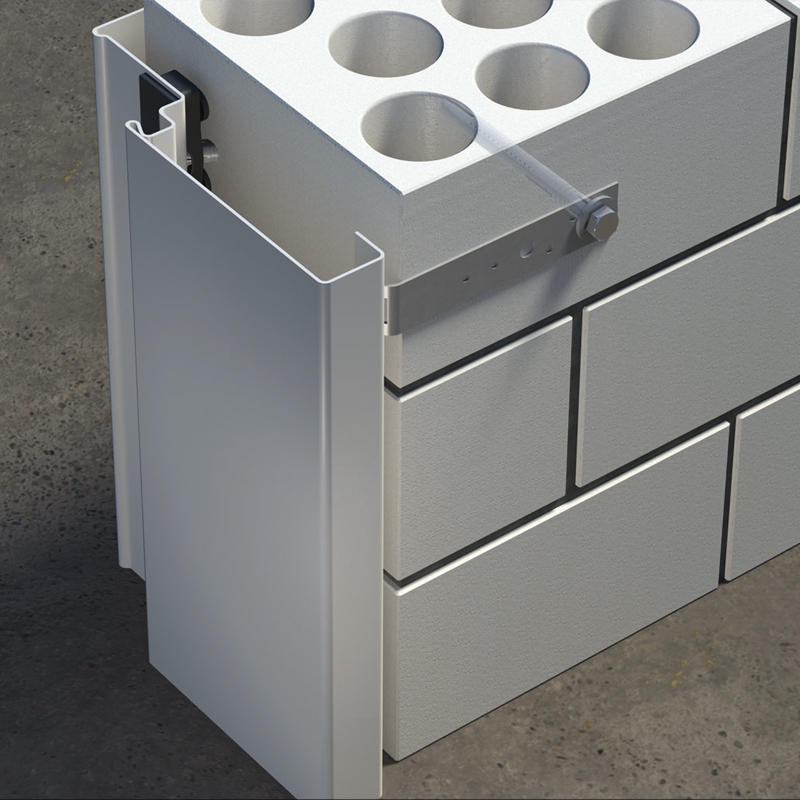

Closed Frame
