Core Performance Characteristics

Security and aesthetics are not mutually exclusive. Teckentrup insulated 62mm steel doorsets are heavy-duty products suitable for high traffic and exposed external, high wind locations, yet combine high grade design aesthetics.

  • EN1627 to RC4
  • LPS 1175 Issue 7 Security Standard to SR3 rating
  • LPS 1175 Issue 8 Security Standard achieving A1 (SR1), B3 (SR2), C5 (SR3), D5 and D10 (SR4) ratings
  • LPS 2081 Stealth A & B ratings
  • BS EN 1522 Bullet proof rating FB4
  • Openings up to 3000mm x 3000mm
  • Ballistic and prison versions available
  • Polyester Powder Coat finishes in any RAL colour
  • Available in a stainless-steel construction and with vision panel options


The Teckentrup 62 modular system allows for 1000s of possible combinations, making the complex simple. Find out more



Performance security.

Versatile capability.

Steel security rated doors are designed to withstand physical attack for varying periods of time, with a variety of attack tools. The longer the attack time, and the more aggressive the tools used, the higher the doors’ performance rating.

They do not look unusual at first glance, but they are there when things get tough. And they can even keep armed intruders out. Our security doors are thus suitable for all high-risk areas. Our prison cell doors complete our range of doors for risk prevention.

  • Security rooms in airports and train stations
  • Police stations
  • Banks, financial institutions
  • Court buildings
  • Safe rooms
  • Police sections at large venues
  • Private buildings with high security requirements (including ballistic
  • Prisons and correctional facilities

Teckentrup offers a complete design, manufacture and installation solution.

Teckentrup steel fire doors and doorsets have been tested to:

  • European Security Standard EN1627 achieving RC2, RC3 & RC4 ratings
  • Exova Security Standard STS202 achieving BR1, BR2 & BR3 ratings
  • LPS 1175 Issue 7 Security Standard achieving SR1, SR2 & SR3 ratings
  • LPS 1175 Issue 8 Security Standard achieving A1 (SR1), B3 (SR2), C5 (SR3), D5 and D10 (SR4) ratings
  • LPS 2081 Stealth A & B ratings
  • BS EN 1522 Bullet proof rating FB4
  • BS EN 179 & BS EN 1125 Panic functions
  • EN1634-1 achieving 120 minutes fire integrity and 60 minutes fire insulation
  • European Standards EN1628 & 1629 for static and dynamic loading
  • ISO12567-1 achieving a UD value of 1.1 W/m2/K°
  • EN12207 for air permeability achieving Class 2/4* for a single and Class 1/3* for a double leaf door * Single point/Multi-point locking
  • EN12208 for water tightness achieving Class 7A for a single and Class 6A for a double leaf door
  • EN12210 for wind resistance achieving Class 3/5 for a single and Class 1/3 for a double leaf door
  • A 62mm insulated door set, fitted with heavy duty ‘KO’ hinges has been tested to EN1191 for repeated opening and closing to C5 level – 200,000 cycles

What does security mean?

Without certified test evidence of performance, any claims for a doors’ security are unproven.

Teckentrup 62 doors have been tested to all the widely recognised standards including the new LPS 1175 issue 8.

Teckentrup 62 can be configured to withstand physical attack for varying periods of time with a variety of attack tools. The longer the attack time and the more aggressive the tools used, the higher the security rating.

Are all standards the same?

No. Each standard has differences, however they address the same issues of tools and time, each in a slightly different way.

Standards also address the type of attack - LPS 1175 categorises attacks regardless of the noise made, whilst LPS 2081 categorises attacks made with minimal noise, “stealth” attacks. BS EN 1627-1 categorises for stealth on RC2 & RC3 and RC4 regardless of noise.

LPS 1175 Issue 8

Teckentrup 62 has been tested to Issue 8 of the standard. The bracketed rating, e.g. (SR1) provides the equivalent under Issue 7 where applicable.

The commonly required security levels, along with the typical applications are shown below. The standard has more extended times and tool kits, however as, apart from highly specialised applications, LPS 1175 D10 (SR4) is generally the highest requirement and we’ve limited the listing up to this level.

Teckentrup's security event video...

Watch here!

Under the new LPS1175 Issue 8 standard, Teckentrup 62 provides the following range:

  • Teckentrup 62 Secure 1 LPS 1175 A1 (SR1)
    Tool type A, 1 minute attack, max test duration 10 minutes
    Opportunist attack using small, easily concealed tools, typically used for domestic and low commercial risks.
  • Teckentrup 62 Secure 2 LPS 1175 B3 (SR2)
    Tool type B, 3 minute attack, max test duration 15 minutes
    More determined opportunist attack using tools of greater mechanical advantage, typically used for domestic and low commercial risks such as office buildings, schools and small shops.
  • Teckentrup 62 Secure 3 LPS 1175 C5 (SR3)
    Tool type C, 5 minute attack, max test duration 20 minutes
    Deliberate forced entry using a wide selection of commonly available tools, typically used for higher commercial risks and infrastructure.
  • Teckentrup 62 Secure 3+ LPS 1175 D5
    Tool type D, 5 minute attack, max test duration 20 minutes
    Experienced attempts at forced entry, typically used for higher commercial risks and infrastructure.
  • Teckentrup 62 Secure 4 LPS 1175 D10 (SR4)
    Tool type D, 10 minute attack, max test duration 30 minutes
    Experienced attempts at forced entry, typically used for high commercial risks and critical infrastructure.
  • LPS 2081 “stealth”
    The test categorises opportunist attack using stealth and small, easily concealed tools (Type A) or tools with greater mechanical advantage, fairly easy to conceal about the person (Type B). Typically used for domestic and low commercial risks.
    Teckentrup 62 Secure A LPS 2081 A
    Tool type A, 1 minute attack, max test duration 10 minutes
    Teckentrup 62 Secure B LPS 2081 B
    Tool type B, 3 minute attack, max test duration 15 minutes

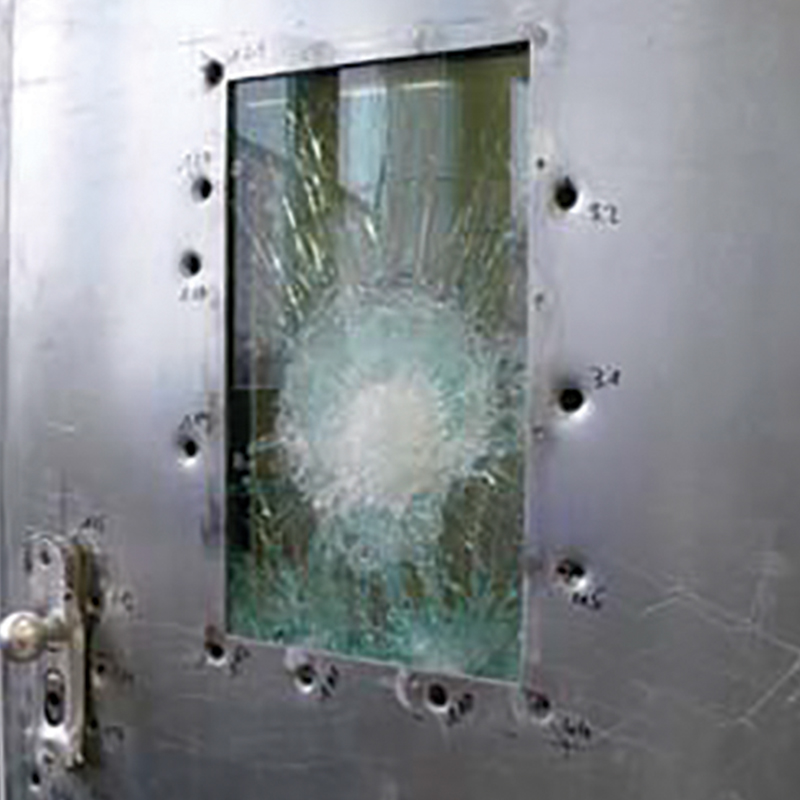

  • BS EN 1522 FB4
    Armed attackers are also thwarted with Teckentrup 62 tested to FB4 resistance.

Also available with...


We live in your world...

Delivering a project from conception to handover is an undertaking that requires many elements to work together...

Teckentrup understands the language of complex projects; how to design a solution for the building not just a door, but how to provide drawings in the right way, how to deliver the door, how to manage project timeframe shifts, how to work seamlessly within the contract process and provide product of certified and documented capability.

Design Manager

“Non-compliance is everywhere!”
– Design Manager

“We don’t do non-compliance and see the specification and the contract as the simplest route to make things work smoothly for everyone.”

Teckentrup Logo
Project Engineer

“We have to get the job complete and I need you to play your part”
– Project Engineer

“We become "your door department", ensuring potential issues are headed off and installation runs to plan.”

Teckentrup Logo
Procurement QS

“Only bring me compliant product!”
– Procurement Quantity Surveyor

“Teckentrup ensures products are tested to the performance standards claimed and are suited to the performance specified.”

Teckentrup Logo

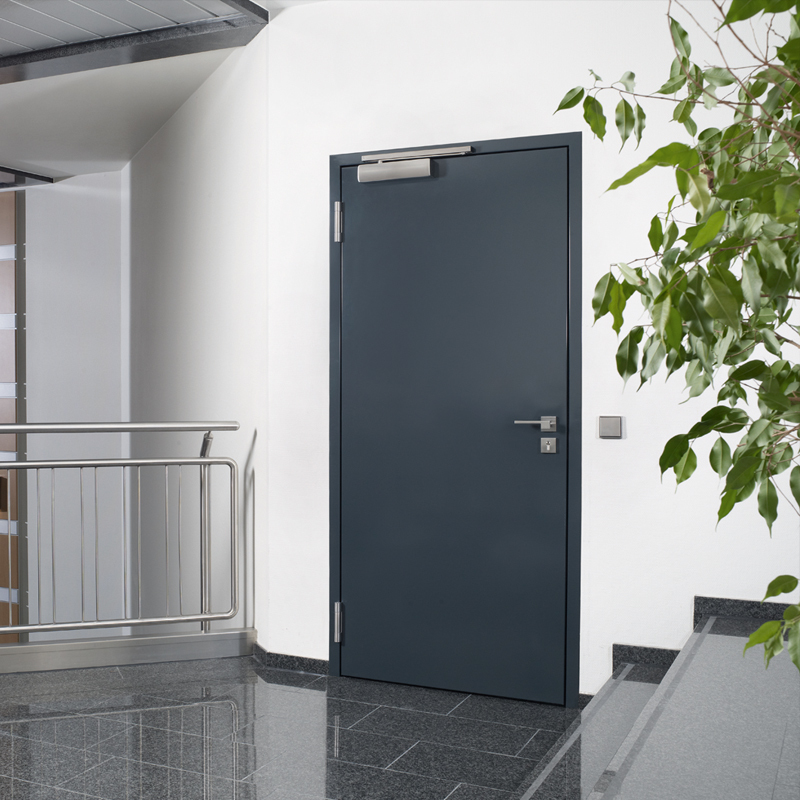

Single Steel Security Door With Keyless Proximity Reader Access

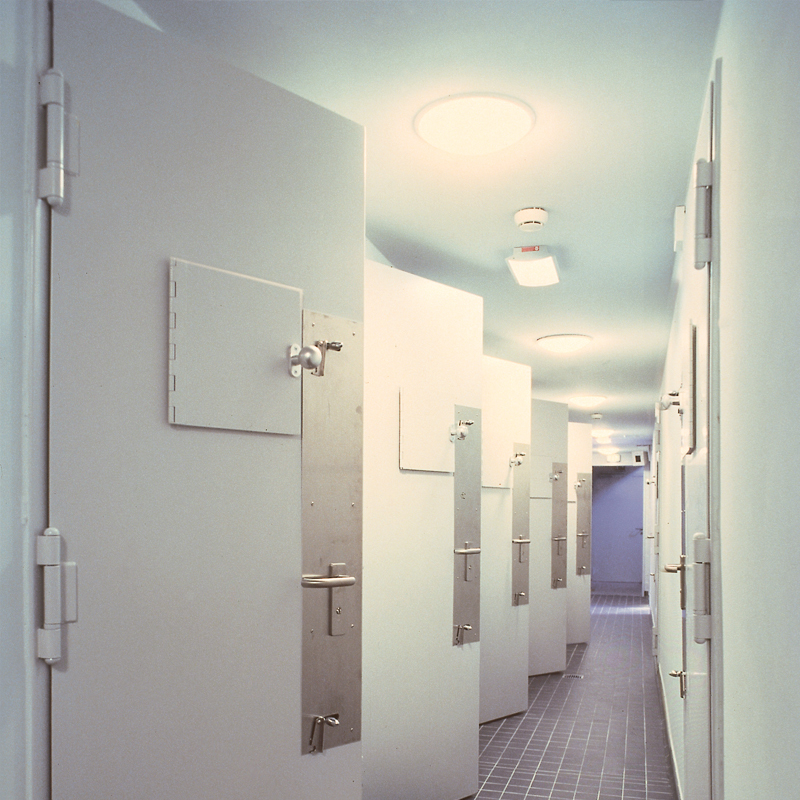

Steel Security Doors Cell Doors

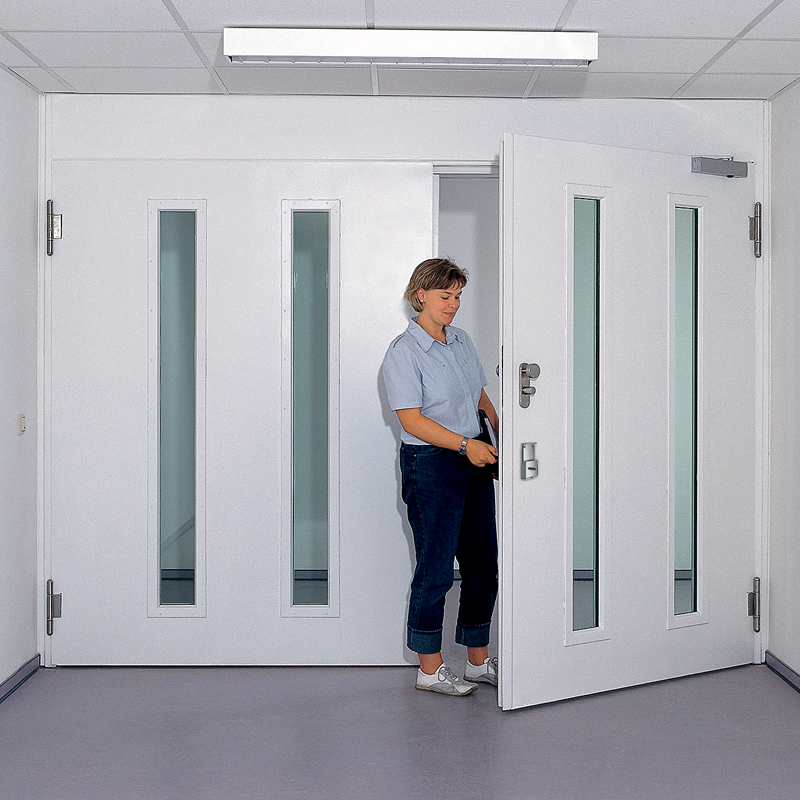

Large Double Steel Security Door Vision Panels
Steel Security Doors Ballistics Testing

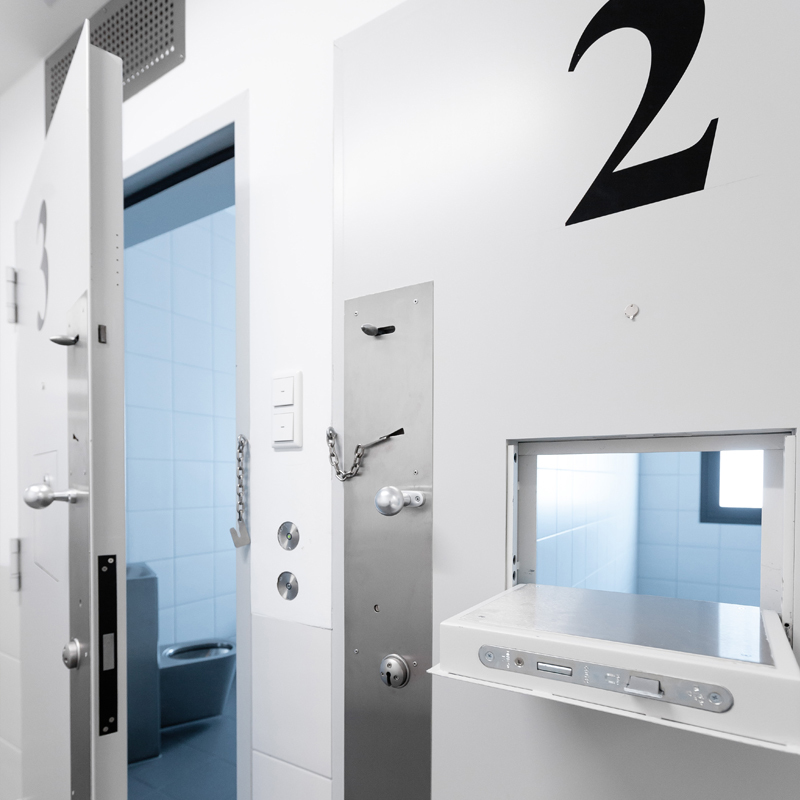

Steel Cell Doors In A Police Facility

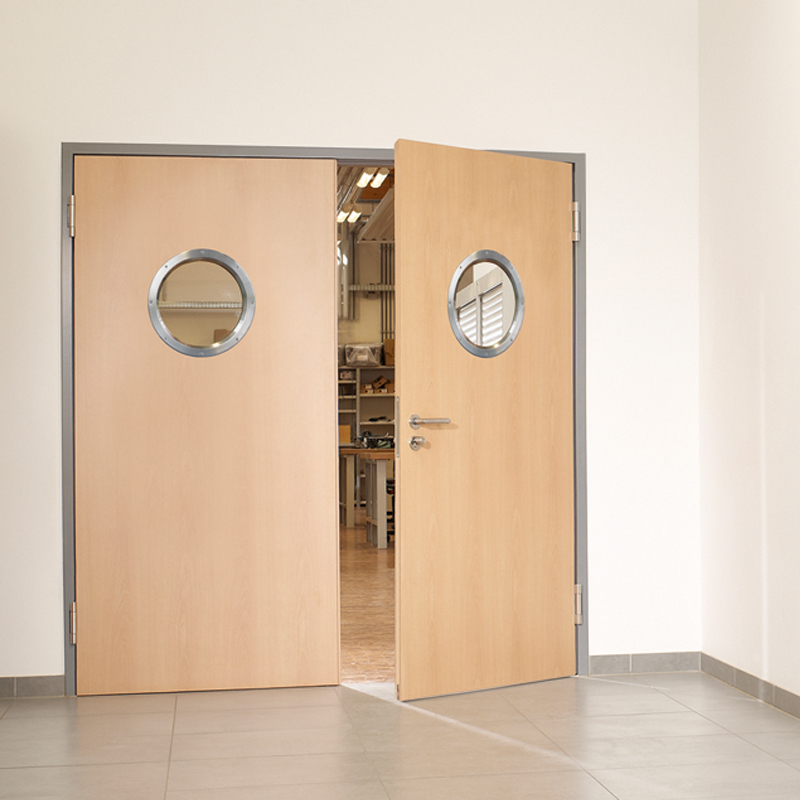

Double Steel Security Doors With Porthole Vision Panels And Custom Finish

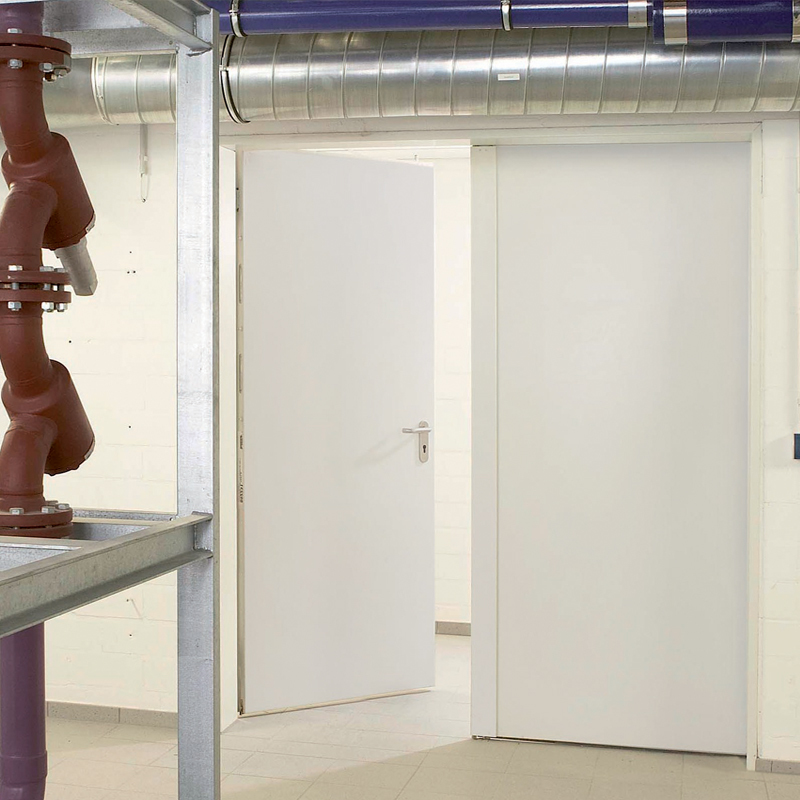

Double Steel Security Doors Protecting A Plant Room

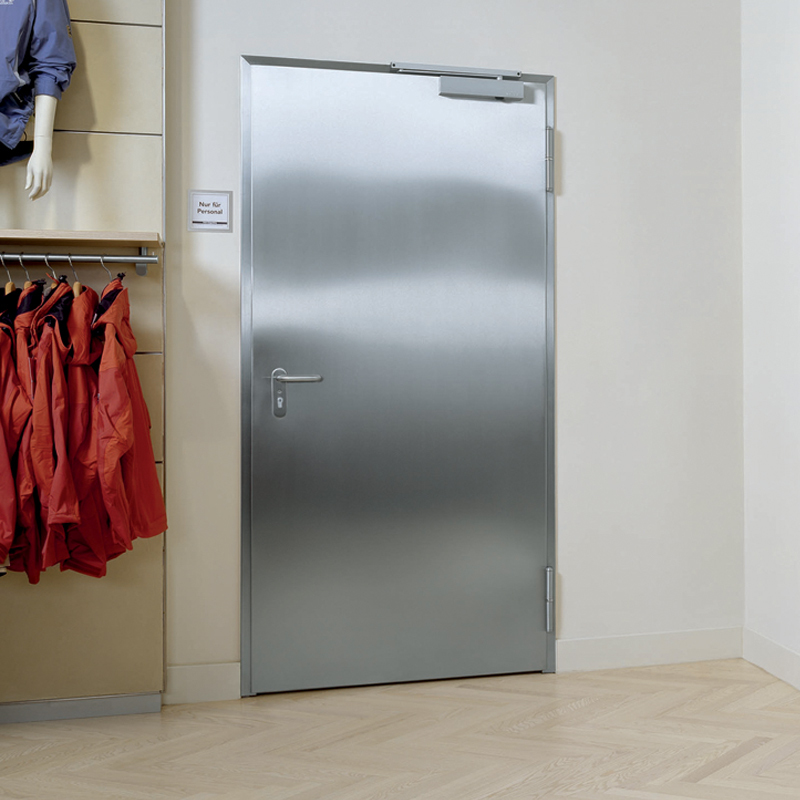

Stainless Steel Security Door Also With Fire Certification For Integrity And Insulation
Single Steel Security Door With Keyless Proximity Reader Access
Steel Security Doors Cell Doors
Large Double Steel Security Door Vision Panels
Steel Security Doors Ballistics Testing
Steel Cell Doors In A Police Facility
Double Steel Security Doors With Porthole Vision Panels And Custom Finish
Double Steel Security Doors Protecting A Plant Room
Stainless Steel Security Door Also With Fire Certification For Integrity And Insulation

Frames & Hardware

Clever framing solutions and finishing touches

As a project manager, the success of a major initiative often depends on a small detail.

Teckentrup's frame solutions allow for installation in all site scenarios including variable reveal depths and flush finish with wall renders. The four main types are:

  • Block frames with captive seals.
  • Corner frames with captive seals, concealed fixings with adjustable screws and only one fastening point.
  • Corner Counter frames with captive seals and concealed fixing of the counter frame with special fold anchors.
  • Closed frames with captive seals.

Teckentrup can advise on the right solution and their suitability for applications such as fire, acoustics, etc.

The Hardware, accessories, vision panels, louvres, etc., are all selected to suit application, life cycle value requirements and other criteria, against which Teckentrup can provide certification. Advice on selection and integration with access and building systems such as fire and security is also part of our solution based approach.

Corner Counter Frame Rectangle
Block Frame
Corner Frame
Closed Frame

The modular steel doorset

We have a range of steel doorsets that cover multiple requirements making it easier to find a solution that covers all of your requirements in a single product.
