Enjoy panoramic views from inside or outside your garage

For a panoramic presence look no further than the CarTeck SLX Vision sectional garage door. The doors employ the same market-leading sectional garage door lifting gear used on the standard CarTeck range with its concealed lifting springs, but with added wow-factor.

These automated sectional garage doors have full width vision panels made from 40mm hollow aluminium profiles, with 20mm scratch resistant, polymer double glazing in a choice of six vision styles.

Teckentrup CarTeck SLX Garage Door

Certified Performance

What performance can I expect?

As part of the CE marking process, each product must have its performance provided for a defined set of characteristics to allow fair comparison between products from different manufacturers. Other characteristics can also be included, if relevant to a door’s performance. The following tables show the performance characteristics of CarTeck SLX Vision sectional garage doors.

CE Marked

Our doors and openers are independently tested and certified to all current safety legislation and carry a CE mark.

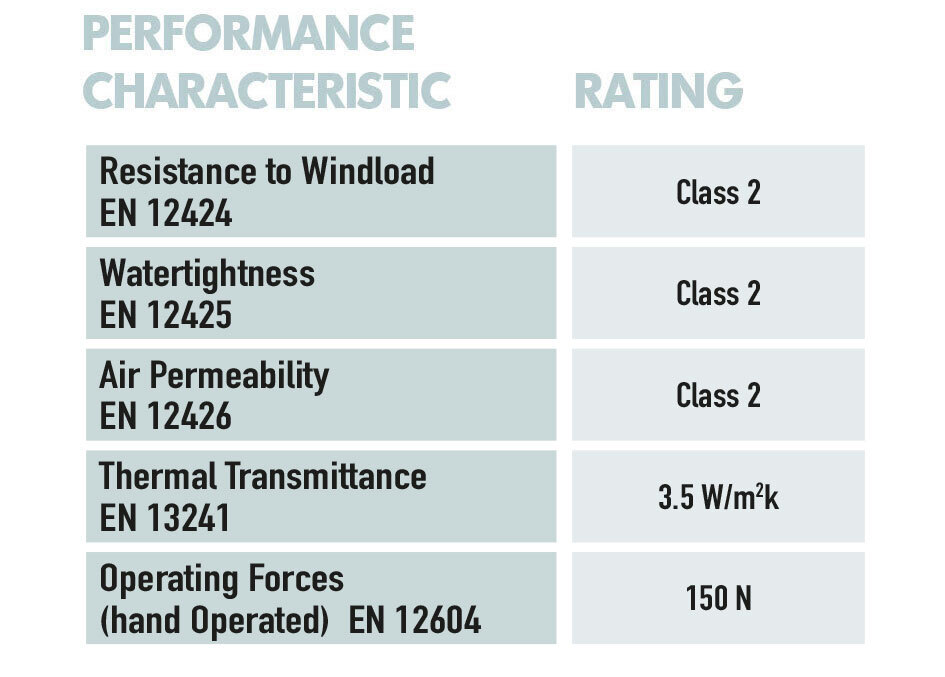

Performance Characteristics

Styles & Finishes

Making the garage part of your home

There's an array of possible combinations of finishes making it easy to adapt the sectional garage door to suit your home.

What will my door look like?

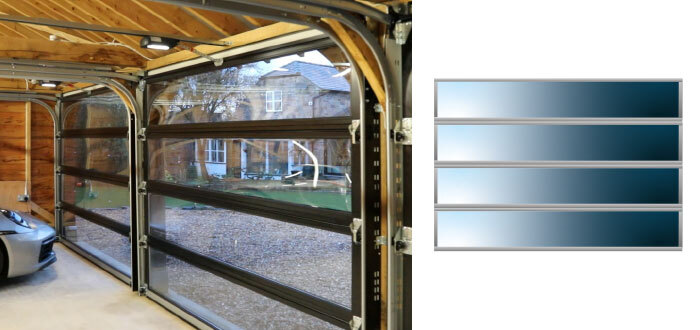

Full width glazing up to 3250mm wide (no mullions)

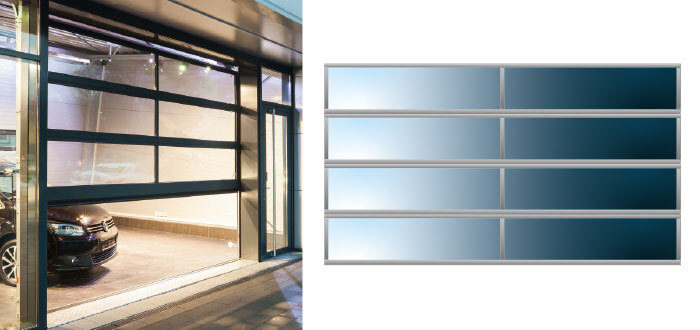

Single mullion over 3250mm wide, maximum width 4000mm

The number of sections is dependent on door height and is shown below:

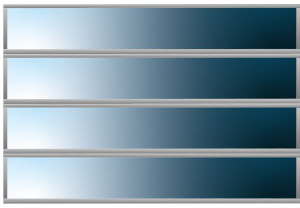

4 sections Doors up to 2280mm high

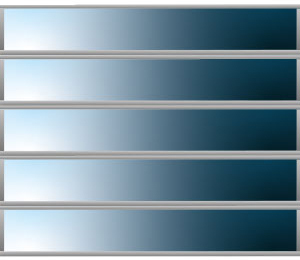

5 sections Doors up to 2835mm high

6 sections Doors up to 3000mm high


Colour Options

Customise your door by selecting a colour!

Every door is available in a selection of colours as shown in the grid below.

Flame Red
RAL3000
Fir Green
RAL6009
Moss Green
RAL6005
Sepia Brown
RAL8014
Window Grey
RAL7040
Anthracite Grey
RAL7016
White Aluminium
RAL9006
Cream
RAL9001
Quartz Grey
RAL7039
Light Grey
RAL7035
Grey Aluminium
RAL9007
Jet Black
RAL9005
White
RAL9016
Steel Blue
RAL5011
Umbra Grey
RAL7022
Slate Grey
RAL 7015

A note about colour:

Direct Sunlight Where doors are exposed to direct sunlight, dark colours should be avoided.

RAL References RAL references for colours are provided as a guide only to the nearest similar RAL colour. Colours will not match to other RAL finishes due to different coating processes, gloss levels, substrates and textures. Similarly, special RAL, BS or other colours will not be a precise match.

Colour Accuracy Colours shown are limited in accuracy by the viewing screen - samples should always be requested.

Frame Legs, Headers & 3D Profiles All frame legs, headers & 3D profiles are available in smooth finish only.

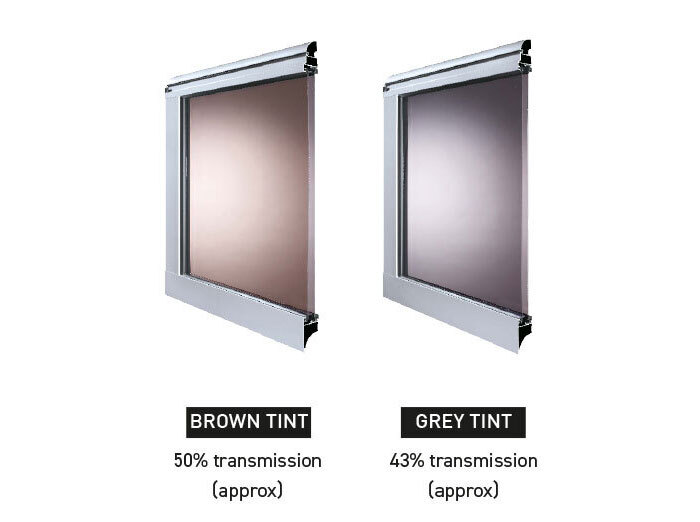

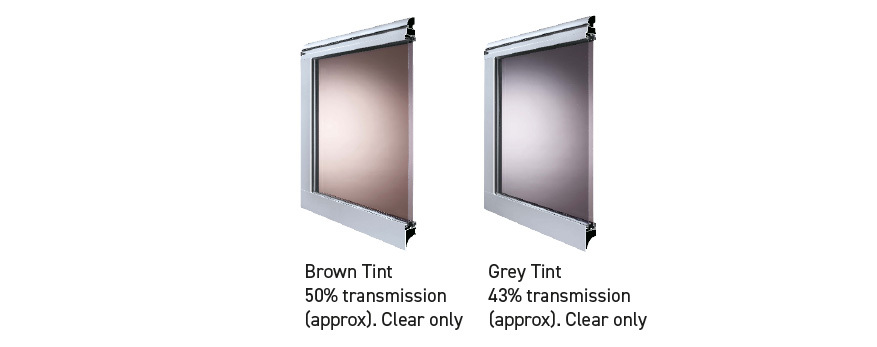

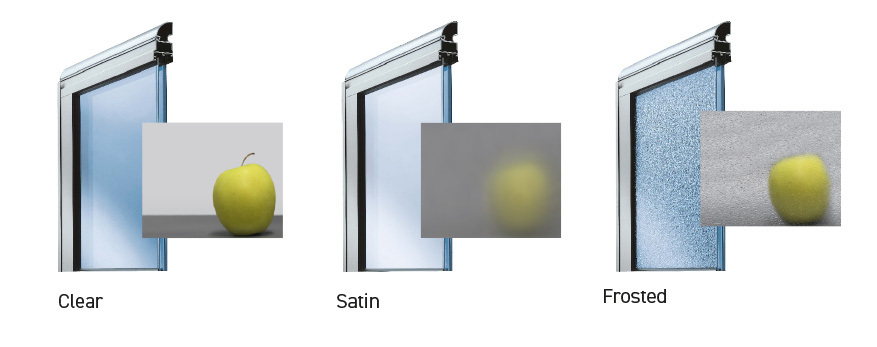

Vision Options

Choose from 6 options for added privacy or shading

Windows are made from double pane scratch-resistant polymer.


Warranty

The warranty periods below only apply to products that have been correctly installed as per the instructions, maintained by a Garage Door Specialist and operated and cleaned in accordance with the requirements set out in the operating and maintenance sections of instructions and labels.

2-year manufacturer’s guarantee

  • on polymer and aluminium window units

5-year manufacturer’s guarantee

  • on rollers, hinges, cable pulleys, cables and standard springs
    (opening/closing max. 5 times a day)

10-year manufacturer’s guarantee

  • on panels against rust penetration from inside to outside
  • against door panel separation of steel from foam
  • on material and manufacturing flaws of all non-moving parts of the frame that are verifiably unusable or whose usability is substantially compromised
  • on floor seal, intermediate seals, side seals and lintel seal against rotting

The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.


Downloads

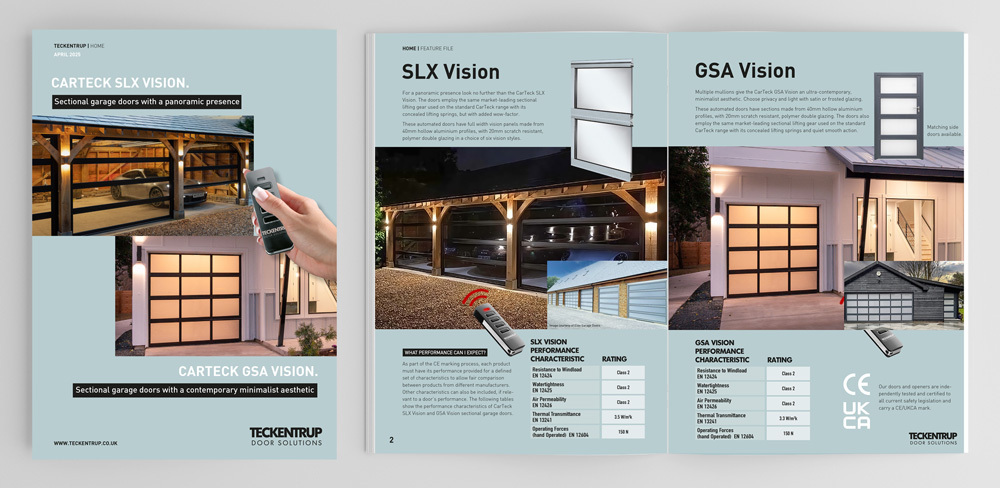

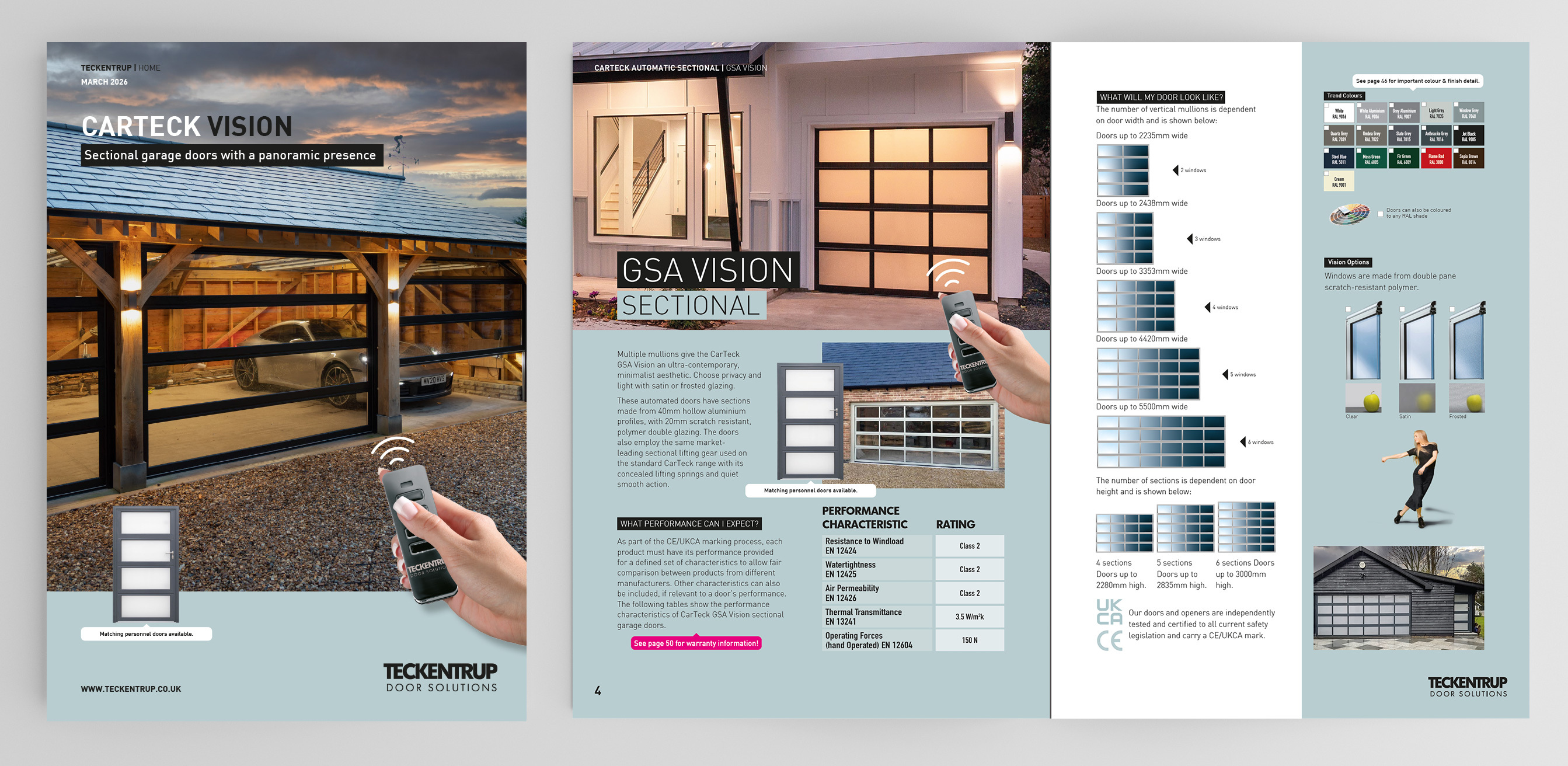

If you'd like to learn more about our range of Sectional Garage Doors, download a copy of our latest brochure. Use our Installer Search below to find your nearest approved installer.

Download Brochure
