Core Performance Characteristics

Acoustic rated steel door sets achieve high levels of sound attenuation performance by combining steel skin leaves and frames with open cell insulated cores and fillings to eliminate resonances and ‘torturous sound paths’ between leaf edges and frame rebates on all four sides, combined with single or multi-layer peripheral seals to prevent high frequency escape.

  • Tested to: BS EN 20140 and evaluated in accordance with BS EN ISO717 Part 1 achieving from Rw 37dB to RW57dB
  • Openings up to 3000mm x 3000mm
  • Polyester Powder Coat finishes in any RAL colour
  • Available in a stainless-steel construction and with vision panel options

The Teckentrup 62 modular system allows for 1000s of possible combinations, making the complex simple. Find out more!


Performance acoustics.

The quiet side, versatile capability.

Noise and loud sounds can have a considerable effect on the working atmosphere and a negative impact on health, work safety, efficiency and concentration. Our sound insulation doors help create a quiet side – but are effective in both directions. This means that in spaces with high noise levels, Teckentrup acoustic doors ensure that the sound levels leaving are attenuated. And in residential spaces, offices and space adjoining a high noise environment, the interior areas are shielded from outside noise.

Teckentrup sound insulated doors achieve their efficient sound insulation with the finely tuned interplay of door leaf construction, frame, fittings and seals.

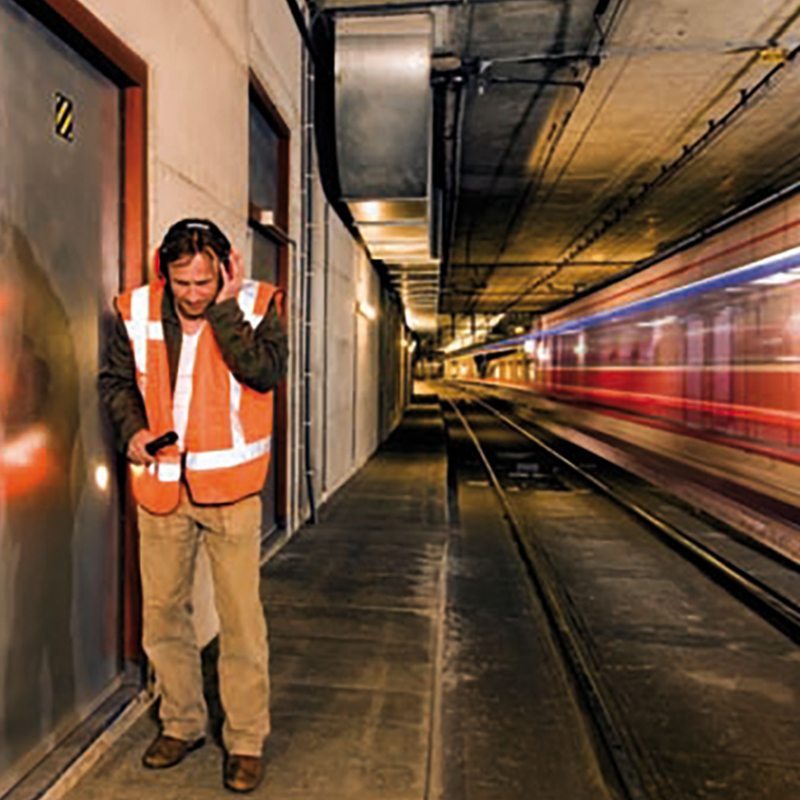

Applications include: all industrial areas, commercial spaces, event rooms, conference rooms, public buildings, residential buildings, plant rooms with noisy machinery, right up to infrastructure projects such as train tunnels with access into pedestrian access. All such applications are where Teckentrup acoustic doors excel both as exterior or interior doors.

Teckentrup offers a complete design, manufacture and installation solution.

Teckentrup steel acoustic doors and doorsets have been tested to:

  • BS EN 20140 and evaluated in accordance with BS EN ISO717 Part 1 achieving from Rw 37dB to RW57dB
  • EN1634-1 achieving 120 minutes fire integrity and 60 minutes fire insulation
  • European Security Standard EN1627 achieving RC2, RC3 & RC4 ratings
  • LPS 1175 Security Standard achieving SR1, SR2 & SR3 ratings
  • European Standards EN1628 & 1629 for static and dynamic loading
  • ISO12567-1 achieving a UD value of 1.1 W/m2/K°
  • EN12207 for air permeability achieving Class 2/4* for a single and Class 1/3* for a double leaf door * Single point/Multi-point locking
  • EN12208 for water tightness achieving Class 7A for a single and Class 6A for a double leaf door
  • EN12210 for wind resistance achieving Class 3/5 for a single and Class 1/3 for a double leaf door
  • A 62mm insulated door set, fitted with heavy duty ‘KO’ hinges has been tested to EN1191 for repeated opening and closing to C5 level – 200,000 cycles


We live in your world...

Delivering a project from conception to handover is an undertaking that requires many elements to work together...

Teckentrup understands the language of complex projects; how to design a solution for the building not just a door, but how to provide drawings in the right way, how to deliver the door, how to manage project timeframe shifts, how to work seamlessly within the contract process and provide product of certified and documented capability.

Package Manager

“If we work together and tick the boxes the package should be straightforward.”
– Package Manager

“Working to specification and contract is key; communication with you is central to keeping things moving.”

Teckentrup Logo
Project QS

“We have a process - it's called a contract!”
– Project Quantity Surveyor

“Teckentrup understands. We read it, we refer to it. We use it to help you achieve the right result.”

Teckentrup Logo
Project Director

“Bring ideas and solutions!”
– Project Director

“We are your door experts, but won't complicate things. We'll make sure your team delivers a trouble free door package.”

Teckentrup Logo

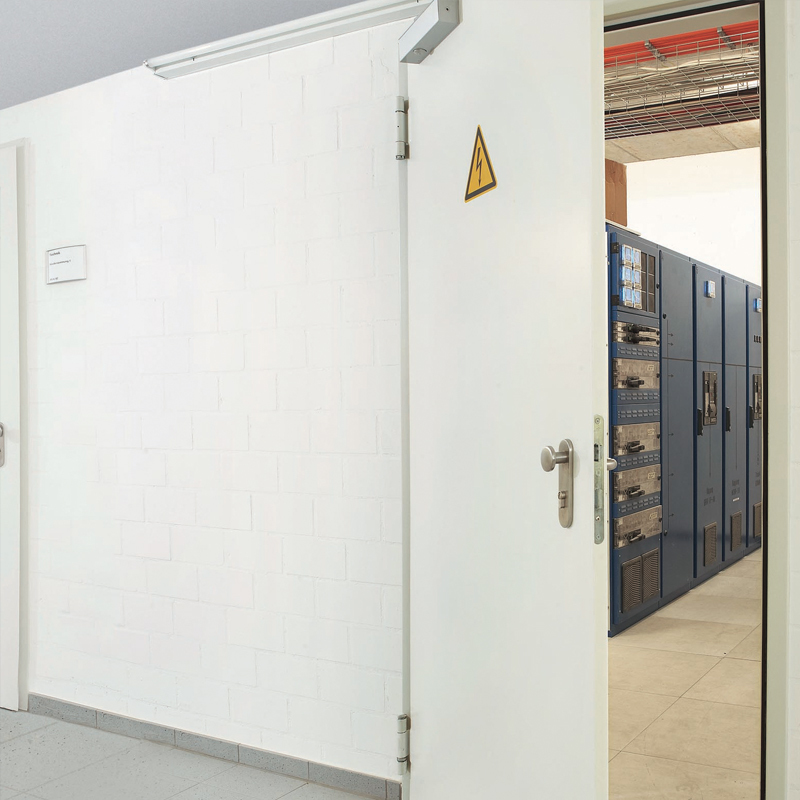

Single Steel Acoustic Soundproofing Doors At The Entrance To An Electrical Plant Room
Steel Acoustic Soundproofing Doors with pressure and fire capability

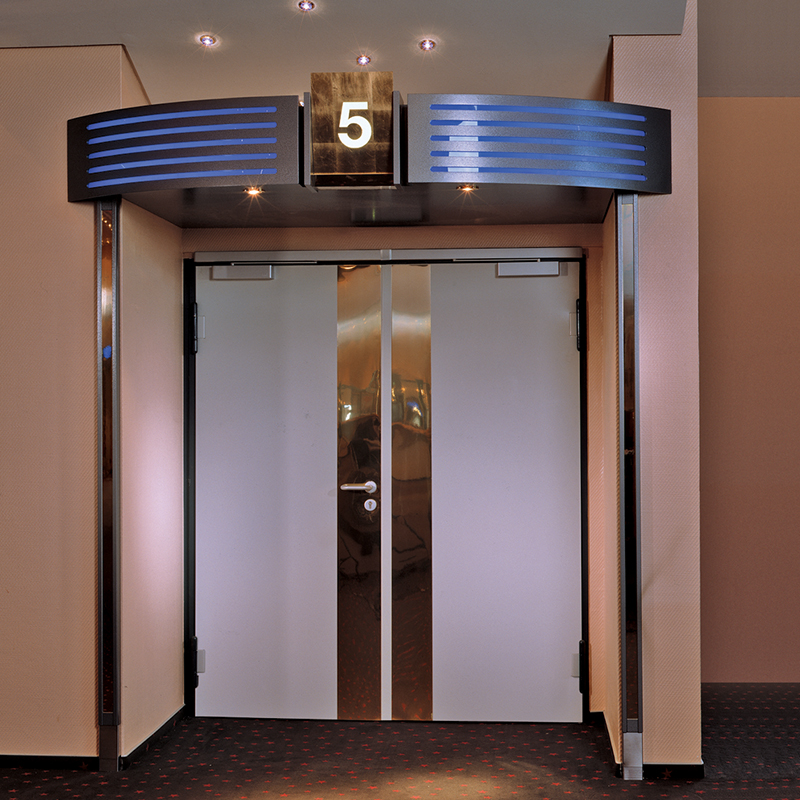

14

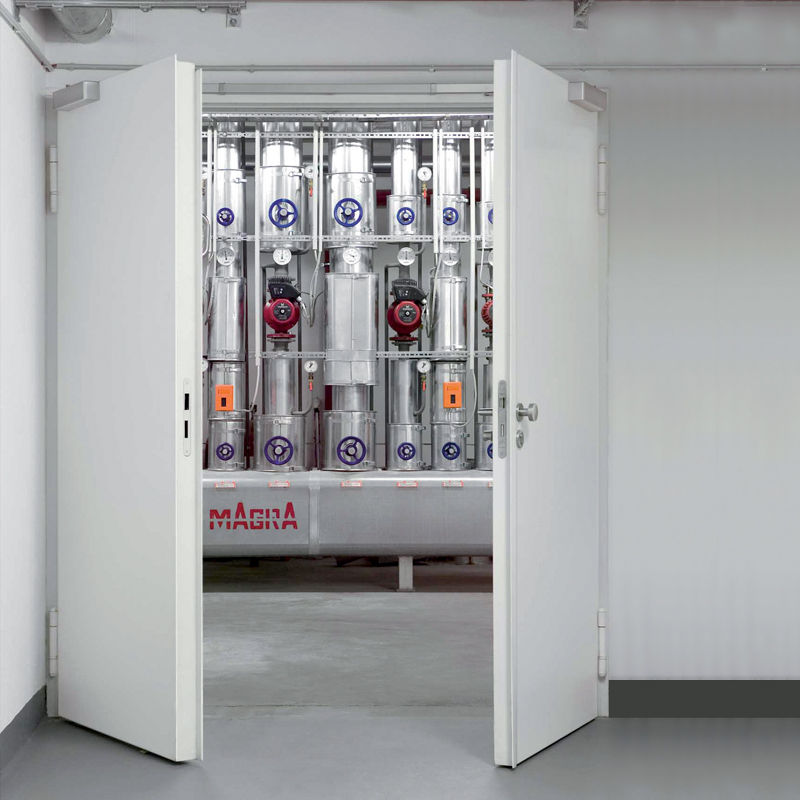

Double Steel Acoustic Soundproofing Doors At The Entrance To A Plant Room

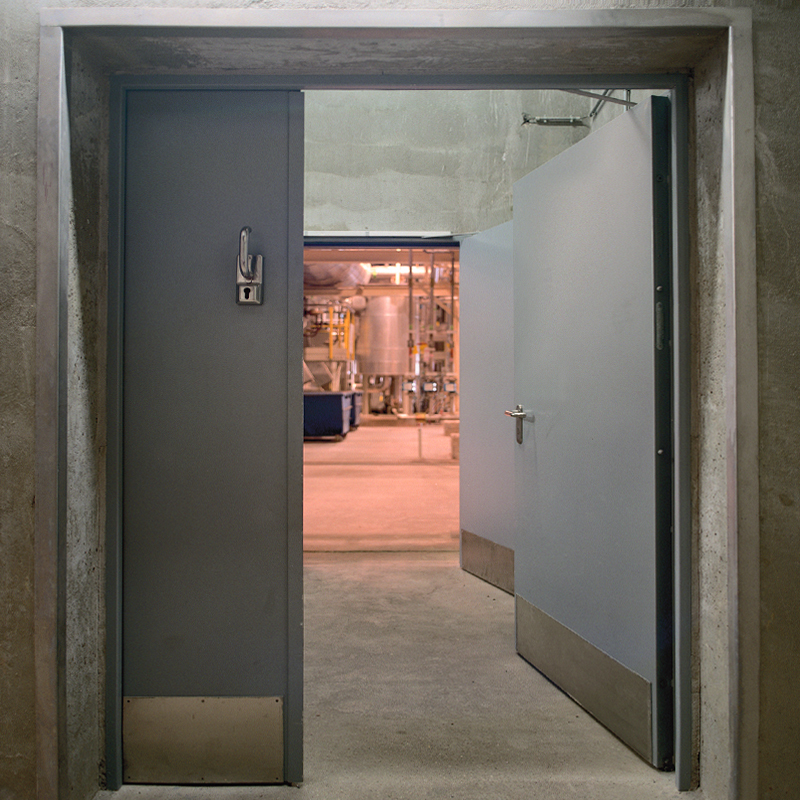

Double Steel Acoustic Soundproofing Doors At The Entrance To A Valve Room

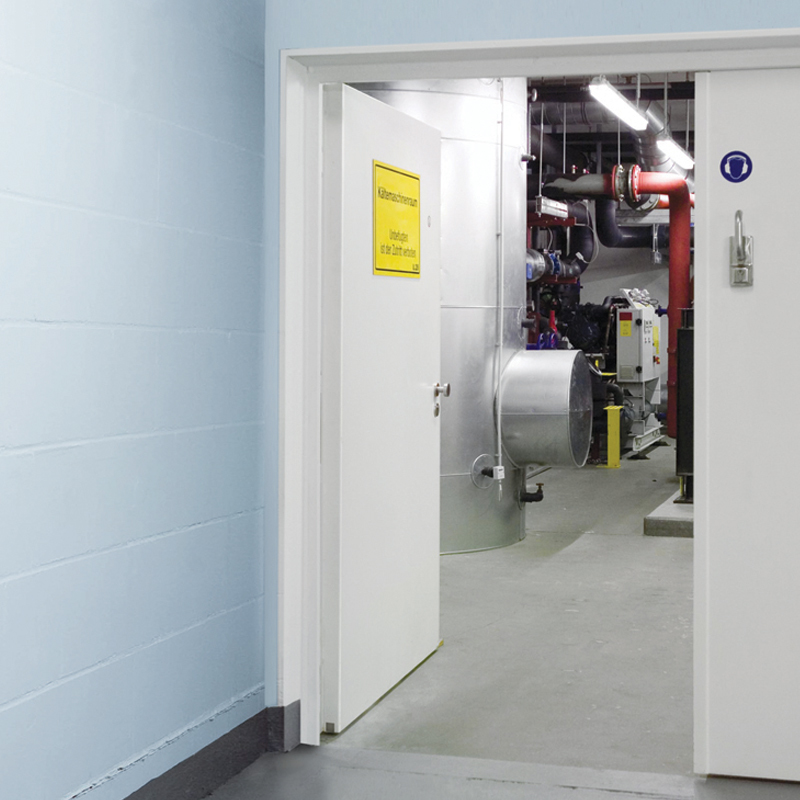

Twin Double Steel Acoustic Soundproofing Doors At The Entrance To A Plant Room
Single Steel Acoustic Soundproofing Doors At The Entrance To An Electrical Plant Room
Steel Acoustic Soundproofing Doors with pressure and fire capability
14
Double Steel Acoustic Soundproofing Doors At The Entrance To A Plant Room
Double Steel Acoustic Soundproofing Doors At The Entrance To A Valve Room
Twin Double Steel Acoustic Soundproofing Doors At The Entrance To A Plant Room

Frames & Hardware

Clever framing solutions and finishing touches

As a project manager, the success of a major initiative often depends on a small detail.

Teckentrup's frame solutions allow for installation in all site scenarios including variable reveal depths and flush finish with wall renders. The four main types are:

  • Block frames with captive seals.
  • Corner frames with captive seals, concealed fixings with adjustable screws and only one fastening point.
  • Corner Counter frames with captive seals and concealed fixing of the counter frame with special fold anchors.
  • Closed frames with captive seals.

Teckentrup can advise on the right solution and their suitability for applications such as fire, acoustics, etc.

The Hardware, accessories, vision panels, louvres, etc., are all selected to suit application, life cycle value requirements and other criteria, against which Teckentrup can provide certification. Advice on selection and integration with access and building systems such as fire and security is also part of our solution based approach.

Corner Counter Frame Rectangle
Corner Frame
Block Frame
Closed Frame

The modular steel doorset

We have a range of steel doorsets that cover multiple requirements making it easier to find a solution that covers all of your requirements in a single product.
