When you need a really big door we have two options. CarTeck XL and CarTeck SuperSize. From the outside they are indistinguishable from our “normal” sized garage doors - the same stunning profiles, the same attractive windows and finishes. The lifting mechanism is where the doors differ - both types use torsion springs, upgraded hardware and specialist high-powered motors.

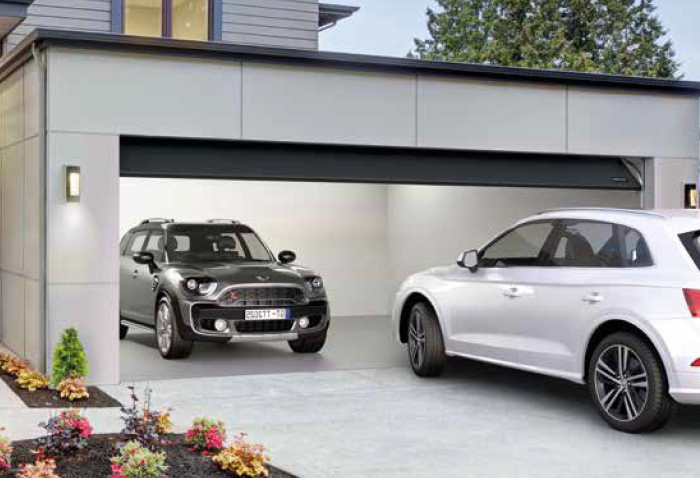

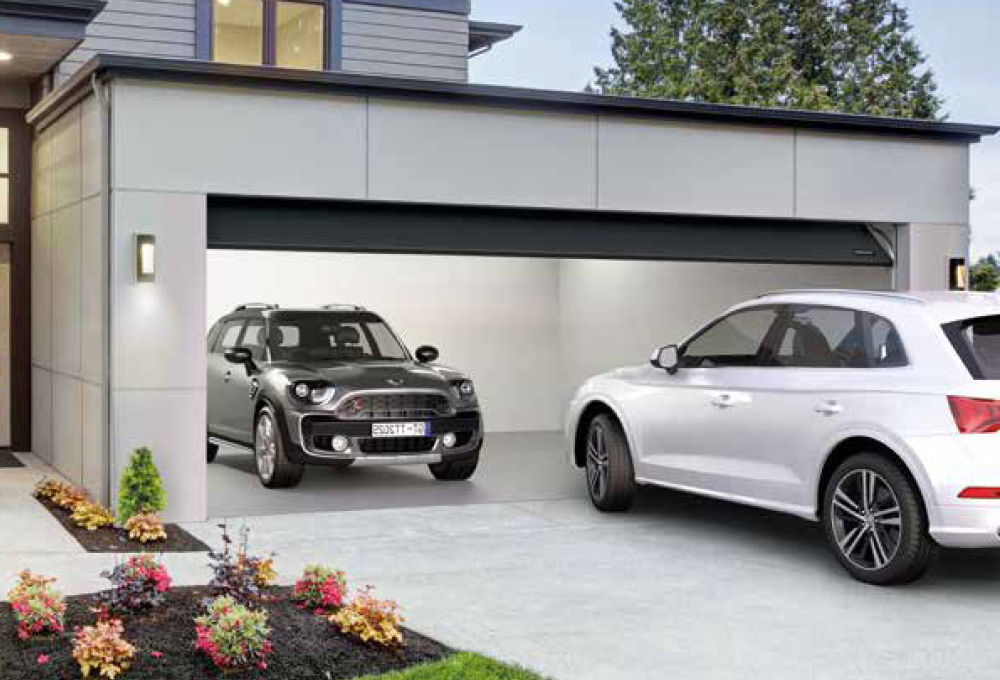

XL sectional garage doors extend the available size of our standard sectional doors from 5501mm to 6250mm wide by 2500mm high. XL doors have a rear-mount torsion springs, heavy duty roller brackets and panel reinforcing profiles. They are powered by a CarTeck DRIVE 1100 motor.
XL doors are available with a colour matched frame and header in all designs allowing them to be fitted between the reveal and behind the reveal (SuperSize doors can only be fitted behind the reveal).

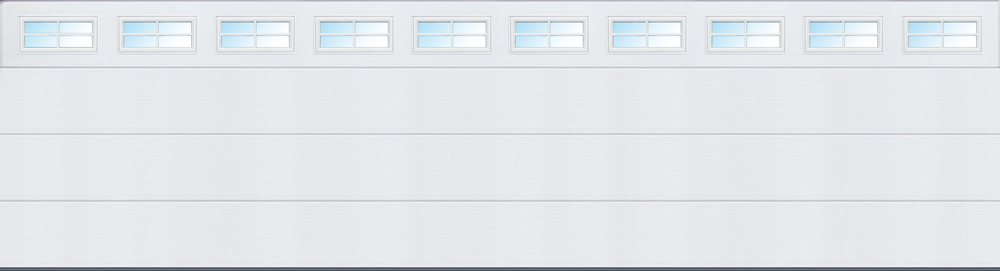

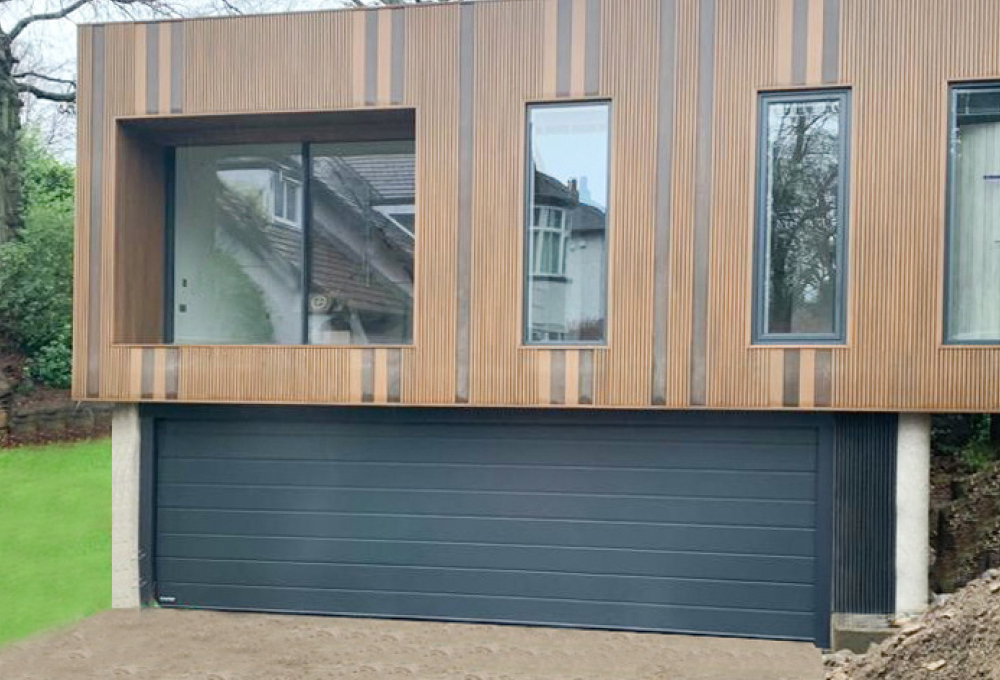

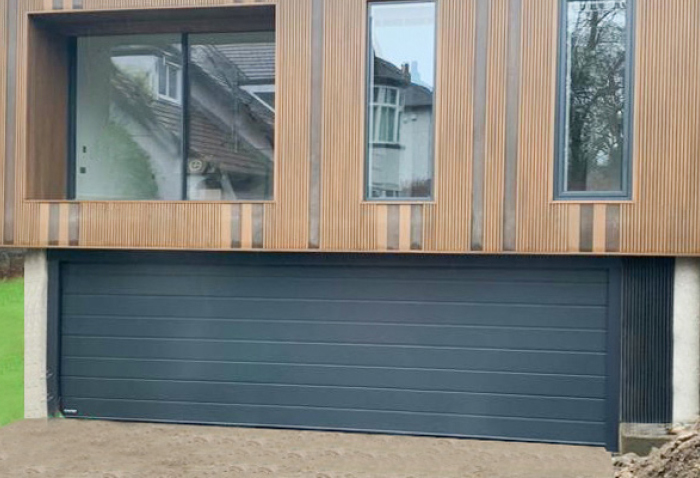

SuperSize doors are for when things get really big! SuperSize doors start above 5.5m (18’0”) wide to reach 8.0m (26’3”) wide in a single span with heights of up to 3.0m (9’9”). Doors have galvanised frame legs and are supplied without a header and must be fitted behind the reveal.
The weight of a complete door at these sizes is considerable and safe operation is paramount. Safety systems ensure doors stop and reverse should it encounter an obstruction. Teckentrup sectional doors meet all the safety requirements and provisions of BSEN 13241.

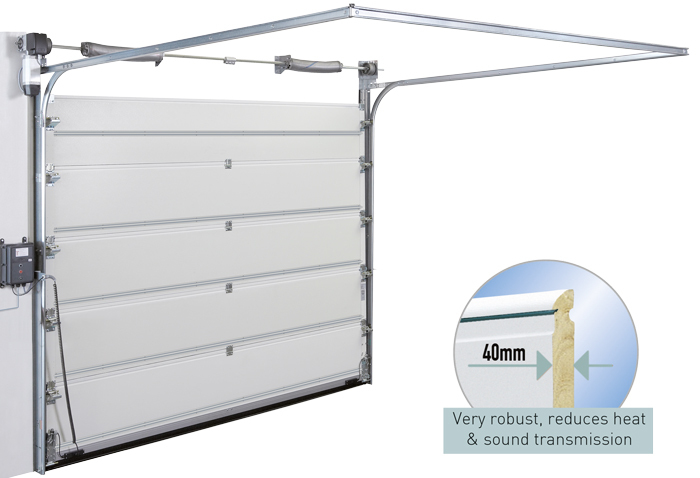

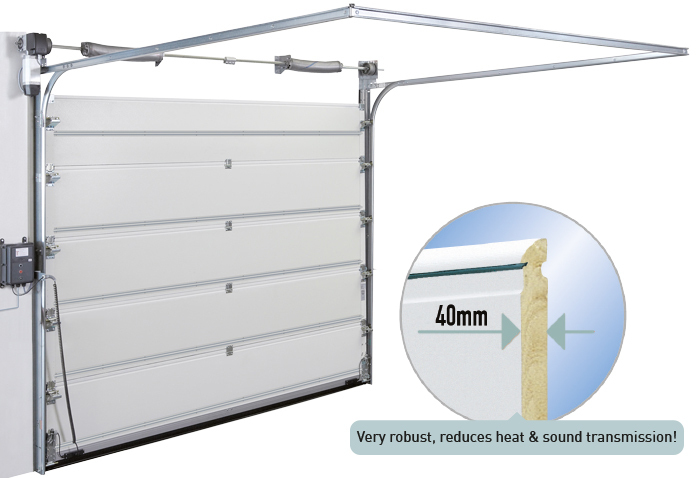

This view from the inside of a SuperSize door shows the standard configuration of front mount torsion spring lifting gear, direct drive motor and controls.

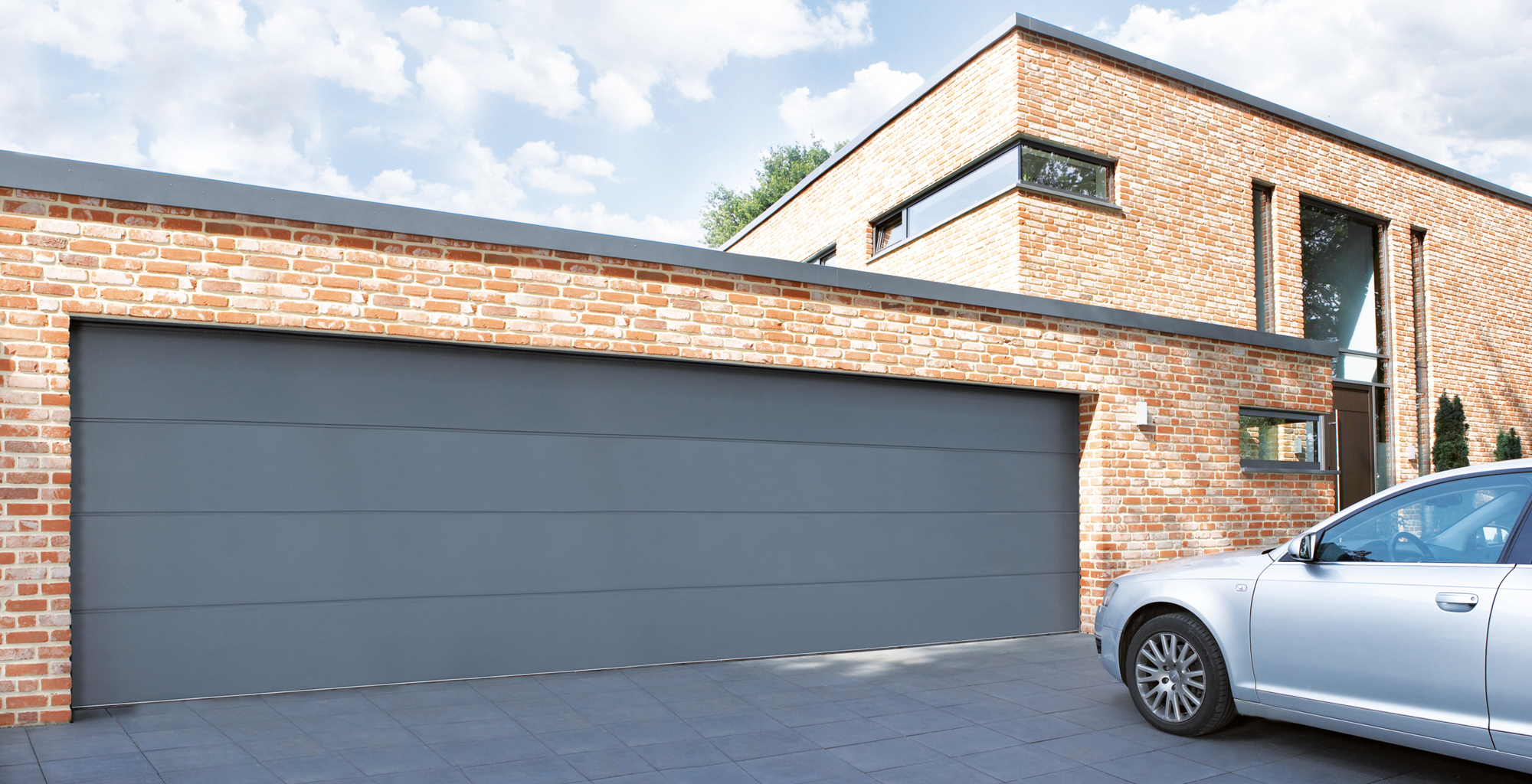

Doors have galvanised frame legs and are supplied without a header. The side seals enclose the edge of the galvanised frame leg so it is not visible from the outside of the garage opening.

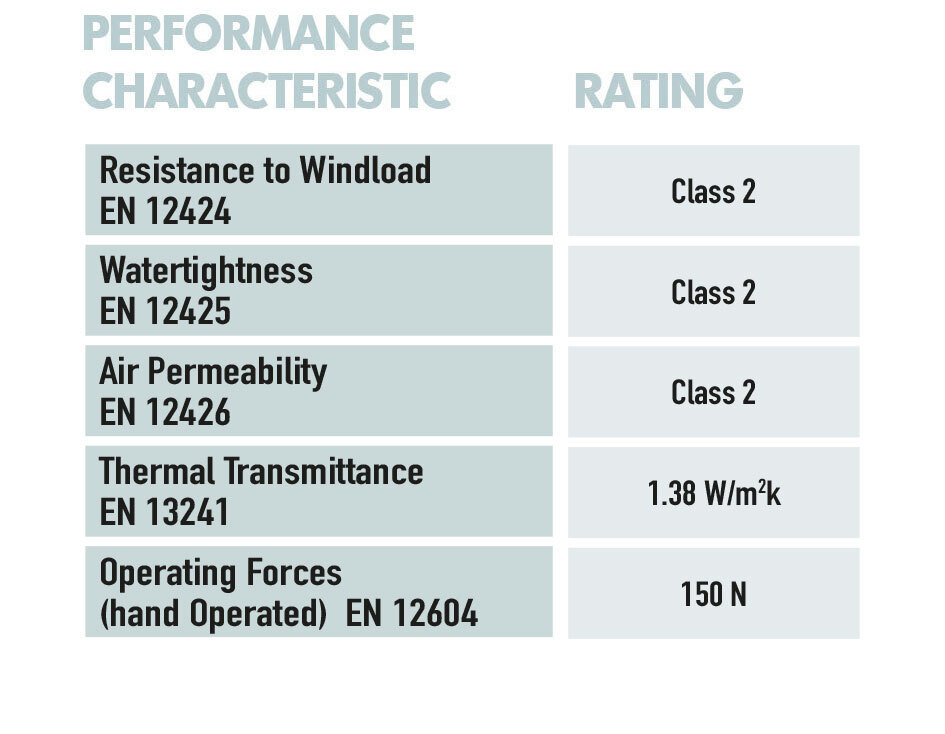

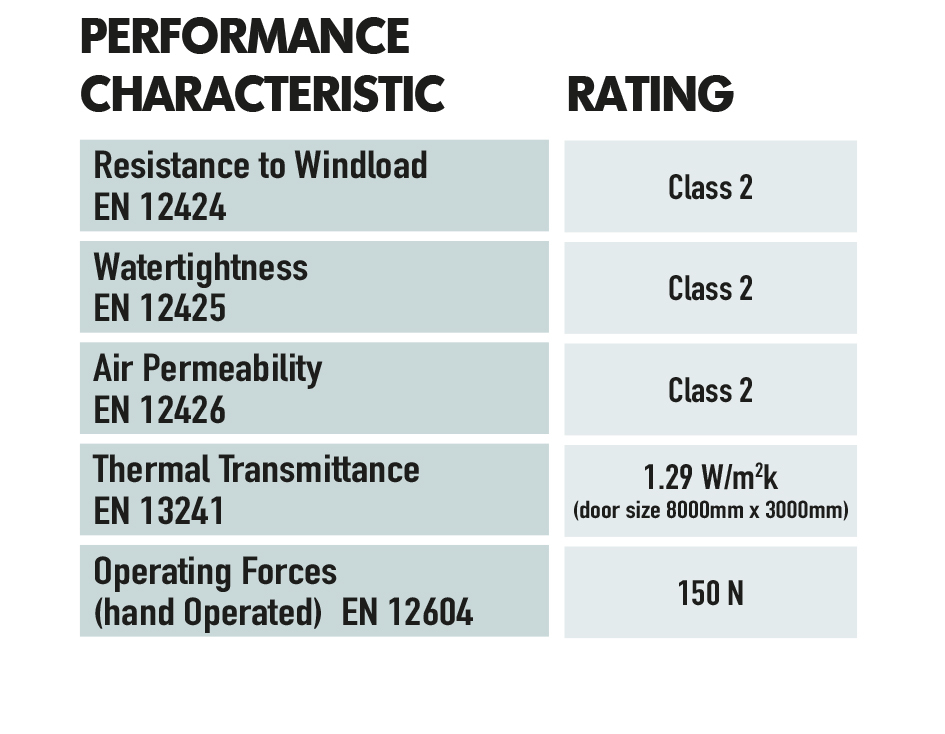

As part of the CE marking process, each product must have its performance provided for a defined set of characteristics to allow fair comparison between products from different manufacturers. Other characteristics can also be included, if relevant to a door’s performance. The following table shows the performance characteristics of CarTeck XL and SuperSize sectional garage doors.
Our doors and openers are independently tested and certified to all current safety legislation and carry a CE/UKCA mark.
What level of Security can I expect from my XL/SuperSize sectional garage door?
See the ‘Security’ section of our Honesty Page!
What thermal performance does my XL/SuperSize sectional garage door have?
See the ‘Thermal Performance’ section of our Honesty Page!
What level of light, drafts & water ingress can I expect from my XL/SuperSize sectional garage door?
See the ‘Light, drafts & water ingress’ section of our Honesty Page!
Can I expect the same level of performance from my XL/SuperSize garage door compared to my front door?
See the ‘What can I expect from my door’ section of our Honesty Page!

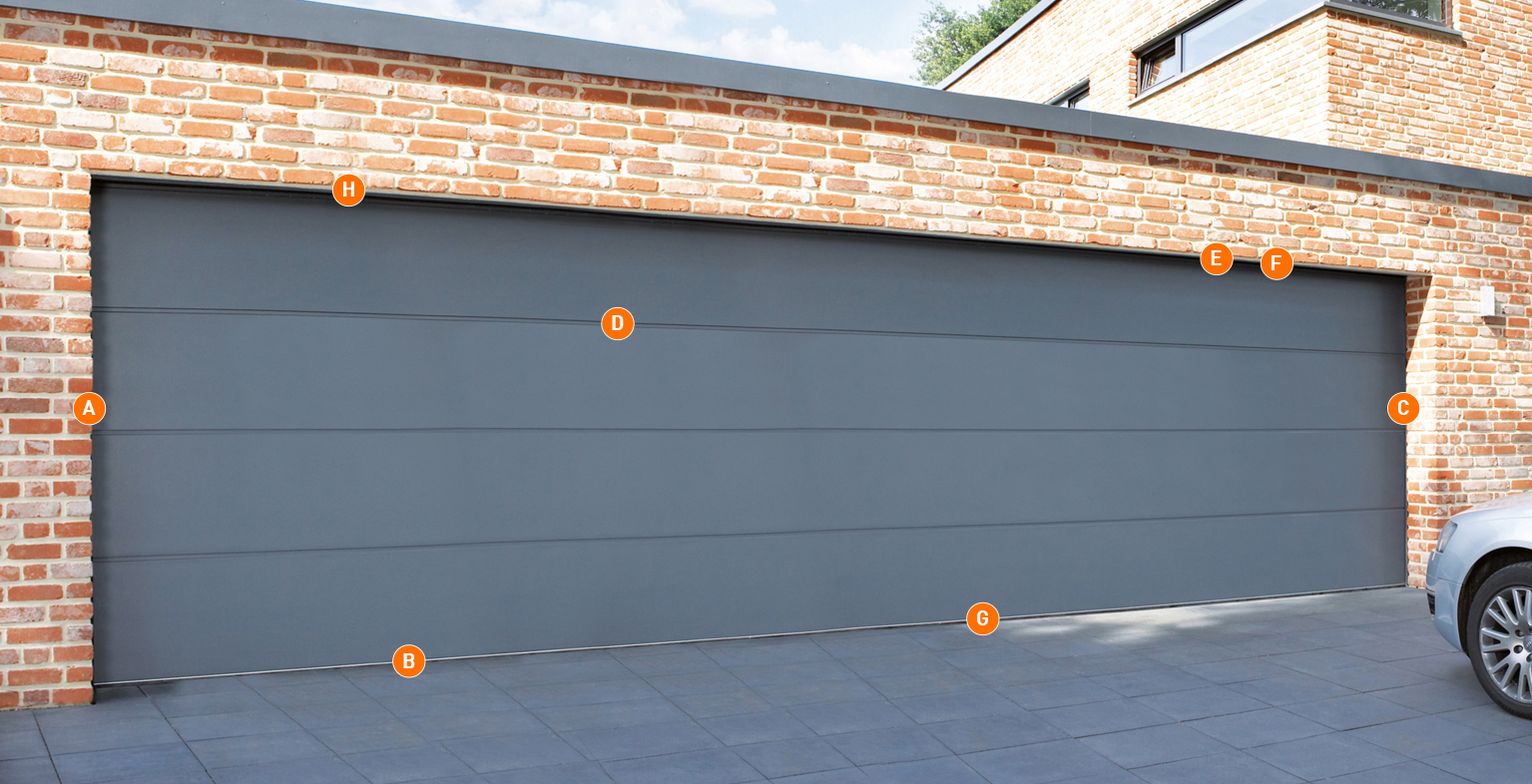

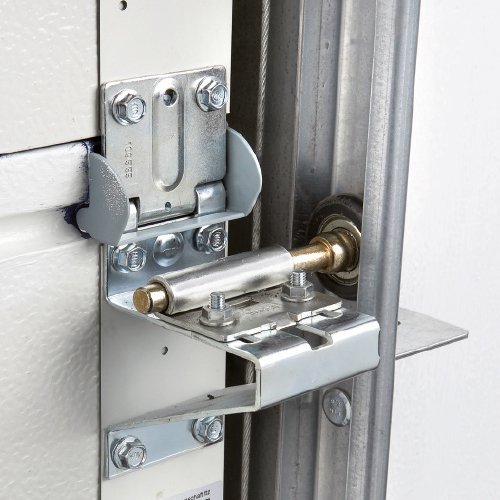

A Robust roller blocks made of galvanized steel and ball bearing runner rails guarantee a long service life and low noise operation.

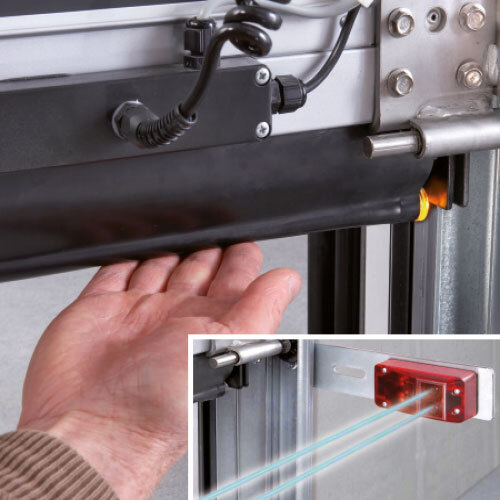

B Doors are factory fitted as standard with a safety edge mechanism which stops the door if it comes into contact with an obstacle and photocells for non-contact detection.

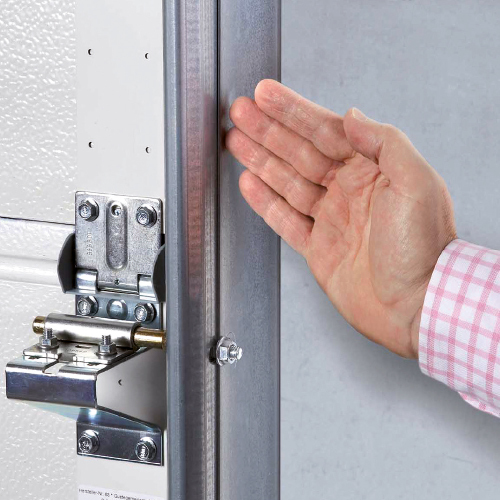

C A lateral guard prevents a hand from being accidentally caught between the frame and the runner rail.

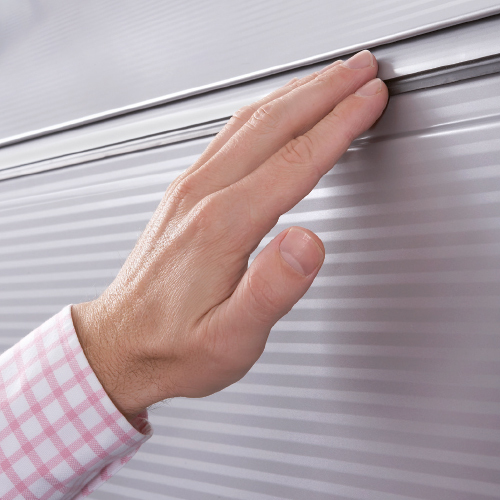

D Outside/inside - Patented finger pinch protection for outside and inside of the door.

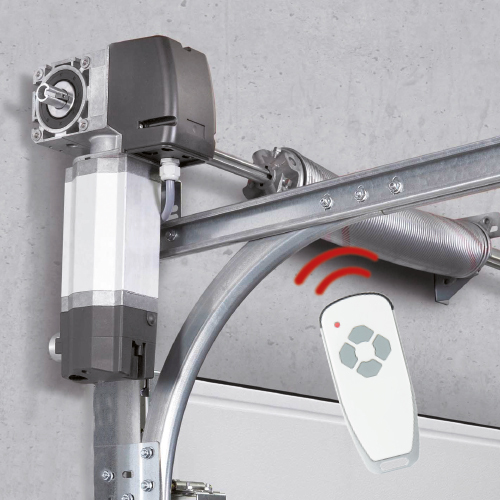

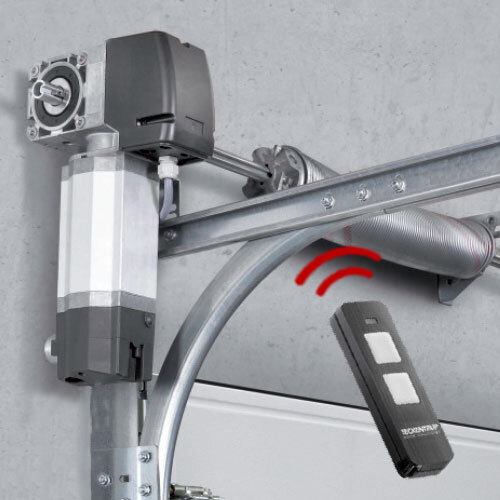

E Big doors need power and our direct drive motors are definitely up to the job! Intelligent control ensures safe operation at all times. Available for all door sizes.
Works with the CarTeck DRIVE transmitters & keypads.

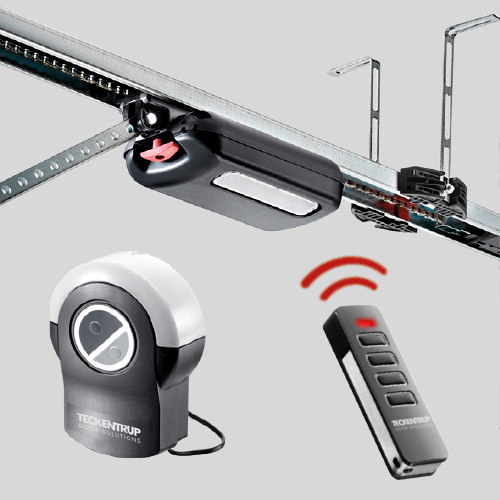

F Supplied on XL doors as standard and on SuperSize doors from 5500mm-6500mm wide and 2280mm high, the CarTeck Drive PRO 1100 is suited to applications where sideroom is restricted. Rail drives have built-in safety sensing that stops the door if it comes into contact with an obstacle.
Works with the CarTeck Drive accessories.

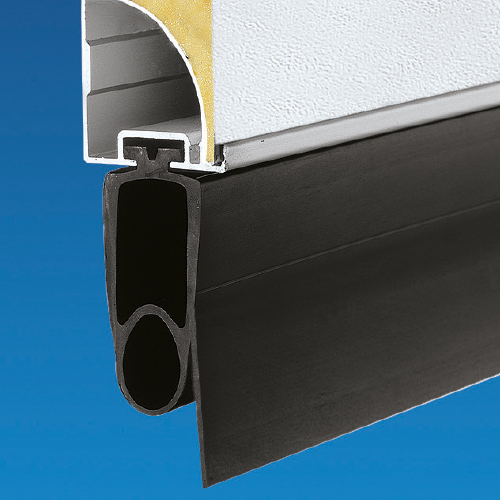

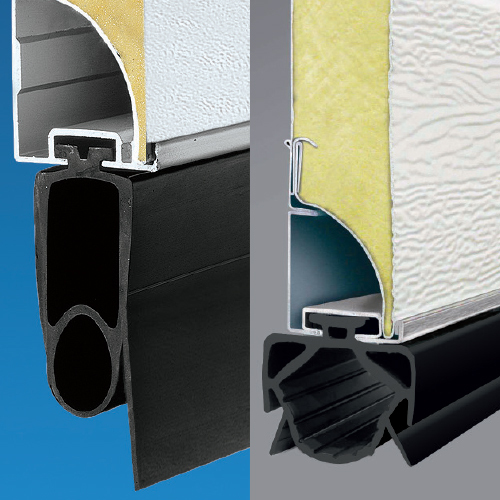

G A rot-proof bottom weather strip made of elastic EPDM rubber profile sits against the floor and will compensate for minor variations in floor level to provide an improved barrier to debris and draughts.
SuperSize shown left, XL shown right.

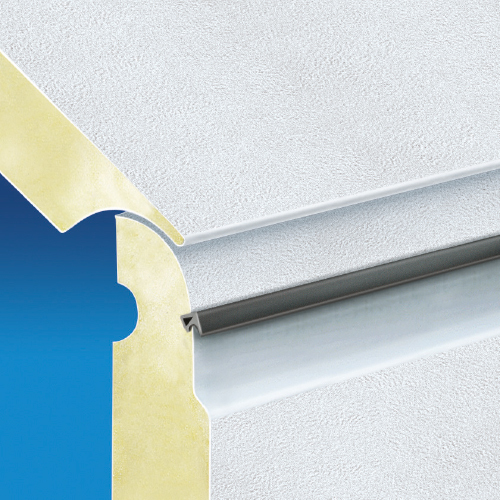

H The door also has a weather strip at the sides, top and also between the individual sections across the entire width.
There are literally hundreds of possible combinations of texture and finish making it easy to adapt the door to suit your home.
A finish for every application...

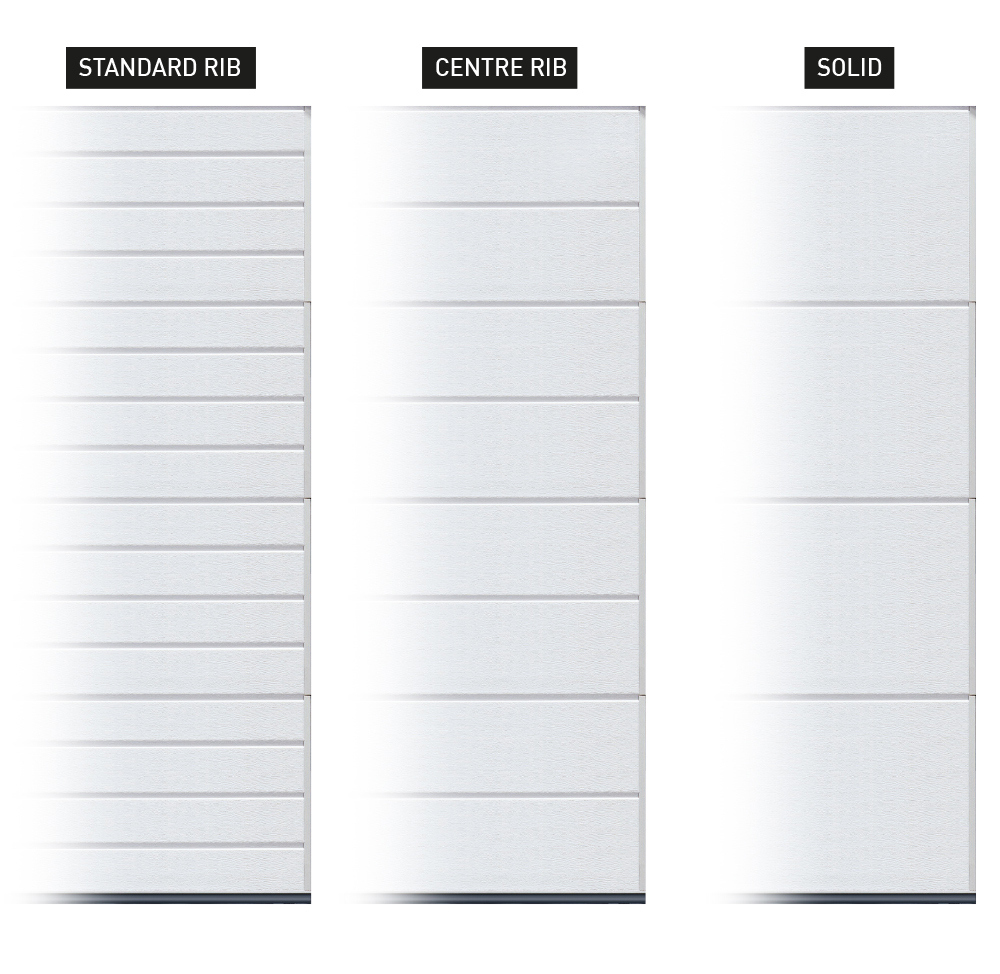

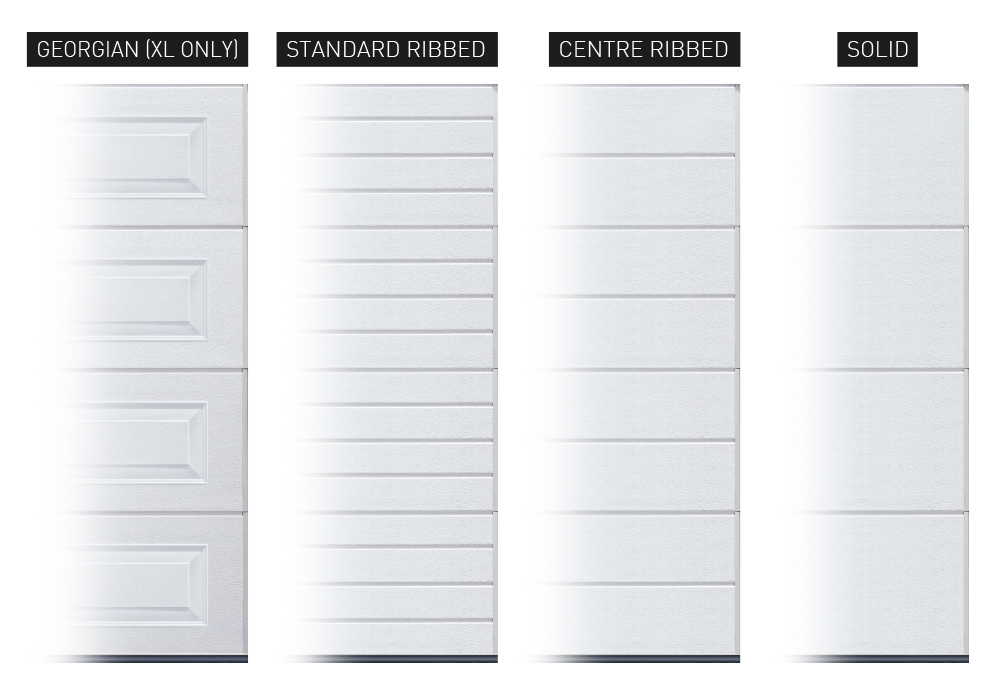

The SuperSize Solid, Centre Ribbed and Standard Ribbed styles comes in a range of 4 textures, which can be combined with any colour combination. XL doors are available with a Georgian* panel design alongside Solid, Centre Ribbed and Standard Ribbed.
*Georgian panels are available in woodgrain finish only.
View colour options

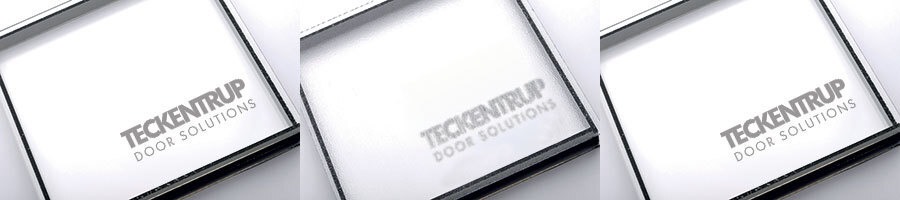

Made from double glazed scratch-resistant Polymer, our doors are available with a wide range of window designs, including modern and contemporary style windows and more traditional styles such as the rectangular cross mullion. There are also 3 glazing options to choose from: Clear, frosted and satin finish.
View window options
XL doors can be installed behind or between the opening and require a 13Amp supply.
SuperSize doors must be installed behind the opening reveal and require a 13Amp supply direct to the consumer unit for Direct Drive motors.

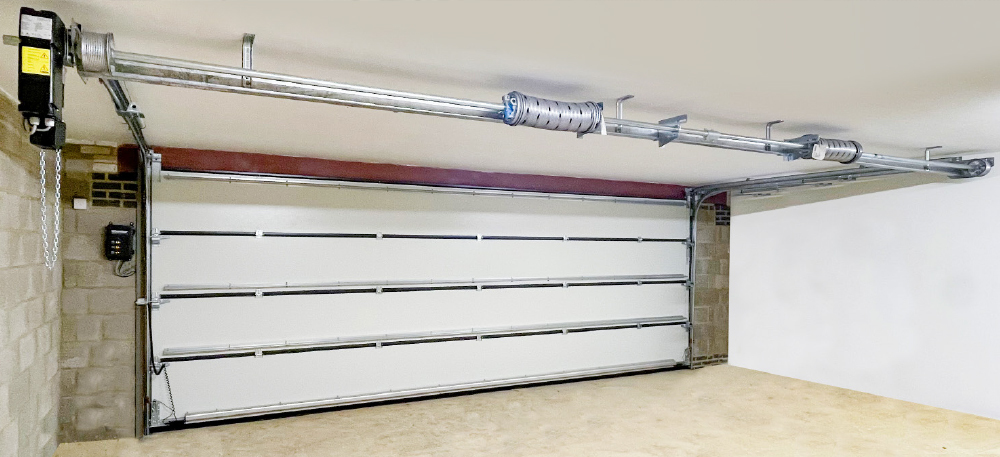

Rear torsion spring standard on XL doors and available as an option on SuperSize doors (SuperSize shown here).
Below are the warranties on our garage doors and finishes - See your doors’ warranty certificate for full terms and conditions. The warranty periods only apply to products that have been correctly installed as per the instructions and appropriately operated, cleaned and maintained. The warranty also requires that maintenance/servicing is undertaken by both you (the owner) and a Garage Door Specialist at the recommended intervals. All these requirements are set out in the operating and maintenance sections of your doors’ instructions and door labels.
2-year manufacturer’s guarantee
10-year manufacturer’s guarantee
The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.
5-year manufacturer’s guarantee excluding coastal areas
on peeling and blistering (normal colour fade excluded)
For information on what performance you can expect from your garage door, visit the Honesty Page.

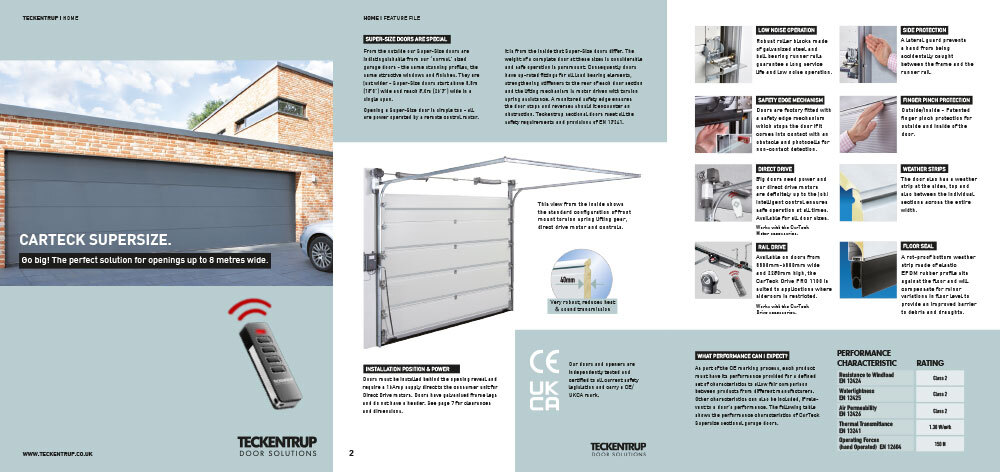

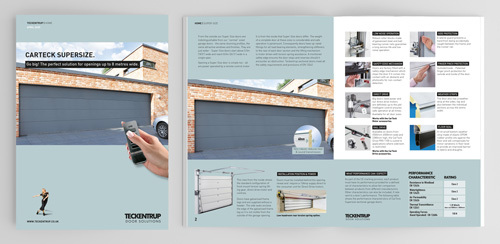

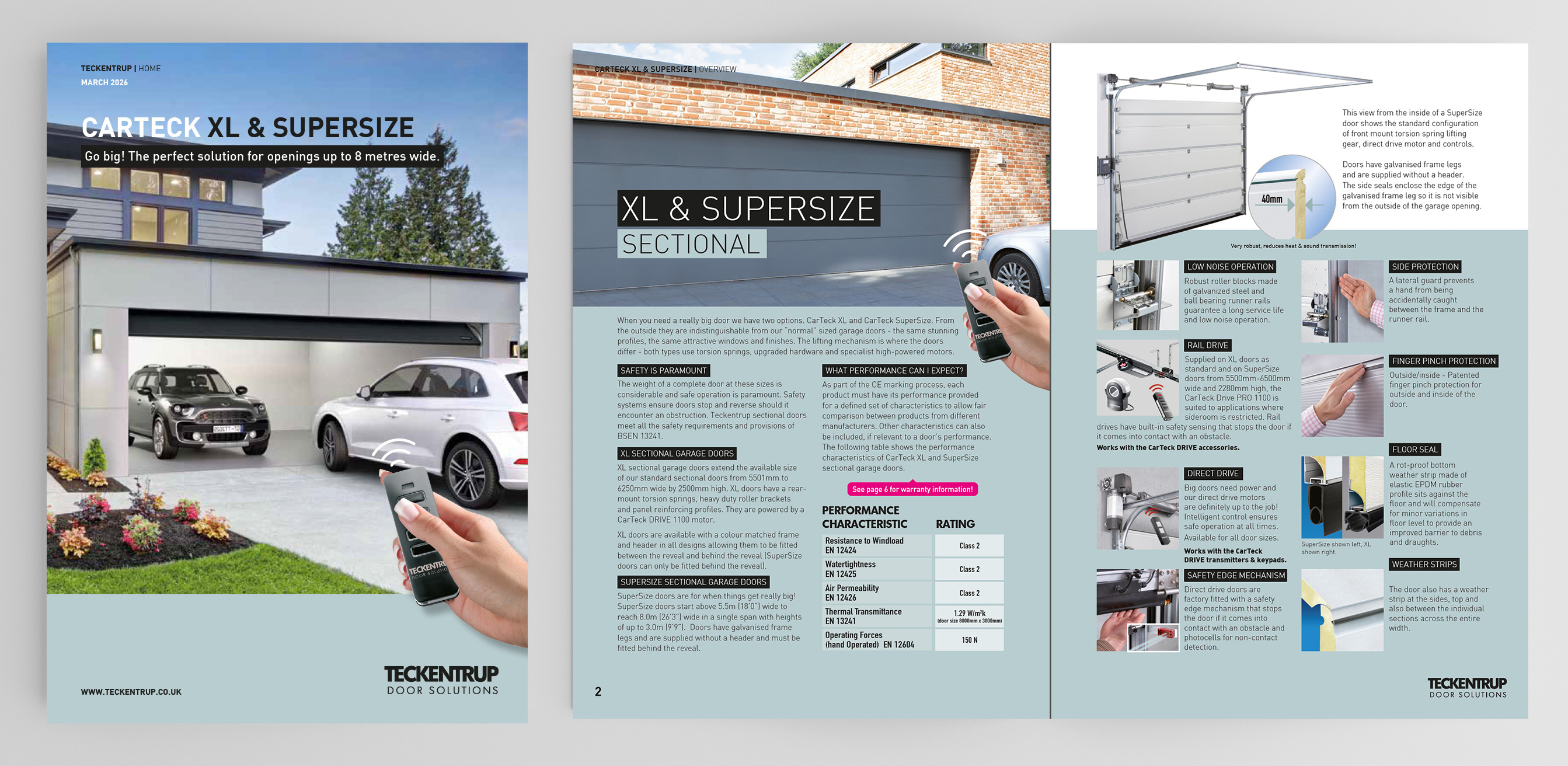

If you'd like to learn more about our range of garage doors, download a copy of our latest brochure. Use our Installer Search below to find your nearest approved installer.
