CarTeck Automatic makes so much sense. The fixed chain drive of the CarTeck DRIVE range is quieter and renowned for long-term reliability compared to revolving chain or belt designs.

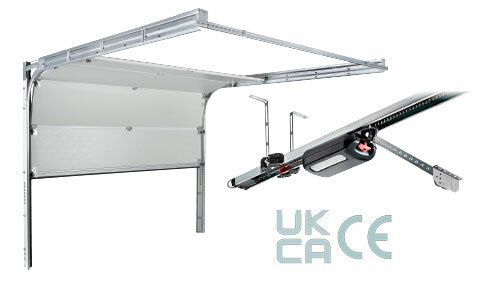

Our doors and openers are independently tested and certified to all current safety legislation and carry a CE/UKCA mark.

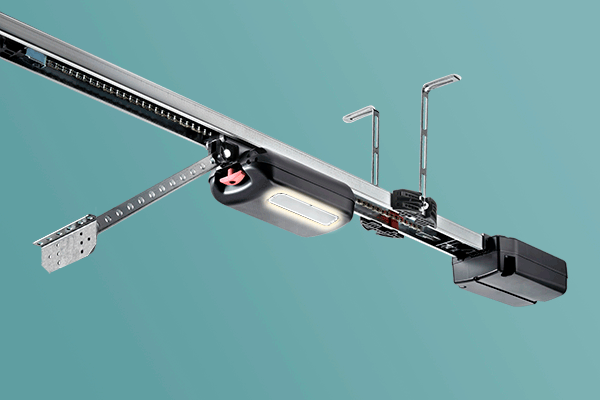

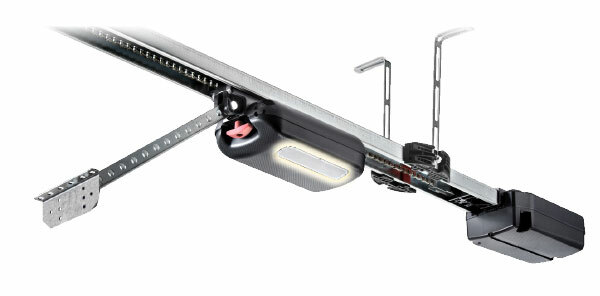

The integrated drive and control unit of the CarTeck DRIVE 500 and 600 fits discreetly above the door. Both the DRIVE 500 and the 600 can lift any size door. The 600 is available with all the option packs and the 500 is available with selected options (see below).
| Power | Transmitters | Speed | Lighting | Options | |
|---|---|---|---|---|---|
| Drive 500 | 500Nm | 2 X Pearl Twin | 180mm/sec | 1 x 3 LED Motor Light | Selected |
| Drive 600 | 600Nm | 2 X Pearl | 240mm/sec | 1 x 6 LED Motor Light | All |

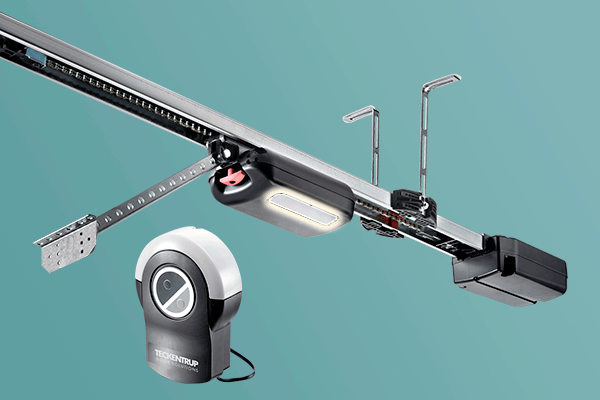

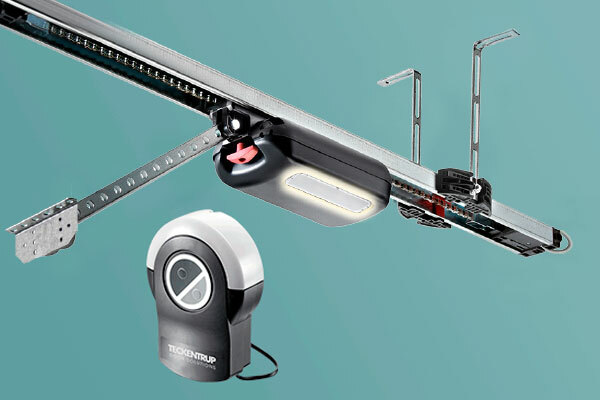

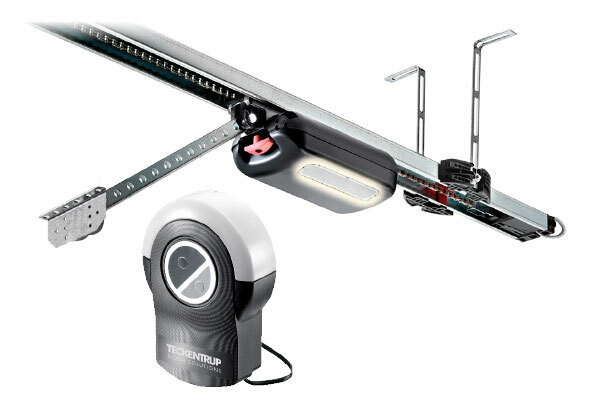

The separate control unit of the CarTeck DRIVE PRO 500 and 600 allows for flexible installation at a location close to available power sockets. Both the DRIVE PRO 500 and the 600 can lift any size door. The 600 is available with all the option packs and the 500 is available with selected options.
| Power | Transmitters | Speed | Lighting | Options | |
|---|---|---|---|---|---|
| Drive Pro 500 | 500Nm | 2 X Pearl Twin | 180mm/sec | 1 x 3 LED Motor Light | Selected |
| Drive Pro 600 | 600Nm | 2 X Pearl | 240mm/sec | 1 x 6 LED Motor Light | All |

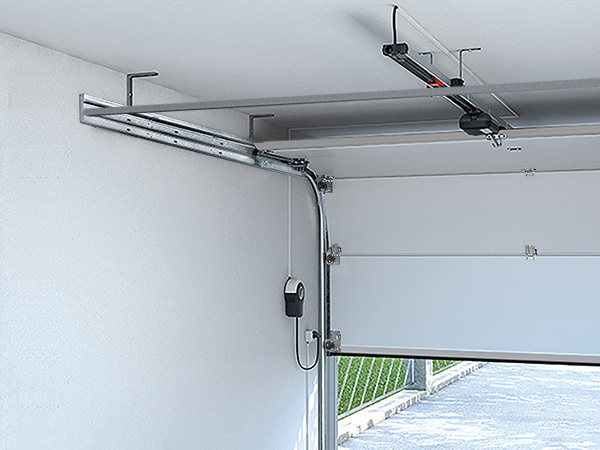

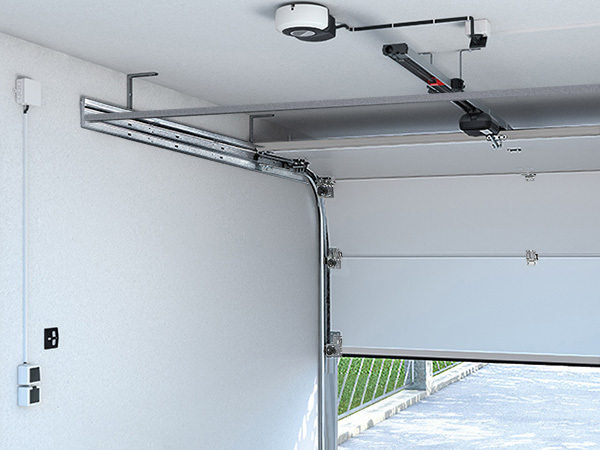

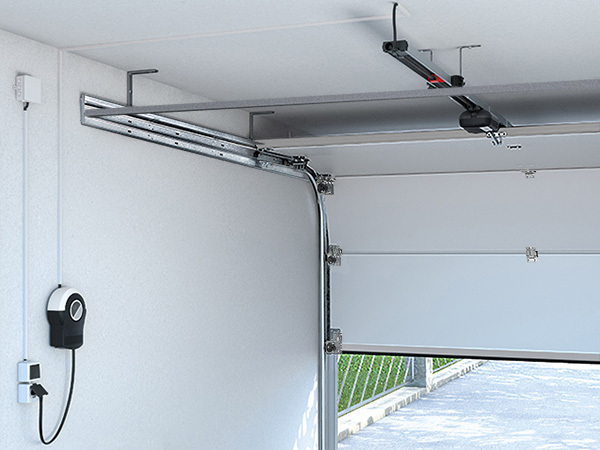

The CarTeck DRIVE Pro 500 and 600 can be mounted in 3 different locations; ensuring the perfect installation can be made.

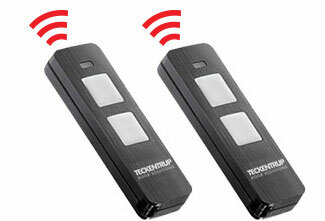

The Pearl Twin transmitter has twin buttons that can be configured for two functions such as open and close and turn on the light.
The CarTeck DRIVE 500 and DRIVE Pro 500 come with two Pearl Twin remotes as standard.

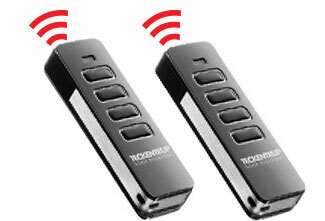

The Pearl transmitter has four buttons that can be configured to suit your requirements – open and close, turn on the light, operate a second door and so on.
The CarTeck DRIVE 600 and DRIVE Pro 600 come with two Pearl remotes as standard.
Our accessory packs place you in control. Clever technology takes the guess work out of parking, keeps your garage dry, lights your way and keeps you moving even if power fails. Quick and easy to set up, most of our accessory packs are plug and play! Explore the pages ahead to see how our CarTeck Automatic accessory packs... ...put you in control!
Our Parking Packs offer assistance to park perfectly in your garage and clever climate control to avoid humidity when parking a wet car inside your garage.
DRIVE & DRIVE PRO 600
"I want to park precisely within my garage..."

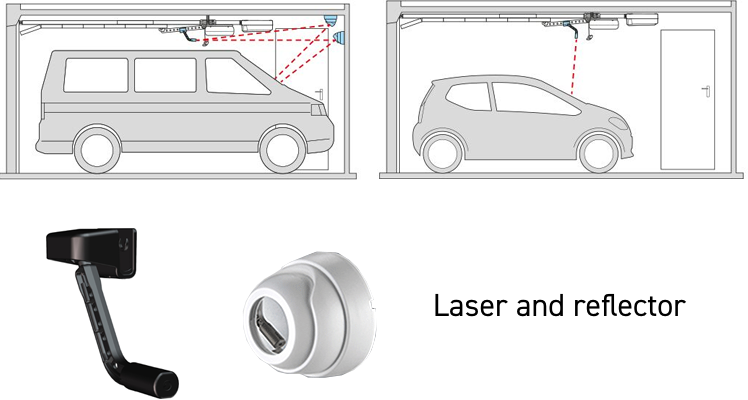

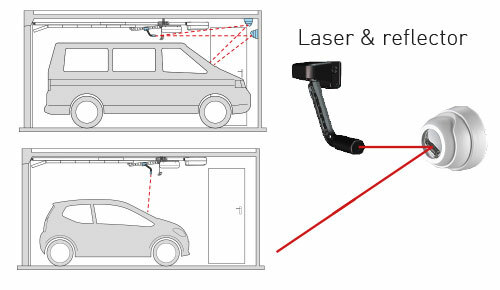

The laser sensor and reflector provide a visual assistance to help guide you to the perfect point for precise parking within your garage. No more near misses or guesstimates and no need for a parking assist system within your vehicle.
DRIVE & DRIVE PRO 600
"Parking my wet car is making the garage mouldy…"

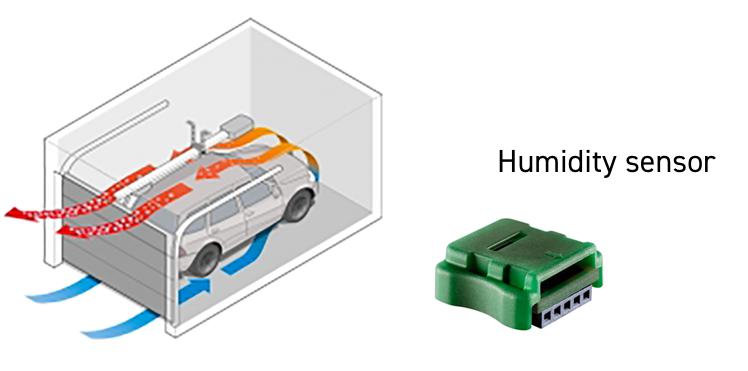

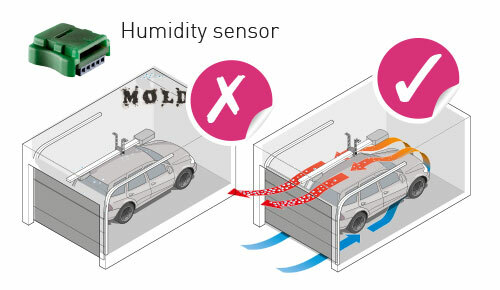

It automatically senses high humidity and opens your garage door a short distance to allow air to circulate, reducing moisture levels typical after parking a wet car in your garage. Reducing humidity lessens the likelihood of mould and mildew forming in your garage.
Light up your world with our collection of Ambience Packs that offer a number of solutions to light your interior garage space or create attractive external lighting.
DRIVE & DRIVE PRO 600
"I need more light in my garage..."

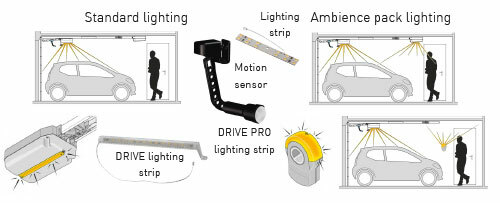

Need more light? Extra lighting strips for the control units can be combined with the motion sensor to switch on automatically as you enter. No more crashing about in the dark!
DRIVE & DRIVE PRO 500 & 600
"I need more light in my garage..."

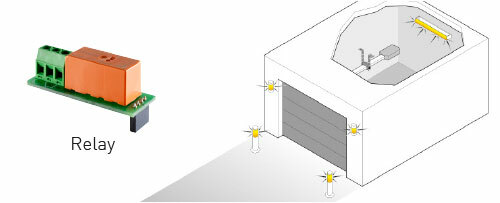

A relay allows control of other garage or garden security lighting for greater flexibility. Not only acting as deterrent in and around your garage, the relay also allows lighting activation when you open your garage door.
DRIVE & DRIVE PRO 500 & 600
"I want lights to turn on when I enter my garage..."

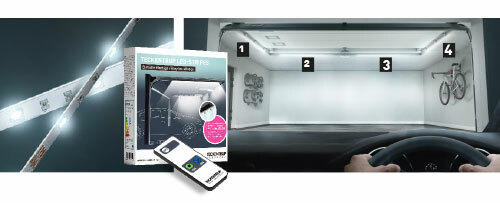

These clever LED strips are easily positioned on the underside of the door tracks with magnetic tape. They flood the garage with 6000 lumens of light (equivalent to around 400 watts of incandescent light!) Four linked LED strips are activated by the kits’ motion sensor or infra red remote control.
DRIVE & DRIVE PRO 500 & 600
"I want light the outside of my garage..."

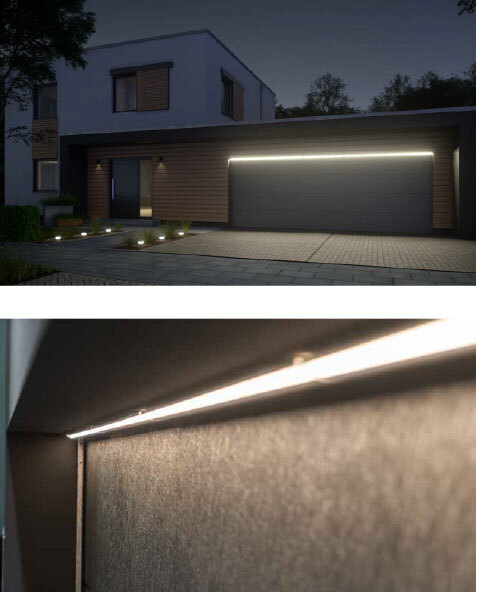

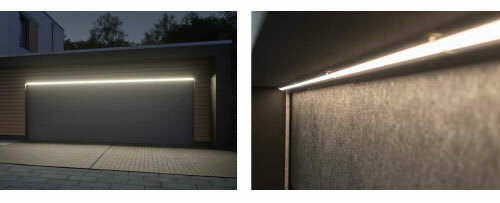

Add light bars to the outside of your garage to make a real design statement whilst increasing accessibility and safety at night. The light bar has a stand-alone power supply and motion detector. The light is 1500 lumen per metre and has neutral white 4000K light.
Looking for enhanced intruder deterrents? Our Security Packs help protect against break-in attempts - perfect for if you use your garage for storage!
DRIVE & DRIVE PRO 600
"I’m worried my garage will be broken into..."

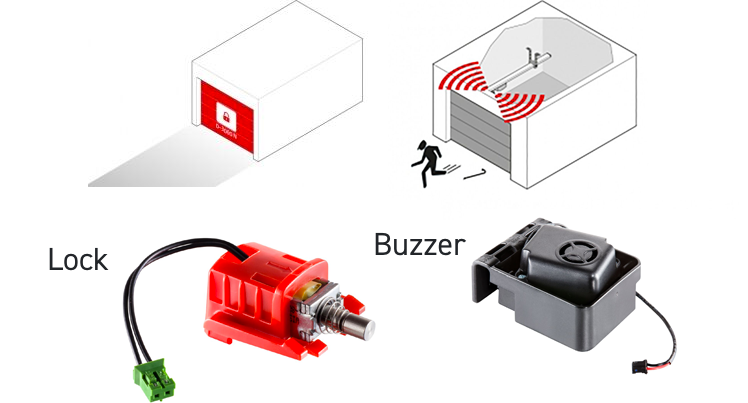

A magnetic motor lock that mechanically locks the motor in any position (even with ventilation function) up to an attack force of 300 kg, increasing the existing security. The alarm buzzer recognises a break-in attempt and outputs a loud signal tone. It can also be set to output a warning buzzer as the door closes (this must be programmed by the installer).
DRIVE & DRIVE PRO 500 & 600
"I want a deterrent to burglars..."

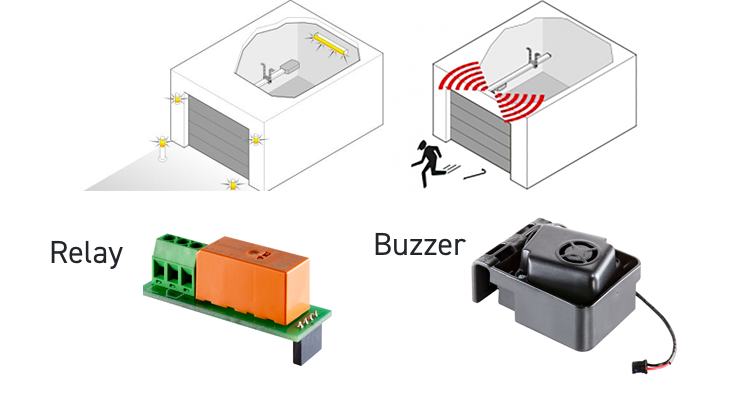

A relay that allows control of other garage or garden / security lighting. The alarm buzzer recognises a break-in attempt and outputs a loud signal tone. It can also be set to output a warning buzzer as the door closes (this must be programmed by the installer).
Add an extra layer of safety with our non-contact photoeyes for obstruction detection. In the case of an emergency, never lose access to your garage with a back up battery for when power is out.
DRIVE & DRIVE PRO 500 & 600
"I want safe obstruction detection..."

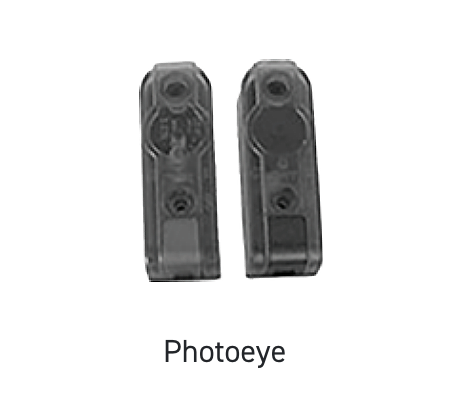

Add non-contact obstruction detection with Photoeye that uses an infra-red light beam across the opening to stop the door when the beam is broken.
DRIVE & DRIVE PRO 500 & 600
"I always need access to my garage, even in a power cut..."

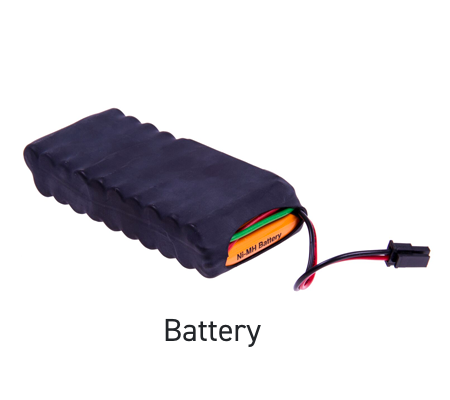

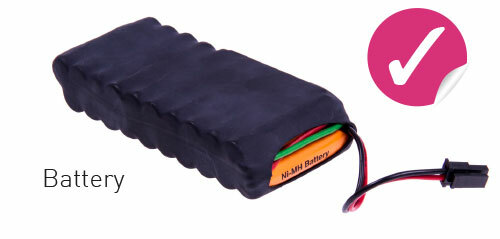

In the case of an emergency, integrated with the control unit, the Battery Pack will supply power during power outages allowing you to open and close your garage door for up to 5 cycles.
Looking for an alternative way to access your garage? Our Access Packs offer a variety of solutions via wall mounted keypads and buttons for quick and easy access on foot or without your remote.
DRIVE & DRIVE PRO 500 & 600
"I want keypad access to my garage so i don’t have to carry a remote..."

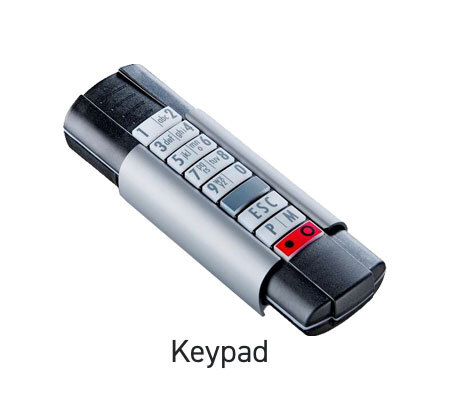

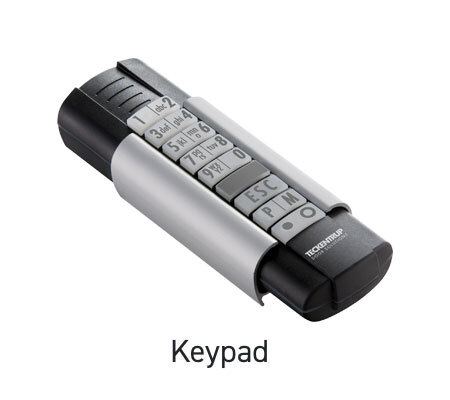

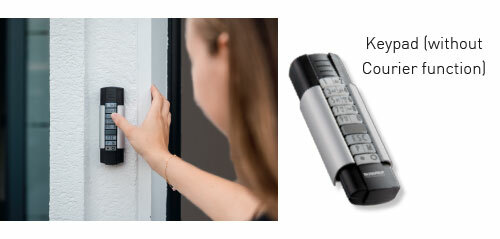

If you don’t want to carry a transmitter, you can operate your door from a wall mounted outdoor wireless keypad. It’s the perfect solution if you’re out cycling or for family members that use the door occasionally. The keypad is easy to use even in the dark thanks to illuminated keys.
DRIVE & DRIVE PRO 500 & 600
"I want to check if I've remembered to close my garage door..."

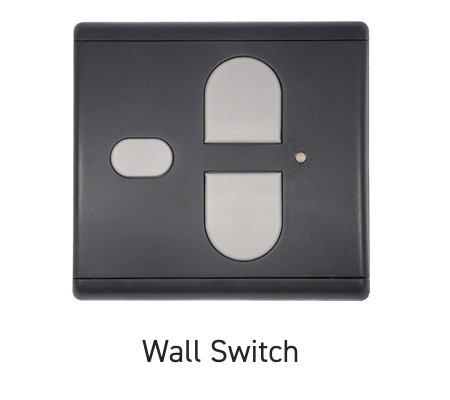

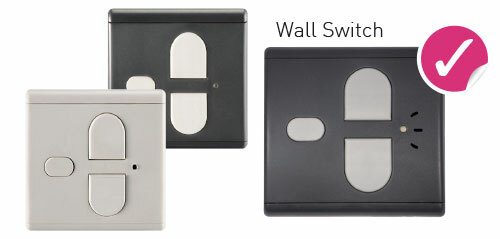

For extra convenience you can control your door and check its position from within your home with a two function wall switch available in grey or white finish. Similar in size to a standard single light switch.
DRIVE & DRIVE PRO 500 & 600
"I don't want to carry my garage door remote..."

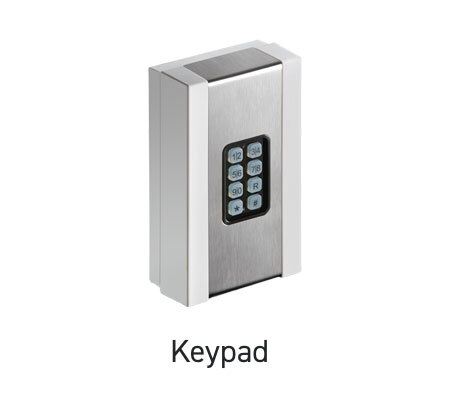

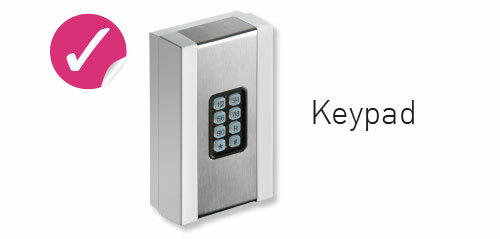

Add a wireless keypad with sleek stainless steel trim and back lighting for easy transmitter-free access to your garage. The surface-mounted keypad is battery operated making it the perfect solution for retrofitting. The keypad also has flexible usage options - multiple codes and the ability to control up to five different functions, such as garage door and lighting, etc.
DRIVE & DRIVE PRO 500 & 600

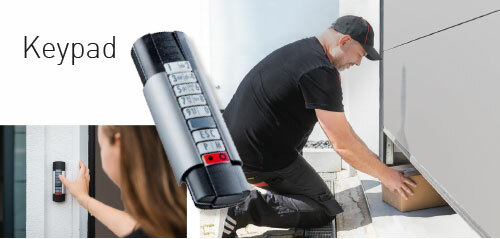

"I want my parcels to be delivered even when I'm not at home..."
All the benefits of the standard keypad but with an added courier function. The courier function offers a simple and safe solution for receiving parcels into your garage. Choose to program your door to open a short distance for parcels to be posted underneath by an access code or by pressing the red button at the bottom of the keypad. (Includes safety pack 1)
Using the latest technology, our Smart Packs provide the ultimate convenience. Open your garage from your phone and include your garage in your smart home world. Adding extra transmitters is easy and with the Pearl Vibe, never worry if your garage door is closed again!
DRIVE & DRIVE PRO 600
"I want to connect my door to my smart home system..."

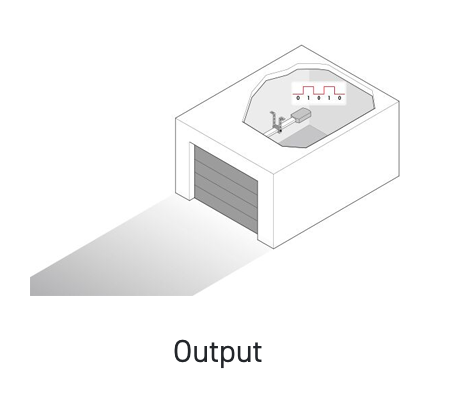

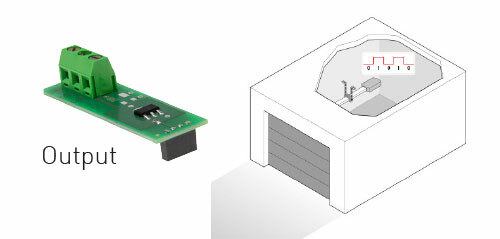

Include your garage door in your smart home world. Check the position of your garage door using your smart home system keeping everything in one place for the ultimate convenience.
DRIVE & DRIVE PRO 500 & 600
"I want to control my garage door using my smart phone..."

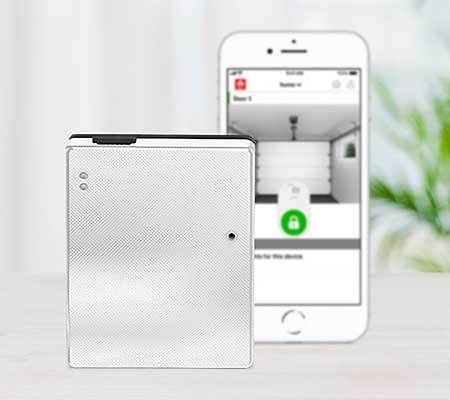

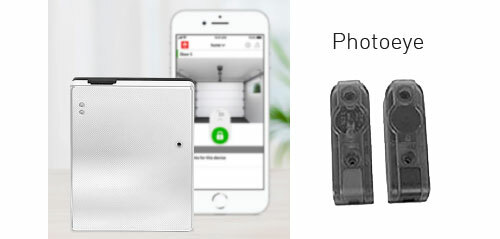

The SOMweb system enables you to control up to 10 garage doors via a smartphone app or web browser. You can even receive real-time notifications of your doors movements via the app or e-mail. SOMweb is the secure Smart Home solution where your data stays in the garage. Your data is kept safe, as it is not saved on external servers, so quite literally remains at home. For the door to be operated remotely, safety photocells are supplied with the Somweb system.
DRIVE & DRIVE PRO 500 & 600
"I want to be able to check the position of my garage door..."

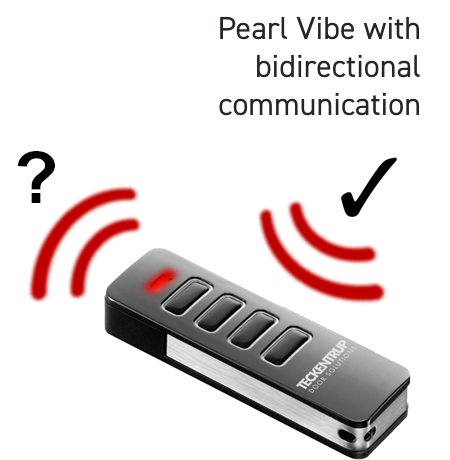

The Pearl Vibe transmitter option vibrates in your hand confirming that the control unit has received your command. It can also confirm if your door is open or closed using bidirectional communication between the opener and transmitter.
