Fixing CarTeck between the reveal?

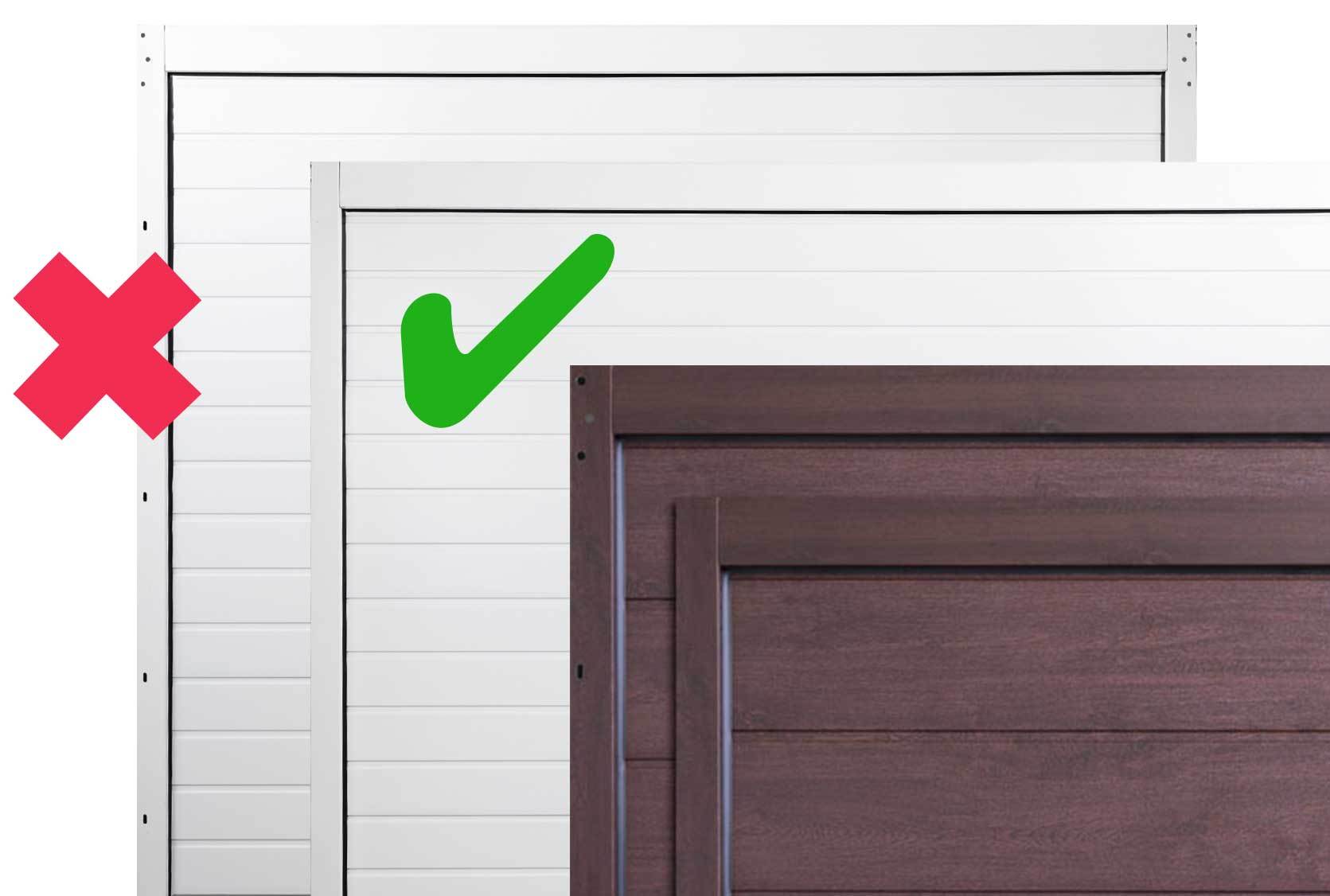

Our no holes frames are the perfect solution for between fix installations. No holes to the frame leg face means a seamless finish edge-to-edge. The no holes frame is available for all finishes including painted wood effect finishes. No need for 3D cover profiles to cover over frame holes, making installations quicker too!

...It's in the price list, but you many not have noticed!

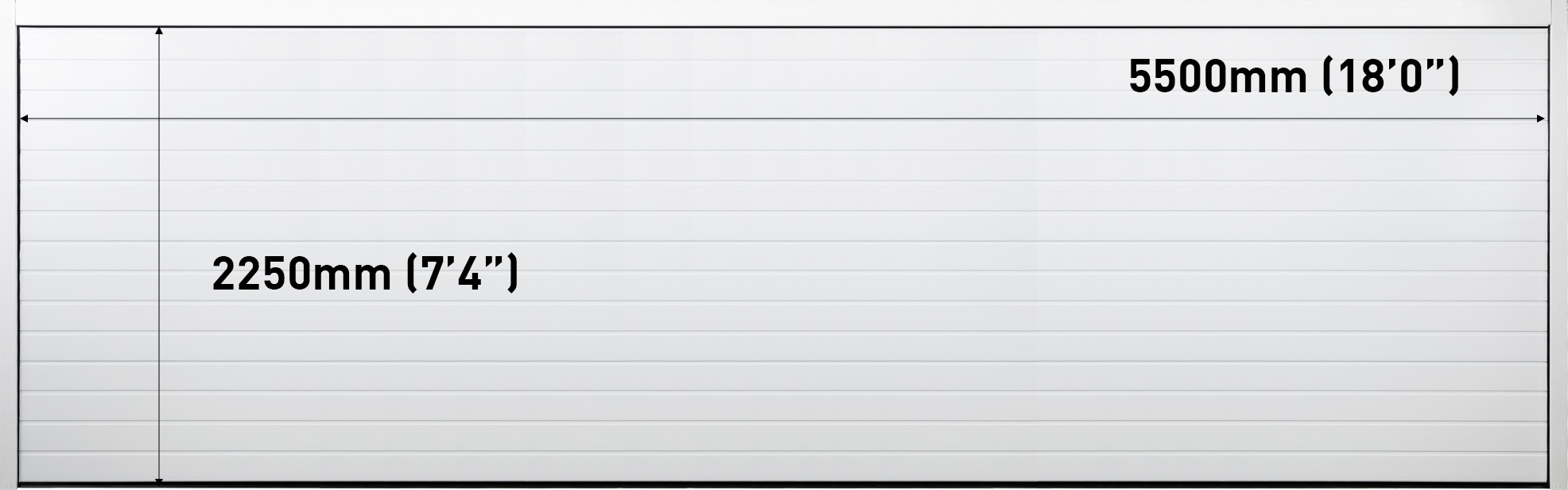

The size range of our between fix frames goes all the way up to 18'0" (5500mm) wide with a maximum height of 7'4"/2250mm... Our between fix frame has no holes to the front of the frame leg and is available colour matched to the door panel - the simplest and best between fix solution.

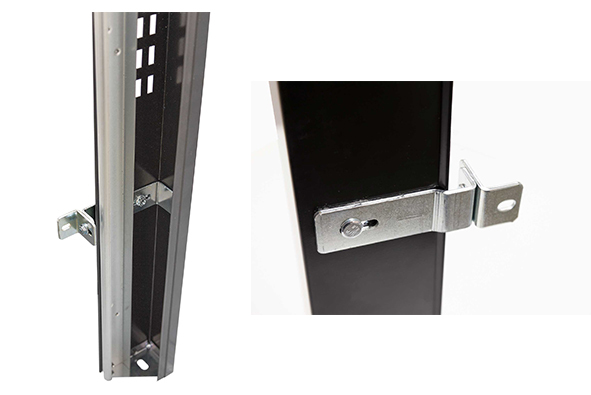

Don't forget to use the supplied frame leg stiffener brackets (2 per leg) and to secure the frame leg head with the lintel bracket that is pre-fitted to every between fix frame.

Make things even easier with our optional between fix accessories:

Between fix kit - 10 brackets that allow a fixing to be made behind the frame leg.

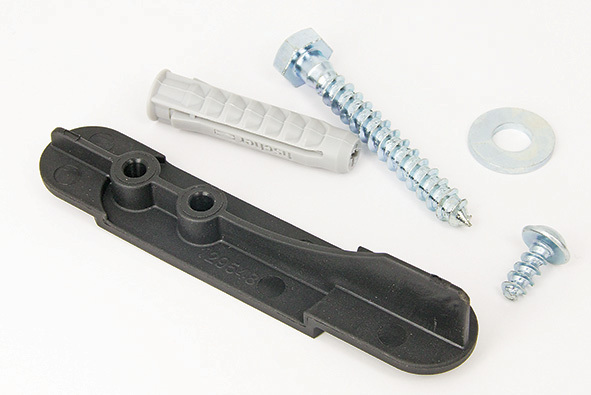

Twist fix header kit - a pair of brackets that facilitate a solid fix for the header by providing a fixing point for “L” shaped brackets.

CarTeck  - The perfect “between fix” solution
